Walk into almost any Canadian bathroom built in the last fifty years and you'll find an alcove tub: a bathtub tucked into a three-walled nook, usually with a shower above it. It's still the most common bathtub format in the country. The good news is that alcove bathtub sizes are heavily standardized — two footprints cover the vast majority of installations. The catch is that "standard" only helps you if you measure your opening correctly, order the right drain side, and understand a few trade-offs first.
The sizes that matter: 60 x 30 and 60 x 32
If you remember only one thing from this guide, make it this: most alcove tubs sold in Canada are 60 inches long and either 30 or 32 inches wide. Manufacturers like Maax, Kohler and American Standard build the bulk of the alcove tubs installed here, and their line-ups centre on those two footprints because that's what most bathrooms were framed for.
| Nominal size (L x W) | Where you'll typically find it |
|---|---|
| 60" x 30" | The classic North American standard; the majority of existing tub openings |
| 60" x 32" | The other dominant size; a touch roomier, common in newer builds and renos |
| 54" x 30" | Older homes, small bathrooms and some condos |
| 66" x 32" and larger | Renovations where the alcove was framed generously from the start |
You can compare the formats by browsing our alcove bathtub collection with these numbers in hand.
How to measure your alcove correctly
The single most common ordering mistake is measuring the wrong thing. Alcove tubs are sized to fit the framed (stud-to-stud) opening, not the finished, tiled surfaces you see in a completed bathroom. Tile, cement board and drywall all eat into the opening, so a finished measurement reads smaller than the space behind the walls.
- If the walls are open: measure from stud face to stud face along the back wall. This is the number to compare against the tub's spec sheet.
- If the bathroom is finished: measure wall to wall at the tub rim, remembering the finishes are eating into the number. A finished reading of 58–60 inches usually means the framing behind it will take a 60-inch tub, but confirm against the manufacturer's spec sheet before ordering.
- Measure in more than one spot. Take the length at the front edge, middle and back wall; older homes are rarely square, and the smallest number governs.
- Measure the depth of the alcove from the finished back wall out to where the tub's front face will sit. This tells you whether a 30-inch or 32-inch-wide tub fits.
- Check the floor for level and the walls for plumb. Neither is a deal-breaker, but your installer will want to know.
One more nuance: "60 inches" is a nominal size — actual dimensions often run a fraction under so the tub slides into the opening. The spec sheet for the exact model is the final word.
Left-hand or right-hand drain?
Almost every alcove tub is handed, meaning the drain sits at a fixed end. To determine which you need, stand facing the alcove as if you were about to step into the tub. If the existing drain and faucet are on your left, you need a left-hand tub; on your right, a right-hand tub.
This is decided by your plumbing rough-in, not by preference. Moving the drain to the other end means opening the floor and relocating the waste line — possible in a full renovation, but expensive as an afterthought. A handed tub cannot simply be flipped around, because only one side has a finished front. Order the wrong hand and you're arranging a return.
What the apron (or skirt) actually is

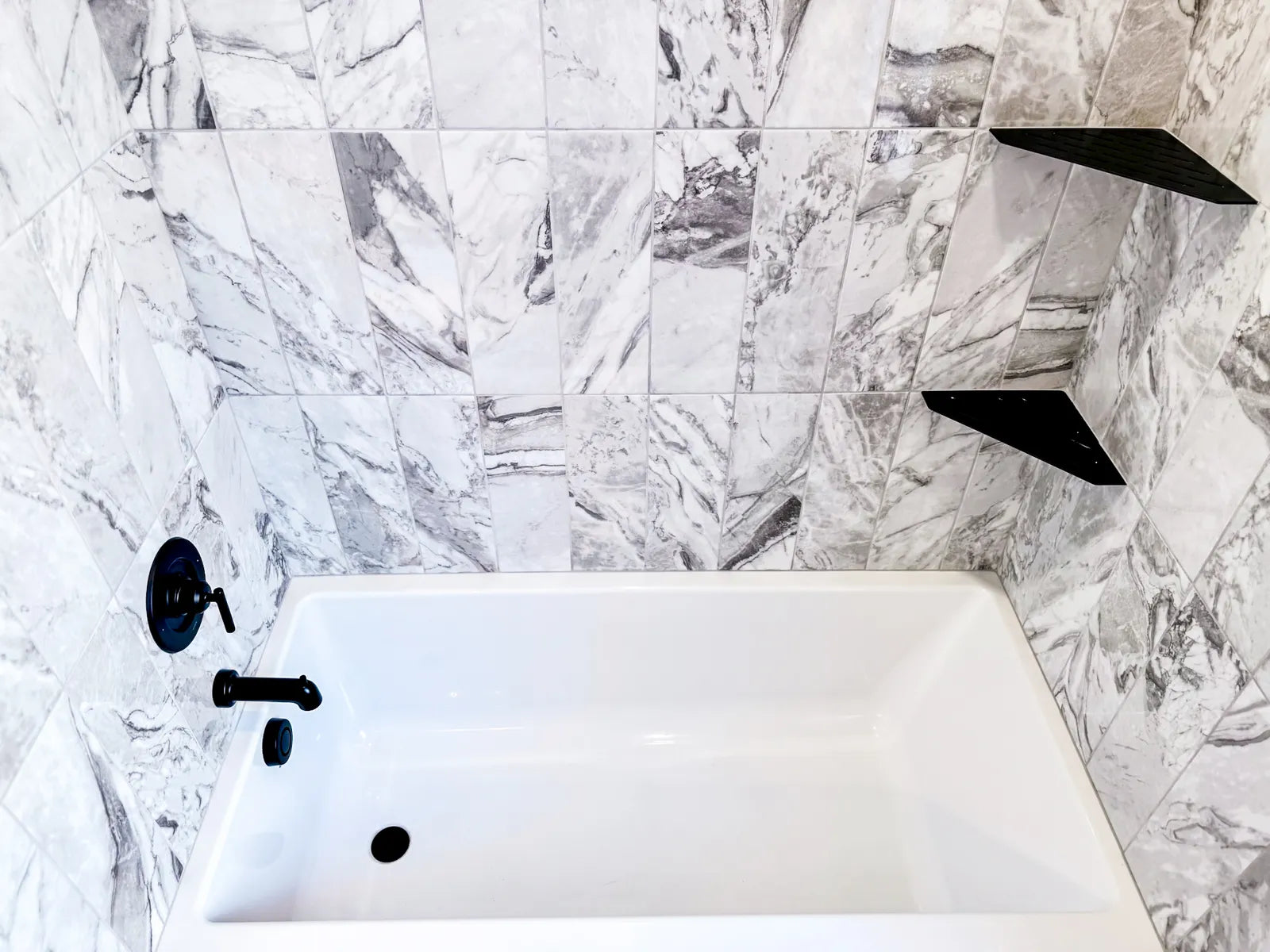

An alcove tub has one finished side: the apron, sometimes called the skirt — the integral front panel that faces the room. The other three sides are unfinished and usually carry a tiling flange — a raised lip that tucks behind the wall finish so water sheeting down the walls ends up in the tub, not in the framing.
This is also why an alcove tub can't stand in for other formats. It isn't finished on all sides like a freestanding bathtub, and it isn't designed to sit inside a built deck like a drop-in.
Depth: soaking comfort vs. easy entry
Two 60 x 30 tubs can feel completely different in use, because depth is where models genuinely diverge. A deeper basin gives you a more satisfying soak — more water over your body before it reaches the overflow. But depth cuts both ways:
- Step-over height. A taller rim is harder to climb over, which matters for young kids, older family members and anyone with mobility concerns.
- Hot water supply. A deep soaker holds noticeably more water, and a modest hot-water tank can run out before the tub fills to a satisfying level.
- Weight. More water means more load on the floor structure — worth a thought in older homes.
The honest advice: if the tub mostly hosts showers and kids' baths, standard depth is fine. If you're a genuine bath person, prioritize soaking depth to the overflow — it's listed on the spec sheet — and make sure your water heater can keep up.
The 54-inch opening in older homes
Plenty of wartime houses, older bungalows and compact condos have tub alcoves framed at 54 inches. A 60-inch tub will not fit, and no shim or trim trick makes a six-inch gap acceptable. Three real options:
- Buy a 54 x 30 tub. They're still made, though the selection is thinner than at 60 inches. This is the least disruptive route.
- Reframe the alcove to 60 inches. Only worth it in a full renovation, and only if you can borrow those inches from an adjacent closet or wall cavity.
- Convert to a shower. If nobody bathes, a 54-inch opening makes a comfortable walk-in shower. Browse shower bases in that footprint before deciding.
Planning for tub-shower use
Most alcove tubs live under a shower, so plan the whole wet area at once: the wall surround or tile, the valve and trim from our bathtub faucets range, and whether you'll hang a curtain or fit a sliding door from the shower doors collection. If shower use is the priority, look for a tub with a flatter, wider bottom and slip resistance rather than a sculpted soaker floor — sloped interiors are lovely to lie in and less lovely to stand on.
Measuring carefully before you buy is a habit that pays off across the whole bathroom — it's the same discipline we walk through in our guide to measuring toilet rough-in before you buy. Ten minutes with a tape measure beats a week waiting on a return.
Frequently asked questions
Is a 60-inch tub actually 60 inches long?
Usually not exactly. Sizes are nominal; actual length often runs slightly under so the tub fits a 60-inch framed opening. Confirm exact dimensions on the spec sheet for the specific model.
How do I know if I need a left-hand or right-hand drain?
Stand facing the alcove as if stepping into the tub. If the drain is at the left end, order a left-hand tub; at the right end, a right-hand tub. The existing plumbing rough-in decides this.
Can I install a 60-inch tub in a 54-inch alcove?
No. The realistic options are a 54 x 30 tub, reframing the alcove to 60 inches during a larger renovation, or converting the space to a walk-in shower with a 54-inch base.
What's the difference between an alcove tub and a drop-in?
An alcove tub has a finished front apron and installs against three walls. A drop-in bathtub has no finished sides at all — it sits inside a custom-built deck that surrounds it. The two aren't interchangeable.
