Stand in front of the shower door section long enough and the terms start to blur: pivot, sliding, bypass, semi-frameless, return panel. The good news is that the pivot vs sliding shower door decision usually makes itself once you answer two questions. How much clear floor space is there in front of the shower? And how wide is the opening you need to cover?
The short answer
A pivot door swings open like a regular door and gives the widest, most unobstructed entry, but it needs clearance in front of the shower. A sliding or bypass door rolls along a track, needs zero clearance, and is the default for 60-inch alcoves and tub-shower combos. Tight bathroom? Sliding wins by forfeit. Room to spare? Pivot is the nicer door to live with.
| Pivot | Sliding / bypass | |
|---|---|---|
| How it opens | Swings outward (or both ways) on pivot hinges | Panels roll sideways on a track |
| Clearance needed | Yes — full swing arc in front of the shower | None |
| Usable entry width | Nearly the full door width | Roughly half the total opening |
| Typical fit | Narrower alcoves and corner showers | 60-inch alcoves and tub-showers |
| Cleaning attention | Hinges and bottom sweep | Track and panel overlap |
Pivot doors: the widest opening, if you have the room
A pivot door hangs on hinge points at the top and bottom (or on wall-mounted hinges) and swings open like any other door. Because no fixed panel blocks part of the entry, you get almost the full width of the door as usable opening — which matters for assisted bathing or anyone with limited mobility.
Pivot doors suit narrower openings — the classic use case is a standalone alcove or corner shower rather than a full-width tub wall. On wider alcoves, a pivot door is often paired with a fixed inline glass panel, so the door stays a manageable width while the glass spans the whole opening.
The one non-negotiable: measure the swing. Sketch the arc of the open door and check it against the vanity, the toilet, the bathroom door, and anything else within reach. Codes generally require shower doors to open outward (or both ways), so you cannot cheat by swinging inward only. If the arc collides with anything, move on to sliding.

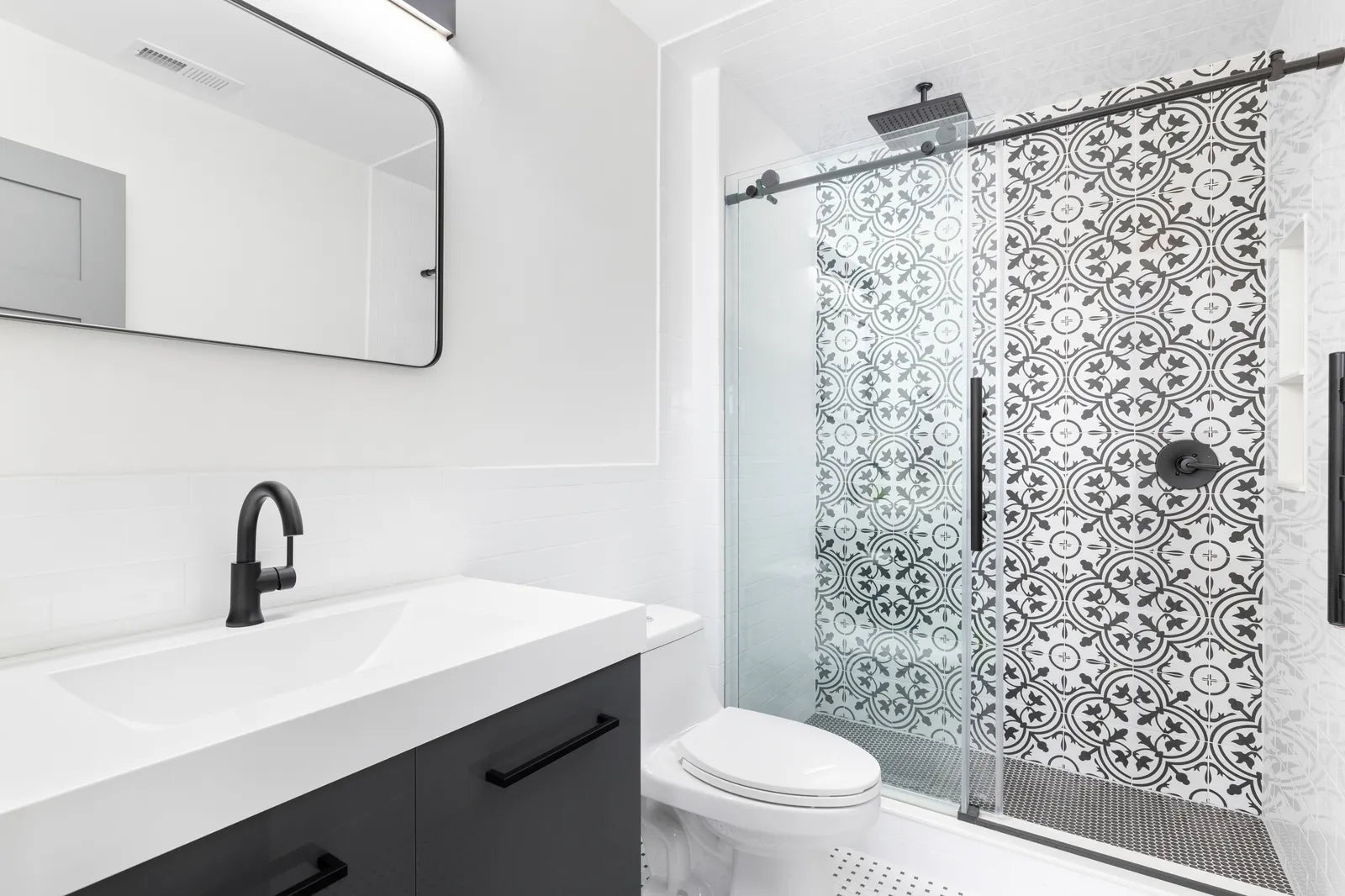

Sliding and bypass doors: built for the 60-inch alcove
"Sliding" and "bypass" are close cousins, and retailers often use the words interchangeably. A traditional bypass door has two glass panels that slide past each other on parallel tracks, so you can enter from either end. Many newer sliders instead use one fixed panel and one rolling panel — often with exposed barn-door-style rollers along a top bar — which looks more modern and simplifies the hardware.
Either way, the appeal is the same: nothing swings into the room. That makes sliding doors the standard answer for the 60-inch alcove that dominates Canadian bathrooms, and the default glass option over a tub-shower combo, where a swinging door would need to clear both tub rim and room. If you are replacing a curtain over an alcove bathtub, a bypass tub door is the direct upgrade: same footprint, far better splash control.
The honest trade-off is entry width. However wide the total opening, you only ever walk through roughly half of it, because one panel is always parked in front of the other. For most people that is a shrug; if anyone in the household needs assistance bathing, it is worth thinking hard about.
Cleaning reality: tracks vs hinges
This is where the designs genuinely diverge over years of ownership. Bypass doors traditionally ride in a bottom track, and that channel collects soap scum and hard-water minerals. Framed doors with deep bottom tracks are the worst offenders; modern barn-style sliders hang from the top bar and use only a low-profile guide at the bottom, which closes most of that gap. Choosing between two sliders? The depth of the bottom track predicts long-term happiness better than the handle style.
Pivot doors skip the track entirely. You wipe the hinges occasionally and watch the sweep or seal along the bottom of the glass, which wears eventually and is a cheap, replaceable part. In hard-water regions, doors with a factory-applied protective glass coating also stay presentable longer.
Reversibility, corners and return panels
Most pivot doors are reversible — the same unit can hinge left or right, decided at installation. You generally want the door hinging away from the shower controls so you can reach in and start the water without stepping into the spray. Sliding doors are reversible by nature, though on fixed-plus-rolling designs confirm which side the moving panel can take.
Corner showers add one more piece of vocabulary: the return panel — a fixed pane of glass set at 90 degrees to the door, closing off the second open side of the shower. A pivot or sliding door plus a return panel is how you glass in a corner, and manufacturers sell them as matched components so the hardware and glass tint line up. If you would rather not assemble the puzzle yourself, complete shower enclosures bundle the door, panels and sometimes the base into one coordinated kit.
Measure before you order
Shower doors are sold in adjustment ranges rather than single exact widths, because real walls are never perfectly plumb. Measure the finished opening at the top, middle and bottom, and buy a door whose range covers your narrowest and widest readings. Check that the curb or tub rim gives the track or pivot hardware a flat surface to land on. It is the same discipline as checking rough-in before buying a toilet — five unglamorous minutes with a tape measure that prevent the expensive kind of surprise (our toilet rough-in measuring guide covers that one). Redoing the whole shower? Settle the shower base dimensions first and choose glass to match, not the other way around.
What you'll find in the Canadian market
In Canada, Maax and Kalia dominate the shower door aisle, and for good reason: both are Canadian manufacturers building for the alcove sizes and tub-shower layouts common in Canadian housing stock. That translates into deep selections of 60-inch bypass and tub doors, pivot doors with inline-panel options, matching return panels for corners, and replacement parts you can actually get, in everything from chrome to matte black. Compare the styles side by side in our shower doors collection, and if you are planning the broader renovation, the rest of our buying guides are worth a browse.
Frequently asked questions
Is a pivot or sliding shower door better?
Neither outright — it is a floor-plan question. Pivot doors give a wider, unobstructed entry and skip the bottom track, but need clear space to swing. Sliding and bypass doors need no clearance and suit 60-inch alcoves and tub-showers, at the cost of an entry roughly half the total width and a track to keep clean.
Can I put a swinging door on a bathtub?
Tub-mounted pivot doors exist, but they are the exception: the door must clear the tub rim and still have swing room in the bathroom, and coverage of the opening is usually partial. Most tub-shower combos are better served by a bypass tub door designed for that application.
Are sliding shower doors hard to keep clean?
The glass is no different; the bottom track is the extra chore. Deep framed tracks trap soap scum, while modern top-rolling designs with a minimal bottom guide close most of the gap. A quick squeegee after each shower matters more than which door you chose.
Which door style is best for accessibility?
Pivot, generally. Its near-full opening width makes assisted bathing and mobility aids far more workable than the halved opening of a bypass door. If clearance rules out a swing, fit the widest sliding opening you can — or skip the door in favour of an open walk-in screen.
