Shower heads look interchangeable online, then arrive in sizes that behave very differently once they are on the wall. A 25 centimetre rain head and a 10 centimetre wall-mount head are both sold as shower heads, but they need different arms, different clearances and sometimes different rough-in planning to feel right. This guide covers the standard size ranges, how to measure the space you actually have, and the fit mistakes we see most often from buyers across Canada, whether you are renovating a condo in Vancouver or a century-home bathroom in Halifax.
Standard shower head sizes at a glance
Most shower heads sold in Canada fall into a few recognizable size families. Manufacturers list the face diameter, meaning the width of the spray plate, in inches with millimetres alongside, since Canadian plumbing still runs on a blend of imperial and metric.
| Type | Typical face size | Usual mounting |
|---|---|---|
| Classic wall-mount head | Roughly 10 to 15 cm (4 to 6 in) | Angled wall arm |

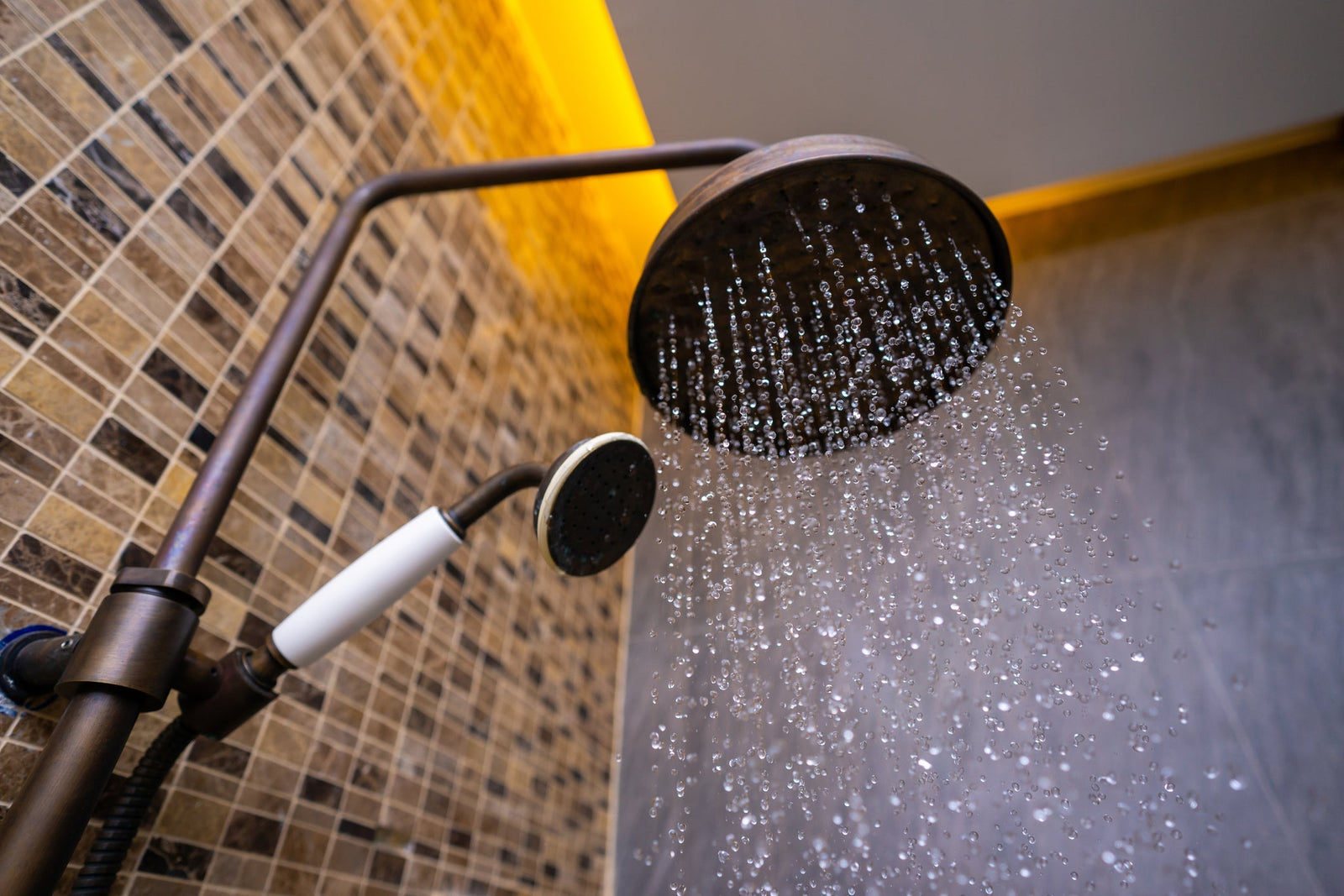

| Rain shower head | Roughly 20 to 30 cm (8 to 12 in) | Straight wall arm or ceiling arm |
| Hand shower | Roughly 8 to 11 cm (3 to 4.5 in) | Slide bar or wall bracket |
| Ceiling-mount rain head | Roughly 25 to 40 cm (10 to 16 in) | Short ceiling drop arm |
These are ranges, not promises. Brands like Riobel, Kalia, Aquabrass and Kohler all make heads at the small and large ends of each family, and square or rectangular faces are measured across the widest edge. The size that photographs beautifully is not automatically the size that fits your stall.
Measuring the space you actually have
Four measurements settle most sizing questions. Grab a tape measure before you fall in love with anything.
- Ceiling height. Many Canadian bathrooms sit around the 2.4 metre mark, but basement suites, sloped-roof second storeys and older housing stock in Quebec and the Maritimes often run lower. Ceiling height decides whether a ceiling-mount rain head is realistic at all.
- Arm outlet height. Measure from the shower floor to the pipe elbow coming out of the wall. Everything hangs from this point, so a low outlet limits how large a head you can mount without crowding tall users.
- Stall footprint. Measure the width and depth of the shower base or tub. Spray coverage should land comfortably inside this footprint, not on the glass or the curtain.
- Projection. Note how far your existing arm reaches from the wall. Rain heads need enough reach that the water falls over your head rather than down the tile behind you.
Clearance rules, stated generally
Exact clearances are a local matter. The National Plumbing Code of Canada sets the framework for supply plumbing, provinces adopt it with their own amendments, and your municipal inspector has the final word, so treat the following as planning guidance rather than code.
- Leave generous headroom under the spray face. Start high enough that the tallest household member stands fully under the spray with room to spare, then adjust for the head's own depth and any drop arm.
- Bigger faces want more distance from the walls. A wide head centred in the stall keeps spray off the glass and reduces the constant squeegee routine.
- Ceiling mounts trade arm length for ceiling height. The head plus its drop arm together determine your real standing clearance, and spec sheets list both figures separately.
- In tight stalls with hinged glass, confirm a long arm or slide bar will not intersect the door's opening arc before anything gets drilled.
Common fit mistakes we see
- The oversized rain head in a small stall. A 30 centimetre head over a compact base soaks the glass and the ceiling long before it soaks you. Match spray diameter to footprint first, style second.
- Ignoring projection. A large head on a short angled arm drops its spray close to the wall, so you end up pressed against cold tile in January.
- Ceiling mounts under low ceilings. In a basement suite, a drop arm plus the head's own depth can leave surprisingly little standing room. Measure for your tallest user, not the average one.
- Forgetting the winter factor. A wide rain head spreads the same water over more skin, so it can feel cooler, something buyers in drafty Prairie farmhouses notice more than condo dwellers. If you love long hot showers in February, a smaller, denser spray or a dual-head setup may serve you better.
- Assuming the valve does not matter. The head is only the visible end of the system. Moving from a single head to a head plus hand shower means the valve and diverter behind the wall must support it, so it is worth browsing shower valves with your plumber before committing to the pretty part.
How to read a shower head spec sheet
Five lines on the spec sheet do most of the work.
- Face diameter. The spray plate width. For square heads, check whether the figure is the edge length or the diagonal.
- Projection or reach. How far the spray face sits from the wall once installed, usually stated with the recommended arm.
- Connection. Nearly all North American heads and arms share the same standard half-inch threaded connection, which is why a simple head swap is often a ten-minute job with thread tape.
- Flow rate. Listed in litres per minute, often with gallons alongside. Lower-flow heads are increasingly common and perform well when the spray pattern is engineered for it, so judge the whole sheet, not one number.
- Certifications. Look for cUPC or CSA marks, which indicate the fixture is certified for the Canadian market. Reputable brands carry them, but confirming before an inspection is cheap insurance.
Fit first, finish second
With your four measurements in hand, sizing stops being guesswork. You can filter the shower heads collection by the families above knowing what will actually clear your ceiling and cover your base, and everything ships Canada-wide, from Vancouver Island to Newfoundland. If the project is bigger than one head, a matched column from the shower systems collection bundles head, hand shower and trim so the sizes are coordinated for you. For neighbouring decisions like bases, doors and valves, our buying guides hub walks through each one the same way: measure, then shop.
Frequently asked questions
What is the most common shower head size?
Classic wall-mount heads in the 10 to 15 centimetre range remain the most common in Canadian homes because they suit standard angled arms and typical stall sizes. Rain heads around 20 to 25 centimetres are the most popular step up, big enough for full coverage without overwhelming an average base.
Can I put a rain shower head on my existing shower arm?
It will usually attach, since the threaded connection is standard. The real question is geometry: a typical angled arm may not hold a large head level or far enough from the wall. Many rain heads recommend a straight extended arm, so compare the projection figure on the spec sheet with your stall depth before ordering.
How much clearance do I need under a shower head?
Enough that your tallest user stands fully under the spray without ducking, plus a margin for the head's depth. There is no single national number to quote here: treat the manufacturer's installation guidance as your baseline and confirm anything code-related locally, since provinces adopt the National Plumbing Code of Canada with their own amendments.
Does a bigger shower head mean weaker pressure?
Not weaker pressure exactly, but the same flow spread across a larger face, so each individual stream feels gentler. Homes with modest supply pressure, common in rural properties and upper floors, often feel better served by a mid-size head. If you want the rain look without the trade-off, a dual-head system lets you switch between wide and focused sprays.
