Windward® 72" x 42" drop-in bath

The Kohler Windward® 72" x 42" drop-in bath features a deep bathing area, contoured back support and armrests, and a generous 72" length for comfortable, whole-body soaks. The square deck and clean lines suit a variety of bathroom designs, and the spacious design accommodates up to two bathers.

Features

• Oval basin creates a spacious bathing experience
• Spacious design accommodates up to two bathers
• Integral lumbar support and armrests offer extra comfort while bathing
• Reversible drain
• Drop-in installation

Specifications

• Material: Acrylic
• Colour: White
• Drain location: Reversible
• Drain hole diameter: 2-1/4" (57 mm)
• Minimum flat for door: 3-1/16" (78 mm)

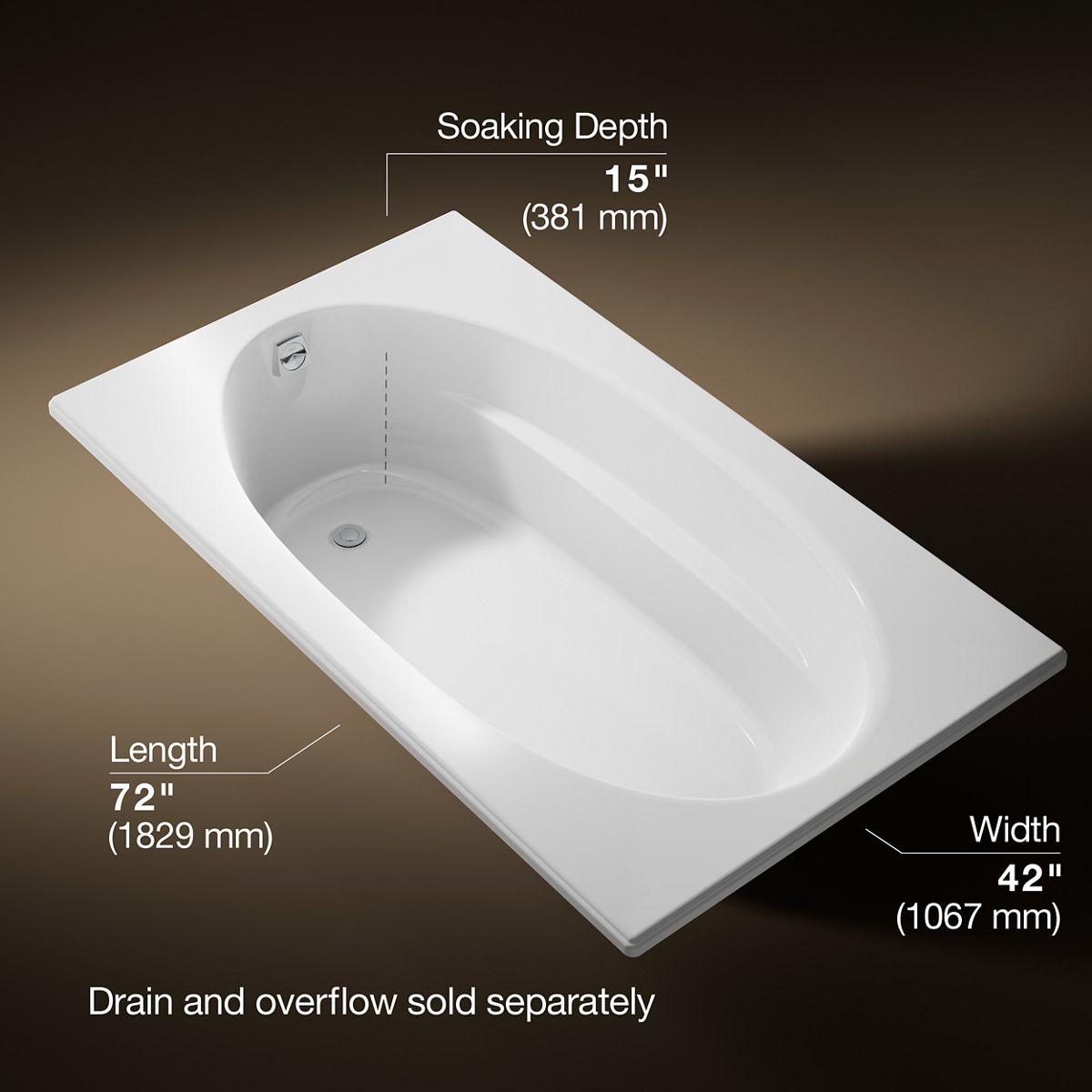

• Basin area, bottom: 55" x 23-1/4" (1397 mm x 591 mm)
• Basin area, top: 64" x 32" (1626 mm x 813 mm)
• Water depth: 15" (381 mm)
• Water capacity: 78.5 gal (297.2 L)
• Minimum floor load: 38 lbs/ft²
• Cutout: Drop-in, 70-1/2" x 40-1/2" (1791 mm x 1029 mm)
• Codes/standards: CSA B45.5/IAPMO Z124, ASTM E162, ASTM E662
• Hot water supply: Should be 70% of the capacity of the bath or greater; installations will vary
• Warranty: KOHLER® Plastic Baths and Shower Bases Lifetime Limited Warranty
• Note: All product dimensions are nominal
