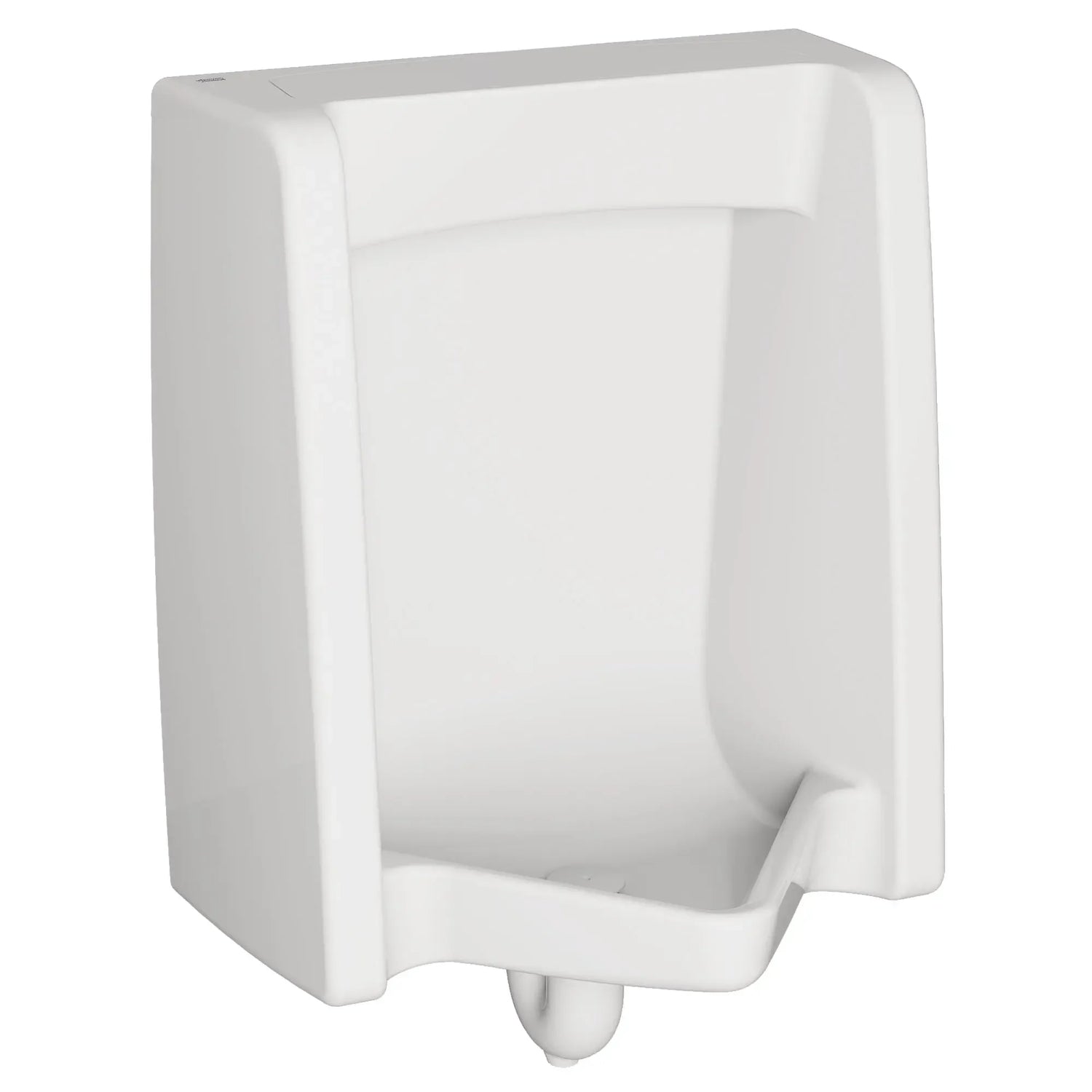

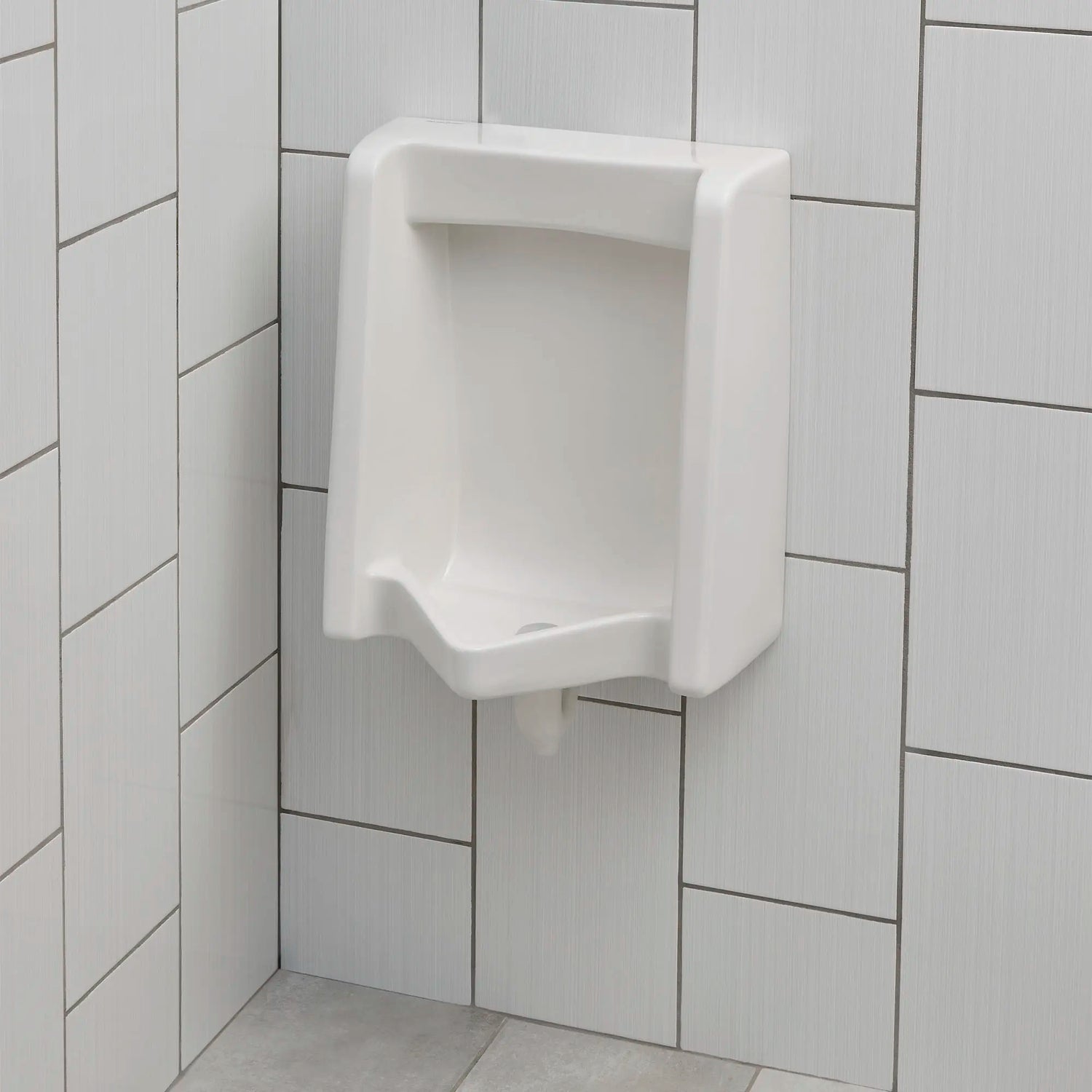

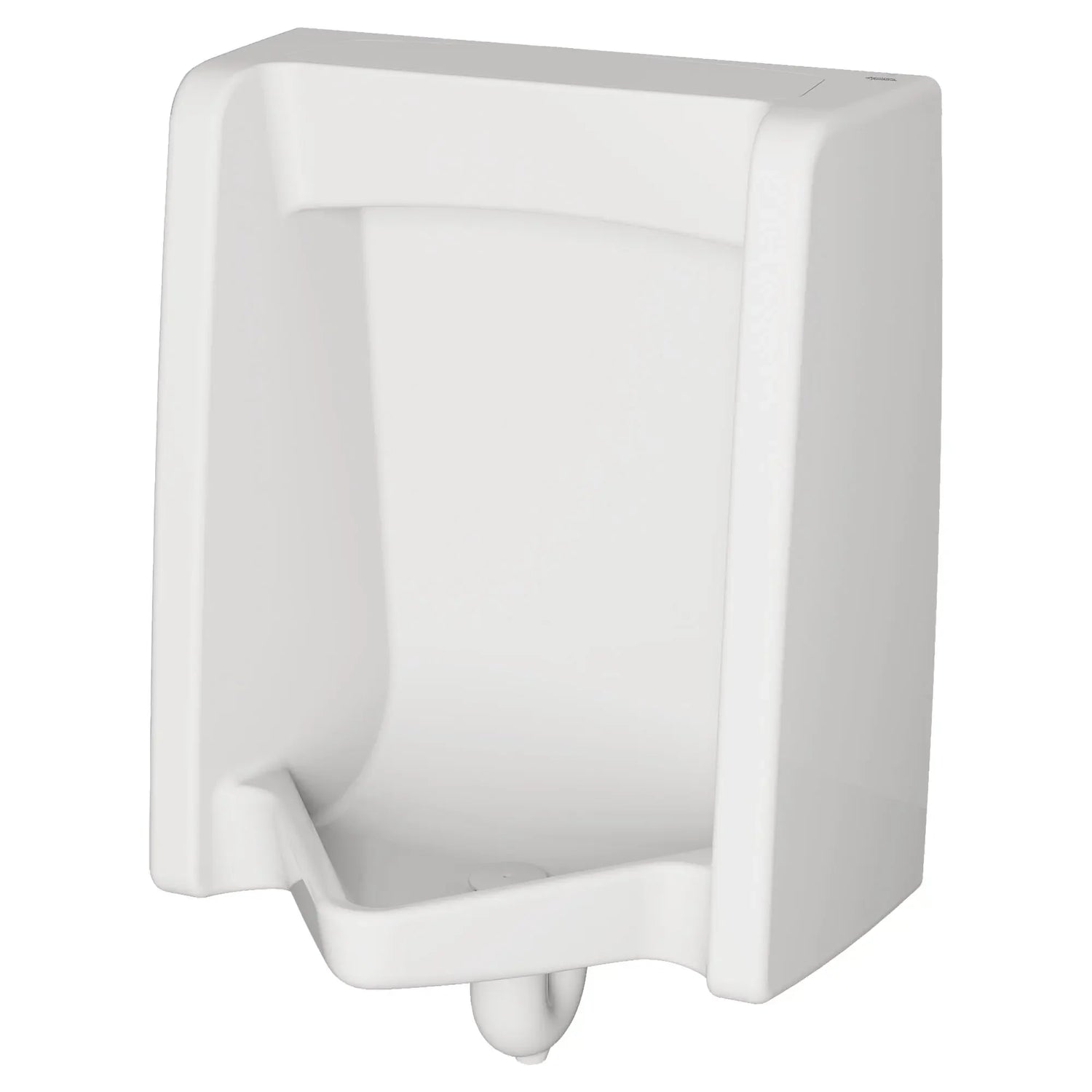

Washbrook 0.125 -1.0 gpf (0.47 - 3.8 Lpf) Back Spud Urinal

This ultra-high-efficiency, low-consumption universal urinal operates in the range of 0.125 GPF – 1.0 GPF. Choose a manual- or Selectronic® sensor-operated flush valve that suits your budget and water usage requirements. Features include a flushing rim and washout flush action for effectiveness, plus extended sides for privacy.

Features

• High Efficiency Urinal (HEU) operates in the range of 0.125 gpf – 1.0 gpf (0.47 Lpf – 3.8 Lpf)
• Flushing rim
• Elongated 14" (356 mm) rim from finished wall
• Powerful washdown action
• Extended sides for privacy
• 3/4" (19 mm) inlet spud with 2" (51 mm) threaded outlet connection
• Two wall hangers included
• Fixture only
• Chrome plated non-metallic strainer included
• High Efficiency Urinal (HEU) operates in the range of 0.125 gpf – 1.0 gpf (0.47 Lpf – 3.8 Lpf)
• Flushing rim
• Elongated 14" (356 mm) rim from finished wall
• Powerful washdown action
• Extended sides for privacy
• 3/4" (19 mm) inlet spud with 2" (51 mm) threaded outlet connection
• Two wall hangers included
• Fixture only
• Chrome plated non-metallic strainer included.

Specifications

• ADA Compliant: Yes
• Barrier Free: Yes
• Brand: American Standard
• Cal Green: Yes
• Category: Urinals
• CEC Certified: Yes
• Color / Finish: White
• Department of Energy Certified: Yes
• Collections: Washbrook
• WaterSense: Yes
• Fixture Material: Vitreous China
• Fixture or Fitting Material: Vitreous China
• Gallons Per Flush (min-max): 0.125 - 1.0 GPF
• Input Connection Type: NPT (National Pipe Tapered Threads)
• Height: 26-1/8
• Length: 14-1/8
• Width: 18-7/8
• Residential or Commercial: Commercial
• Subcategory: Back Spud Urinals
• Warranty: 1 Year Limited Warranty
• Water Efficient: Yes
