Villager® 60" x 30-1/4" alcove bath, right drain

The Kohler Villager 60" x 30-1/4" alcove bath with right drain is made of KOHLER enameled cast iron. An integral apron allows for quick installation, and the Safeguard slip-resistant surface provides excellent traction underfoot. Integral lumbar support adds comfort to this rectangular alcove bath.

Features

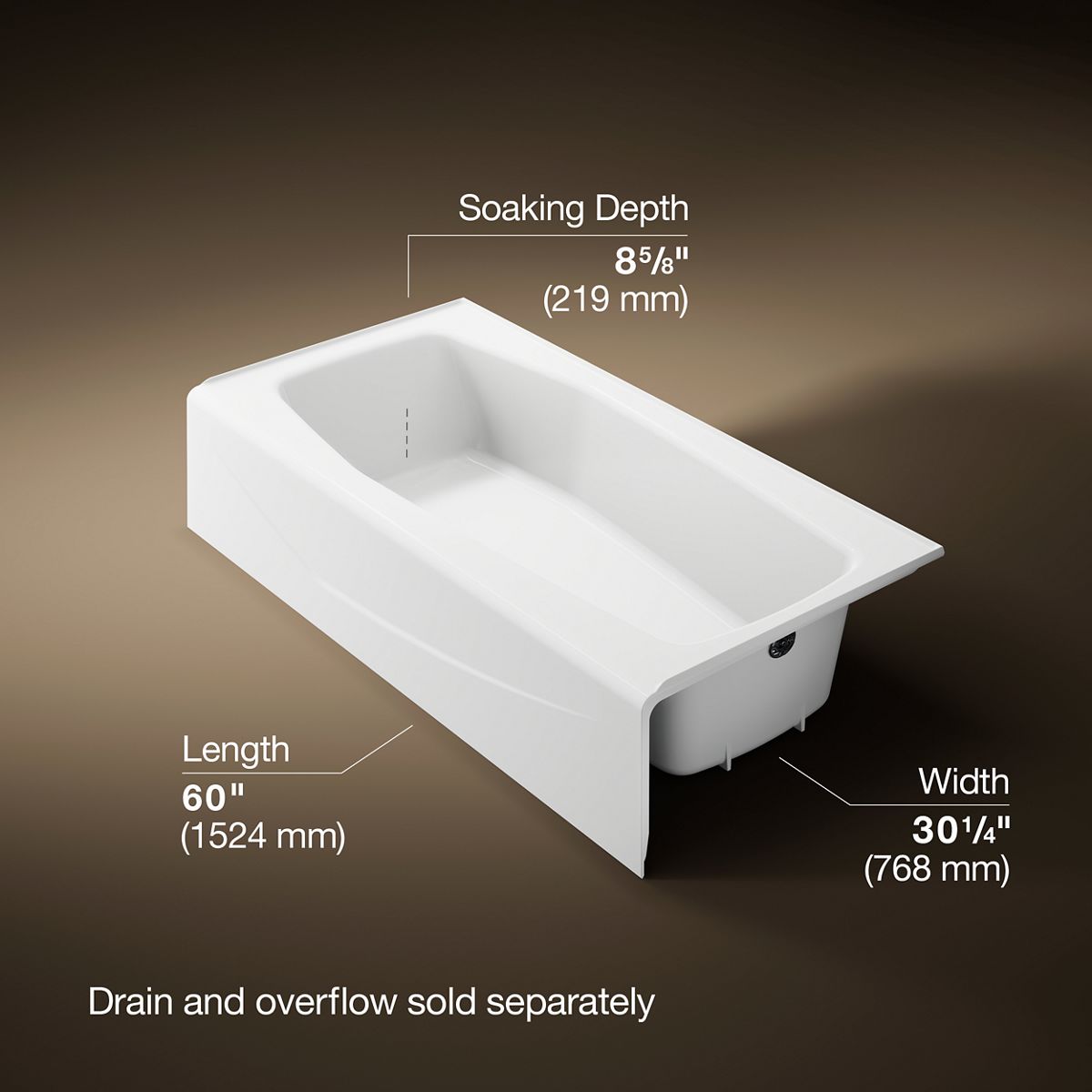

• Measures 60"L x 30-1/4"W x 14"H
• Right-hand drain
• Integral apron for quick installation
• Integral flange
• Safeguard slip-resistant surface
• Integral lumbar support
• ADA compliant when installed to the specific requirements of these regulations
• Installation requirement: the hot water supply should be 70% of the capacity of the bath or greater; installations will vary

Specifications

• Installation: Alcove, right drain
• Drain hole diameter: 2-1/4" (57 mm)
• Basin area, bottom: 45" x 22" (1143 mm x 559 mm)
• Basin area, top: 55" x 24" (1397 mm x 610 mm)
• Water depth: 8-5/8" (219 mm)
• Water capacity: 33 gal (124.9 L)
• Minimum floor load: 49 lbs/ft²
• Codes/Standards: ASME A112.19.1/CSA B45.2, ASTM F462, ADA, ICC/ANSI A117.1
• Available finishes: White, Biscuit
• Warranty: KOHLER Enameled Cast Iron Bath and Shower Base Lifetime Limited Warranty
• Note: All product dimensions are nominal
