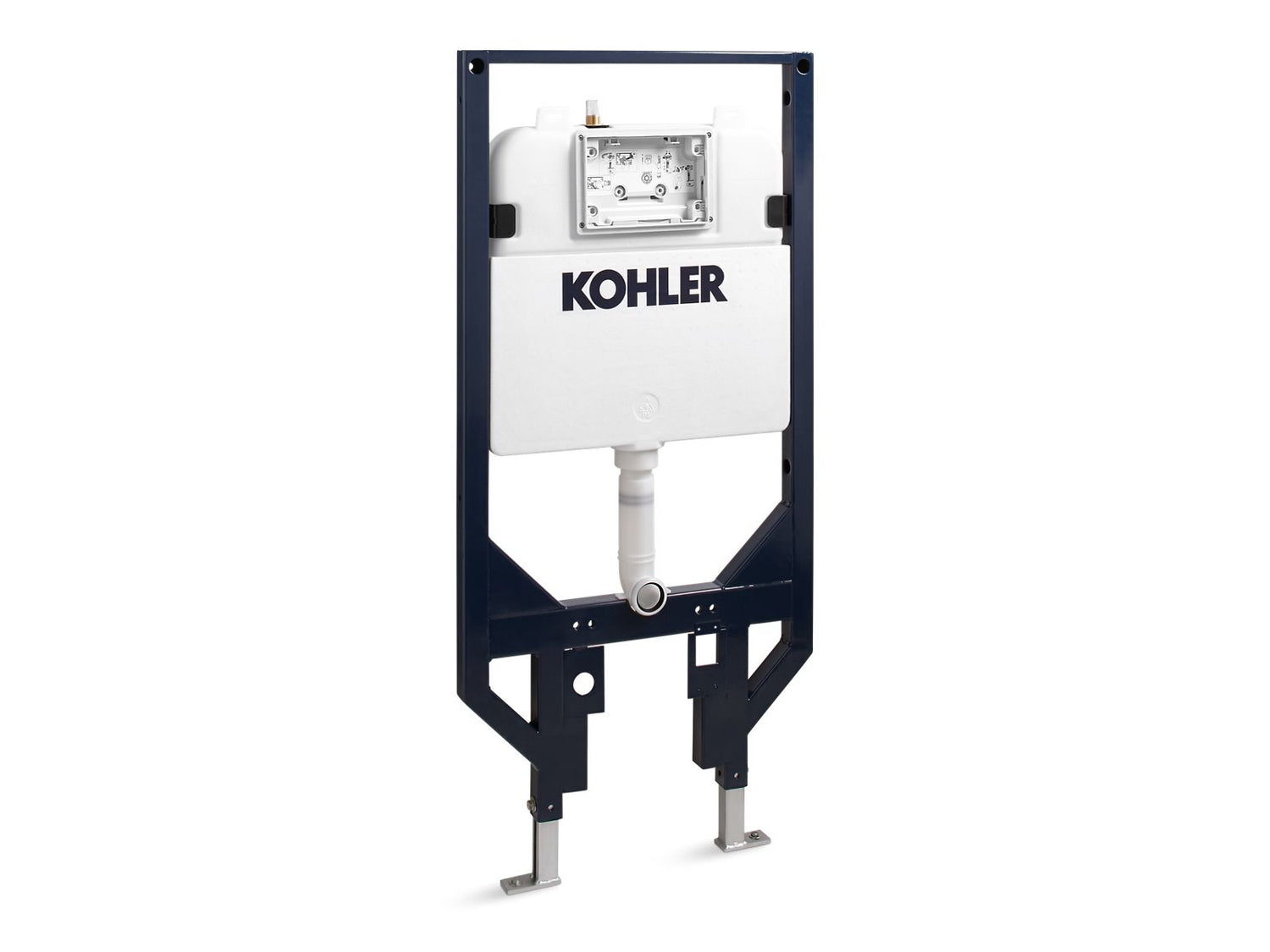

Veil® In-wall tank and carrier for K-76395 Veil® wall-hung smart toilet

At Kohler, we make it our business to help you create the bathroom space of your dreams. This KOHLER® Veil dual-flush in-wall toilet tank and carrier completes select Veil wall-hung smart toilets. Designed with a large, easy-access actuator plate opening, the insulated tank is completely concealed within the wall and provides economical water savings with 0.8/1.6 gallon dual flushing.

Features

• Robust steel frame
• Insulated tank to prevent sweating
• Large flush actuator plate opening can be removed for easy access to inner tank
• Adjustable height allows bowl to be set anywhere from 15" to 23" (381 to 584 mm) from floor
• Dual-flush actuator offers a choice of 0.8 or 1.6 gpf (3.0 or 6.0 lpf)
• Requires K-76395 Veil smart wall-hung toilet (sold separately)
• Dual-flush technology allows you to choose between a full or partial flush
• Eligible for consumer rebates in some municipalities

Specifications

• Dimensions: 52.36 x 19.49 x 6.93 in
• Weight: 28.66 lb
• UPC: 885612514202

Installation

• Durable steel frame carrier is installed on 2" x 6" (51 x 152 mm) studs behind the wall. See installation guide and installation video for more detailed information
• When installed per Kohler installation instructions, the KOHLER in-wall tank and carrier system can support up to 500 lb (226.8 kg) without damage
• Supply line sold separately
