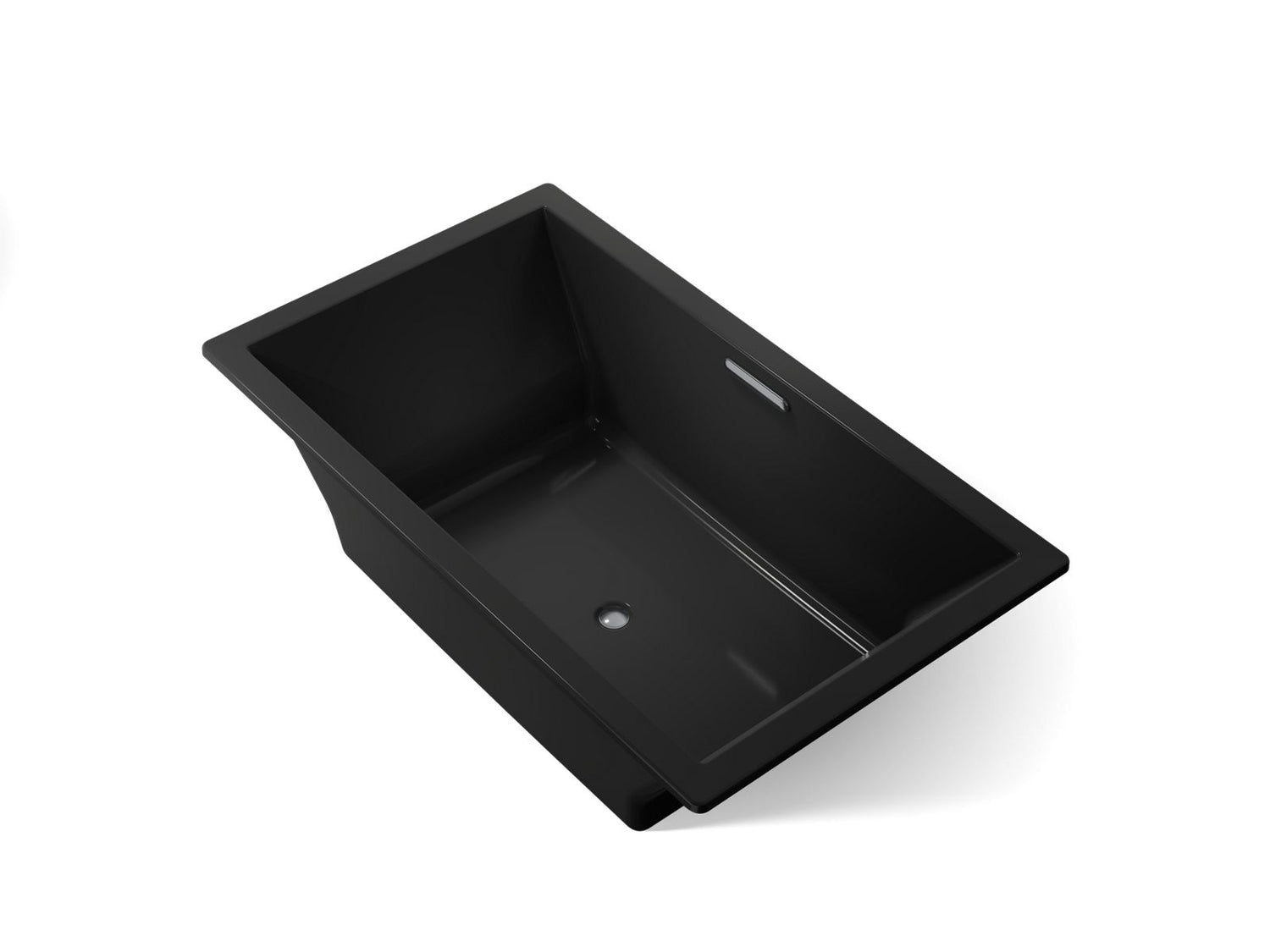

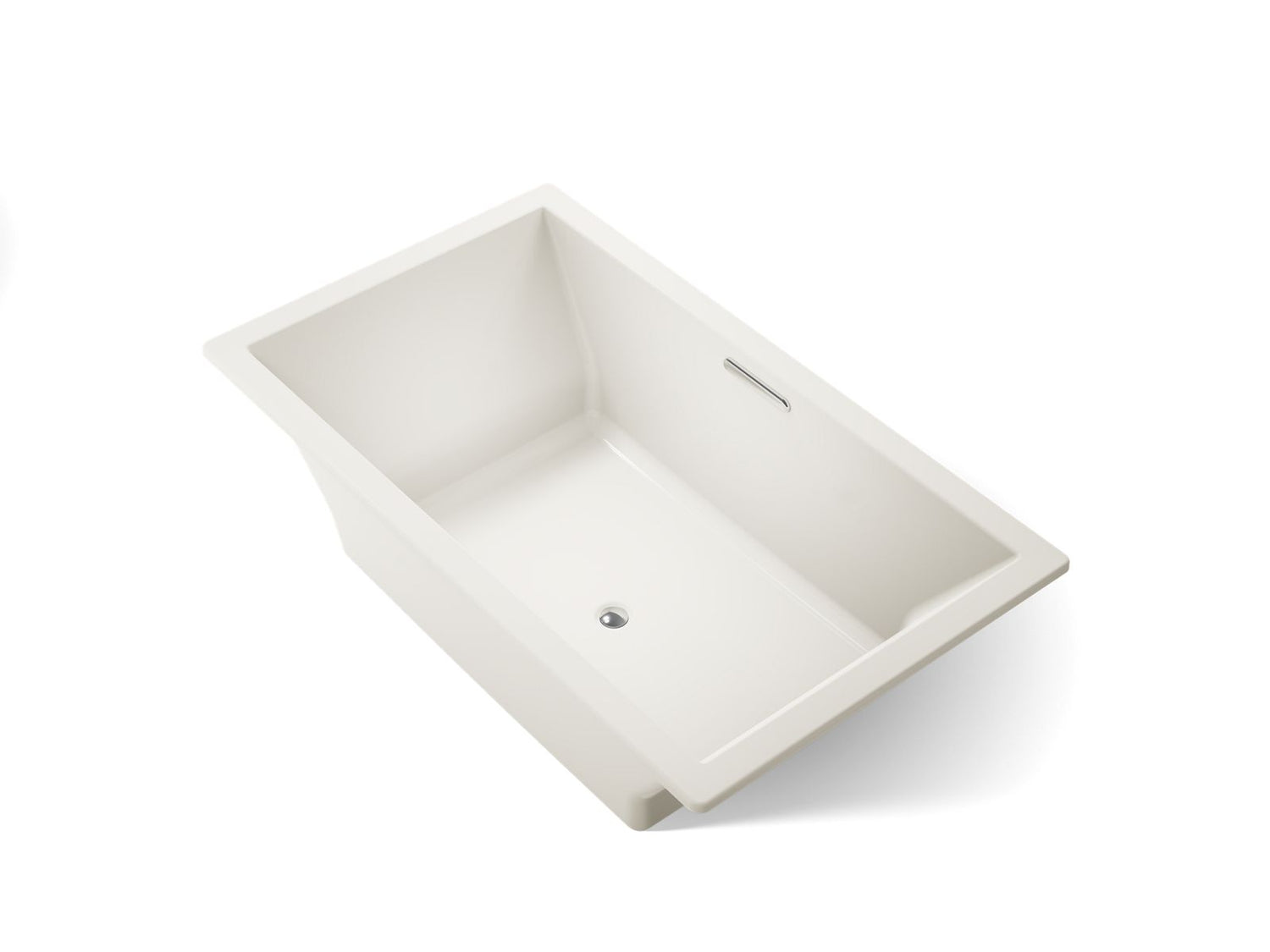

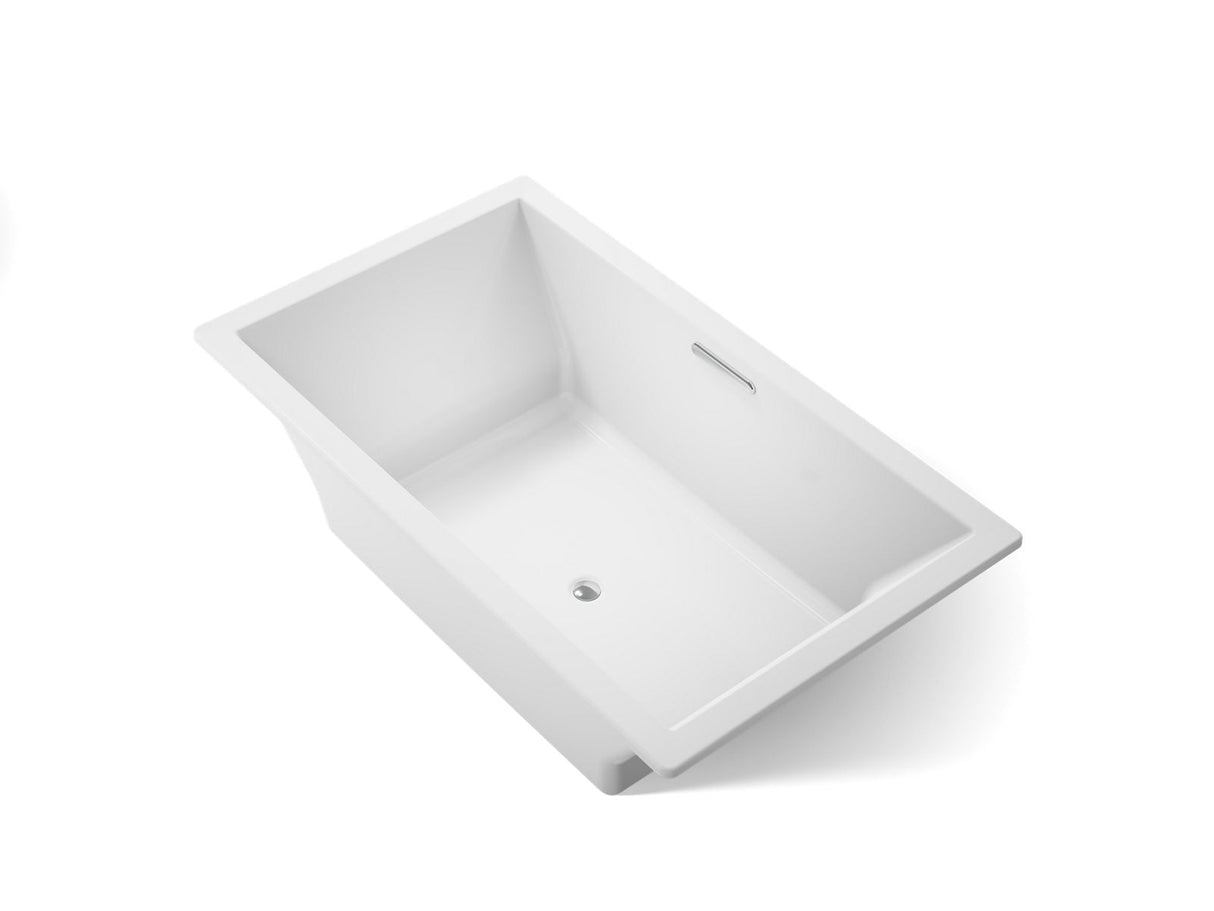

Underscore® 72" x 42" drop-in bath

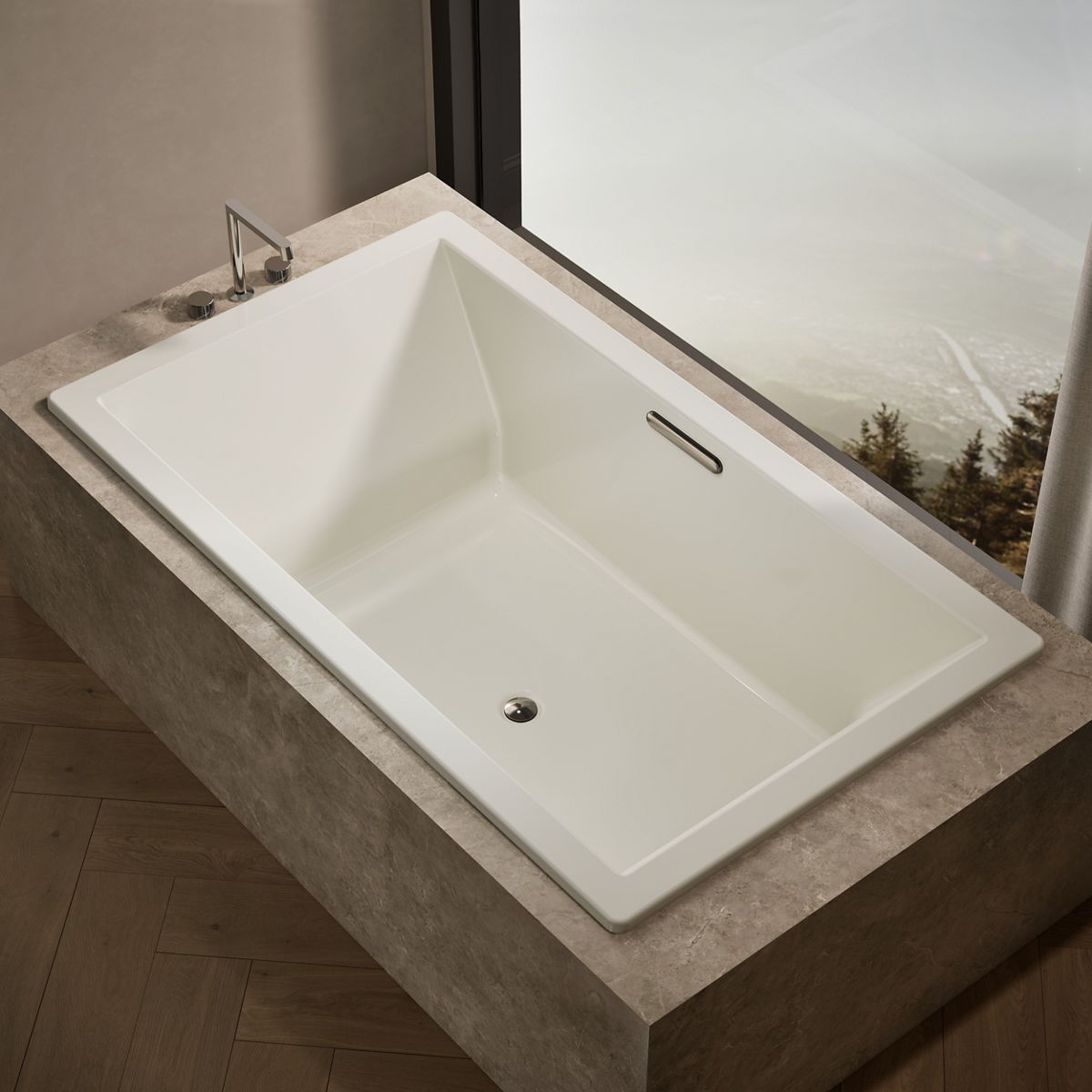

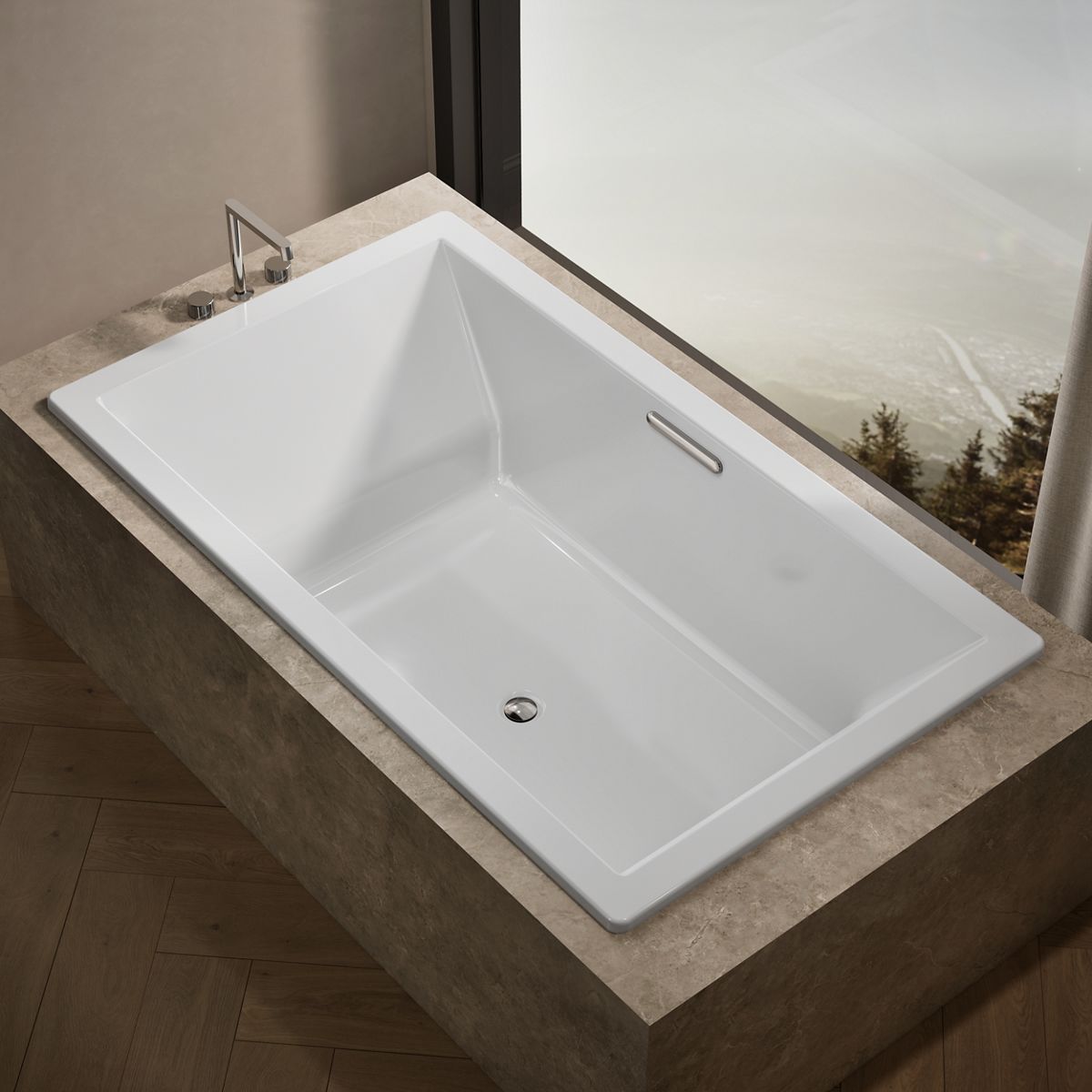

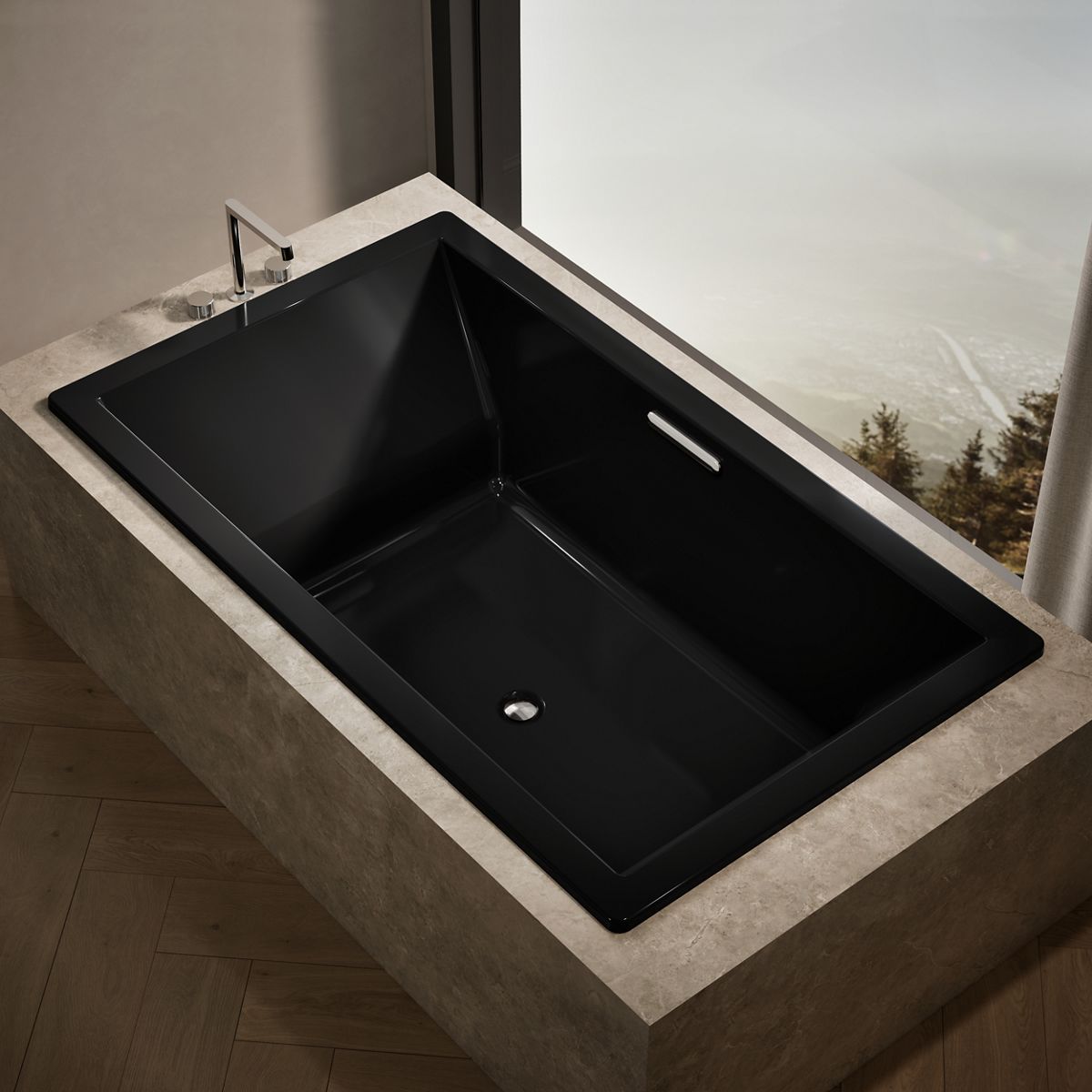

The Kohler Underscore® 72" x 42" drop-in bath is an acrylic bathtub whose spacious design accommodates up to two bathers. A slotted overflow allows for deep soaking as you relax against the sloped backrest with integral lumbar support. It has a center drain, installs as a drop-in or undermount bath and is offered in White, Black Black and Biscuit.

Features

• Spacious design accommodates up to two bathers
• Integral lumbar support
• Slotted overflow allows for deep soaking
• Drop-in or undermount installation; a kit is required for under-mount installations (sold separately)
• Requires Clearflo slotted overflow bath drain (sold separately)
• Installation note: the hot water supply should be 70% of the capacity of the bath or greater; installations will vary.

Specifications

• Drain location: Center
• Drain hole diameter: 2-1/4" (57 mm)
• Minimum flat for door: 2-7/16" (61 mm)
• Basin area, bottom: 45-3/4" x 32"
• Basin area, top: 66" x 36"

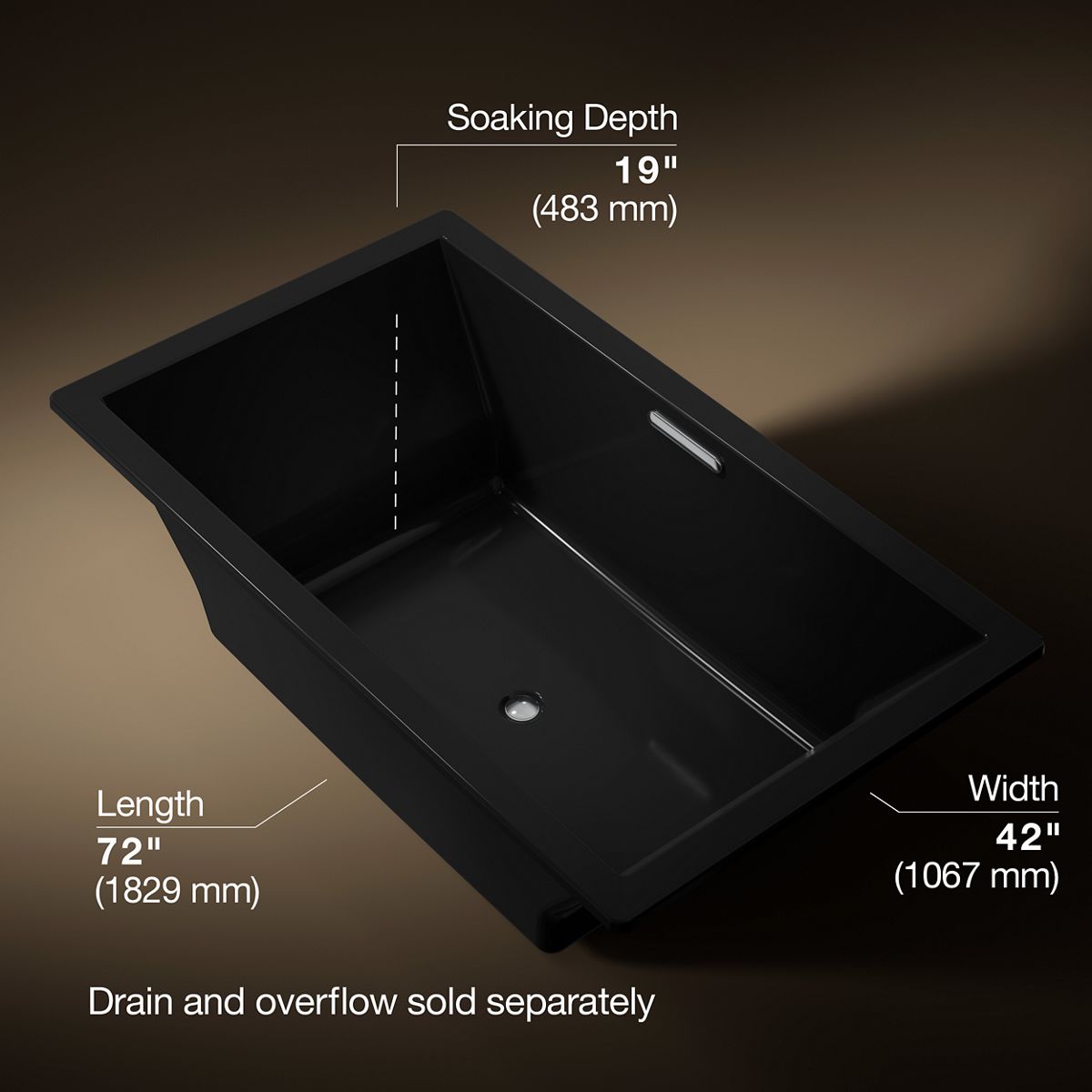

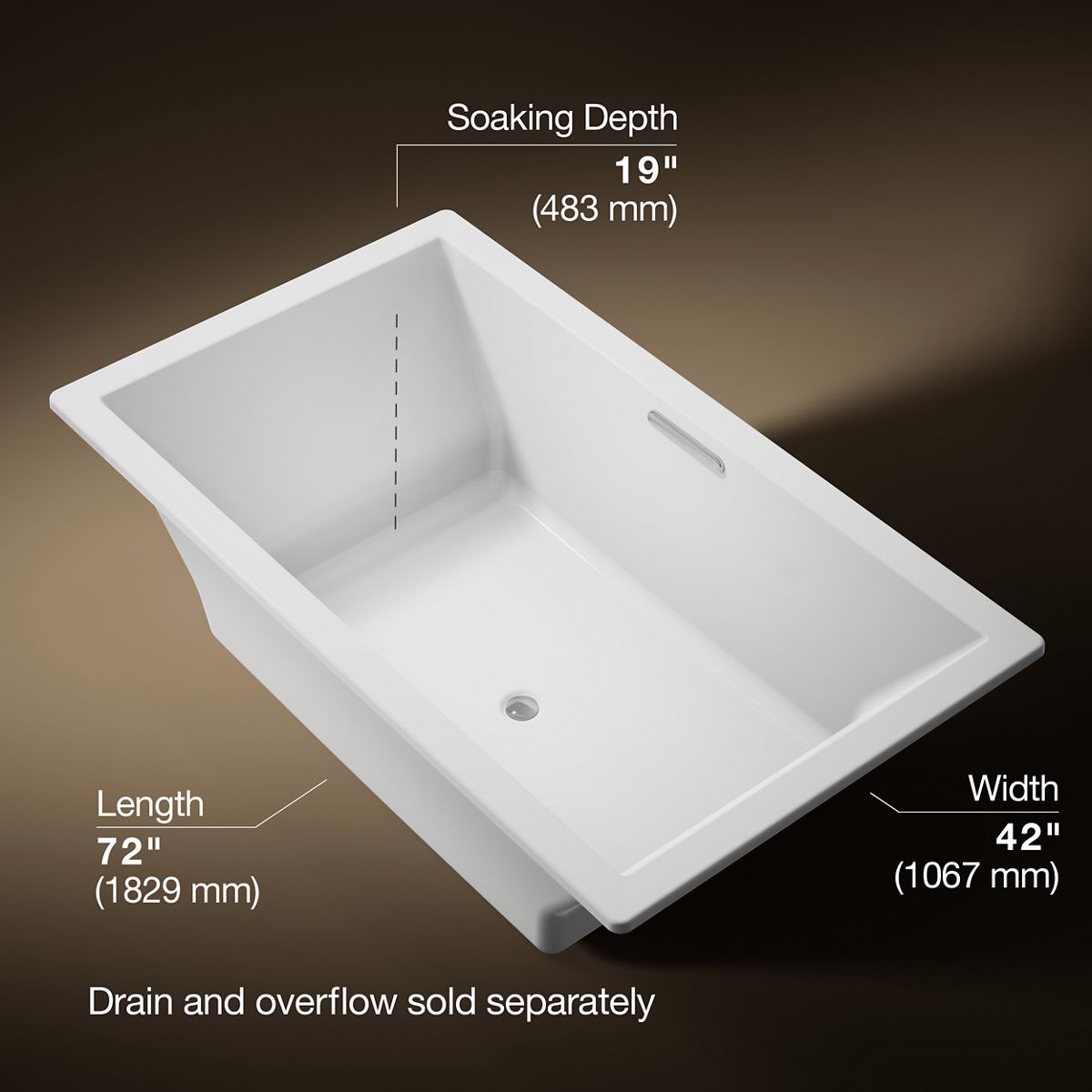

• Water depth: 19" (483 mm)
• Water capacity: 139 gal (526.2 L)
• Minimum floor load: 60 lbs/ft²
• Cutout: Drop-in, 70-1/2" x 40-1/2" (1791 mm x 1029 mm)
• Material: Acrylic
• Available colours: White, Black Black, Biscuit
• Codes/standards: CSA B45.5/IAPMO Z124, ASTM E162, ASTM E662
• Warranty: KOHLER® Plastic Baths and Shower Bases Lifetime Limited Warranty
• Note: All product dimensions are nominal
