Underscore® 60" x 32" drop-in bath

The Kohler Underscore® 60" x 32" drop-in bath is streamlined for simplicity, with a slotted overflow that allows for deep soaking and integral lumbar support. It installs drop-in or undermount with a reversible drain; a kit is required for under-mount installations (sold separately). The acrylic bath is offered in White, Black Black and Biscuit, with a 17-1/8" water depth and 81 gal (306.6 L) capacity.

Features

• Integral lumbar support
• Slotted overflow allows for deep soaking
• Comfortable sloped backrest
• Drop-in or undermount installation; a kit is required for under-mount installations (sold separately)
• Reversible drain
• Requires Clearflo slotted overflow bath drain (sold separately)
• Installation note: the hot water supply should be 70% of the capacity of the bath or greater. Installations will vary.

Specifications

• Finish options: White, Black Black, Biscuit
• Material: Acrylic
• Basin area, bottom: 42" x 23-1/2"
• Basin area, top: 55-1/8" x 27-1/8"

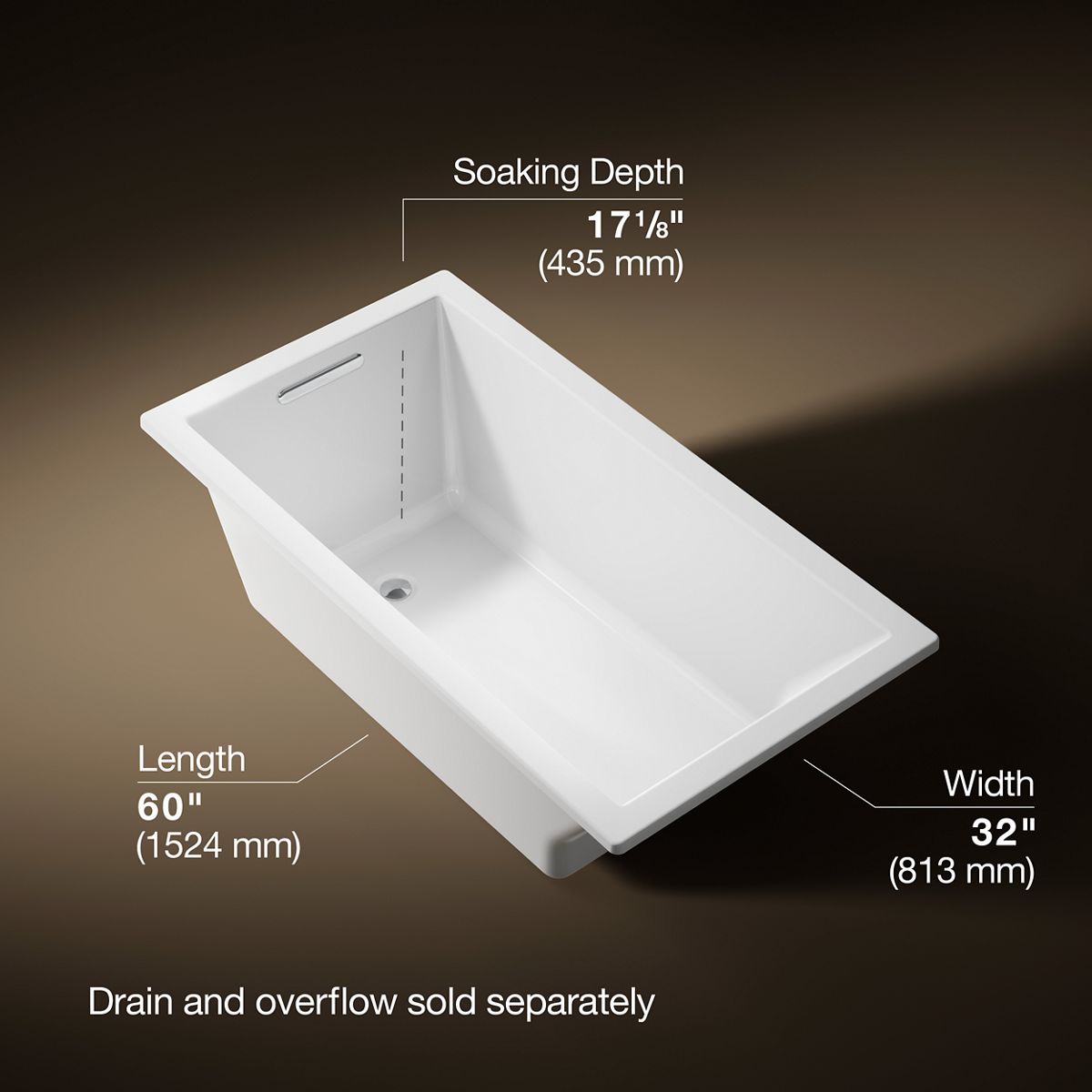

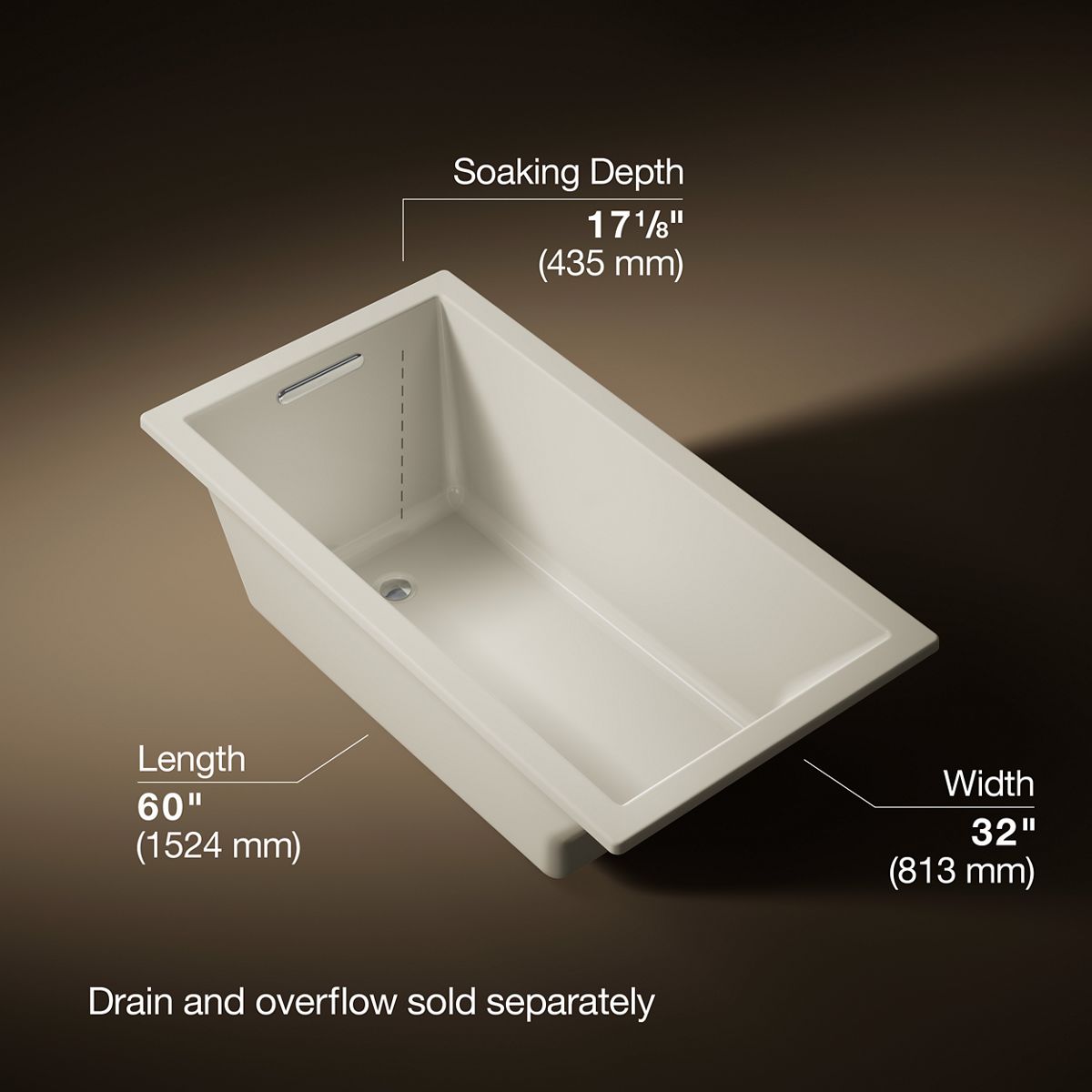

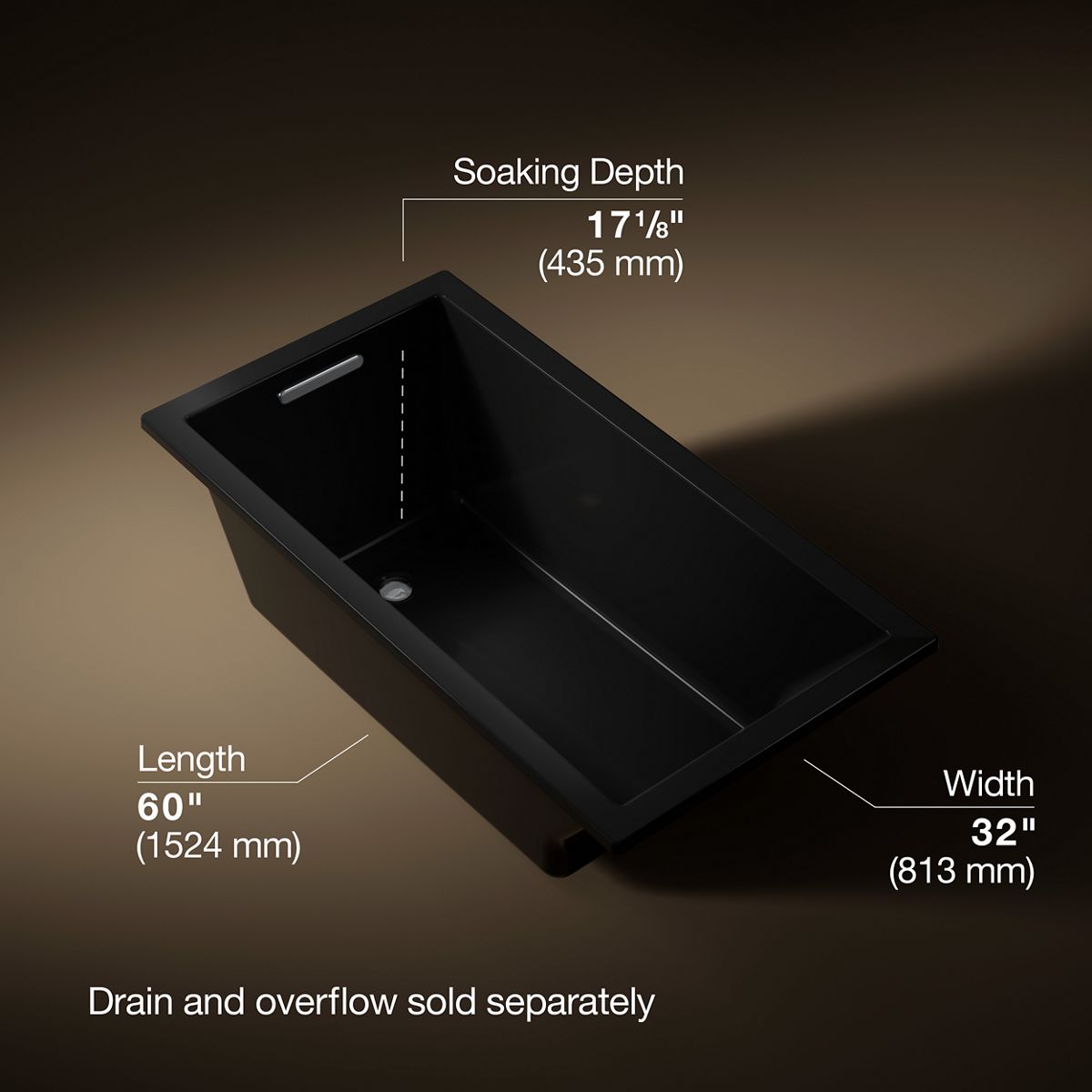

• Water depth: 17-1/8" (435 mm)
• Water capacity: 81 gal (306.6 L)
• Cutout: Drop-in, 58-1/2" x 30-1/2" (1486 mm x 775 mm)
• Drain hole diameter: 2-1/4" (57 mm)
• Minimum flat for door: 2" (51 mm)
• Minimum floor load: 58 lbs/ft²
• Codes/Standards: CSA B45.5/IAPMO Z124, ASTM E162, ASTM E662
• Warranty: KOHLER® Plastic Baths and Shower Bases Lifetime Limited Warranty
• Note: All product dimensions are nominal
