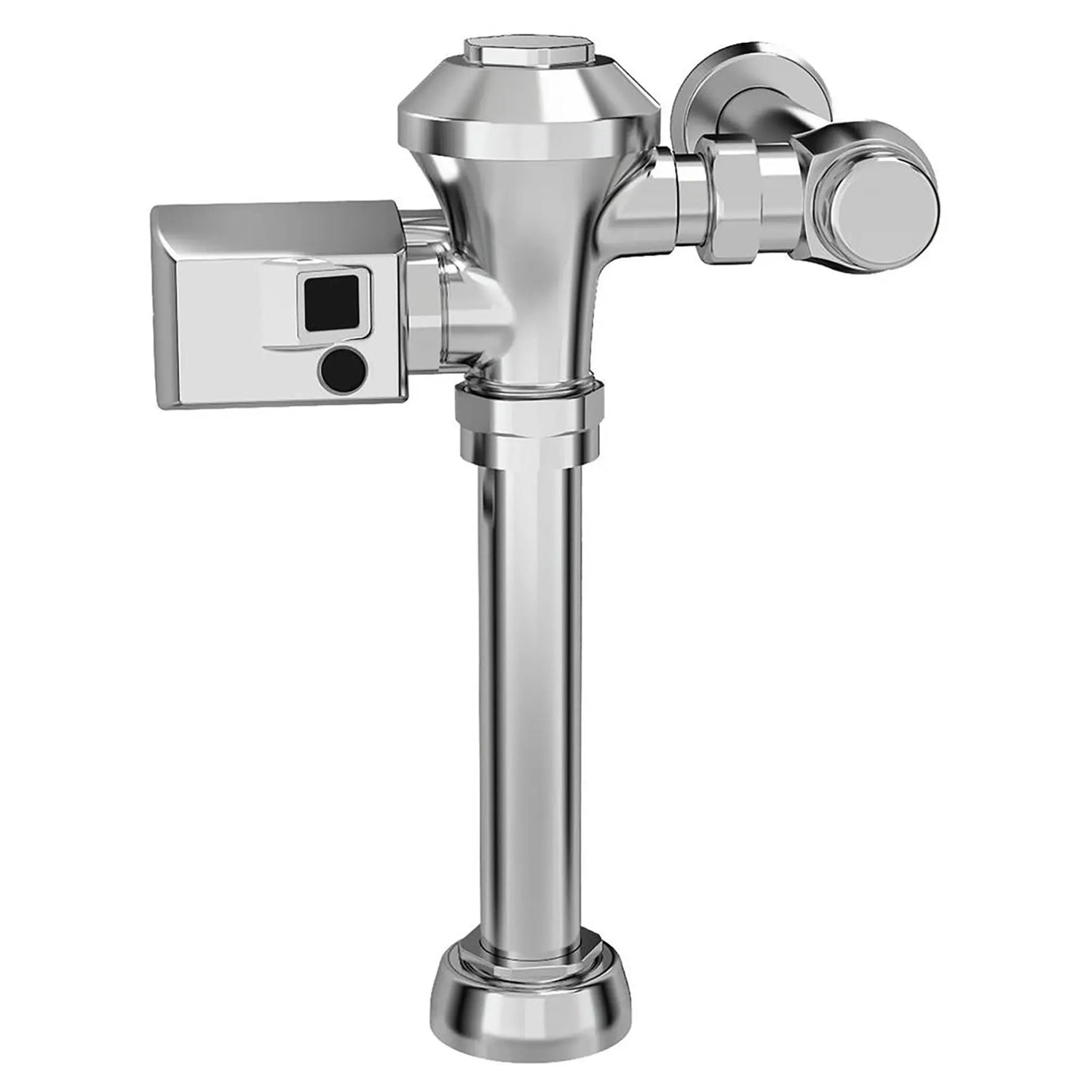

Ultima Touchless Sensor Toilet Flush Valve, Diaphragm-Type, 1.28 gpf/4.8 Lpf

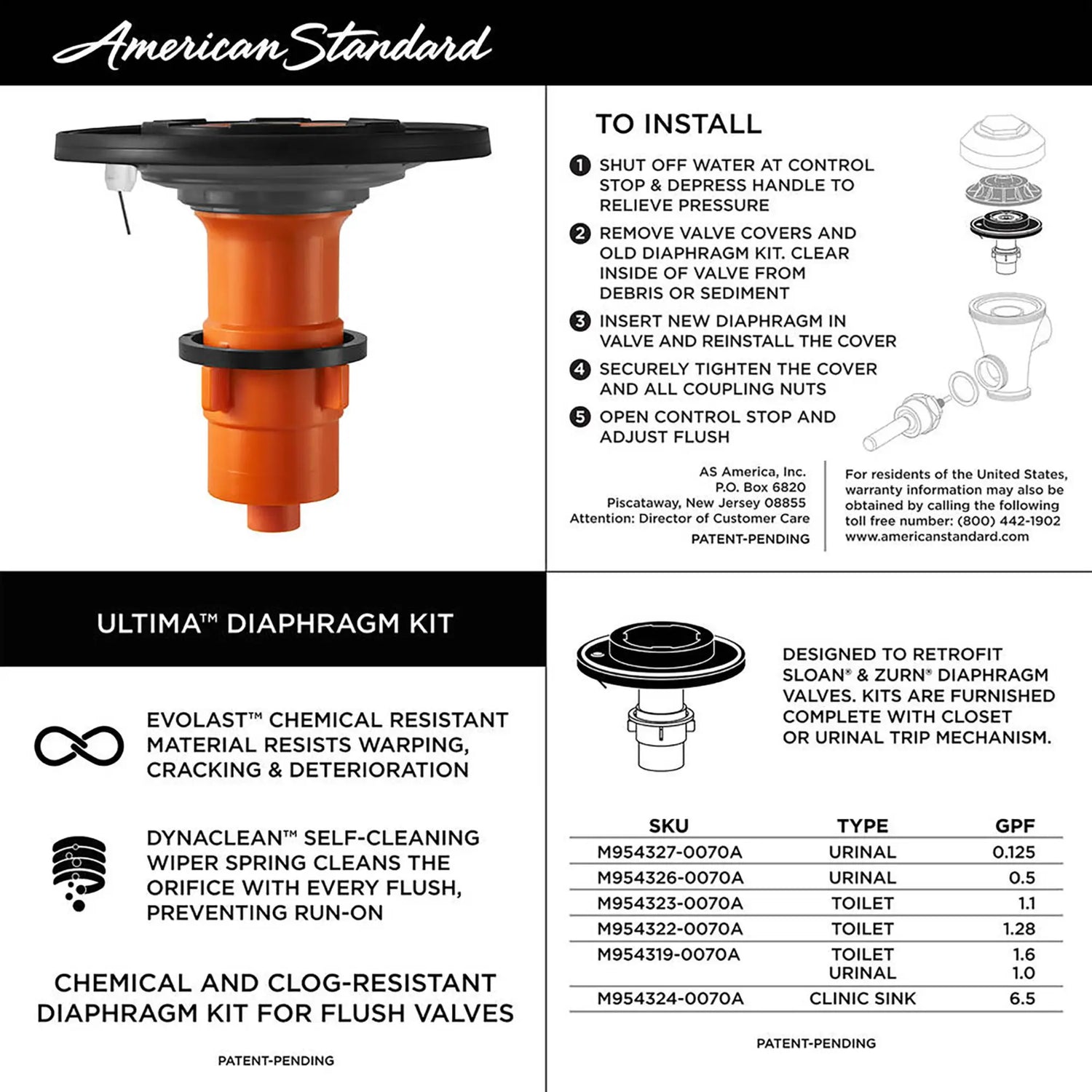

The Ultima Diaphragm Flush Valve from American Standard is engineered to deliver superior performance and reliability with less maintenance, saving time and money. It features DynaClean, a self-cleaning technology with exclusive wiper spring positioned at the orifice where clogs form. The wiper spring eliminates build-up by clearing the refill orifice with every flush, preventing valve run-on and water waste. Combined with the superior quality and durability of the premium, chlorine-resistant EvoLast diaphragm material, the Ultima Diaphragm Flush Valve delivers consistent performance while resisting premature deterioration and failure. DynaClean and EvoLast are especially beneficial in areas with poor water quality and high chlorination. The complete Ultima Flush Valve is interchangeable with most piston and diaphragm flush valves. The Ultima diaphragm assembly can be installed in place of diaphragm flush valves from major manufacturers, improving performance and reliability.

Features

• For flushometer bowls with 1-1/2" (38 mm) exposed top spud
• Includes 4 C-sized alkaline batteries
• Touchless operation limits the spread of germs
• Exclusive DynaClean® self-cleaning wiper spring technology
• Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
• EvoLast® premium chlorine- and chloramine-resistant diaphragm material resists premature deterioration and failure
• Electronically operated override button
• Proprietary brass alloy resists dezincification
• 11-1/2" (292 mm) rough-in
• For flushometer bowls with 1-1/2" (38 mm) exposed top spud
• Includes 4 C-sized alkaline batteries
• Touchless operation limits the spread of germs
• Exclusive DynaClean® self-cleaning wiper spring technology
• Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
• EvoLast® premium chlorine- and chloramine-resistant diaphragm material resists premature deterioration and failure
• Electronically operated override button
• Proprietary brass alloy resists dezincification
• 11-1/2" (292 mm) rough-in

Specifications

• ADA Compliant: Yes
• Barrier Free: Yes
• Batteries Included: Yes
• Batteries Required: Yes
• Brand: American Standard
• Cal Green: Yes
• Category: Flush Valves and Sanitary Items
• Color / Finish: Chrome
• Department of Energy Certified: Yes
• Collections: Selectronic Diaphragm FV
• WaterSense: Yes
• Fitting Connection Size Input: 1-1/2
• Fitting Material: Brass
• Touchless: Touchless
• Fixture or Fitting Material: Brass
• Gallons Per Flush (min-max): 1.28 GPF
• Input Connection Type: NPT (National Pipe Tapered Threads)
• Number of Batteries Included: 4
• Number of Output Valves: 1
• Height: 14-5/8
• Length: 6-13/16
• Width: 11-3/8
• Residential or Commercial: Commercial
• Subcategory: Sensor Flush Valve and Sanitary Items
• Valve Input Diameter: 1
• Valve Output Diameter: 1-1/4
• Water Efficient: Yes
