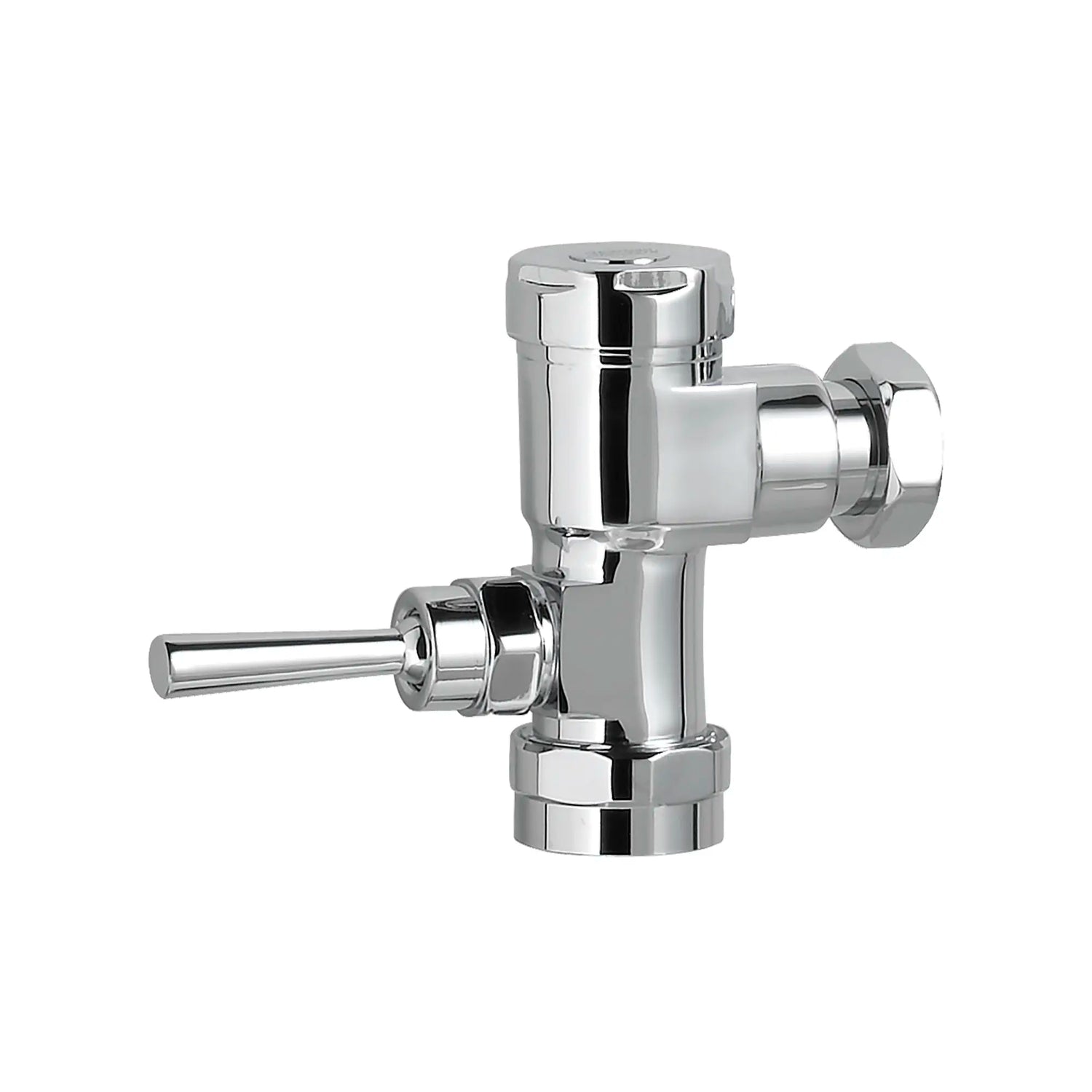

Ultima Manual Valve Only for Retrofit, Piston-Type, 1.28 gpf/4.8 Lpf

SustainabilityCALGreen Compliant

Features

• Does not include stop valve, inlet assembly, spud coupling or vacuum breaker tube
• Exclusive DynaClean® self-cleaning wiper spring technology
• Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
• ADA-compliant non-hold open handle provides automatic shut-off after every flush
• Piston operation delivers superior flush accuracy and repeatability
• Can be install left- or right-handed
• No external volume adjustment
• Does not include stop valve, inlet assembly, spud coupling or vacuum breaker tube
• Exclusive DynaClean® self-cleaning wiper spring technology
• Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
• ADA-compliant non-hold open handle provides automatic shut-off after every flush
• Piston operation delivers superior flush accuracy and repeatability
• Can be install left- or right-handed
• No external volume adjustment

Specifications

• ADA Compliant: Yes
• Barrier Free: Yes
• Brand: American Standard
• Cal Green: Yes
• Category: Flush Valves and Sanitary Items
• Color / Finish: Chrome
• Collections: Manual Piston Flush Valve
• WaterSense: Yes
• Fitting Material: Brass
• Fixture or Fitting Material: Brass
• Gallons Per Flush (min-max): 1.28 GPF
• Number of Output Valves: 1
• Height: 13-1/2
• Length: 9-13/16
• Residential or Commercial: Commercial
• Subcategory: Manual Flush Valve and Sanitary Items
• Water Efficient: Yes
