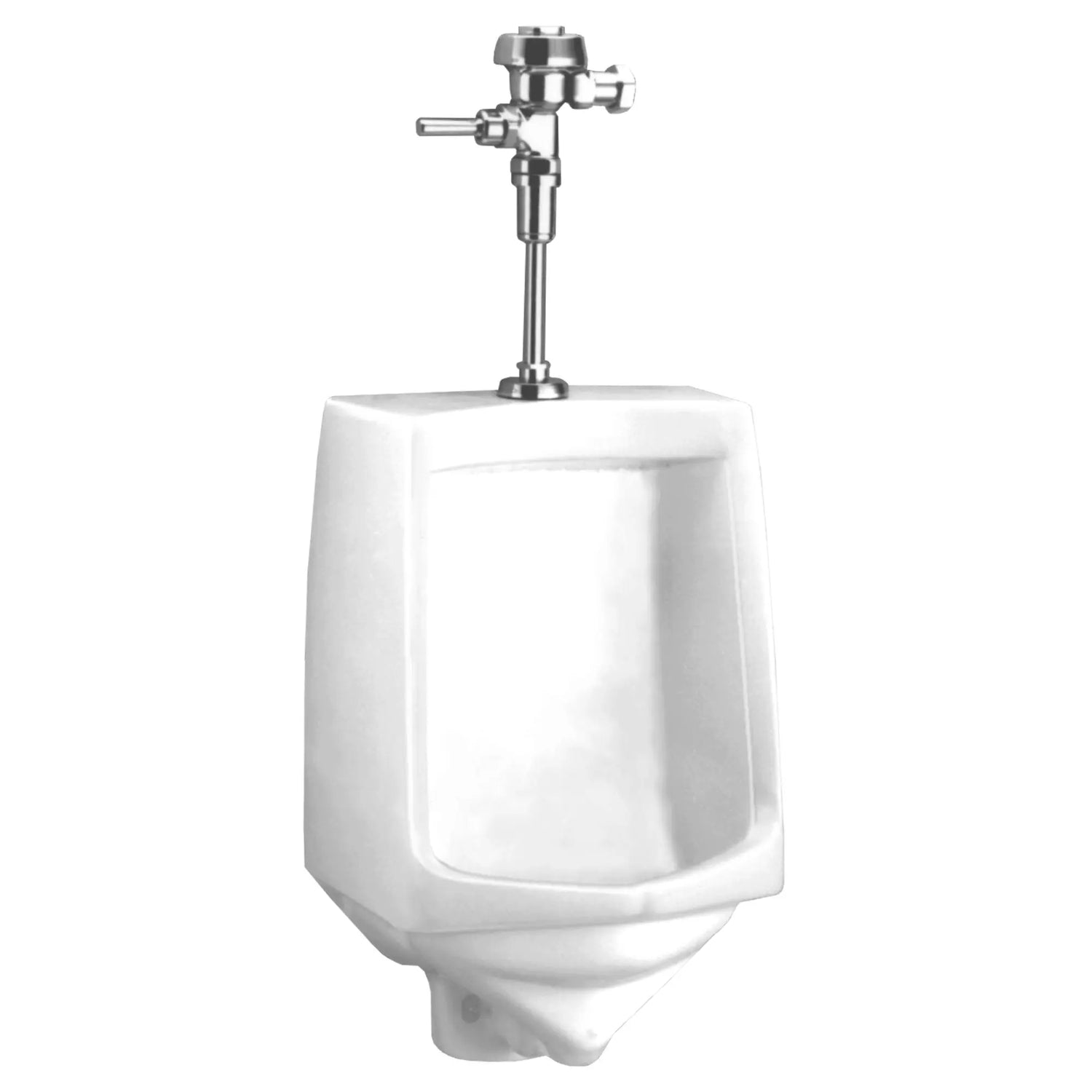

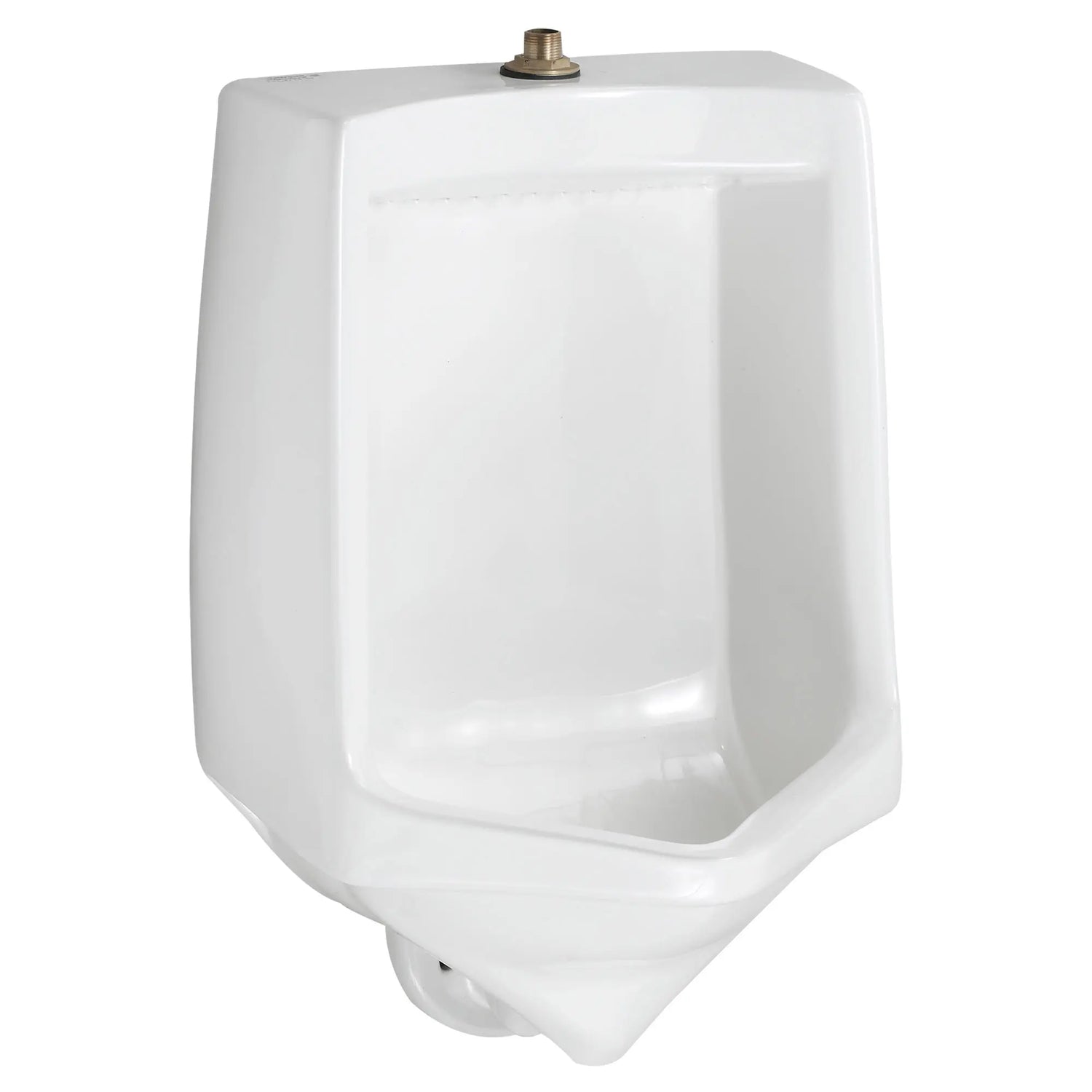

Trimbrook® 1.0 gpf/3.8 Lpf Top Spud Siphon Jet Urinal

This low-consumption urinal uses just 1.0 gallon per flush. Features include a flushing rim and siphon-jet flush action for effectiveness, and extended sides for privacy. Its versatile design could work well in traditional and casual commercial environments.

Features

• Low consumption (1.0 gpf/3.8 Lpf)
• Flushing rim
• Siphon jet flush action
• Extended sides for privacy
• 3/4" (19 mm) inlet spud with 2" (51 mm) threaded outlet connection
• Two wall hangers included
• Fixture only
• Vitreous china
• 2 wall hangers
• Meets ANSI flush requirements at 1.0 GPF
• Low consumption (1.0 gpf/3.8 Lpf)
• Flushing rim
• Siphon jet flush action
• Extended sides for privacy
• 3/4" (19 mm) inlet spud with 2" (51 mm) threaded outlet connection
• Two wall hangers included
• Fixture only

Specifications

• ADA Compliant: Yes
• Barrier Free: Yes
• Brand: American Standard
• Category: Urinals
• Color / Finish: White
• Department of Energy Certified: Yes
• Collections: Trimbrook
• Fixture Material: Vitreous China
• Fixture or Fitting Material: Vitreous China
• Gallons Per Flush (min-max): 1 GPF
• Input Connection Type: NPT (National Pipe Tapered Threads)
• Height: 26-3/4
• Length: 14
• Width: 17-1/2
• Residential or Commercial: Commercial
• Subcategory: Top Spud Urinals
• Warranty: 1 Year Limited Warranty
