Trim for Delano valve pressure balance 1 function

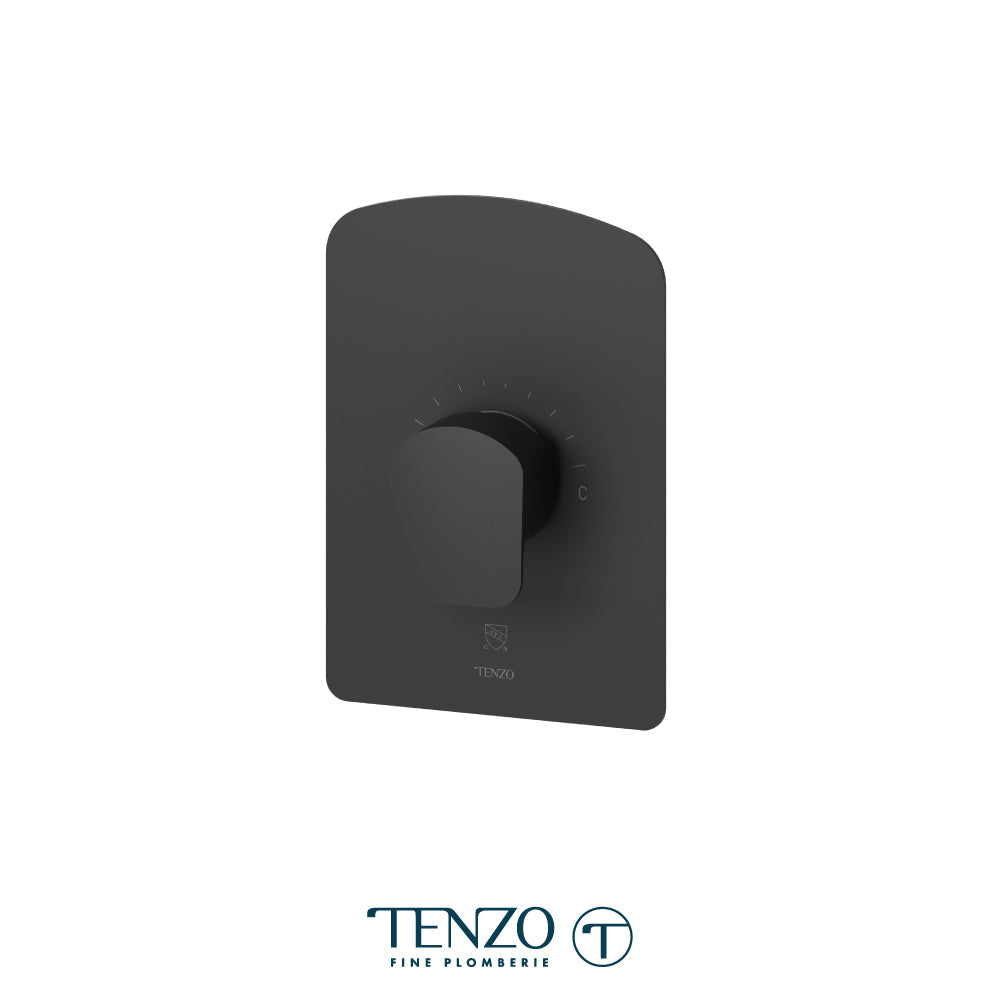

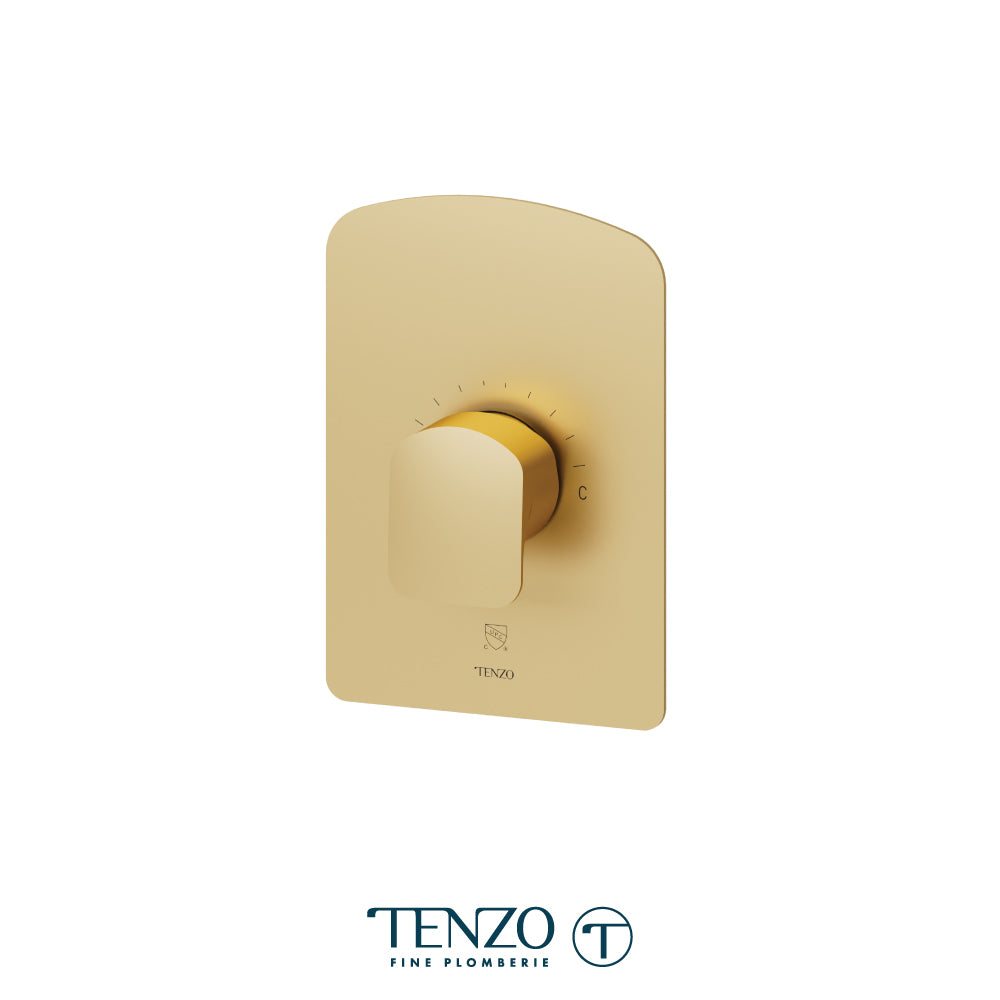

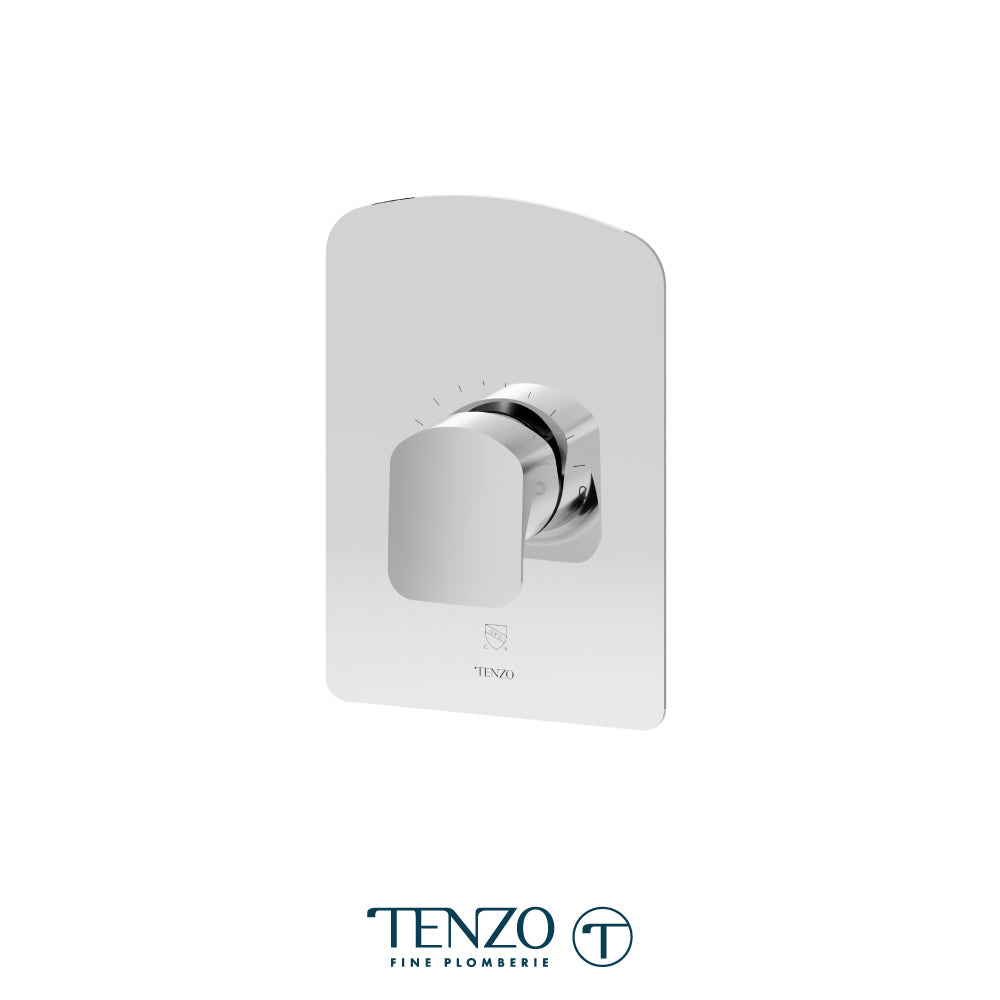

The Tenzo Delano pressure-balance shower valve trim is the 1-function trim (F-DEPB21-XX) for the DEPB21-XX valve. It provides single-function control while keeping the water temperature steady as household demand changes. The cartridge is included with the trim, and the Delano handle and plate come in brushed gold, brushed nickel, chrome or matte black.

Features

• Cartridge included with the trim
• Clean, contemporary Delano handle and plate
• The DEPB21-XX complete valve combines the R-PB21-P valve rough (1 function, PEX) with the F-DEPB21-XX trim
• DEPB21-XX valve: pressure balanced, with an adjustable temperature limiting device and an adjustable flow limiting device
• DEPB21-XX valve: integrated check-stop valves
• DEPB21-XX valve: available connections PEX, PEX expansion and NPT/welded
• DEPB21-XX products are covered by a limited lifetime warranty against all manufacturing defects

Specifications

• Collection: Delano
• Product: Trim (F-DEPB21-XX)
• Functions: 1
• Available finishes: Brushed Gold, Brushed Nickel, Chrome, Matte Black
• Temperature cartridge (DEPB21-XX): CAR-HY-PB-JH04BD
• Flow rate (DEPB21-XX valve): 25.5L/min [6.7 gpm] @60psi
• Certification (DEPB21-XX): ASME 112.18.1 / CSA B125.1
• Warranty (DEPB21-XX products): Limited lifetime warranty against all manufacturing defects
