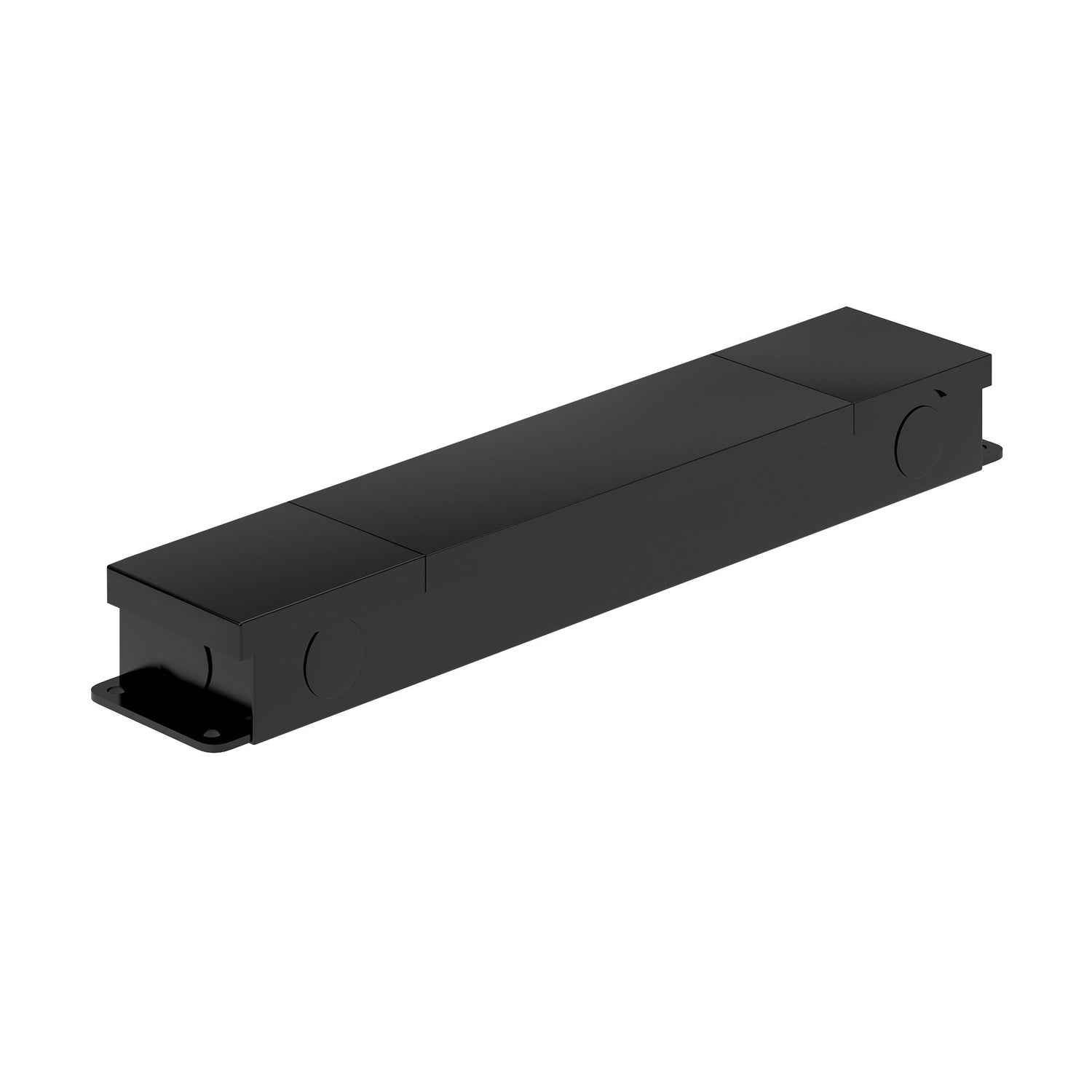

Trilo Track 12-in Trilo Track Remote Driver

The Kuzco Trilo Track 12-in remote driver is a fully enclosed 48V class 2 driver with compatible dimming for the Trilo track system. It includes an end feed with field-cuttable 96-in wire and conduit, and it must be installed at the end of the Trilo track system. It is rated 96W at 120-277V and supports a max track length of 40m.

Features

• Fully enclosed 48V class 2 driver
• End feed with field-cuttable 96-in wire and conduit included
• Connector included
• Installation requirement: must be installed at the end of the Trilo track system
• Dimmable 100% - 10% with a TRIAC or ELV dimmer or a 0-10V dimmer (dimmers not included)
• Designed for hallway, entryway, kitchen and beyond
• Installation hardware included
• Easy assembly instructions included in the box

Specifications

• Available finishes: Black [Universal Voltage and 0-10 Dimming], White [Universal Voltage and 0-10 Dimming]

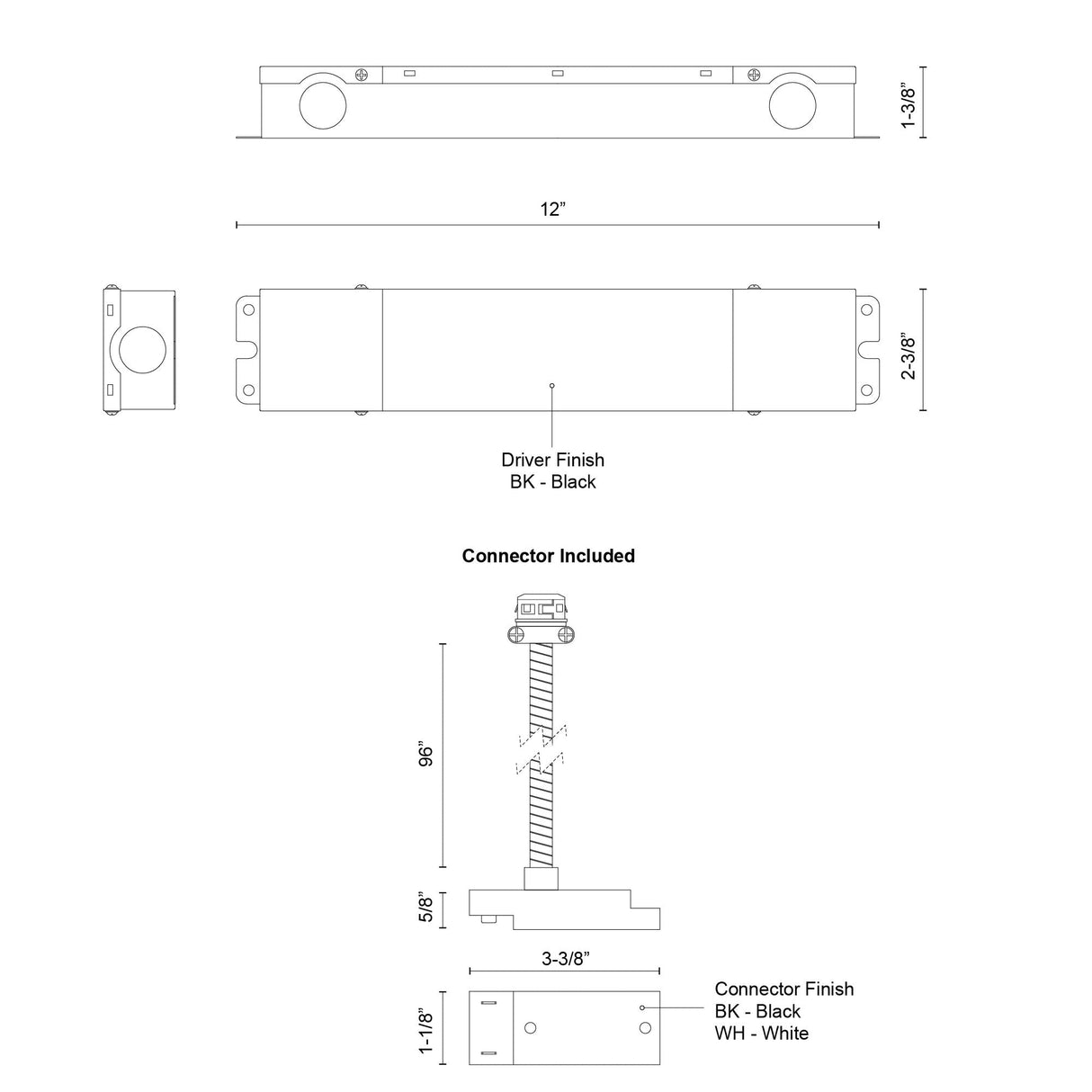

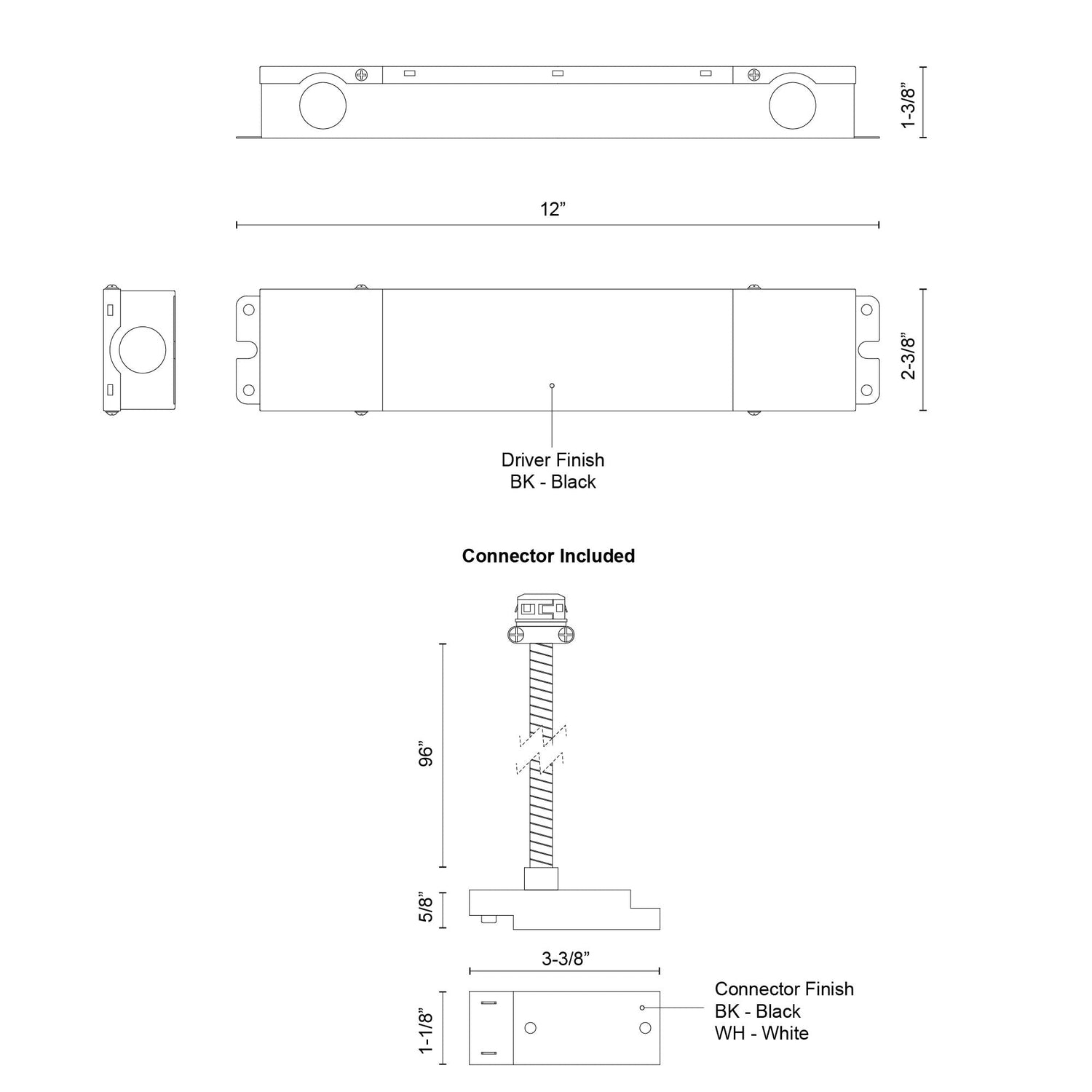

• Driver dimensions: L12" x W2-3/8" x H1-3/8"
• Connector dimensions: L3-3/8" x W1-1/8" x H5/8"
• Wattage: 96W
• Voltage: 120-277V
• Max track length: 40m
• Wire length: 96" conduit with wires
• Location: Dry
• Material: Aluminum + steel
