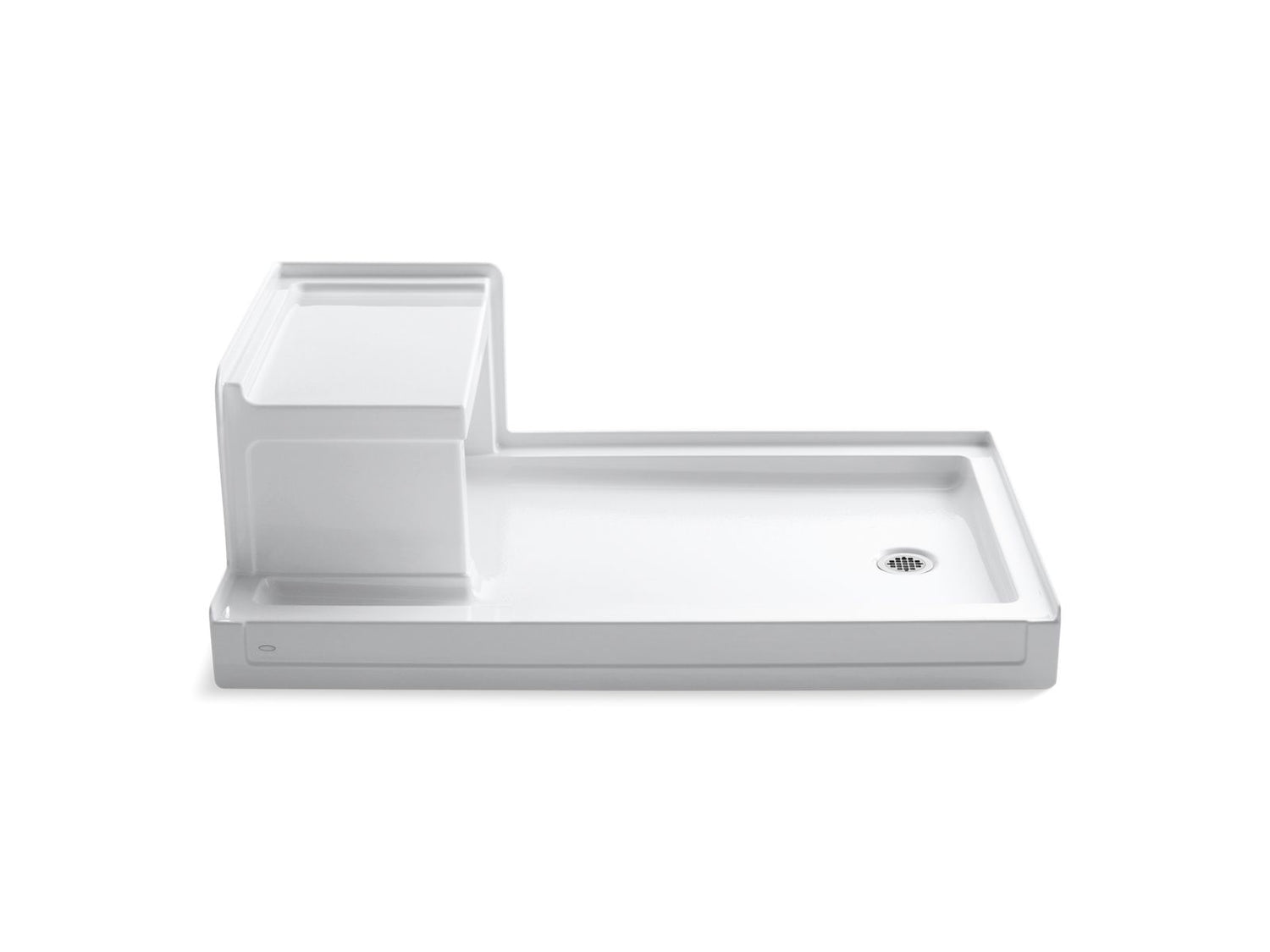

Tresham® 60" x 36" alcove shower base, right drain

The Kohler Tresham 60" x 36" alcove shower base with right drain is an acrylic base with crisp lines and an elegant border. Designed for comfort, it includes a built-in seat and a low threshold for easy access. A single threshold suits three-wall installation.

Features

• Low-threshold design for easy entry and exit
• Single threshold for three-wall installation
• Integral 18" (457 mm) undercut seat at left
• Coordinates with other products in the Tresham collection
• Right drain location
• Installation notes: shimming may be required between the stud frame and the fixture; stud opening tolerance is +1/4" (6 mm), -0" (0 mm)

Specifications

• Finish: White
• Material: Acrylic
• Drain location: Right
• Drain hole diameter: 3-3/8" (86 mm)
• Shower ledge minimum flat: 2-1/2" (64 mm)
• Minimum floor load: 20 lbs/ft²
• Codes/standards: CSA B45.5/IAPMO Z124, ASTM E162, ASTM E662
• Warranty: KOHLER® Plastic Baths and Shower Bases Lifetime Limited Warranty
• Note: All product dimensions are nominal.
