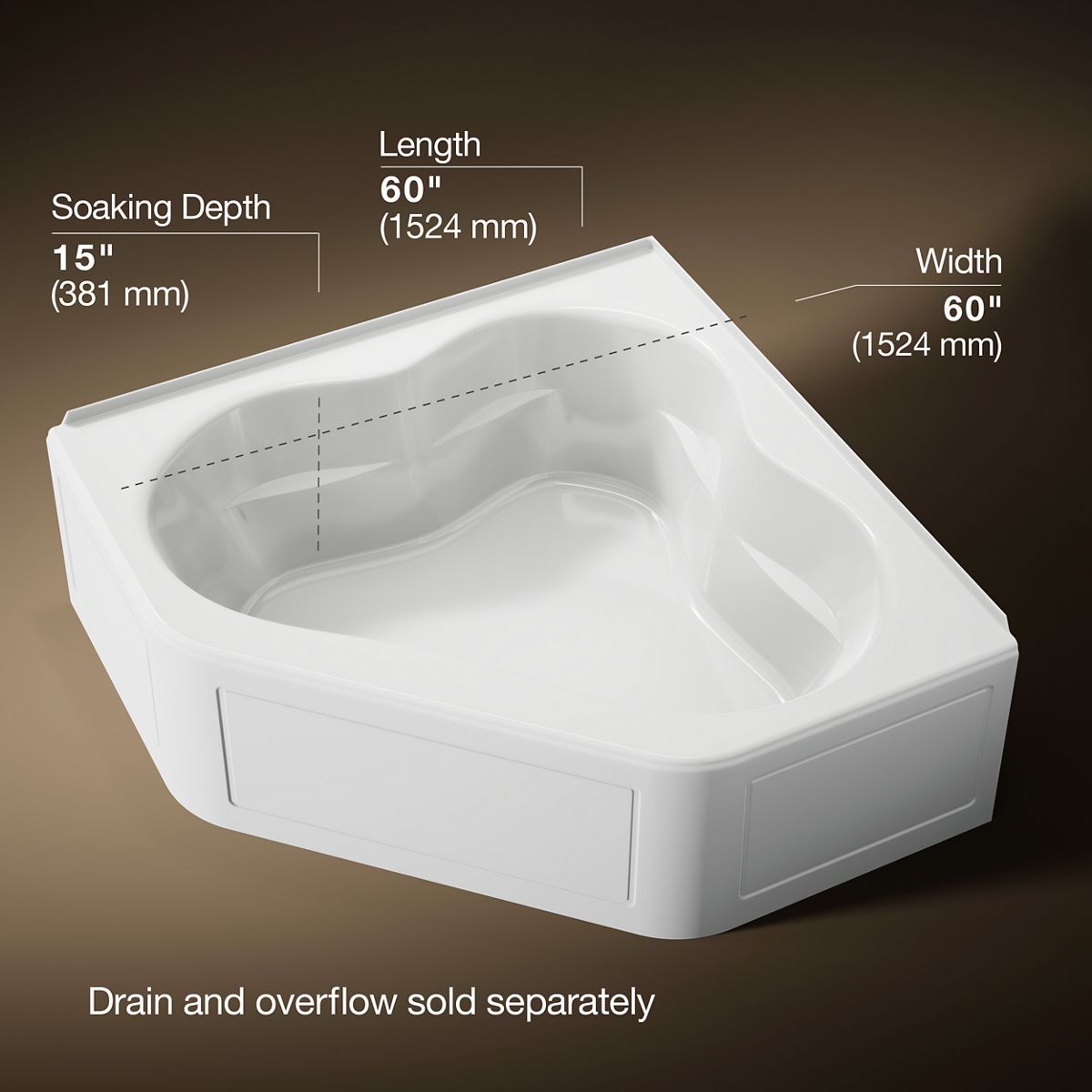

Tercet® 60" x 60" corner bath

The KOHLER® Tercet® 60" x 60" corner bath is a spacious bath with plenty of room for two. Molded back supports and armrests give an ideal reclining position, and the corner design saves space in your bathroom. The K-1161-F model is acrylic, with a 15" (381 mm) water depth and a 96 gal (363.4 L) water capacity.

Features

• Spacious design accommodates up to two bathers
• Integral lumbar support and armrests offer extra comfort while bathing
• Integral flange helps prevent water from seeping behind the wall and simplifies alcove installation
• Center drain, corner installation

Specifications

• Drain location: Center
• Drain hole diameter (K-1161-F): 2-1/4" (57 mm)
• Basin area, bottom (K-1161-F): 52" x 38-3/4"
• Basin area, top (K-1161-F): 61" x 46-1/4"
• Water depth (K-1161-F): 15" (381 mm)
• Water capacity (K-1161-F): 96 gal (363.4 L)
• Minimum floor load (K-1161-F): 38 lbs/ft²
• Material (K-1161-F): Acrylic
• Codes/standards (K-1161-F): CSA B45.5/IAPMO Z124; ASTM E162; ASTM E662
• Note: All product dimensions are nominal.
