Sunward® 66" x 42" drop-in bath

The Kohler Sunward® 66" x 42" drop-in bath is an acrylic oval bath with built-in back support and armrests. Its oval basin creates a spacious bathing experience, with a water depth of 14-5/16" (364 mm) and a water capacity of 70 gal (265 L). It installs as a drop-in or undermount bath with a reversible drain; a kit is required for under-mount installations (sold separately).

Features

• Oval basin creates a spacious bathing experience
• Integral lumbar support and armrests offer extra comfort while bathing
• Textured bottom surface
• Reversible drain
• Drop-in or undermount installation; a kit is required for under-mount installations (sold separately)
• Smooth backside for easy handling and mounting of drain and overflow
• Installation note: the hot water supply should be 70% of the capacity of the bath or greater. Installations will vary.

Specifications

• Finish: White
• Material: Acrylic
• Drain location: Reversible
• Drain hole diameter: 2-1/4" (57 mm)

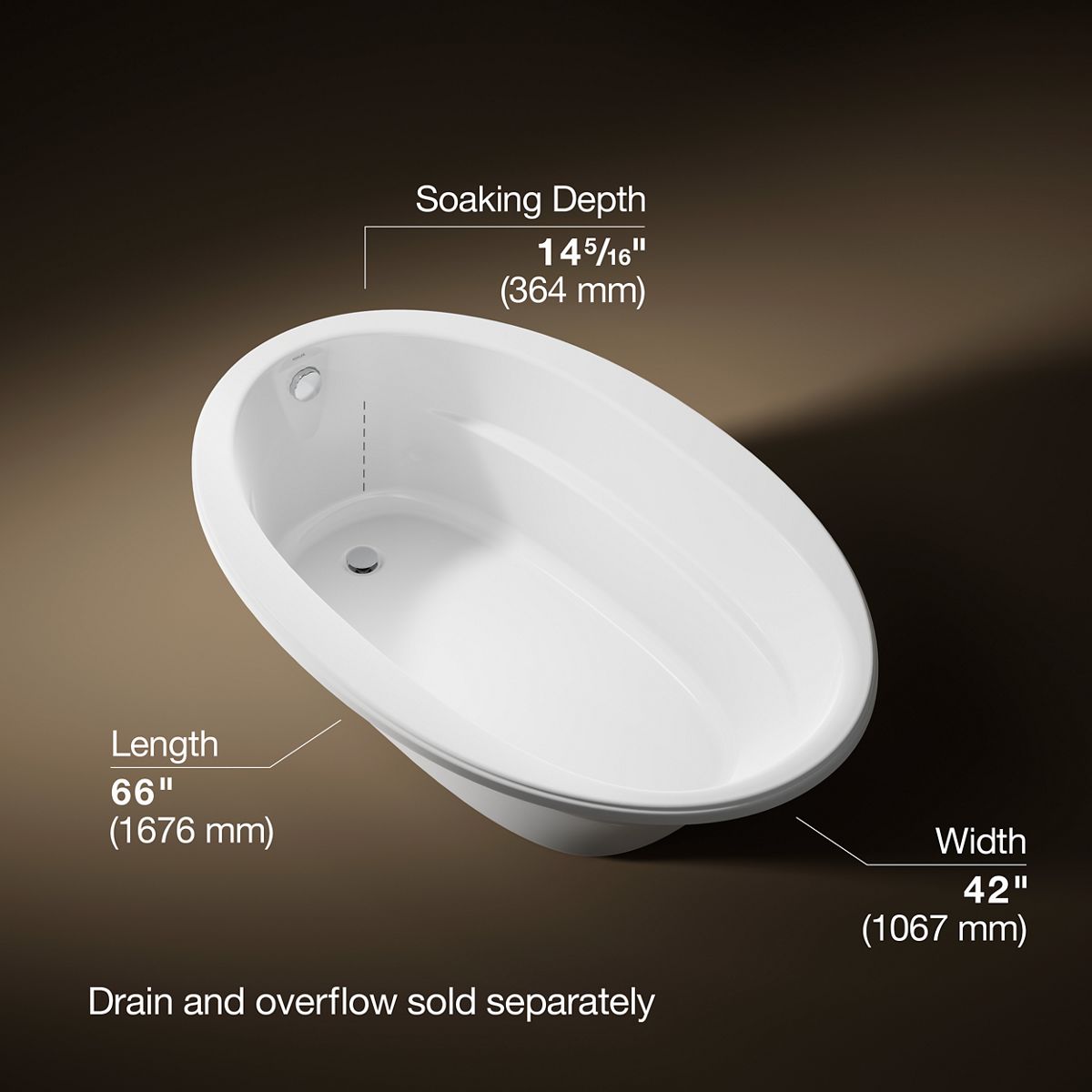

• Basin area, bottom: 48-5/8" x 24-1/2" (1235 mm x 622 mm)
• Basin area, top: 60" x 32-3/16" (1523 mm x 818 mm)
• Water depth: 14-5/16" (364 mm)
• Water capacity: 70 gal (265 L)
• Minimum floor load: 34 lbs/ft²
• Codes/standards: CSA B45.5/IAPMO Z124
• Warranty: KOHLER® Plastic Baths and Shower Bases Lifetime Limited Warranty
• Note: All product dimensions are nominal
