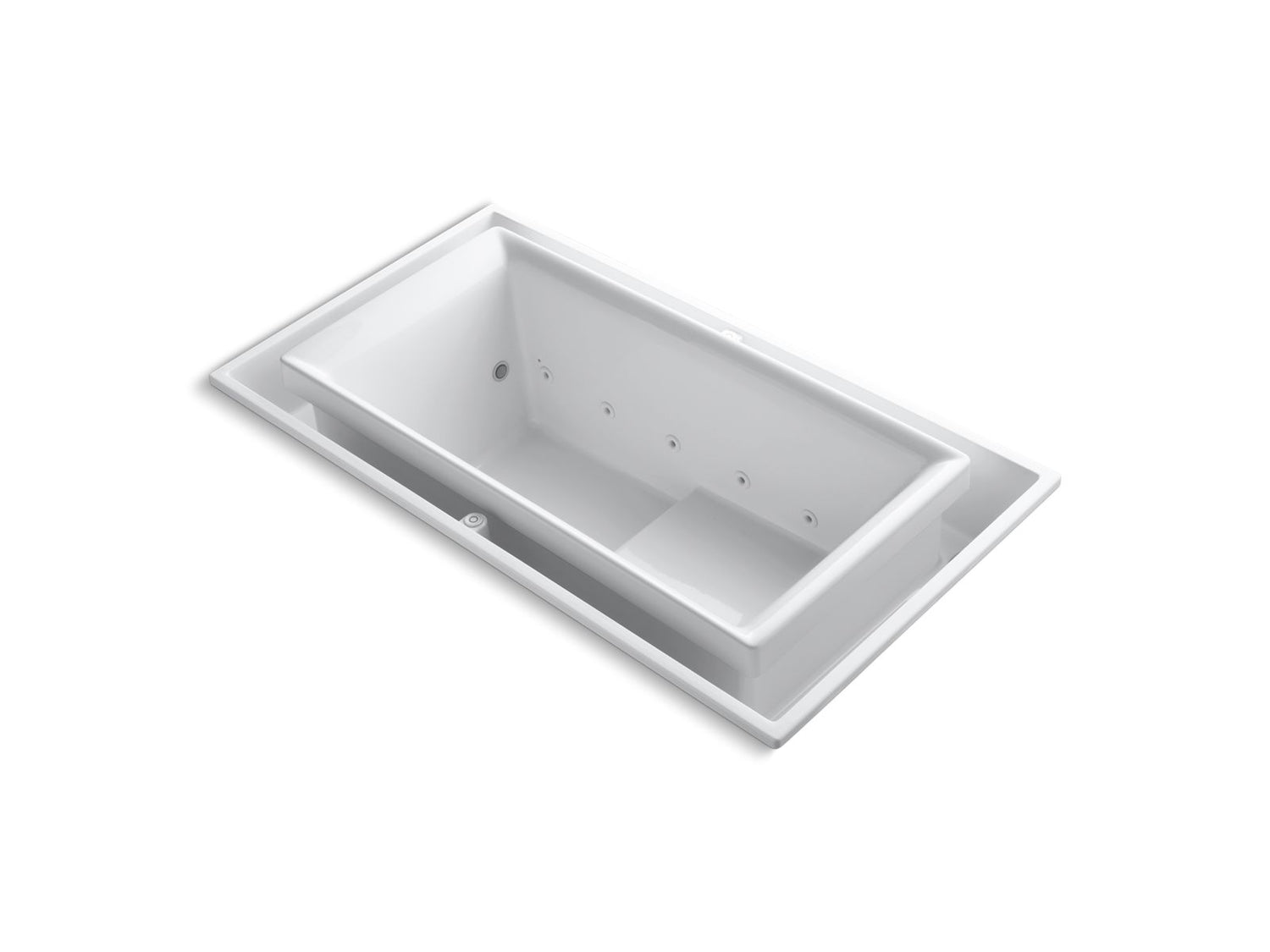

sok® 63" x 31-1/2" drop-in Effervescence bath with chromatherapy and right-hand drain

The KOHLER sok 63" x 31-1/2" drop-in Effervescence bath with chromatherapy and right-hand drain is an ultra-deep retreat with a continuous flow of water cascading over the sides of the basin. Effervescence ports release thousands of tiny champagne-like bubbles, while Chromatherapy lighting lets you select a preferred color scheme. It has a built-in heater, remote control and a water depth of 23-1/2" (597 mm).

Features

• Chromatherapy lighting allows you to select a preferred color scheme to suit your mood
• Effervescence ports release thousands of tiny champagne-like bubbles
• Built-in heater
• Remote control
• Overflow channel for deep soak and unique infinity pool effect
• Drop-in installation
• Installation requirement: two dedicated circuits, protected with Class A Ground-Fault Circuit-Interrupter (GFCI)
• Installation requirement: K-7193 drain for overflowing bath
• Unit must be filled through the bathing well
• The hot water supply should be 70% of the capacity of the bath or greater; installations will vary

Specifications

• Drain location: Right
• Drain hole diameter: 2-1/4" (57 mm)
• Basin area, bottom: 45" x 25-1/2" (1143 mm x 648 mm)
• Basin area, top: 61-1/2" x 30-1/4" (1562 mm x 768 mm)
• Water depth: 23-1/2" (597 mm)
• Water capacity: 142 gal (537.5 L)
• Minimum floor load: 59 lbs/ft²
• Cutout: Drop-in, 73-1/2" x 39-1/2" (1867 mm x 1003 mm)
• Material: Acrylic
• Colour: White
• Codes/standards: ASME A112.19.7/CSA B45.10; CSA B45.5/IAPMO Z124; ASTM E162; ASTM E662; UL 1795; CSA C22.2 No. 218.2; cUL Listed; UL Listed
• Warranty: KOHLER Plastic Baths and Shower Bases Lifetime Limited Warranty; KOHLER Hydrotherapy Components Five-Year Limited Warranty
• Note: All product dimensions are nominal
