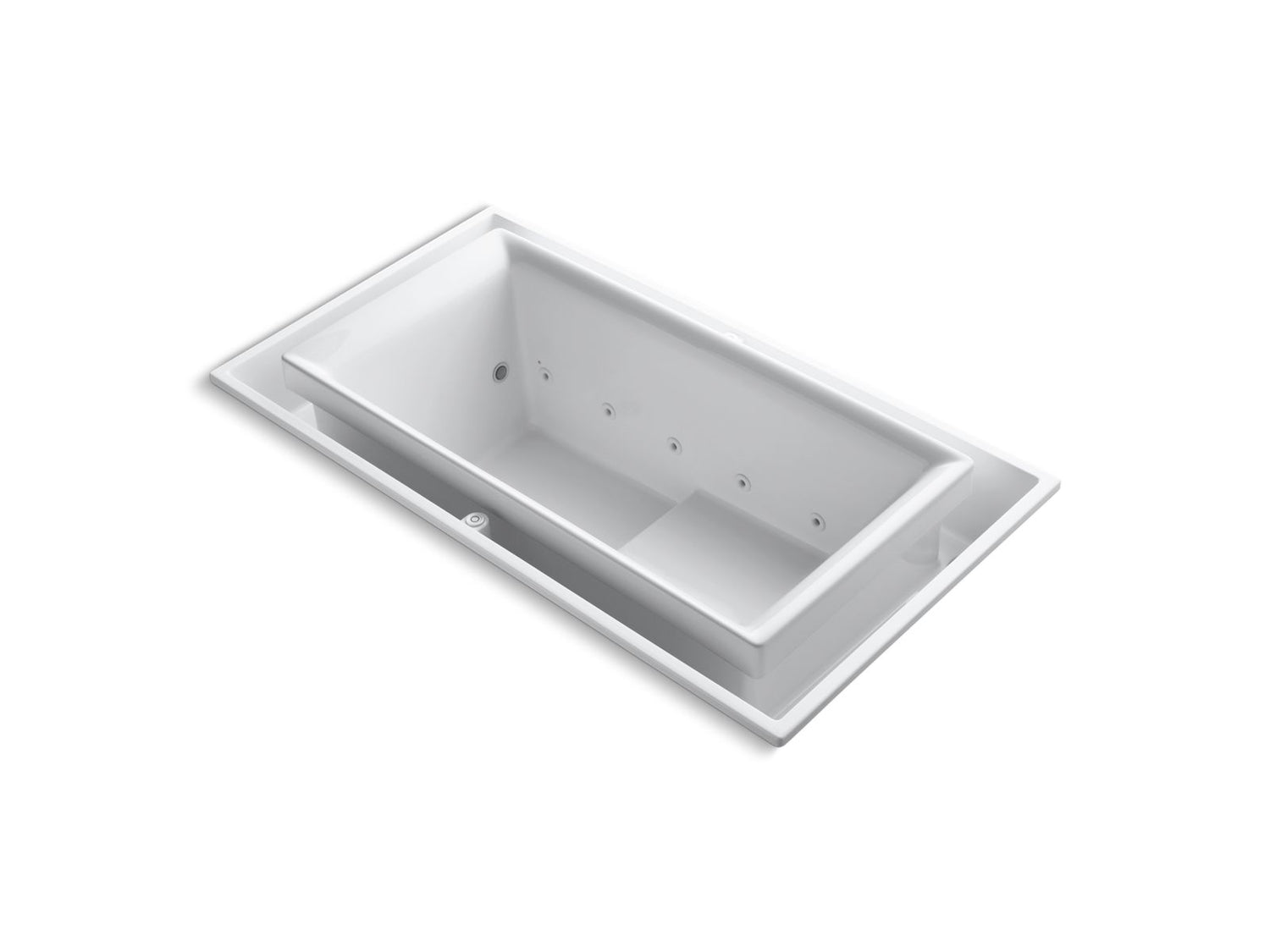

sok® 63" x 31-1/2" drop-in Effervescence bath with chromatherapy and left-hand drain

The Kohler sok® 63" x 31-1/2" drop-in Effervescence bath with chromatherapy and left-hand drain is an ultra-deep acrylic bathtub. A continuous flow of water cascades over the sides of the basin for whole-body immersion, while Effervescence ports release thousands of tiny champagne-like bubbles. Chromatherapy lighting lets you select a preferred colour scheme to suit your mood, and a built-in heater and remote control are included.

Features

• Chromatherapy lighting allows you to select a preferred colour scheme to suit your mood
• Built-in heater
• Remote control
• Overflow channel for deep soak and unique infinity pool effect
• Electrical requirement: two dedicated circuits required, protected with Class A Ground-Fault Circuit-Interrupter (GFCI)
• Unit must be filled through the bathing well
• Installation note: the hot water supply should be 70% of the capacity of the bath or greater; installations will vary.

Specifications

• Installation: Drop-in
• Drain location: Left
• Drain hole diameter: 2-1/4" (57 mm)
• Required product: K-7193 Drain for overflowing bath
• Basin area, bottom: 45" x 25-1/2"
• Basin area, top: 61-1/2" x 30-1/4"
• Water depth: 23-1/2" (597 mm)
• Water capacity: 142 gal (537.5 L)
• Minimum floor load: 59 lbs/ft²
• Cutout: Drop-in, 73-1/2" x 39-1/2" (1867 mm x 1003 mm)
• Required electrical service, pump: 240 V, 20 A, 50/60 Hz
• Required electrical service, heater: 240 V, 20 A, 50/60 Hz
• Number of speeds: Variable
• Material: Acrylic
• Colour: White
• Codes/standards: ASME A112.19.7/CSA B45.10, CSA B45.5/IAPMO Z124, ASTM E162, ASTM E662, UL 1795, CSA C22.2 No. 218.2, cUL Listed, UL Listed
• Warranty: KOHLER® Plastic Baths and Shower Bases Lifetime Limited Warranty; KOHLER® Hydrotherapy Components Five-Year Limited Warranty
• Note: All product dimensions are nominal
