Rite-Temp® Pressure-balancing valve body and cartridge kit with service stops

The KOHLER® Rite-Temp valve system sets standards for ease of installation, application versatility, and long-term reliability, simplifying your plumbing project and providing maximum flexibility for future changes or upgrades. The Rite-Temp valve platform uses the latest pressure-balancing technology to provide anti-scald protection and temperature control for enhanced showering comfort. Once the valve is installed, select your finished trim and finish from KOHLER®'s comprehensive design portfolio. Should you decide to remodel in the future, simply change out your trim for the latest design without the need to change the valve installation.

Features

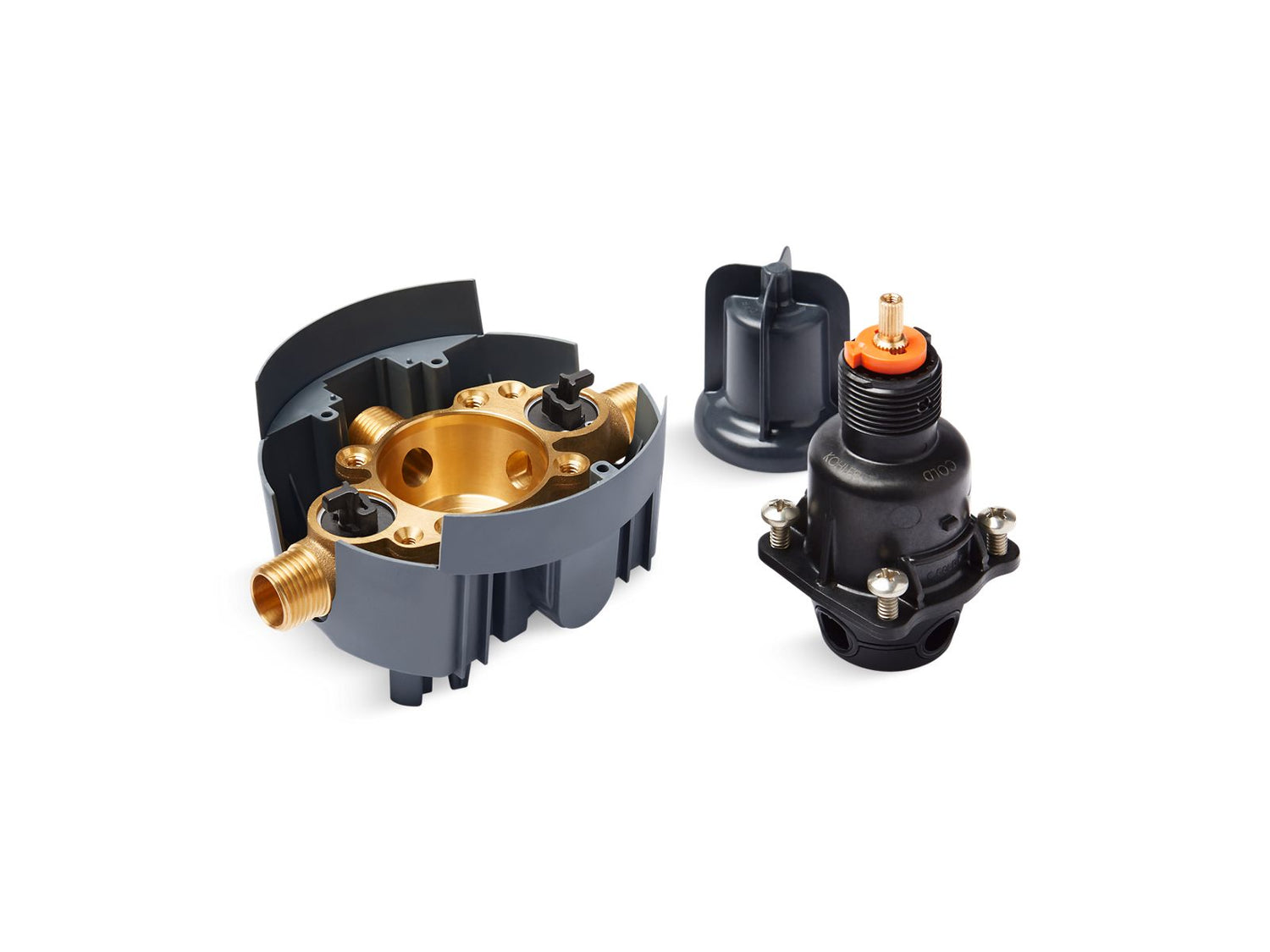

• Includes valve body, pressure balance cartridge, rough-in guide, and mudguard
• 1/2" Universal NPT and direct sweat inlets and outlets with stops (uninstalled kit)
• Service stops include integral check valves
• 5.0 gpm (18.9 lpm) maximum flow rate at 45 psi (3.1 bar)
• Single lever design cycles from off through cold to hot
• Antiscald protection
• One-piece cartridge design simplifies installation and maintenance
• Adjustable high-temperature limit stop to control maximum water temperature
• Requires valve trim to complete installation (sold separately)
• Pressure-balancing diaphragm technology maintains outlet temperature within +/-3°F during water pressure fluctuations

Specifications

• Dimensions: 5.5 x 5.25 x 6.25 in
• Weight: 1.82 lb
• UPC: 885612378477

Installation

• Designed for use in standard, back-to-back, and thin wall installations
• Valve body features integral mounting locations and symmetrical valve inlets to simplify installation
• Cartridge is reversible for installations where hot and cold supplies are reversed
• Rough-in guide designed for both standard and thin wall installations
• Installed valve rough-in can be flushed and pressure-tested to 150 psi max (air or water) without cartridge by using test cap (sold separately)
