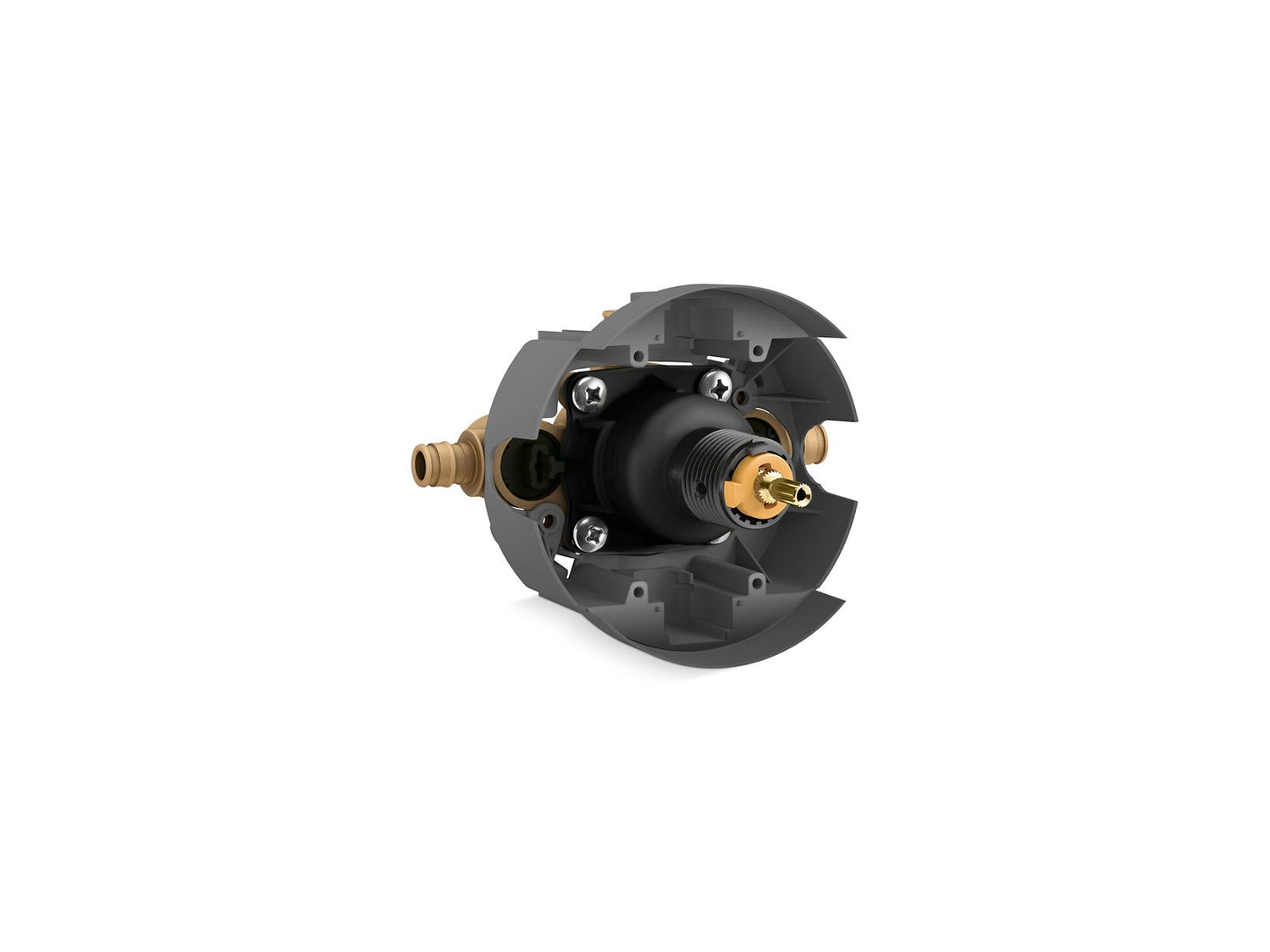

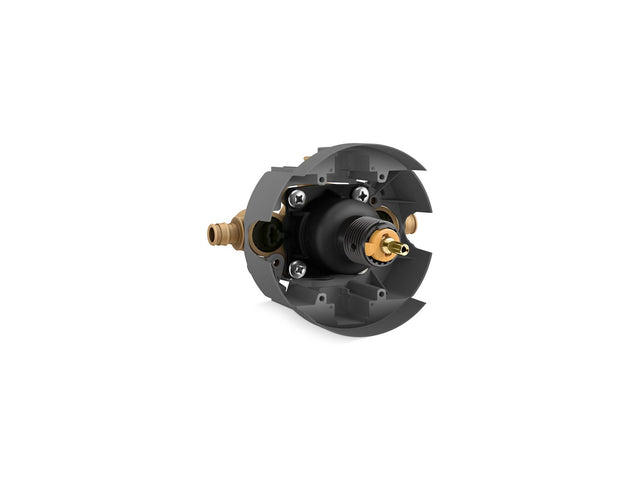

Rite-Temp® Pressure-balancing valve body and cartridge kit

The innovative KOHLER® Rite-Temp valve system sets standards for ease of installation, application versatility, and long-term reliability, simplifying your plumbing project and providing maximum flexibility for future changes or upgrades. This Rite-Temp valve platform uses the latest pressure-balancing technology to provide anti-scald protection and temperature control for enhanced showering comfort. Once the valve is installed, select your trim and finish from the comprehensive KOHLER® design portfolio.

Features

• Includes valve body, pressure balance cartridge, rough-in guide, and mudguard
• 1/2" PEX Expansion (F1960 style) inlets, with stops
• 5.0 gpm (18.9 lpm) maximum flow rate at 45 psi (3.1 bar)
• Single lever design cycles from off through cold to hot
• One-piece cartridge design simplifies installation and maintenance
• Adjustable high-temperature limit stop to control maximum water temperature
• Antiscald protection
• Requires valve trim to complete installation (sold separately)
• Pressure-balancing diaphragm technology maintains outlet temperature within +/-3°F during water pressure fluctuations

Specifications

• Dimensions: 12.5 x 11.25 x 6.5 in
• Weight: 1.2 lb
• UPC: 195711270894

Installation

• Designed for use in standard, back-to-back, and thin wall installations
• Valve body features integral mounting locations and symmetrical valve inlets to simplify installation
• Cartridge is reversible for installations where hot and cold supplies are reversed
• Rough-in guide designed for both standard and thin wall installations
• Installed valve rough-in can be flushed and pressure-tested to 150 psi max (air or water) without cartridge by using included test cap
