Rite-Temp® Pressure-balancing cartridge

At Kohler, we believe a shower should transform you. The KOHLER® Rite-Temp valve system sets standards for ease of installation, application versatility, and long-term reliability, simplifying your plumbing project and providing maximum flexibility for future changes or upgrades. The KOHLER® Rite-Temp pressure-balance cartridge can be ordered separately or as a complete valve and cartridge kit.

Features

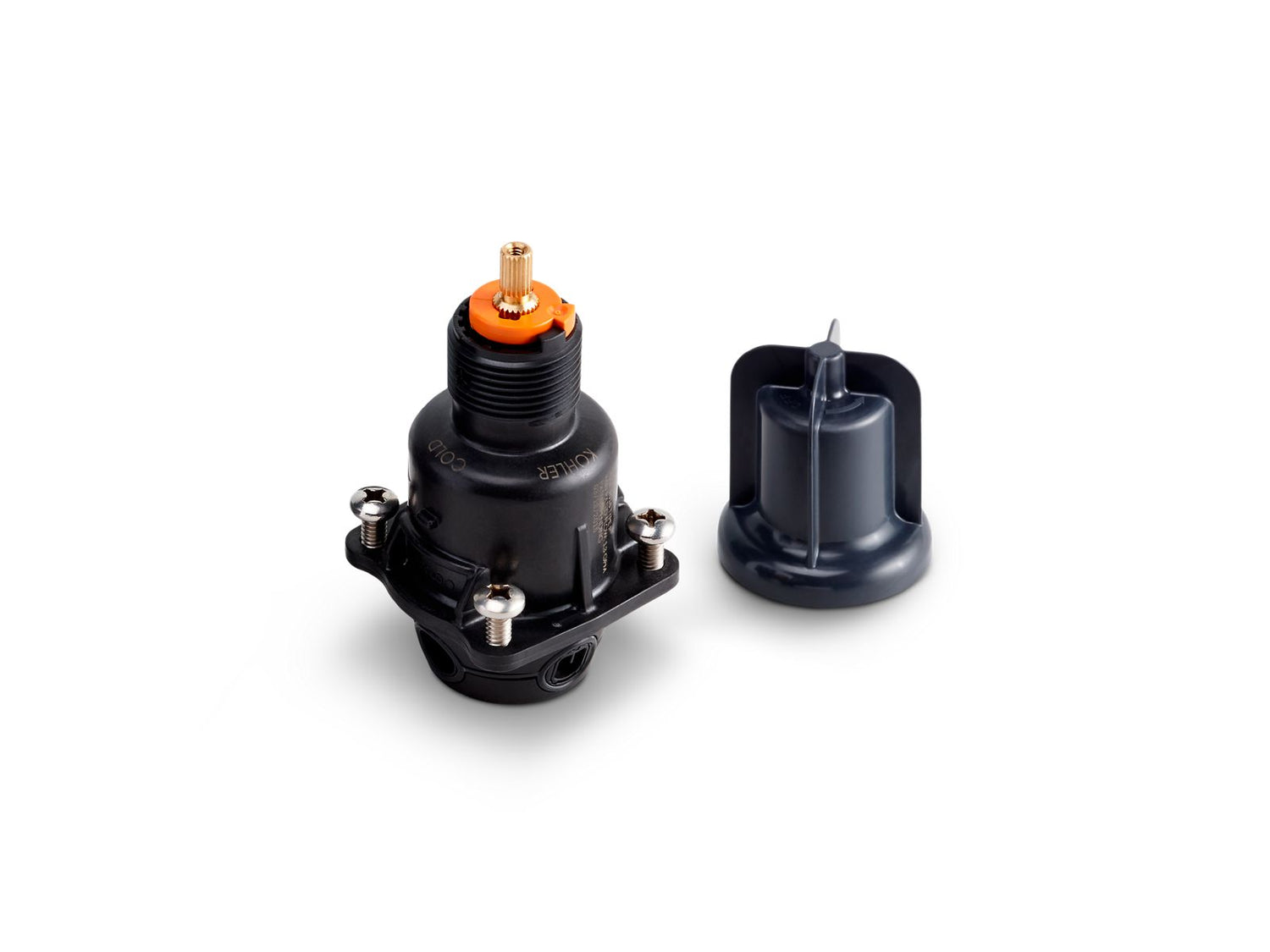

• Includes pressure balance cartridge and mud guard
• 5.0 gpm (18.9 lpm) maximum flow rate at 45 psi (3.1 bar)
• Single lever design cycles from off through cold to hot
• Antiscald protection
• One-piece cartridge design simplifies installation and maintenance
• Adjustable high-temperature limit stop to control maximum water temperature
• Requires trim and any K-8300 valve body to complete installation (sold separately)
• Pressure-balancing diaphragm technology maintains outlet temperature within +/-3°F during water pressure fluctuations

Specifications

• Dimensions: 5.05 x 2.55 x 2.55 in
• Weight: 0.495 lb
• UPC: 885612369307

Installation

• Cartridge is reversible for installations where hot and cold supplies are reversed
