PVC TOTAL 1™ W/O W/ROUND & TIP-TOE - 16" (5162TIP-CP)

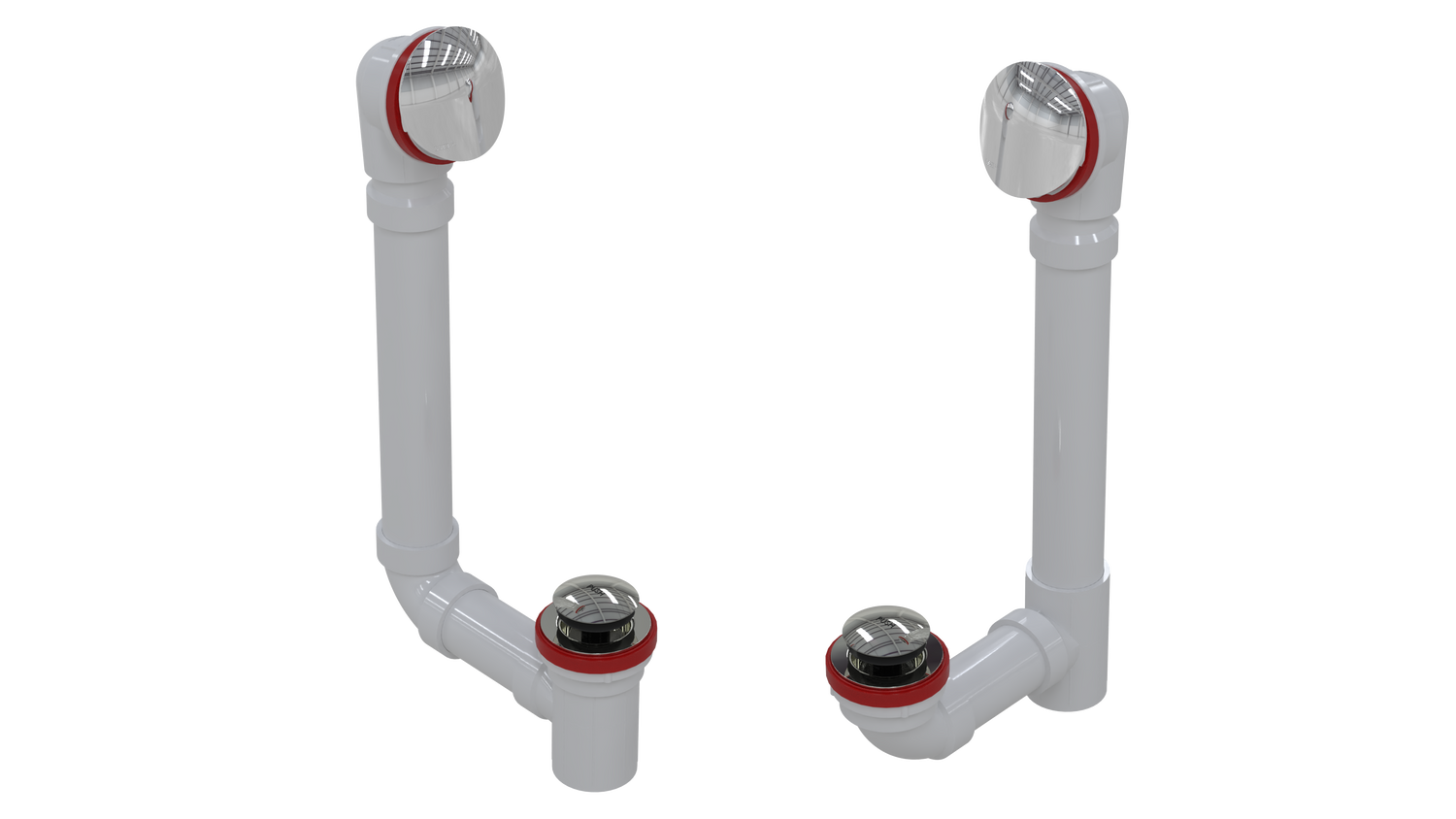

The OS&B Total 1™ Tip-Toe waste and overflow (5162TIP-CP) is a 1-1/2" PVC bath waste with a round faceplate. Total 1™ offers 2 drain configurations (Offset or Direct) in one package, with no leftover parts. Contractors do not need to keep both Offset and Direct Drain bath waste kits in the truck, and it is finished in Chrome Plated.

Features

• 1 kit = 2 drain configurations (Offset and Direct)
• SlideOn faceplate
• Thick foam overflow gasket with adhesive back
• Spin-on tie plate for a tool-less installation
• Angle adapter included; its use is optional
• Self-clinging rubber waste gasket
• Large/coarse thread strainer
• Total 1™ connector
• 16" version with pipe; the parts list shows a 4.5 in pipe (5342W-4.5) and an 11 in pipe (5342W-11)

Specifications

• Size: 1-1/2"
• Material: PVC
• Faceplate: Round
• Closure: Tip-Toe
• Finish: Chrome Plated
• Certification: CCSA US UPC Certification
• Length: 16"
