Description

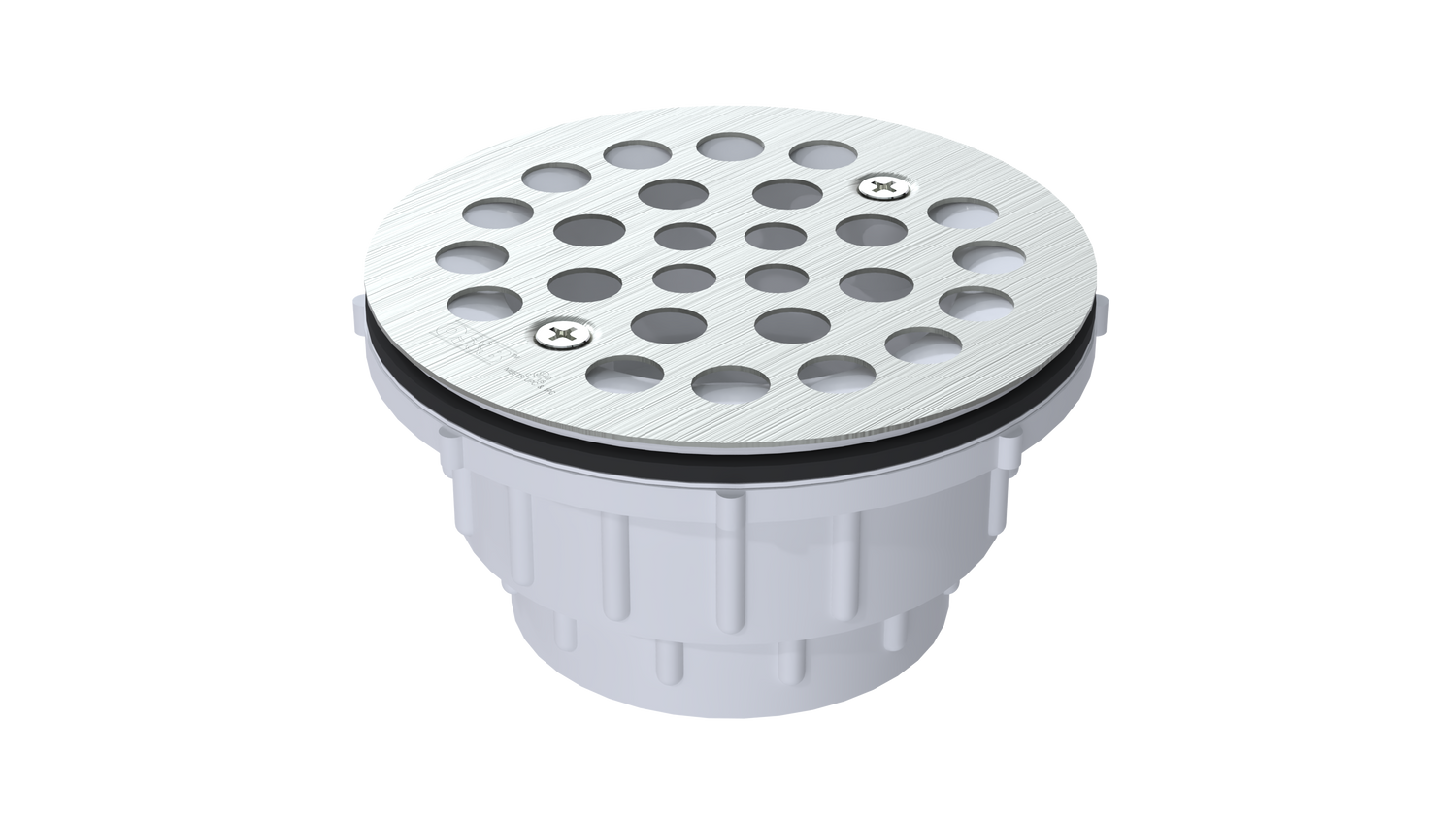

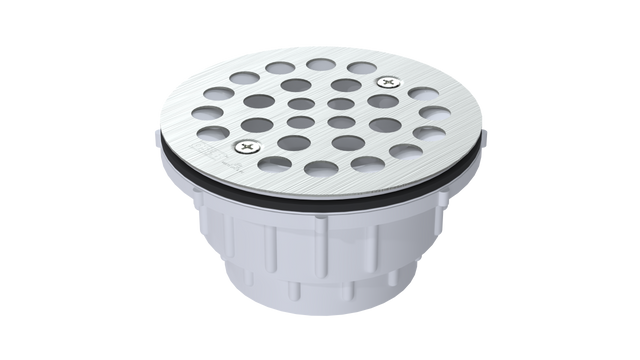

The OS&B SD5135T is a testable PVC shower drain with a 2" nominal outlet for use with molded bases. It is a 2-piece drain with a 2" PVC outlet and a 4-1/4" round screw-in grate. Its snap-off test cap allows for air testing from below or water testing from above.
Features
- Snap-off test cap with plier breakoff
- Test cap is designed not to fall down the drain during removal
- Test cap rated to 30psi
- PVC body with 2" DWV hub connection
- Includes a round screw-in grate
- Thread-in round flange
- Certified to ASME A112.18.2/CSA-B125.2
- Carries the cCSAus mark, which means the product conforms to the requirements of the NPC, UPC, IPC and IRC.

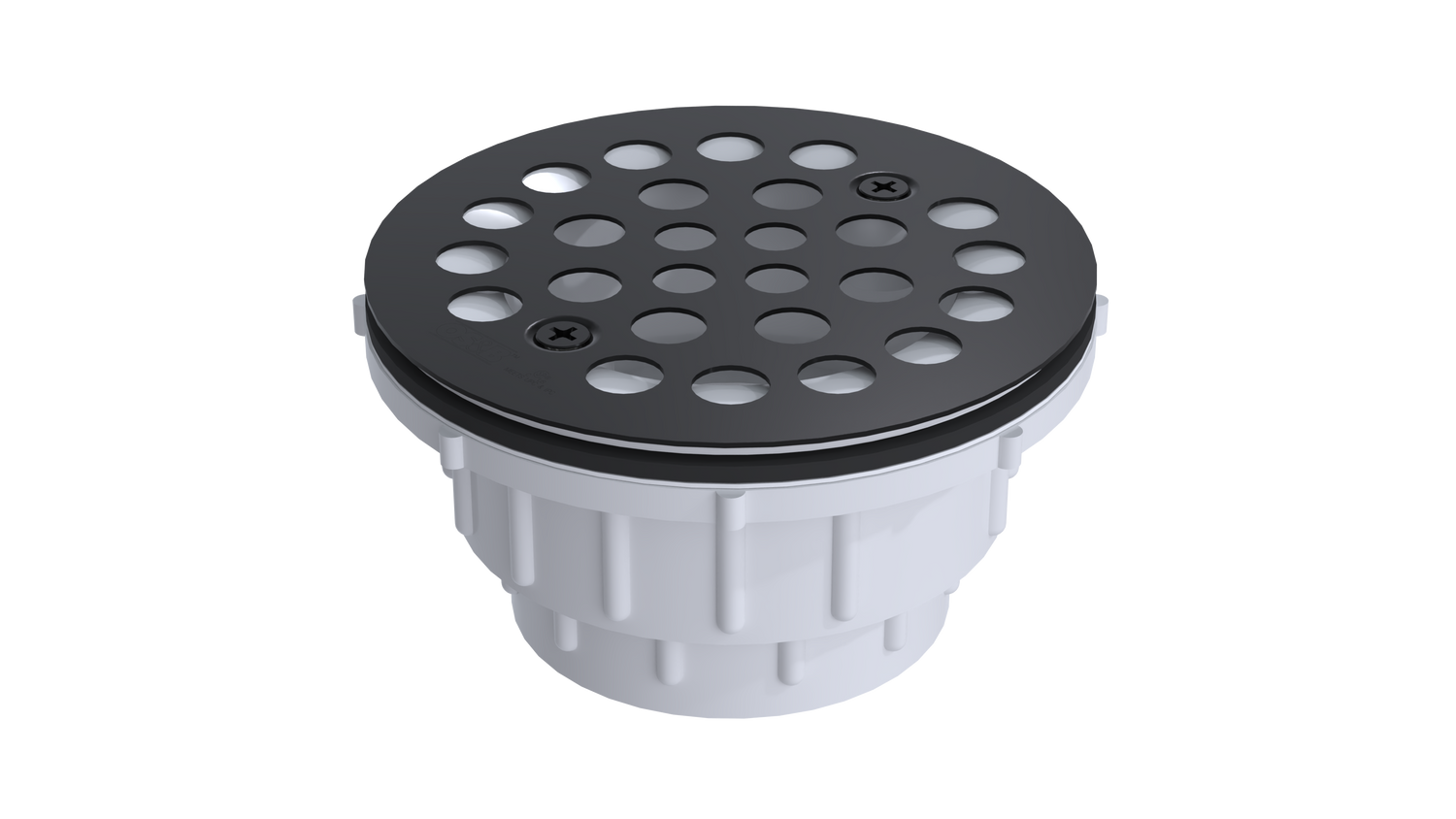

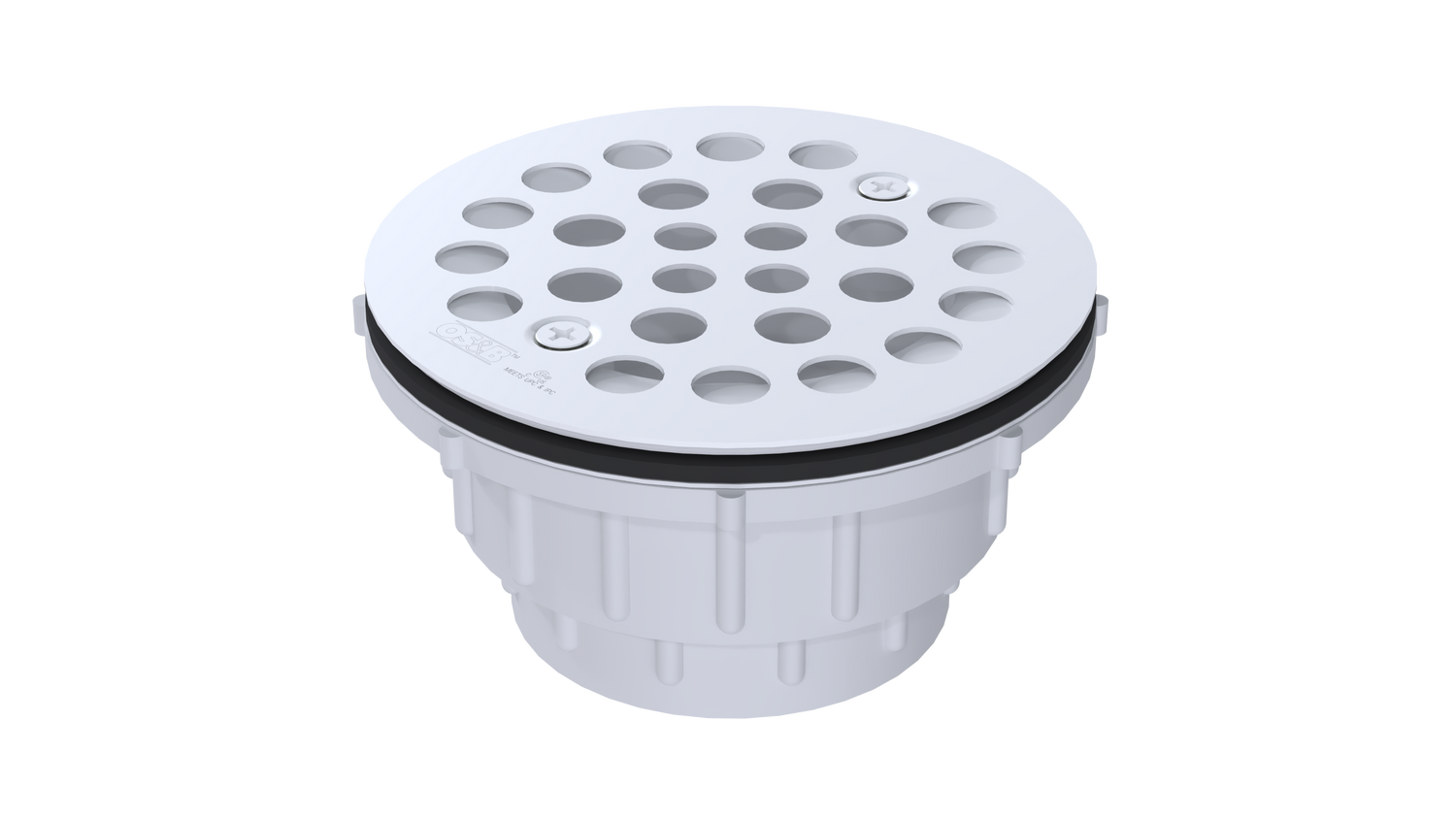

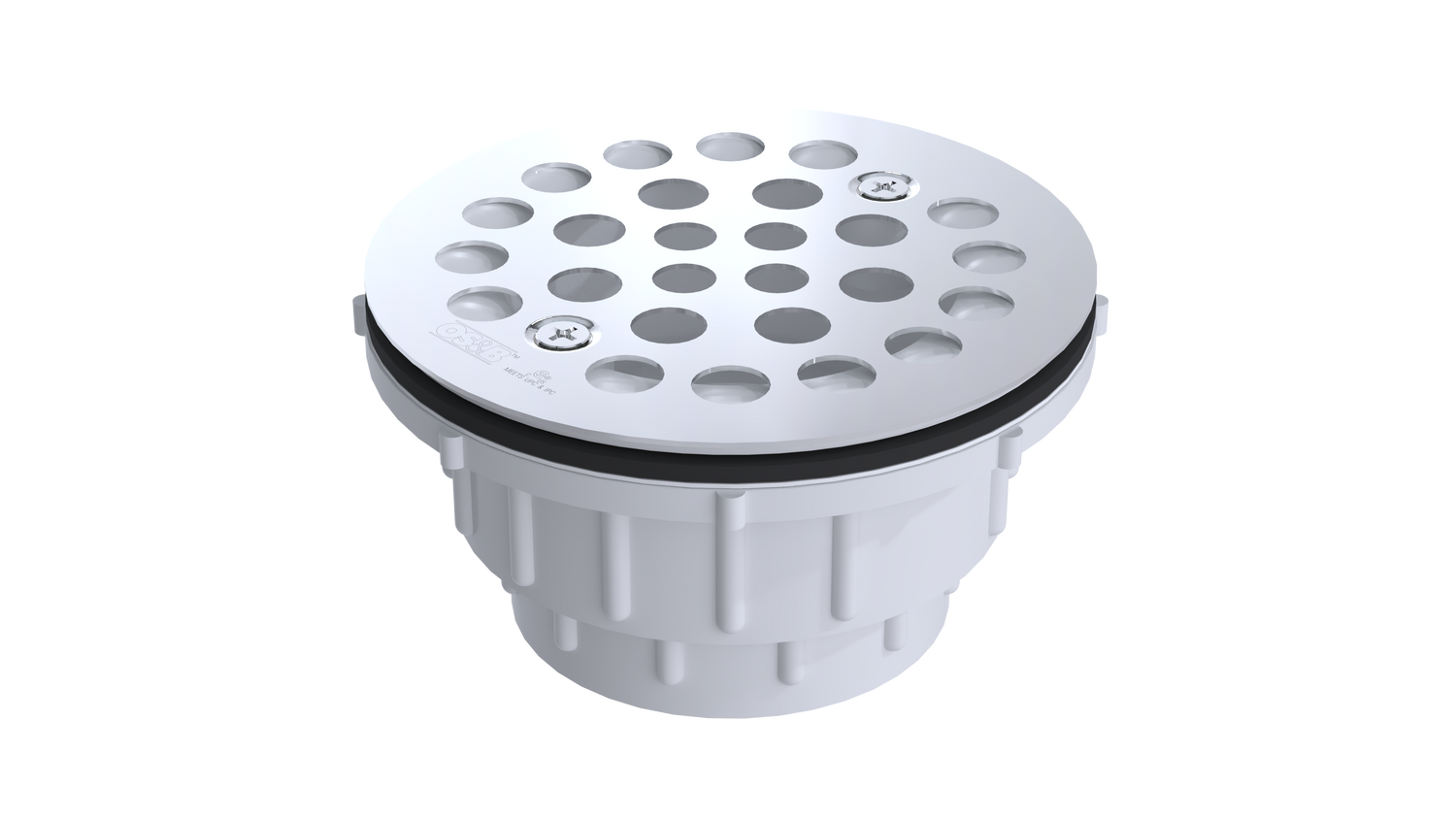

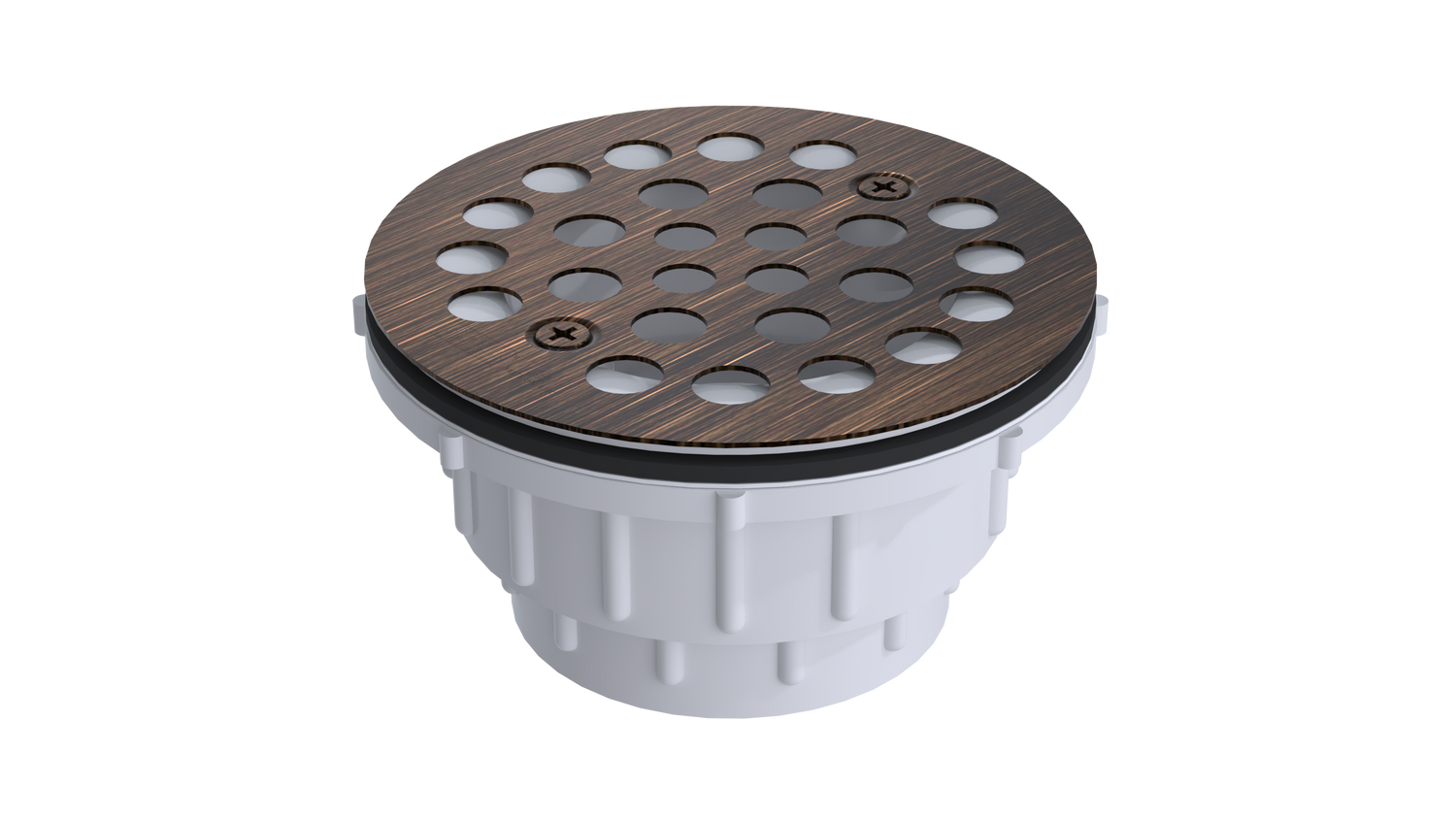

- Offered in Brushed Nickel, Chrome Plated, Matte Black, Venetian Bronze and White finishes.
Specifications
- Outlet: 2" nominal
- Material: PVC
- Construction: 2 piece
- Grate: 4-1/4" round screw-in
- Hub connection: 2" DWV
- Test cap rating: 30psi
- Certification: ASME A112.18.2/CSA-B125.2
- Available finishes: Brushed Nickel, Chrome Plated, Matte Black, Venetian Bronze, White
