PVC Shower Drain with 2" Outlet for use with Tile Bases (SDS5144)

The OS&B SDS5144 is a PVC shower drain with a 2" nominal outlet, designed for tile bases. It is a 3-piece drain with a 2" PVC outlet and a straight discharge. The drain includes a square snap-fit grate and a reversible collar. It is offered in Base, Brushed Nickel, Matte Black and Venetian Bronze finishes.

Features

• Reversible clamping collar allows for increased adjustability (2-1/4" max).
• Square snap-in grate.
• Thread-in square flange.
• PVC construction with a 2" outlet size.
• The "cCSAus Meets UPC & IPC Code" mark means the product conforms to the requirements of the NPC, UPC, IPC and IRC.

Specifications

• Outlet: 2" nominal, PVC
• Material: PVC
• Construction: 3 piece
• Discharge: Straight
• Application: Tile bases
• Grate: Square, snap-fit
• Flange: Thread-in, square
• Collar adjustability: 2-1/4" max (reversible clamping collar)
• Certification: ASME A112.18.2/CSA-B125.2

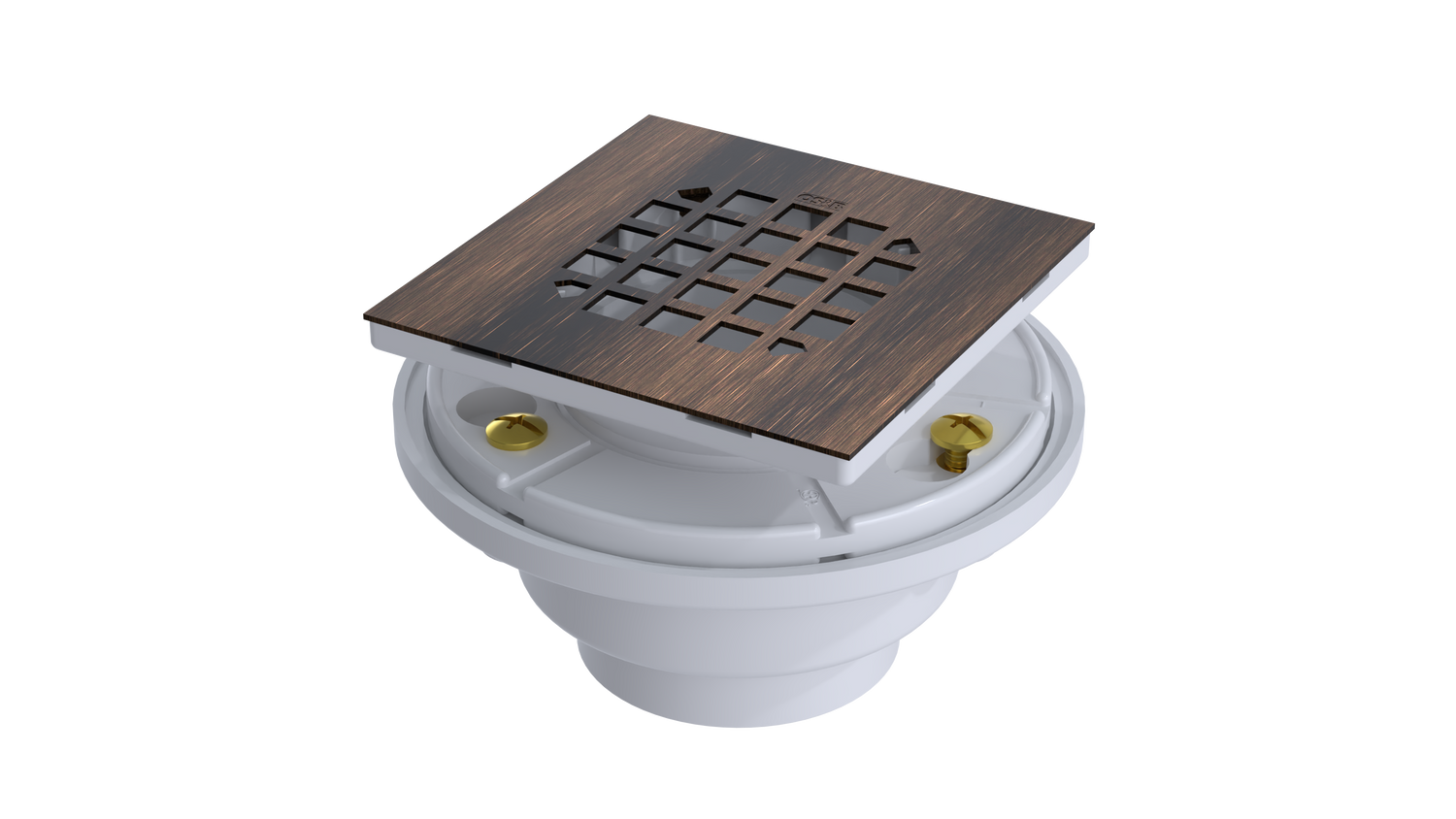

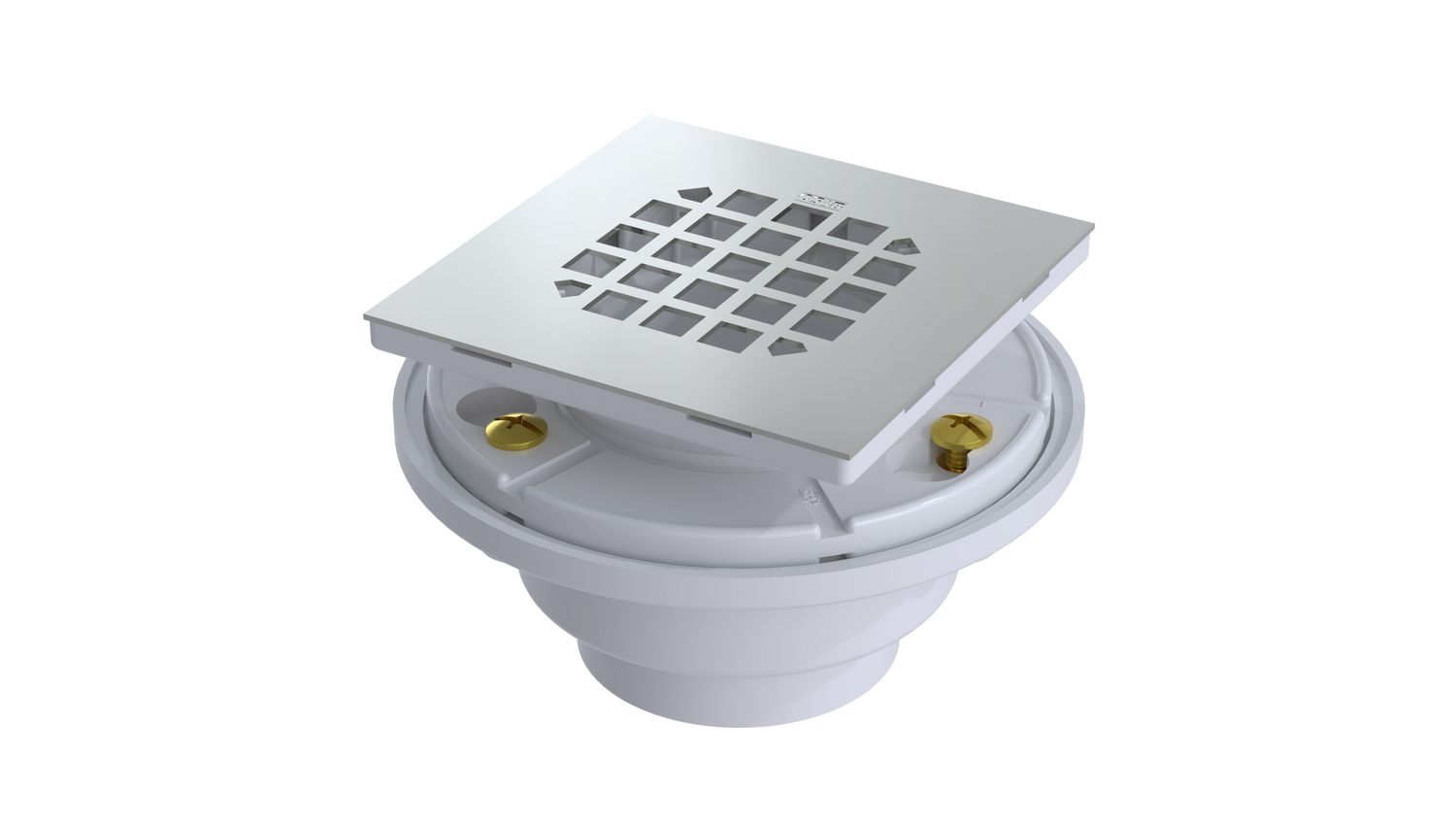

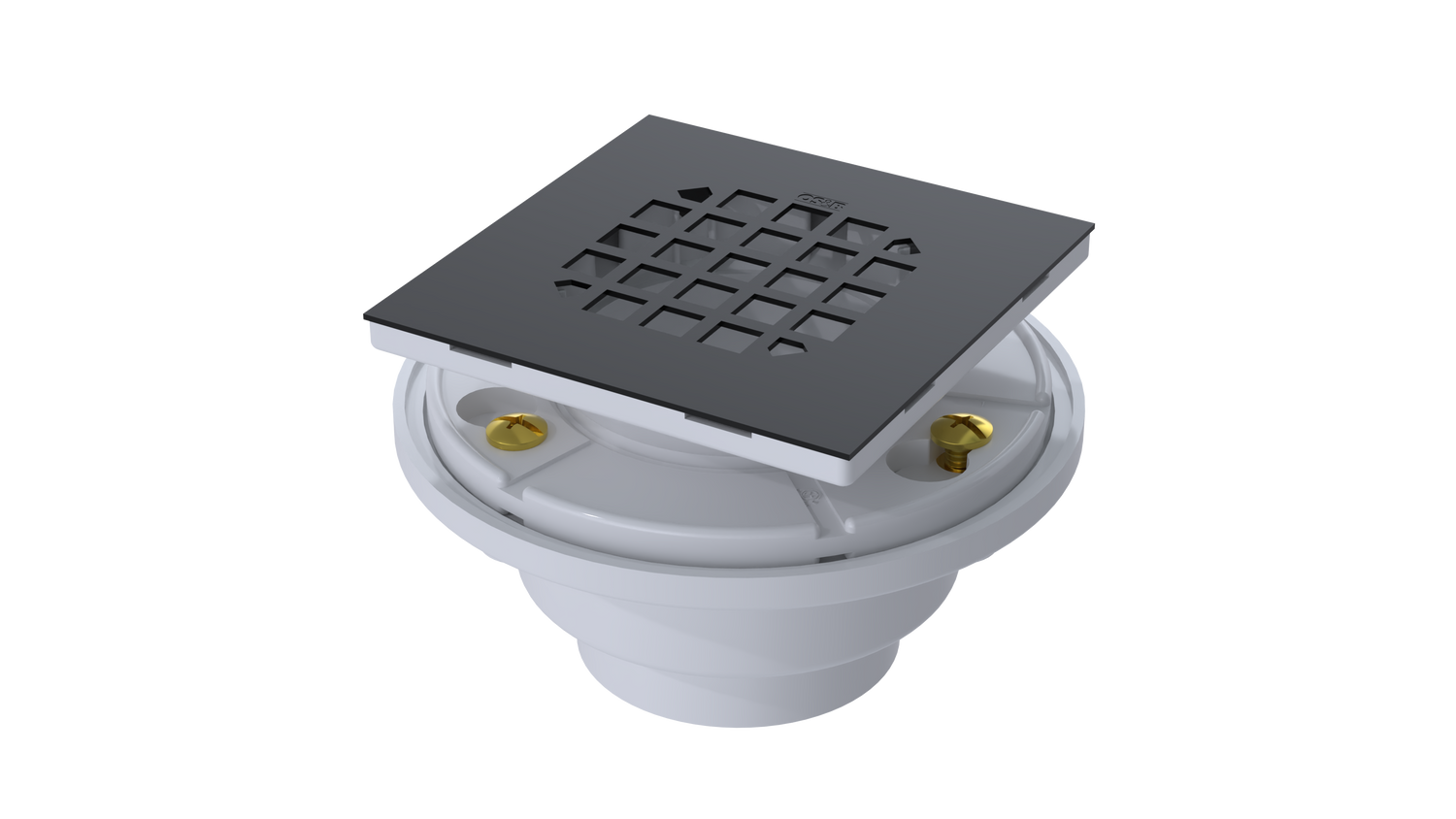

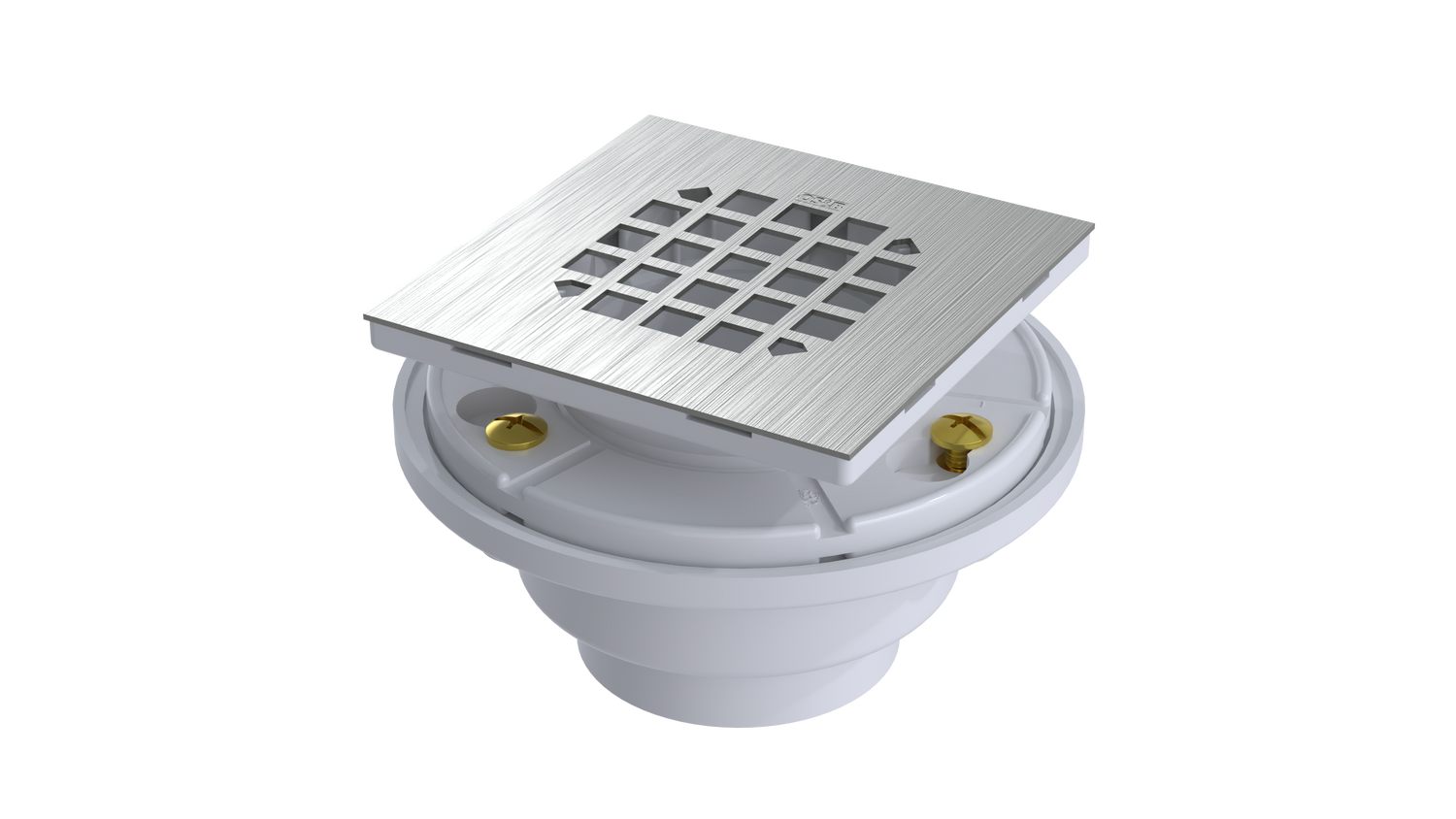

• Available finishes: Base (SDS5144, stainless steel), Brushed Nickel, Matte Black, Venetian Bronze
