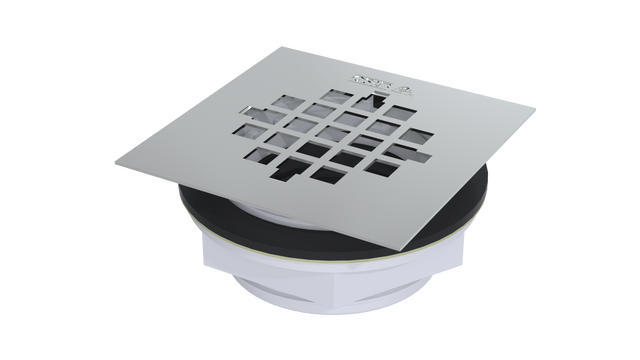

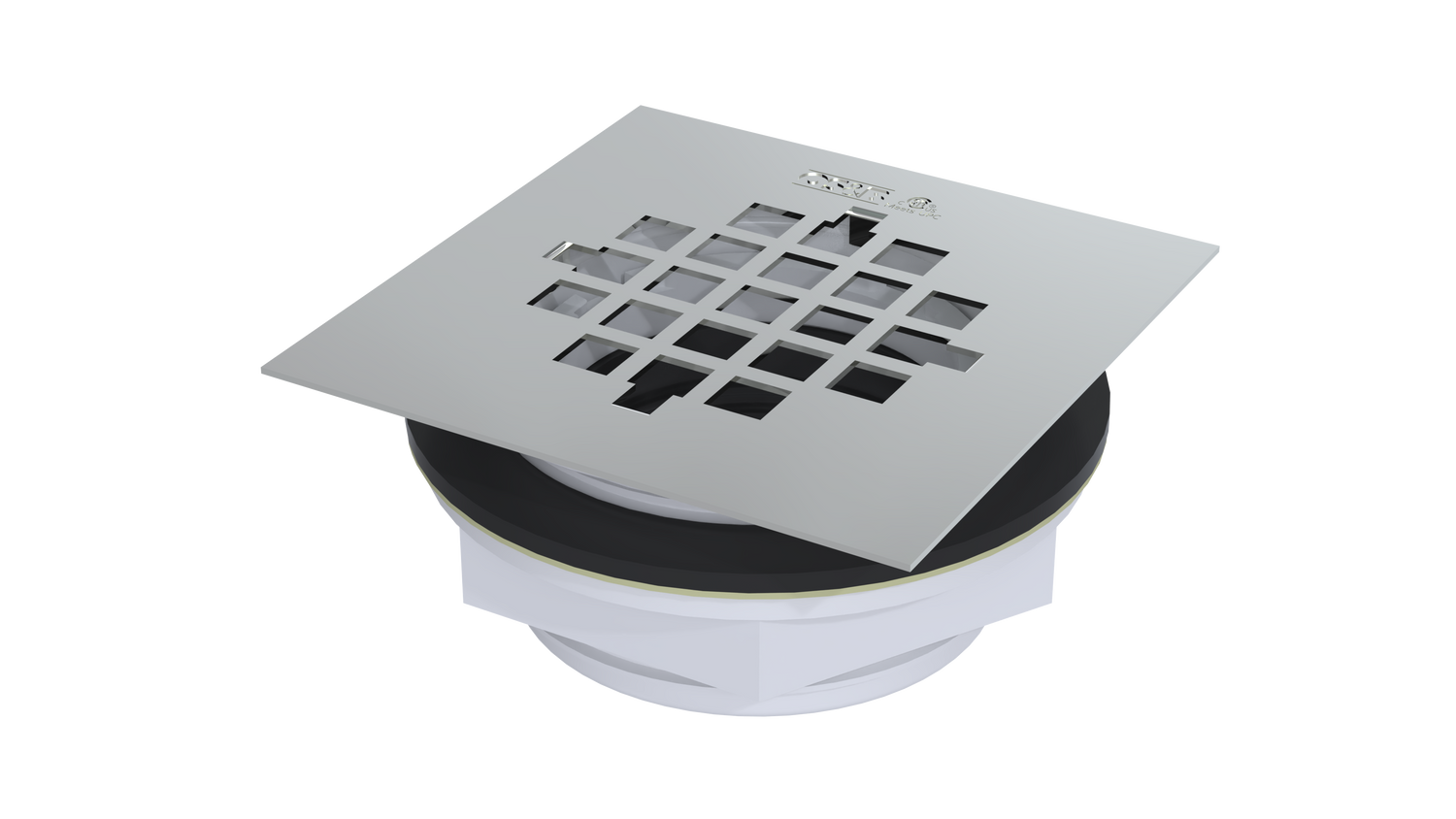

PVC Shower Drain with 2" Outlet for use with Molded Bases (SD313-SS)

The OS&B SD313 is a PVC shower drain with a 2" nominal outlet for use with molded shower bases. This 2-piece, straight discharge drain includes a square snap-fit grate, and the drain body attaches to the pipe from above. Its ribbed gasket compresses and seals around 2" ABS, PVC or Cast Iron Schedule 40 DWV pipe; it is not for use with 2" copper DWV pipe.

Features

• PVC drain body with 2" PVC outlet
• Square snap-fit grate included
• Drain body attaches to pipe from above
• Ribbed gasket seals around 2" ABS, PVC or Cast Iron Schedule 40 DWV pipe
• Not for use with 2" copper DWV pipe
• Fibre washer, rubber washer, lock nut and tightening wrench included
• Certified to ASME A112.18.2/CSA-B125.2
• The "cCSAus" mark means the product conforms to the requirements of the NPC, UPC, IPC and IRC

Specifications

• Material: PVC
• Size: 2"
• Outlet: 2" nominal
• Discharge: Straight
• Construction: 2 piece
• Certification: ASME A112.18.2/CSA-B125.2; cCSAus meets UPC & IPC
• SD313-SS certification: CCSA US UPC Certification
• Finish: Stainless Steel
