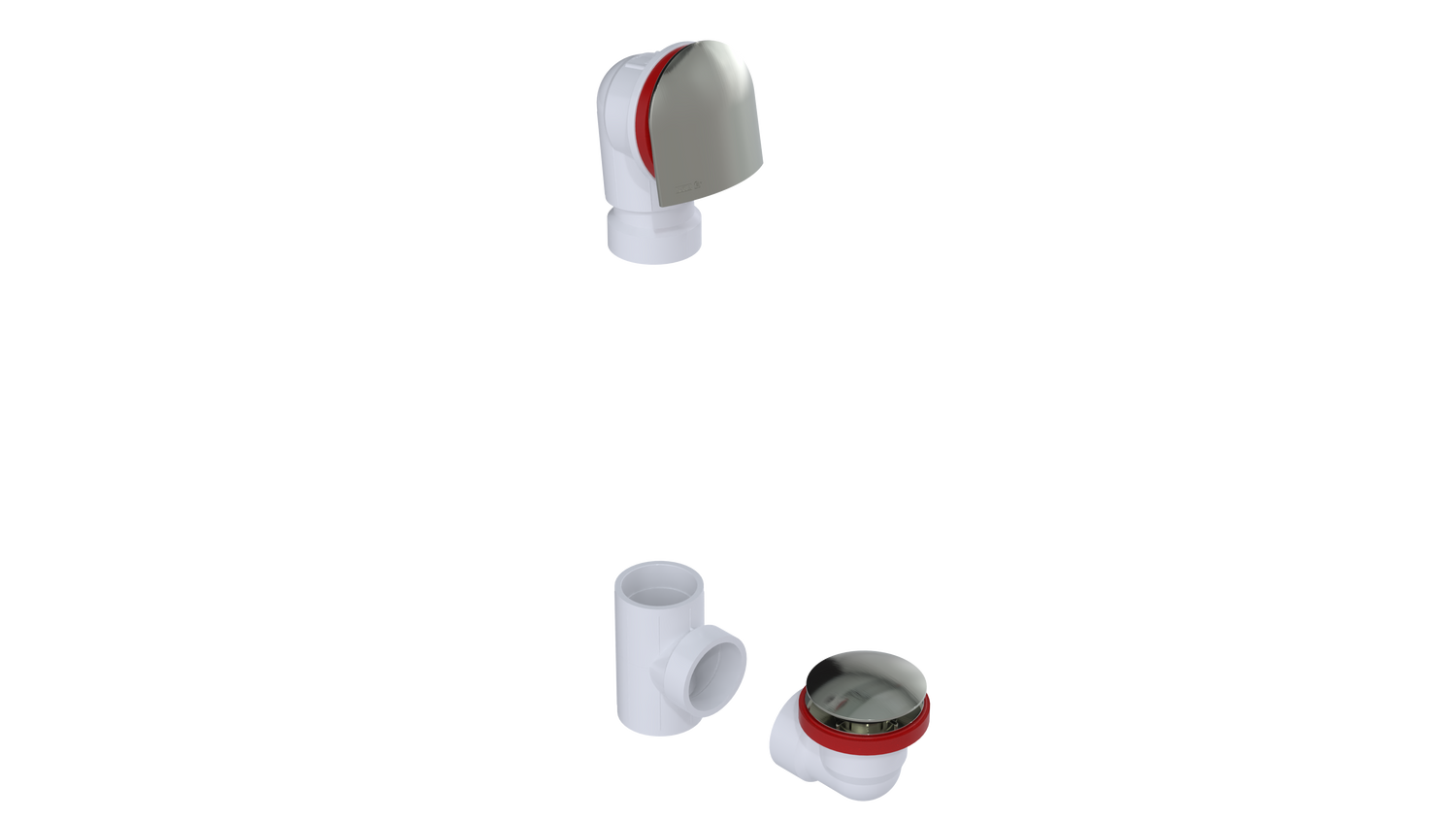

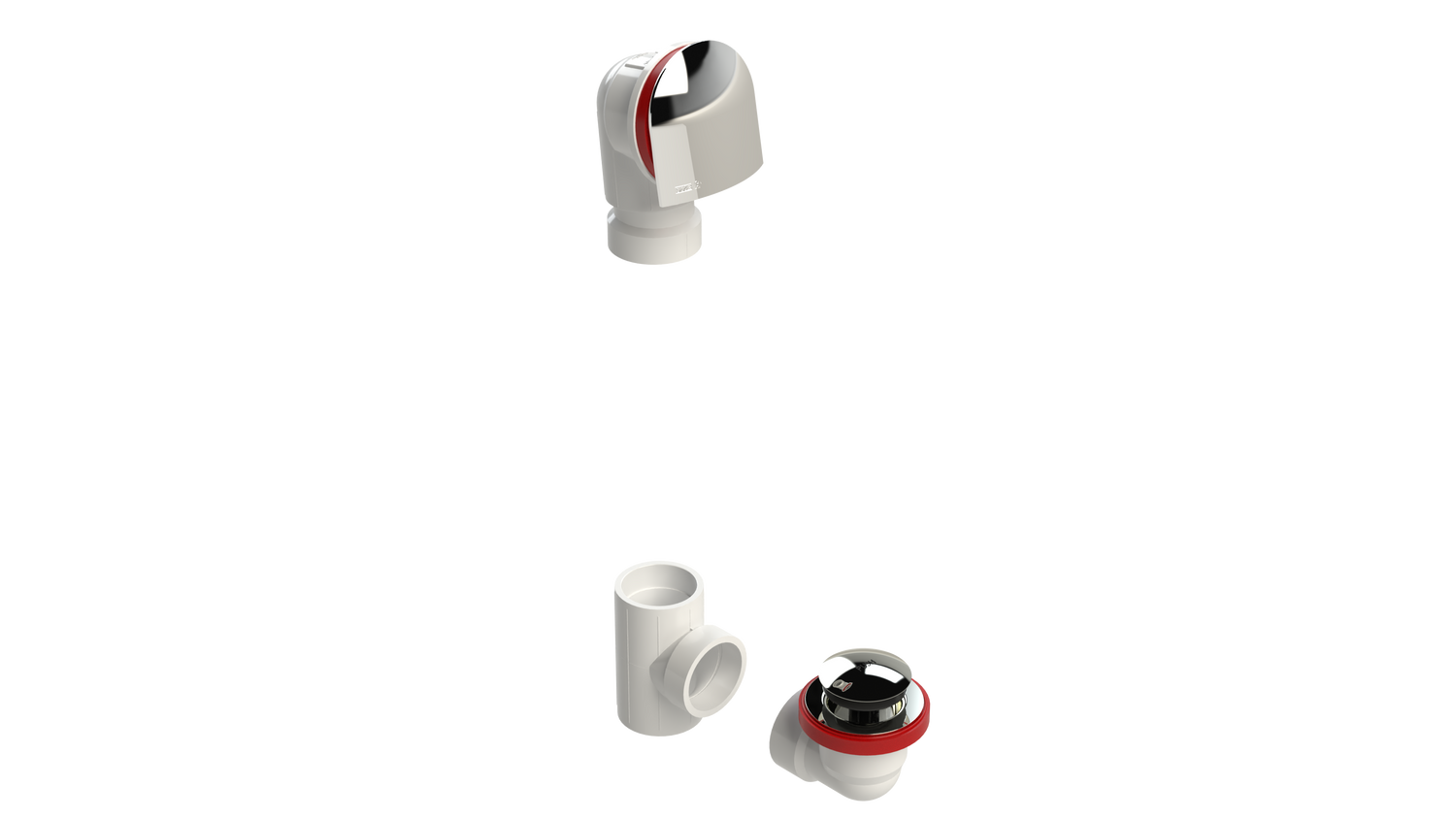

PVC OFFSET WASTE & OVERFLOW TIP-TOE KIT (5150TIPK)

The OS&B 1-1/2" PVC offset Tip-Toe waste and overflow (kit) has a Bell SlideOn faceplate, spin-on tie plate and angle adapter. It pairs a large strainer with a Tip-Toe stopper and is built in Schedule 40 PVC. The kit comes with tee, less 1-1/2" PVC pipe, and is offered in Brushed Nickel and Chrome Plated.

Features

• Large strainer with Tip-Toe stopper
• Bell SlideOn faceplate
• Thick foam overflow gasket with adhesive back
• Spin-on tie plate for a tool-less installation
• Overflow head with an integrated 6 degree angle
• Overflow head with aggressive threads for a quicker and easier installation
• Angle adapter included; its use is optional
• Self-clinging rubber waste gasket
• Coarse thread strainer

Specifications

• Style: Offset, kit
• Material: Schedule 40 PVC
• Kit contents: Comes with tee, less 1-1/2" PVC pipe
• Faceplate: Bell SlideOn
• Available finishes: Brushed Nickel, Chrome Plated
• Certification: ASME A112.18.2/CSA-B125.2; "cCSAus" Meets UPC & IPC Code mark (conforms to the requirements of the NPC, UPC, IPC and IRC)
