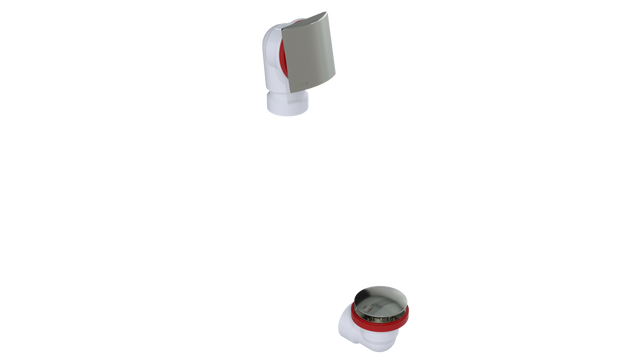

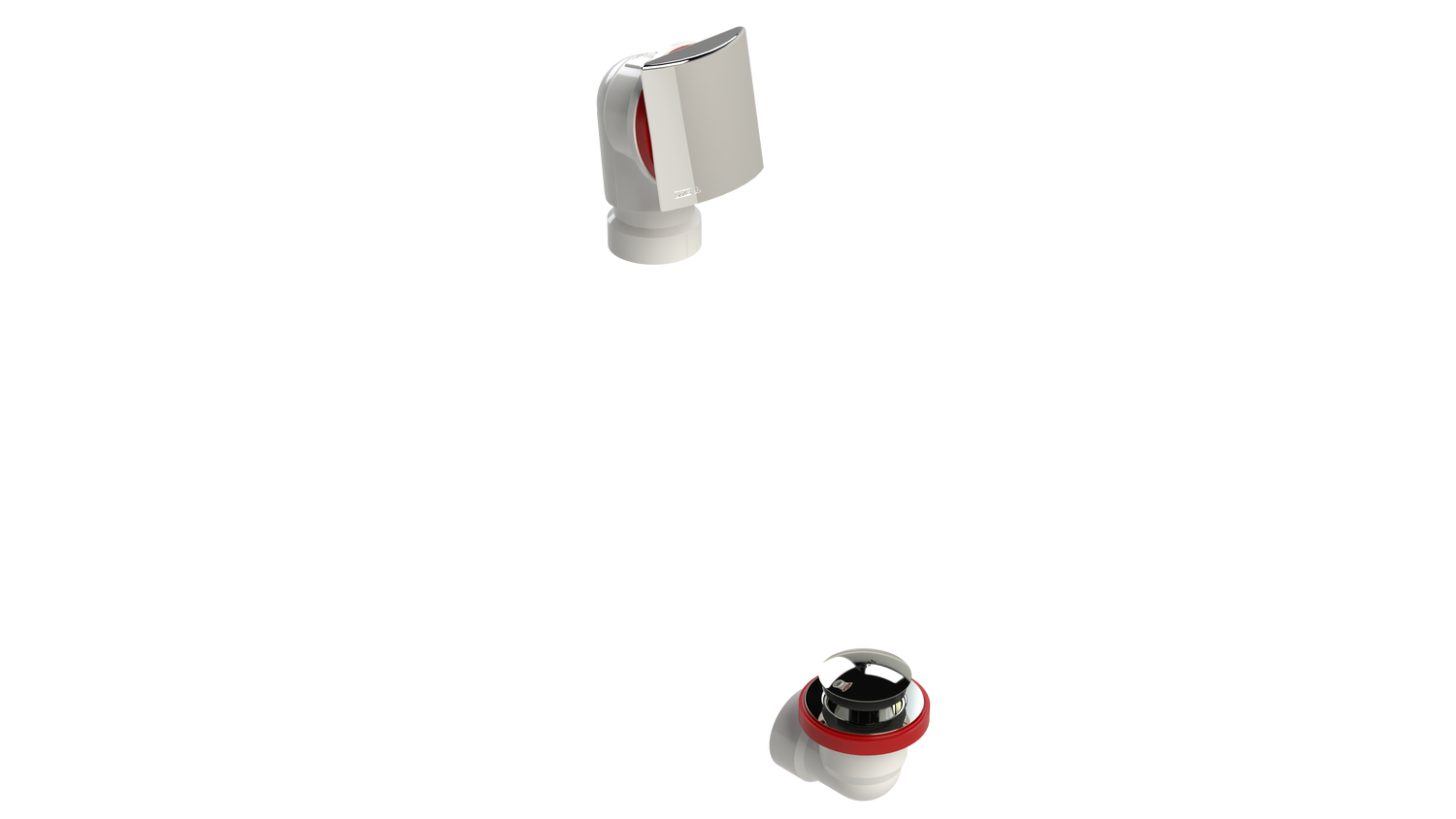

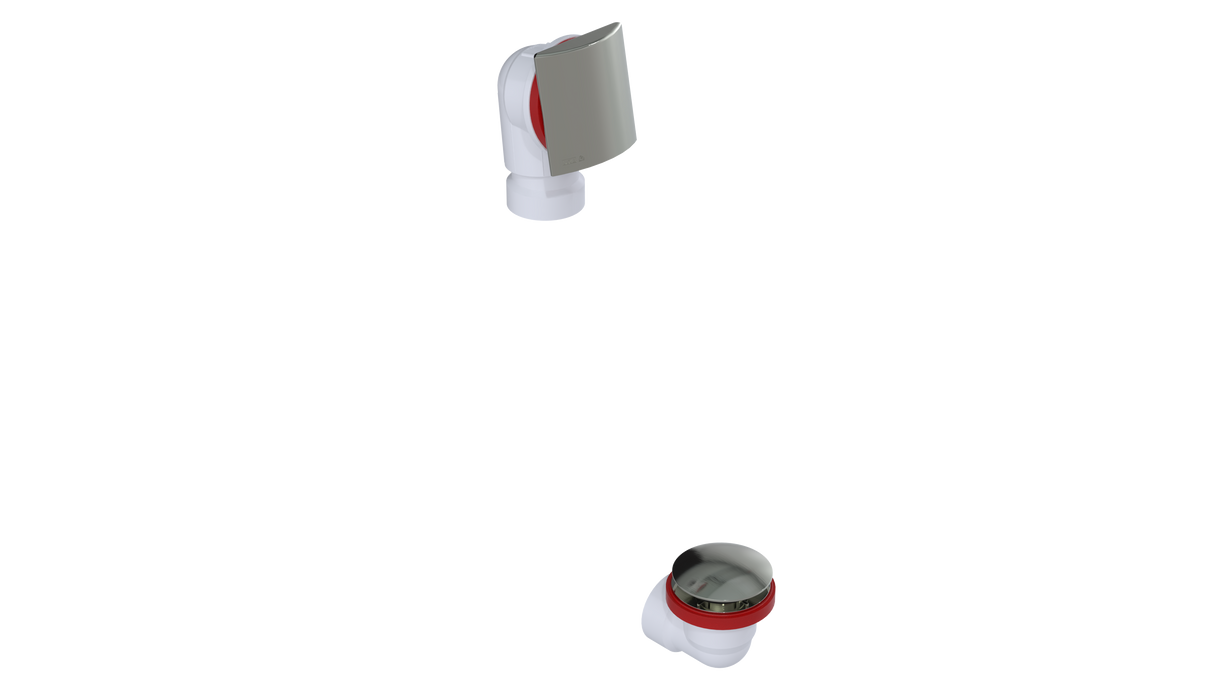

PVC OFFSET WASTE & OVERFLOW TIP-TOE HALF KIT (5151TIPHK)

The OS&B 1-1/2" PVC Offset Tip-Toe Waste & Overflow Half Kit is a PVC bath waste and overflow with a Square SlideOn™ faceplate and a Tip-Toe closure. It features a spin-on tie plate and angle adapter, with a large strainer and Tip-Toe stopper. This Schedule 40 PVC offset half kit comes less tee and less 1-1/2" pipe.

Features

• Thick foam overflow gasket with adhesive back
• Spin-on tie plate for a tool less installation
• Overflow head featuring an integrated 6 degree angle
• Overflow head featuring aggressive threads for a quicker and easier installation
• Angle adapter included; its use is optional
• Self clinging rubber waste gasket
• Coarse thread strainer
• Carries the cCSAus Meets UPC & IPC Code mark, which means the product conforms to the requirements of the NPC, UPC, IPC, and IRC

Specifications

• Construction: Schedule 40 PVC offset
• Tee and pipe: Less tee, less 1-1/2" pipe
• Material: PVC
• Faceplate: Square SlideOn™
• Closure: Tip-Toe stopper
• Length: Half Kit
• Available finishes: Brushed Nickel, Chrome Plated
• Certification: ASME A112.18.2/CSA-B125.2
