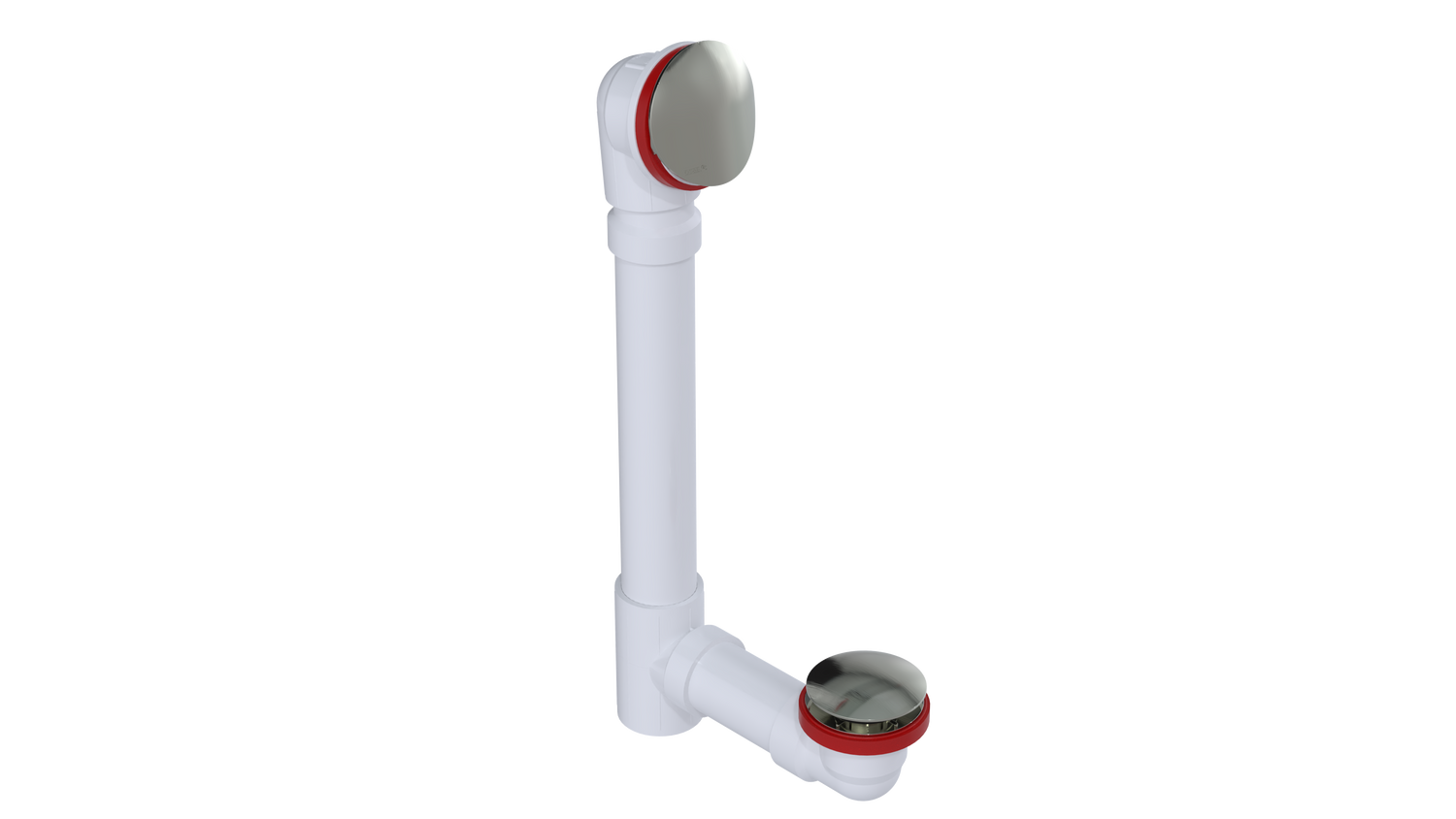

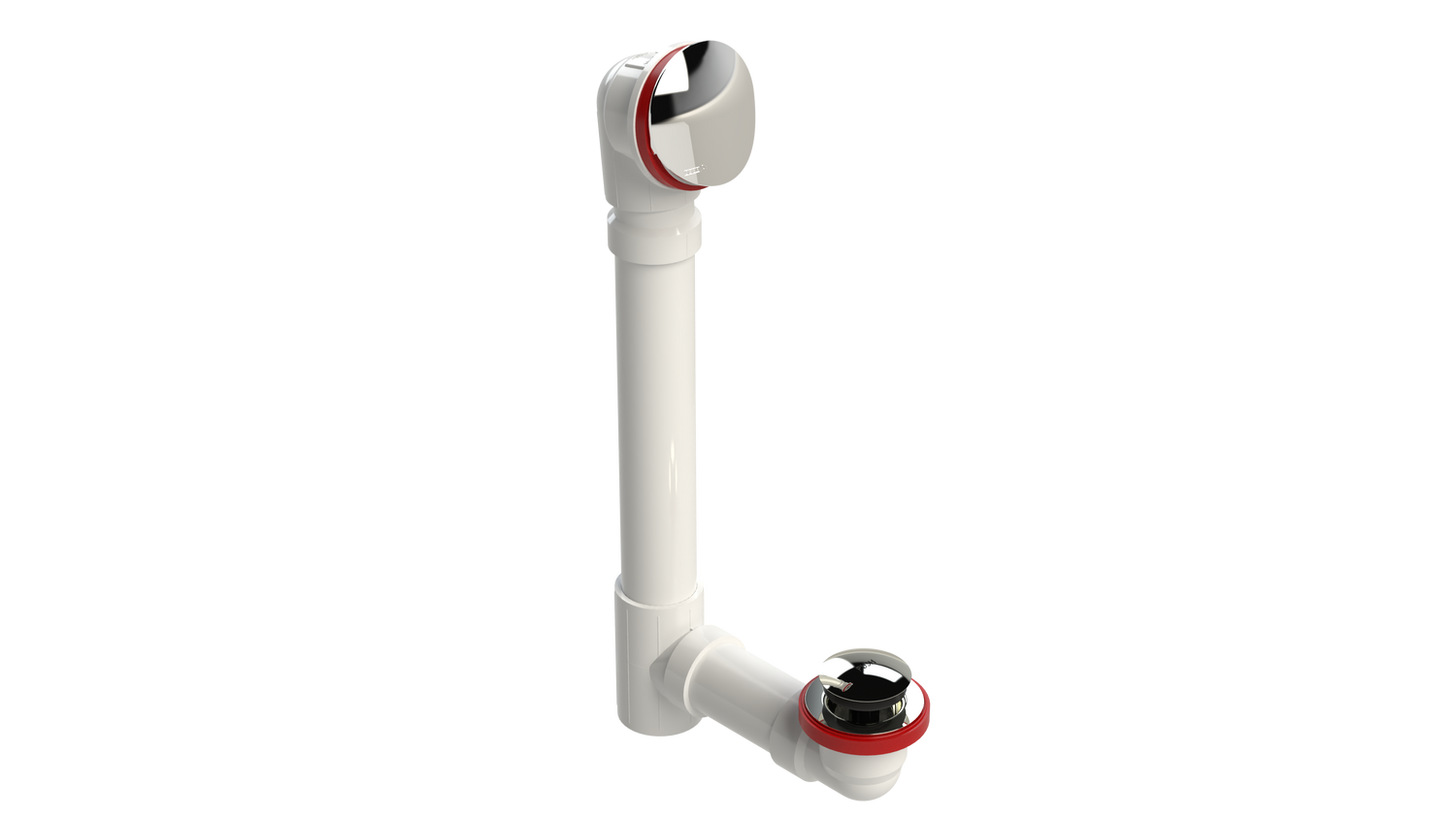

PVC OFFSET WASTE & OVERFLOW TIP-TOE (5152TIP)

The OS&B 1-1/2" PVC Offset Tip-Toe waste and overflow combines a Round SlideOn™ faceplate, spin-on tie plate and angle adapter with a large strainer and Tip-Toe stopper. This Schedule 40 PVC offset is the standard waste and overflow version. It is designed for 16" bathtubs and uses 1-1/2" PVC pipe. It is made of PVC and offered in Brushed Nickel and Chrome Plated.

Features

• Round SlideOn™ faceplate
• Thick foam overflow gasket with adhesive back
• Spin-on tie plate for a tool-less installation
• Overflow head featuring an integrated 6 degree angle
• Overflow head with aggressive threads for a quicker and easier installation
• Angle adapter included; its use is optional
• Self-clinging rubber waste gasket
• Large, coarse-thread strainer with Tip-Toe stopper

Specifications

• Material: Schedule 40 PVC
• Configuration: Offset
• Faceplate: Round SlideOn™
• Stopper: Tip-Toe
• Length: Standard
• Available finishes: Brushed Nickel and Chrome Plated
• Certification: ASME A112.18.2/CSA-B125.2
• Certification mark: cCSAus Meets UPC & IPC Code (conforms to the requirements of the NPC, UPC, IPC and IRC)
