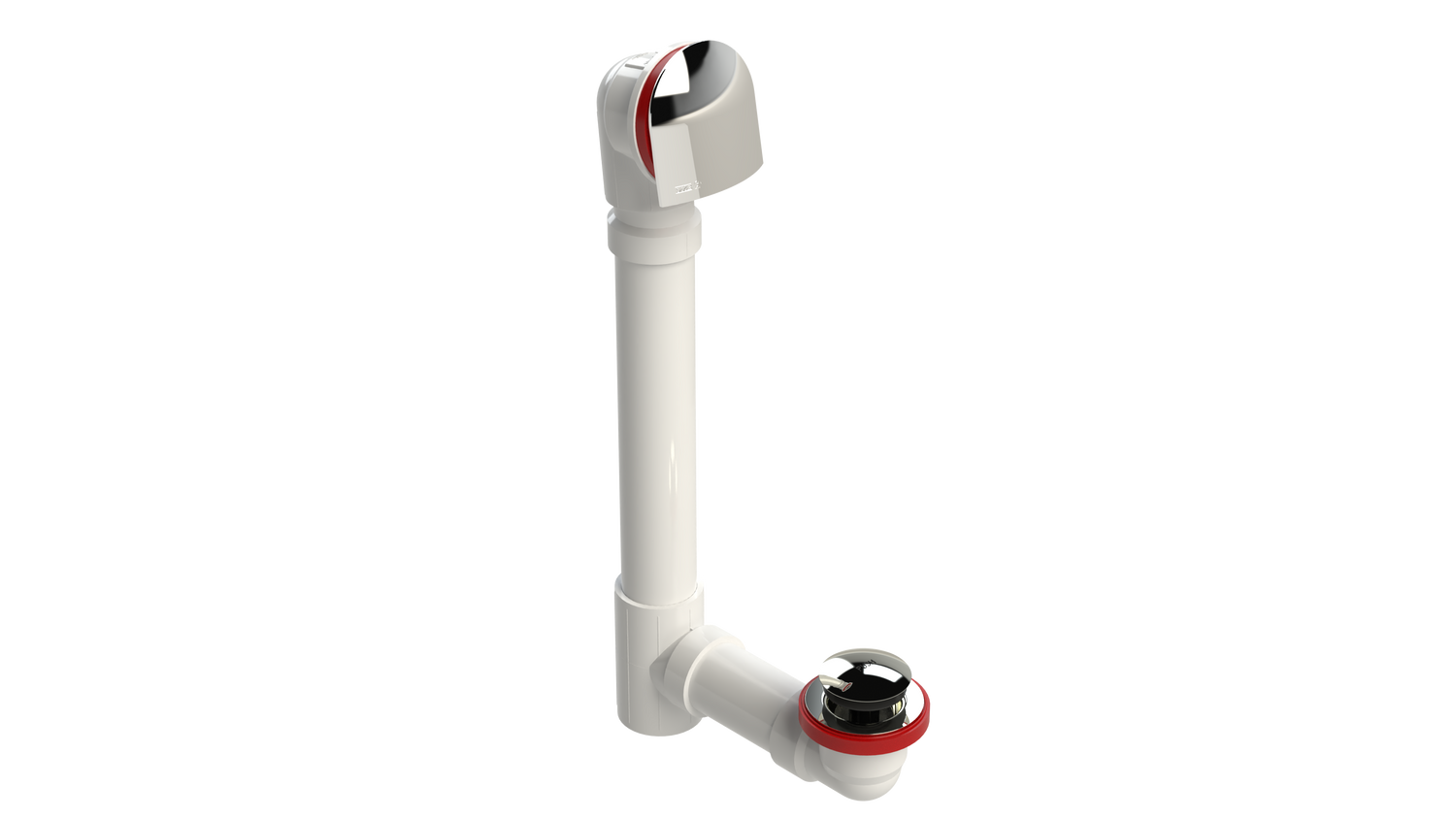

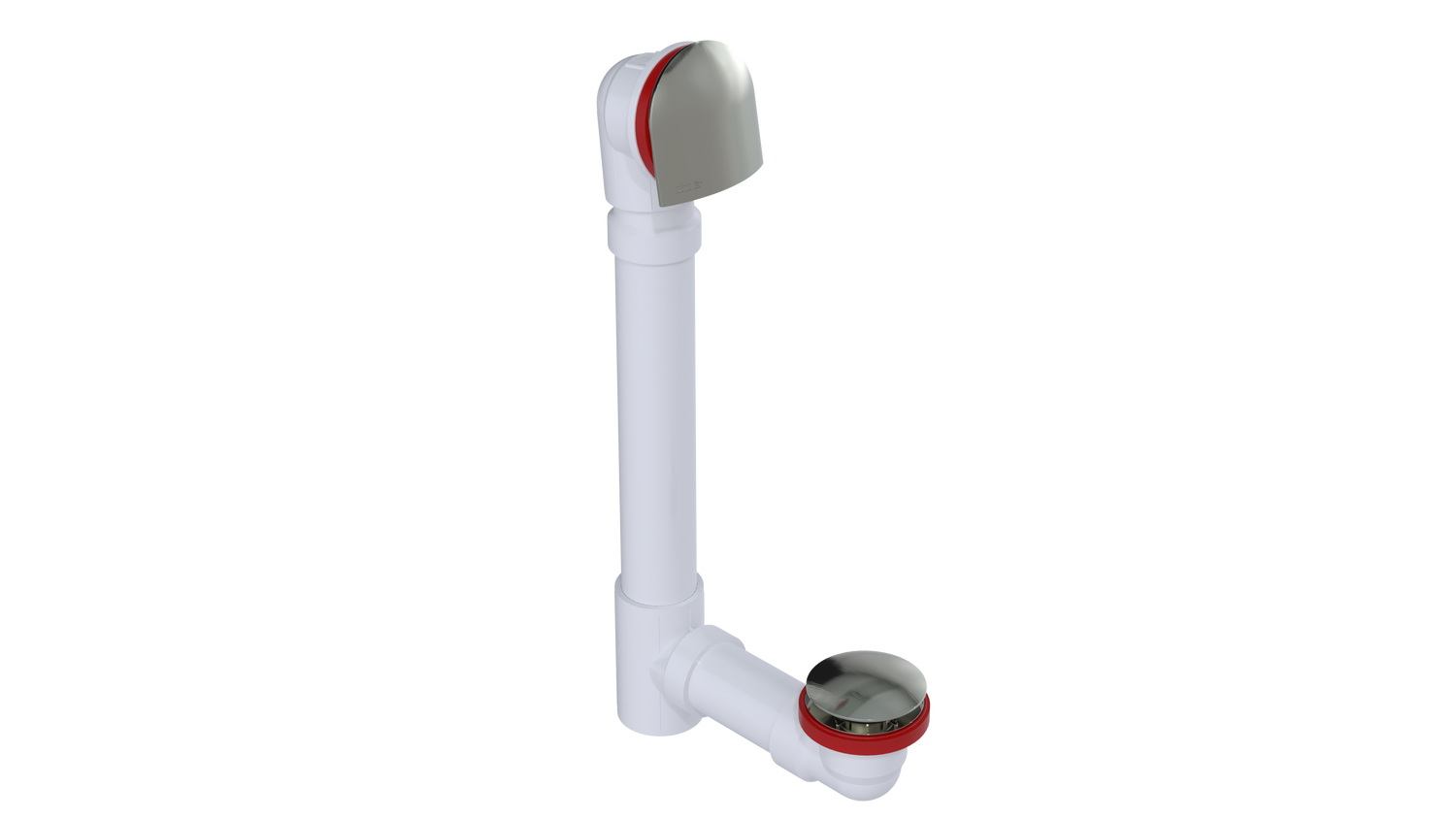

The OS&B 1-1/2" PVC offset Tip-Toe waste and overflow (standard) has a Bell SlideOn faceplate, spin-on tie plate and angle adapter. It pairs a large strainer with a Tip-Toe stopper and is built in Schedule 40 PVC. Made for 16" bathtubs and using 1-1/2" PVC pipe, it is offered in Brushed Nickel and Chrome Plated.
Features
- Large strainer with Tip-Toe stopper
- Bell SlideOn faceplate
- Thick foam overflow gasket with adhesive back
- Spin-on tie plate for a tool-less installation
- Overflow head with an integrated 6 degree angle
- Overflow head with aggressive threads for a quicker and easier installation
- Angle adapter included; its use is optional
- Self-clinging rubber waste gasket
- Coarse thread strainer
Specifications
- Style: Offset, standard
- Material: Schedule 40 PVC
- Bathtub size / pipe: For 16" bathtubs; uses 1-1/2" PVC pipe
- Faceplate: Bell SlideOn
- Available finishes: Brushed Nickel, Chrome Plated
- Certification: ASME A112.18.2/CSA-B125.2; "cCSAus" Meets UPC & IPC Code mark (conforms to the requirements of the NPC, UPC, IPC and IRC)
