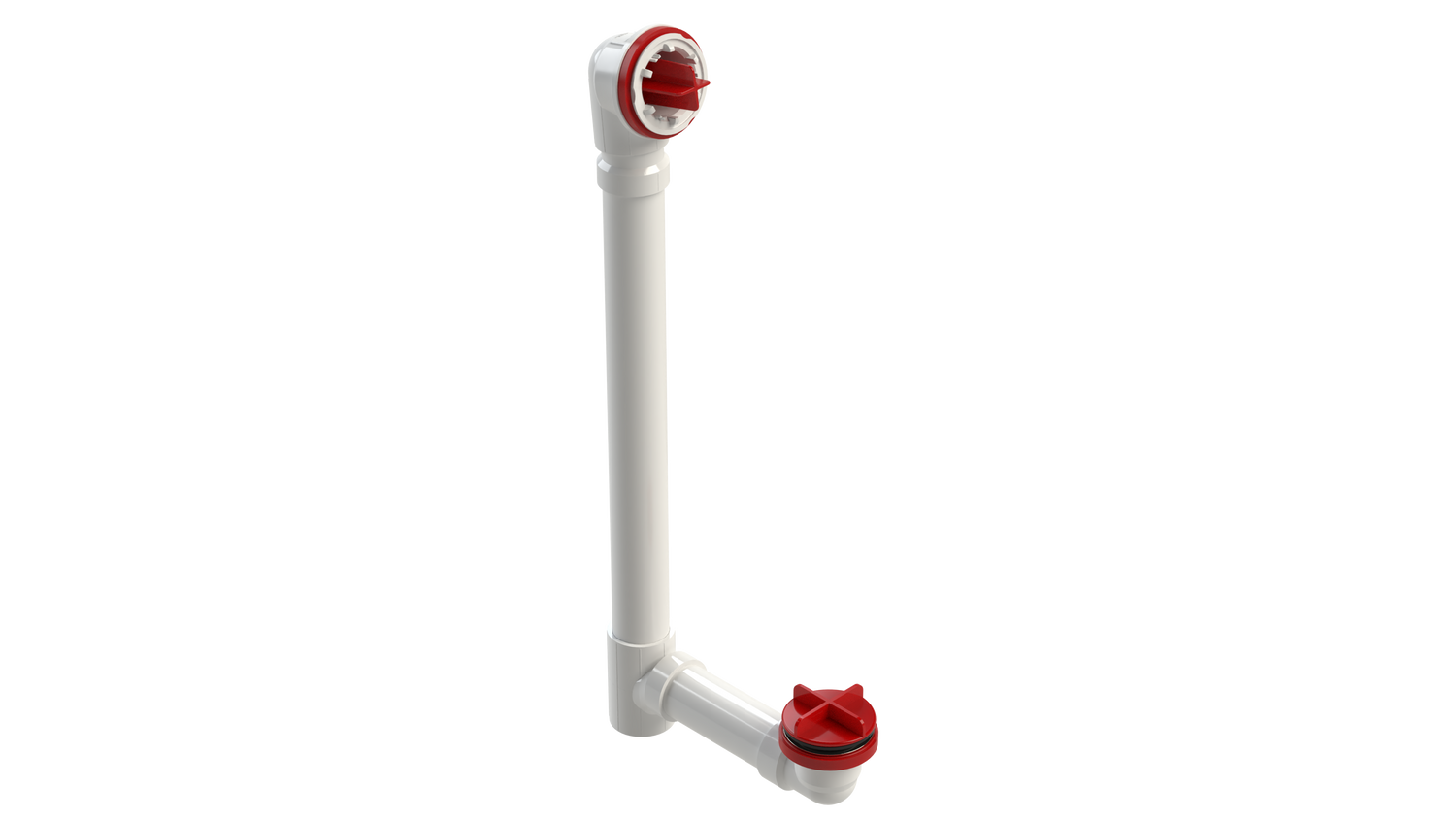

PVC Offset Waste & Overflow Testable Rough-In Extended (5121TDRI-20)

The OS&B 5121TDRI-20 is a 1-1/2" PVC offset waste and overflow testable rough-in made of Schedule 40 PVC. It features a spin-on tie plate, angle adapter, large strainer and thread-in test plugs, and is made for 1-1/2" PVC pipe.

Features

• Spin-on tie plate for a toolless installation
• Thick foam overflow gasket with adhesive back
• Overflow head with an integrated 6 degree angle
• Overflow head with aggressive threads for a quicker and easier installation
• Angle adapter included; use is optional
• Self-clinging rubber waste gasket
• Coarse thread strainer
• Thread-in waste test plug with stainless steel post

Specifications

• Size: 1-1/2"
• Pipe: For 1-1/2" PVC pipe
• Material: Schedule 40 PVC
• Style: Offset, testable
• Length: Extended
• Overflow head angle: 6 degree integrated angle
• Standard: ASME A112.18.2/CSA-B125.2
• Certification: CCSA US UPC Certification
