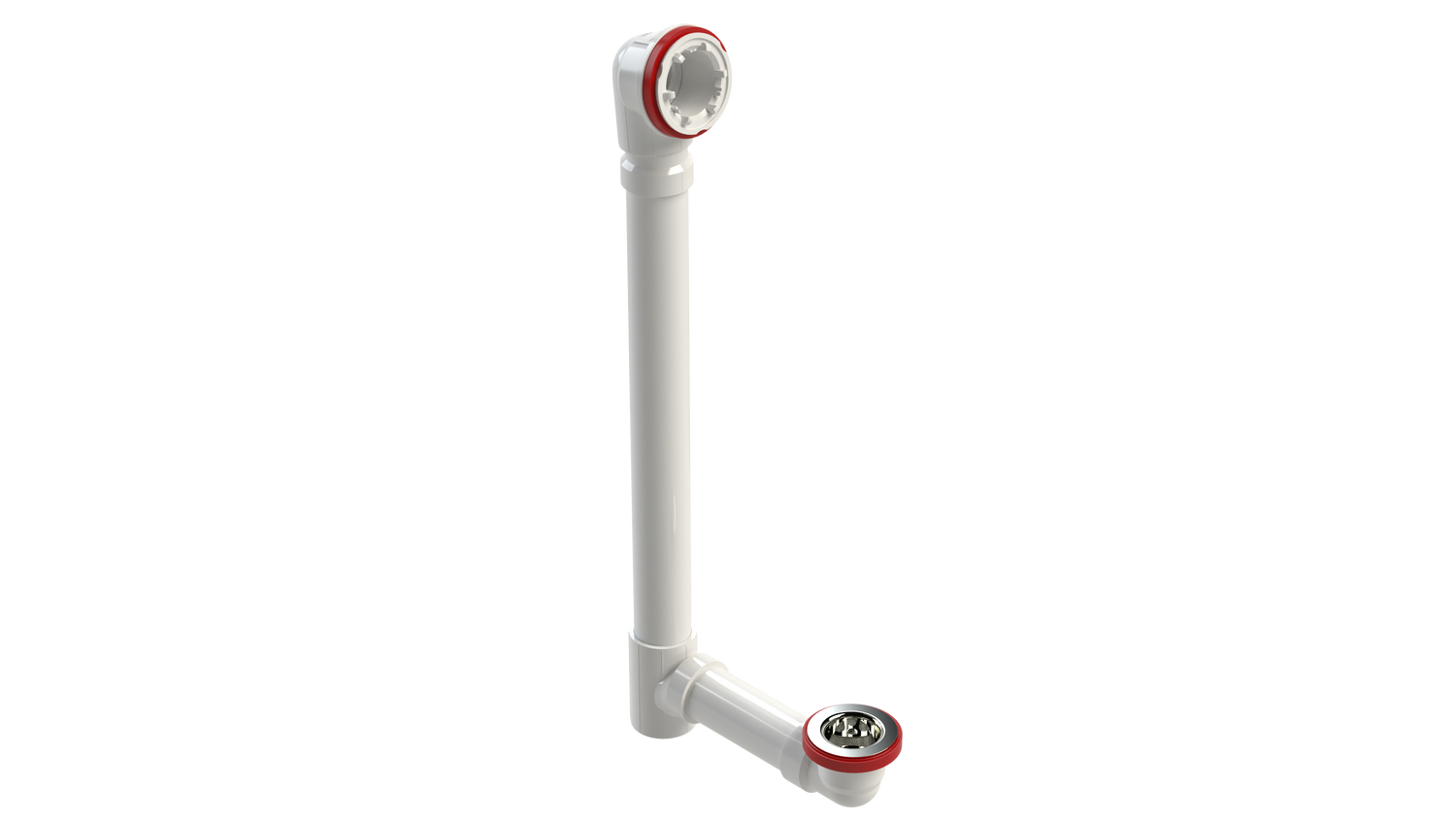

PVC Offset Waste & Overflow Rough-in Extended (5121RI-20)

The OS&B 5121RI-20 is a 1-1/2" PVC offset waste and overflow rough-in made of Schedule 40 PVC, with the trim kit sold separately. It features a spin-on tie plate, angle adapter and large strainer, and is made for 1-1/2" PVC pipe.

Features

• Spin-on tie plate for a toolless installation
• Thick foam overflow gasket with adhesive back
• Overflow head with aggressive threads for a quicker and easier installation
• Self-clinging rubber waste gasket
• Polished stainless steel coarse thread strainer
• Angle adapter
• Bears the "cCSAus Meets UPC & IPC Code" mark, which means the product conforms to the requirements of the NPC, UPC, IPC and IRC

Specifications

• Size: 1-1/2"
• Pipe: For 1-1/2" PVC pipe
• Material: Schedule 40 PVC
• Style: Offset
• Length: Extended
• Trim kit: Sold separately
• Certification: ASME A112.18.2/CSA-B125.2
