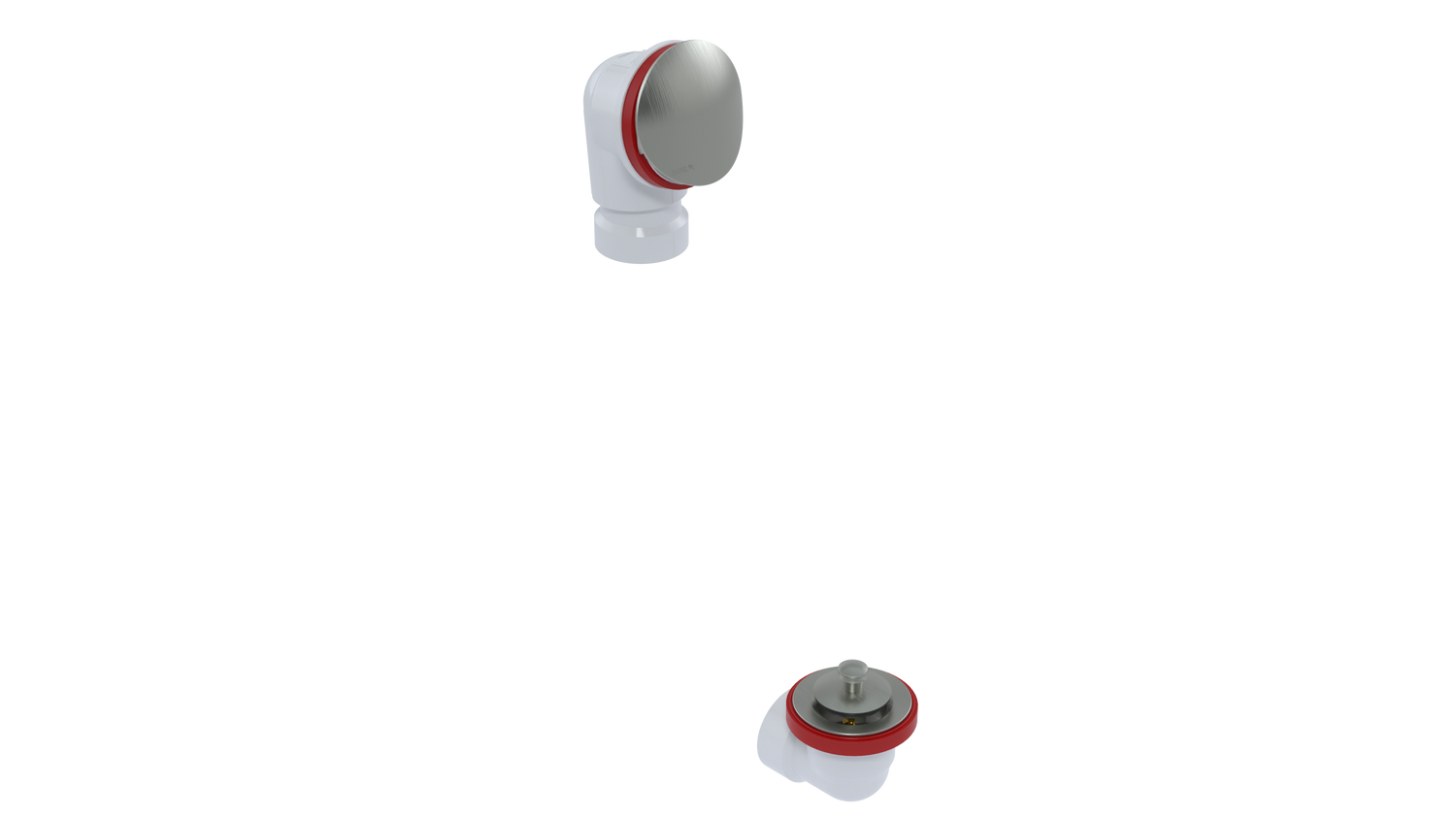

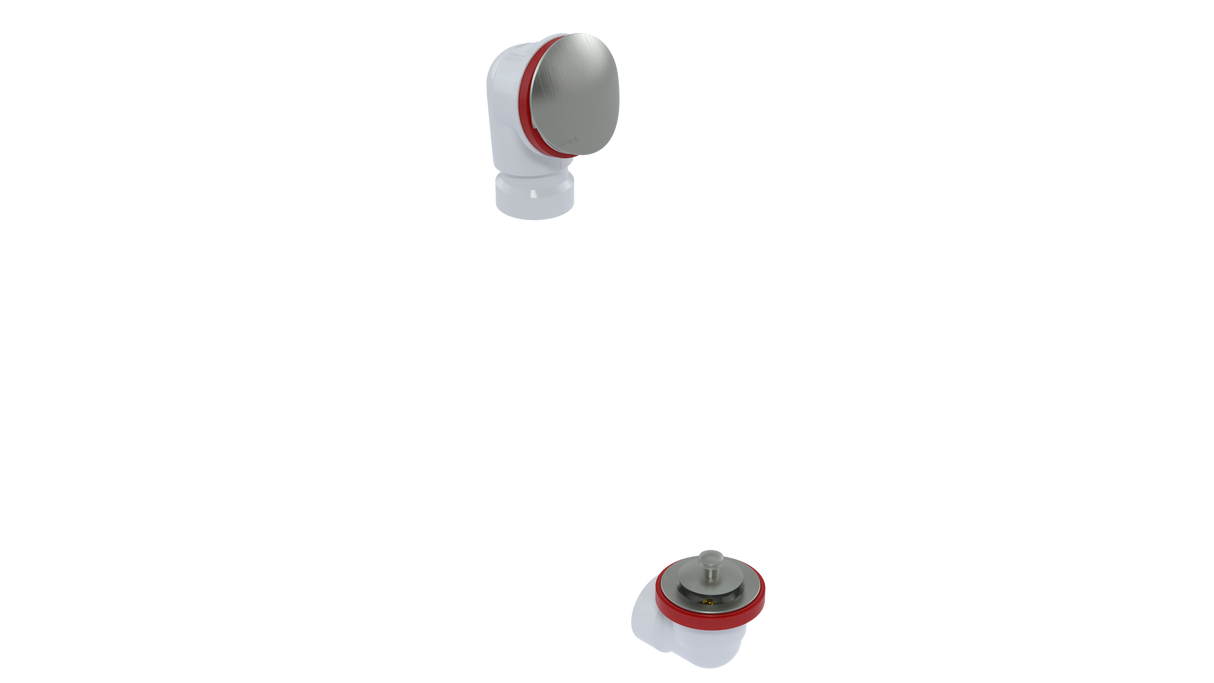

PVC OFFSET WASTE & OVERFLOW LIFT & TURN HALF KIT (5152LHK)

The OS&B 5152LHK is a 1-1/2" PVC offset lift & turn bath waste and overflow half kit. It features a Round SlideOn™ faceplate, spin-on tie plate and angle adapter, plus a large strainer with a Lift & Turn stopper. Construction is 1-1/2" Schedule 40 PVC for solvent weld assembly. This half kit is supplied less tee.

Features

• Thick foam overflow gasket with adhesive back
• Spin-on tie plate for a tool-less installation
• Overflow head with an integrated 6 degree angle
• Overflow head with aggressive threads for a quicker and easier installation
• Angle adapter included; its use is optional
• Self-clinging rubber waste gasket
• Coarse thread strainer

Specifications

• Style: Offset
• Construction: 1-1/2" Schedule 40 PVC, solvent weld
• Material: PVC
• Length: Half kit
• Faceplate: Round SlideOn™
• Stopper: Lift & Turn

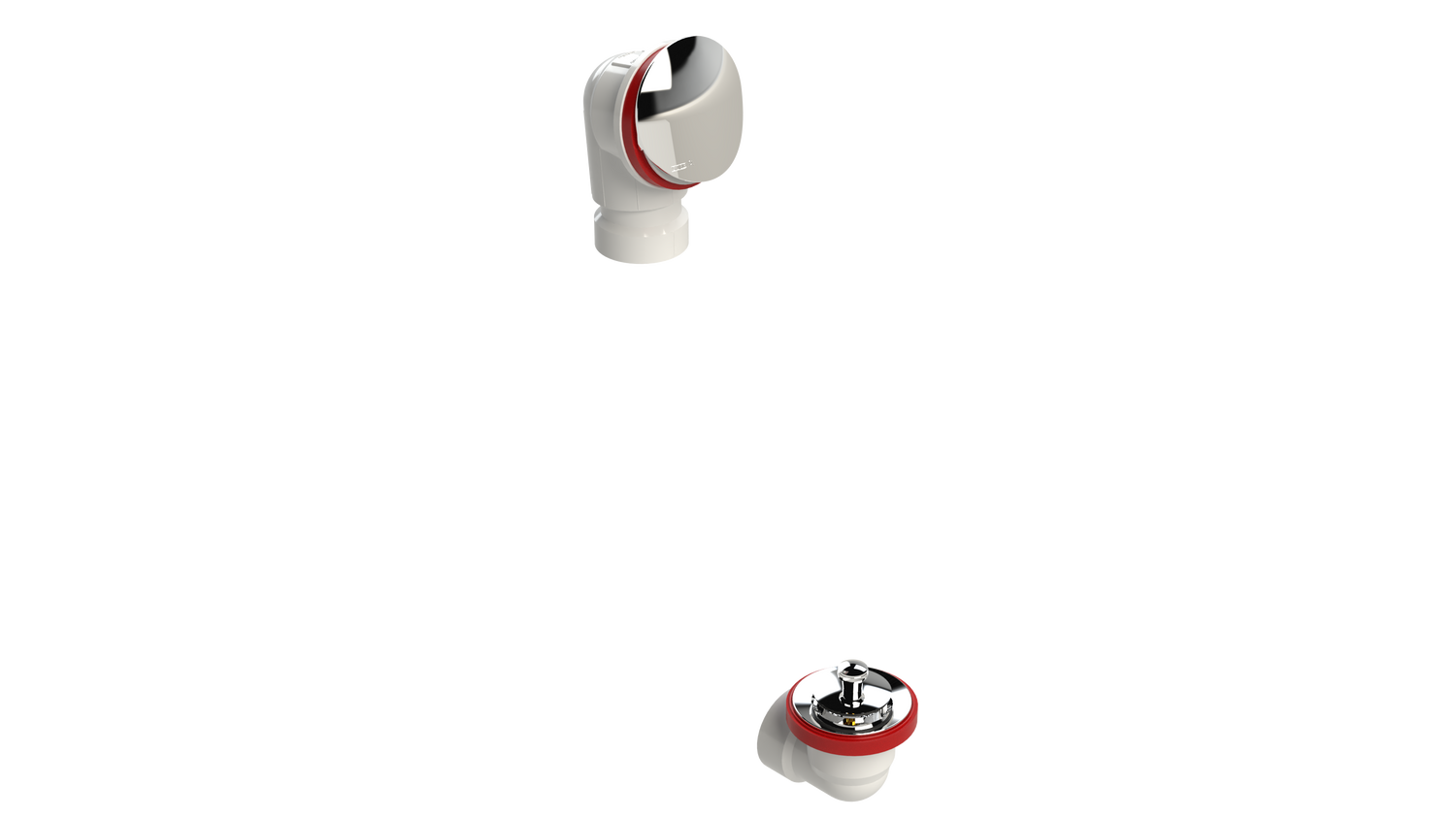

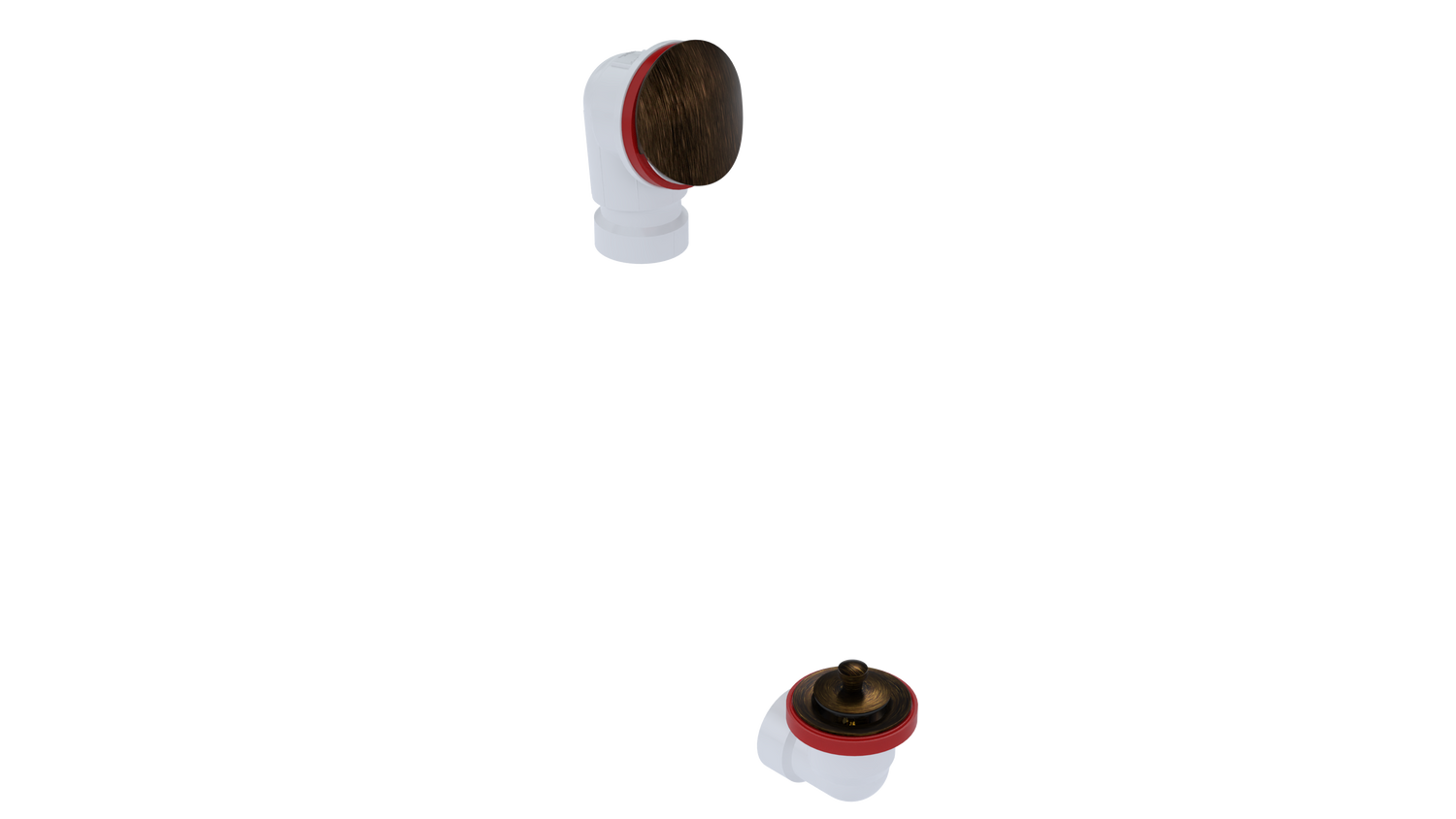

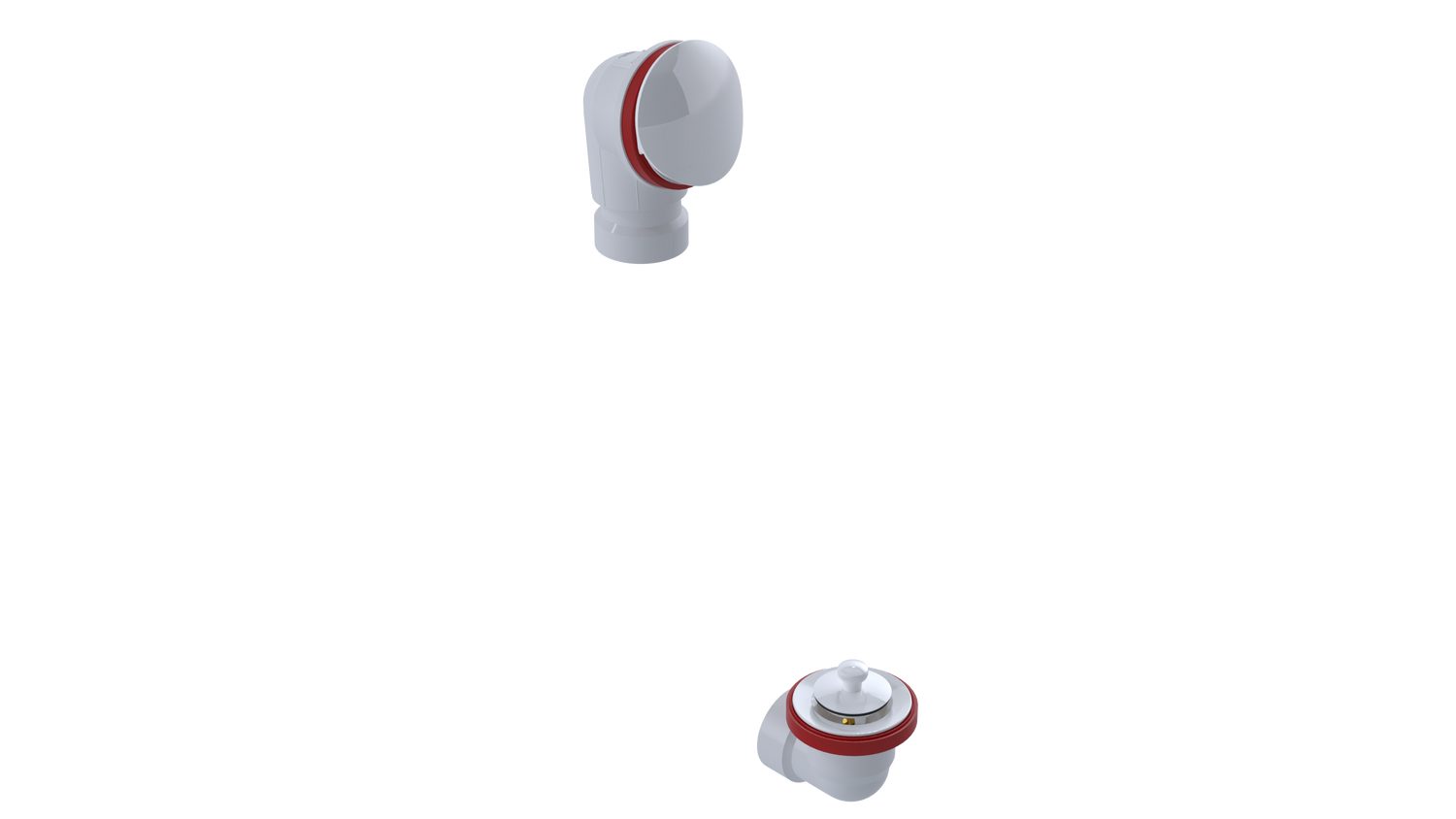

• Available finishes: Brushed Nickel, Chrome Plated, Venetian Bronze, White
• Certification: "cCSAus Meets UPC" mark (conforms to the requirements of the NPC, UPC, IPC and IRC)
