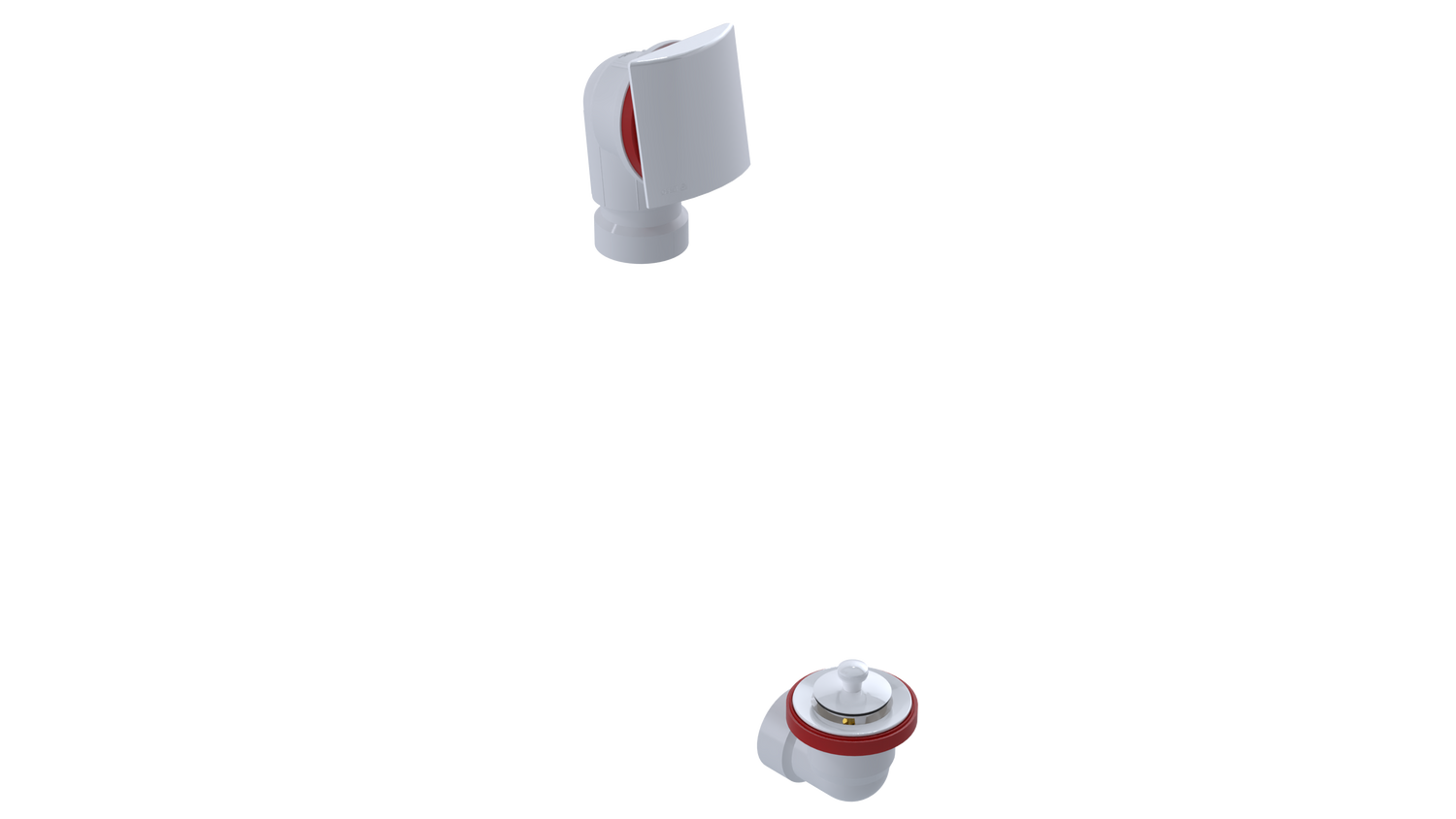

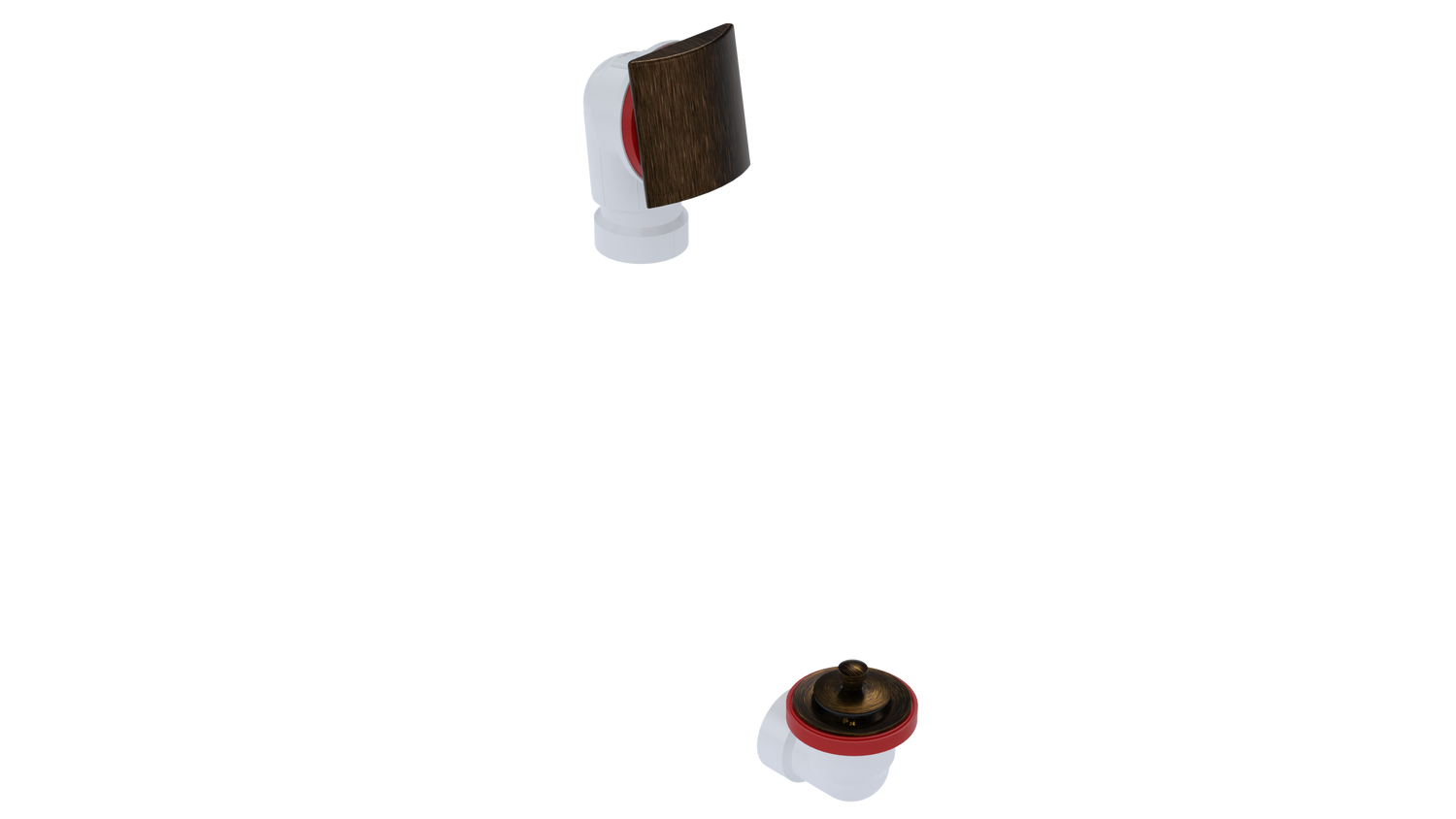

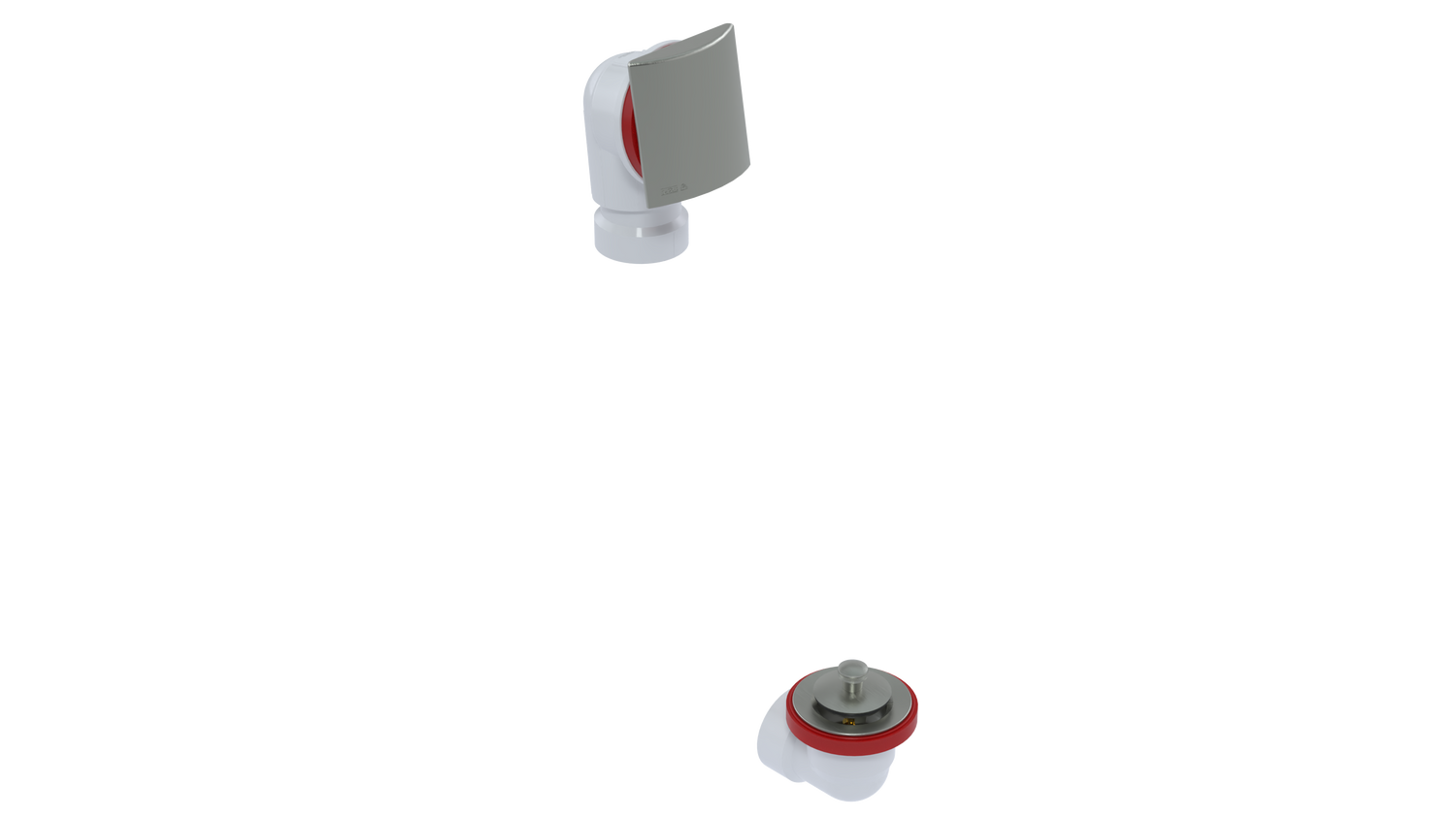

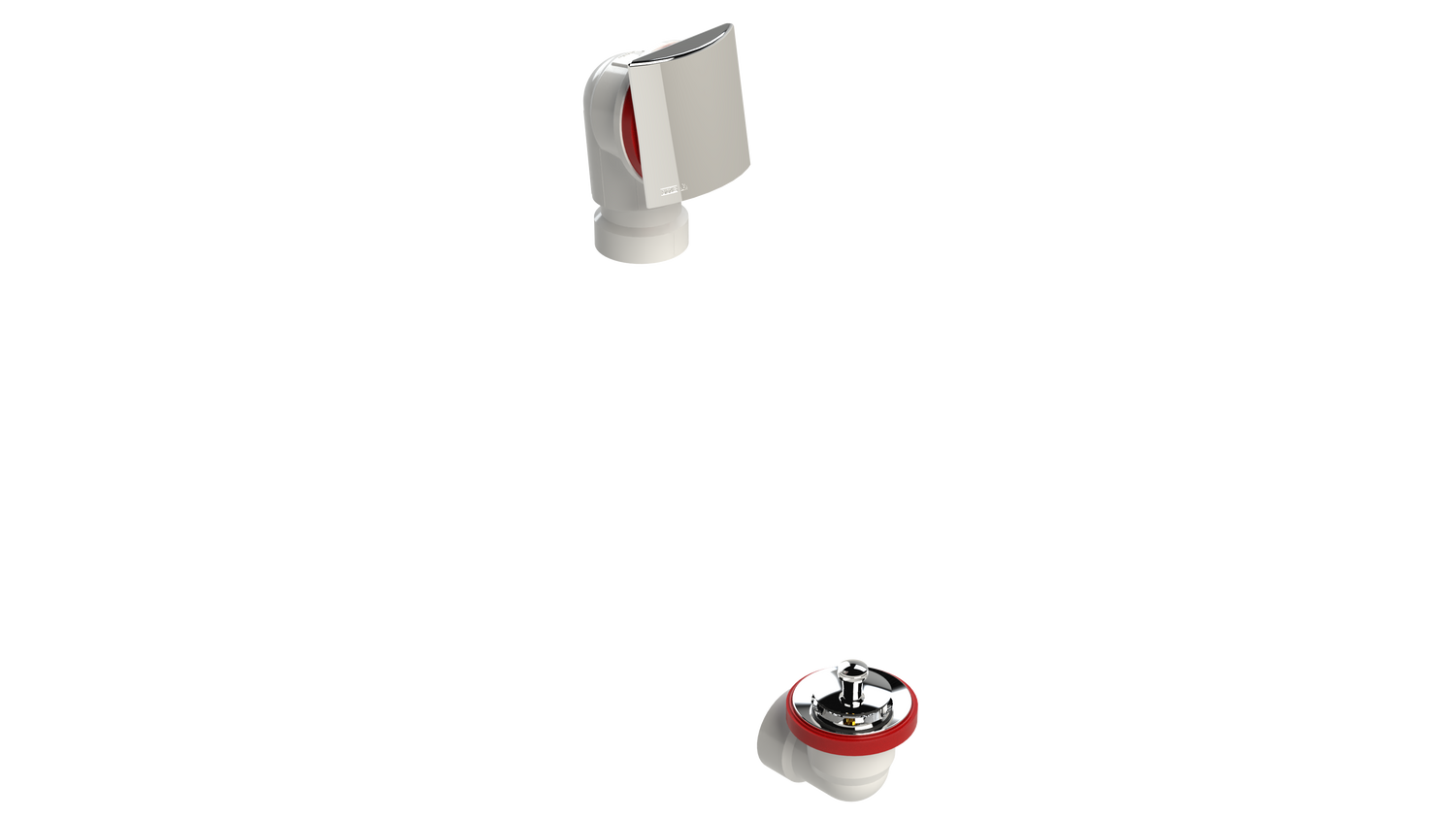

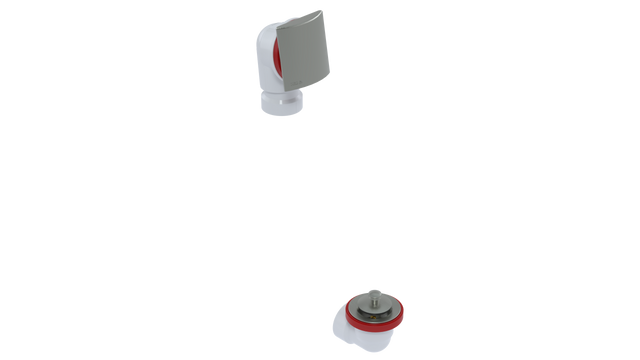

PVC OFFSET WASTE & OVERFLOW LIFT & TURN HALF KIT (5151LHK)

The OS&B 1-1/2" PVC Offset Lift & Turn Waste & Overflow (Half Kit) is an offset-style 1-1/2" Schedule 40 PVC solvent weld bath waste and overflow with a Square SlideOn™ faceplate. It pairs a large strainer with a Lift & Turn stopper and includes a spin-on tie plate and an angle adapter (use optional). This half kit is supplied less tee. It is offered in Brushed Nickel, Chrome Plated, Venetian Bronze and White.

Features

• Square SlideOn™ faceplate
• Spin-on tie plate for a tool-less installation
• Thick foam overflow gasket with adhesive back
• Overflow head with an integrated 6 degree angle
• Overflow head with aggressive threads for a quicker and easier installation
• Angle adapter included; use optional
• Self-clinging rubber waste gasket
• Coarse thread strainer with a Lift & Turn stopper
• Carries the cCSAus Meets UPC mark, which means the product conforms to the requirements of the NPC, UPC, IPC and IRC

Specifications

• Available finishes: Brushed Nickel, Chrome Plated, Venetian Bronze, White
• Configuration: Half kit (less tee)
• Construction: 1-1/2" Schedule 40 PVC
• Style: Offset
• Faceplate: Square SlideOn™
• Closure: Lift & Turn
