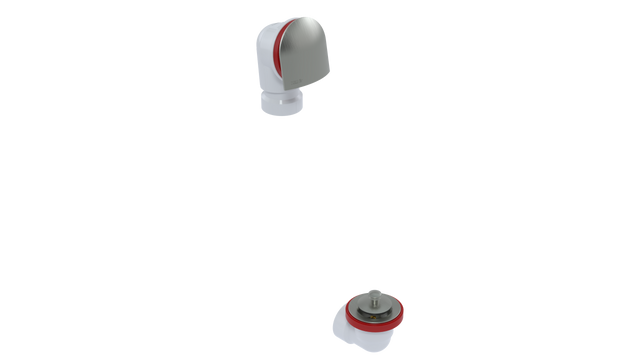

PVC OFFSET WASTE & OVERFLOW LIFT & TURN HALF KIT (5150LHK)

The OS&B 5150LHK is an offset-style 1-1/2" Schedule 40 PVC solvent weld bath waste and overflow half kit (less tee) with a Bell SlideOn™ faceplate and lift and turn stopper, available in Brushed Nickel, Chrome Plated, Venetian Bronze and White. It features a spin-on tie plate for a toolless installation and an angle adapter, included for optional use.

Features

• Bell SlideOn™ faceplate
• Large strainer with lift and turn stopper
• Spin-on tie plate for a toolless installation
• Angle adapter included; use is optional
• Thick foam overflow gasket with adhesive back
• Overflow head with an integrated 6 degree angle
• Overflow head with aggressive threads for a quicker and easier installation
• Self-clinging rubber waste gasket
• Coarse thread strainer

Specifications

• Size: 1-1/2"
• Material: Schedule 40 PVC, solvent weld
• Style: Offset
• Faceplate: Bell SlideOn™
• Stopper: lift and turn
• Configuration: Half kit (less tee)

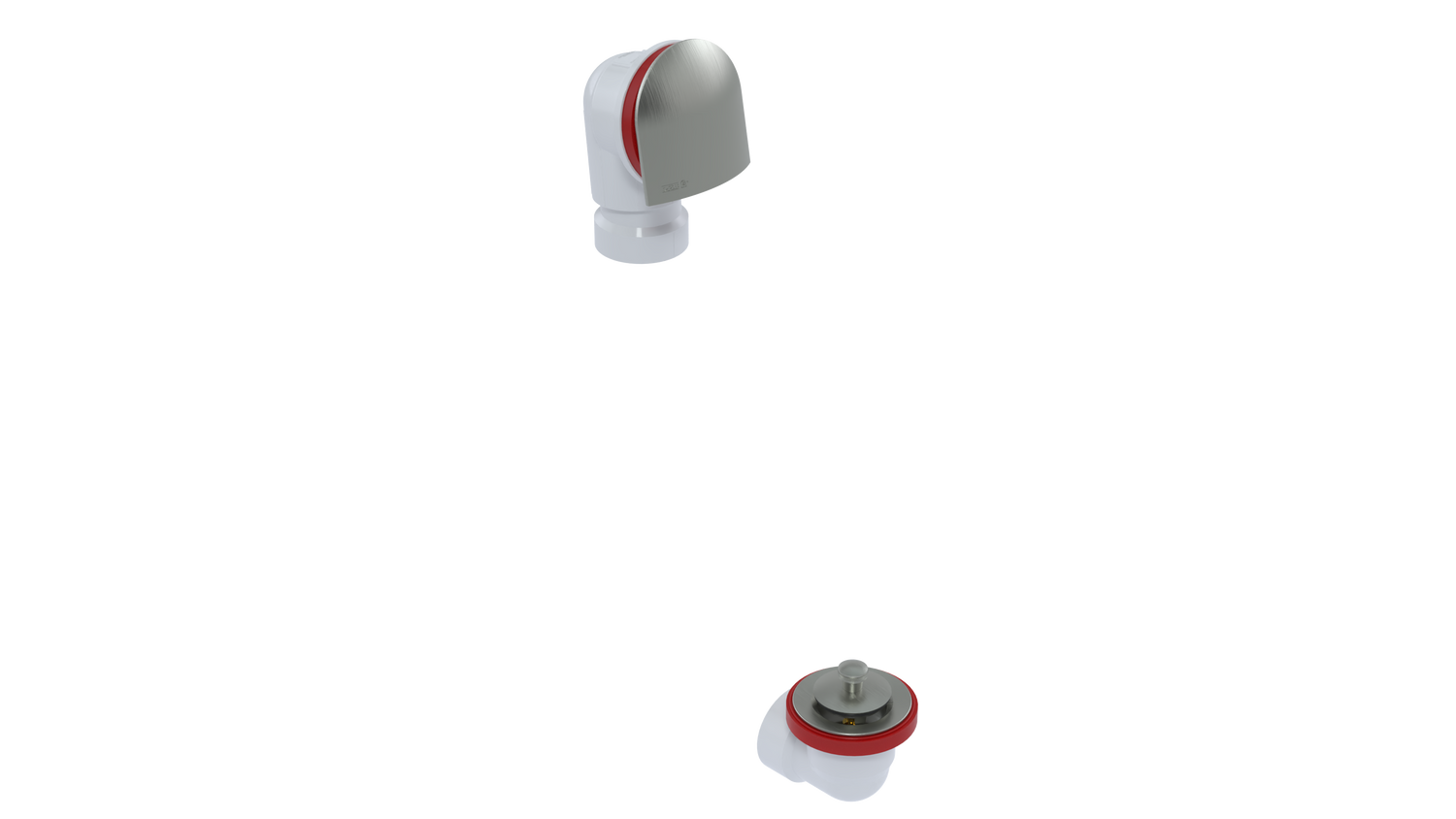

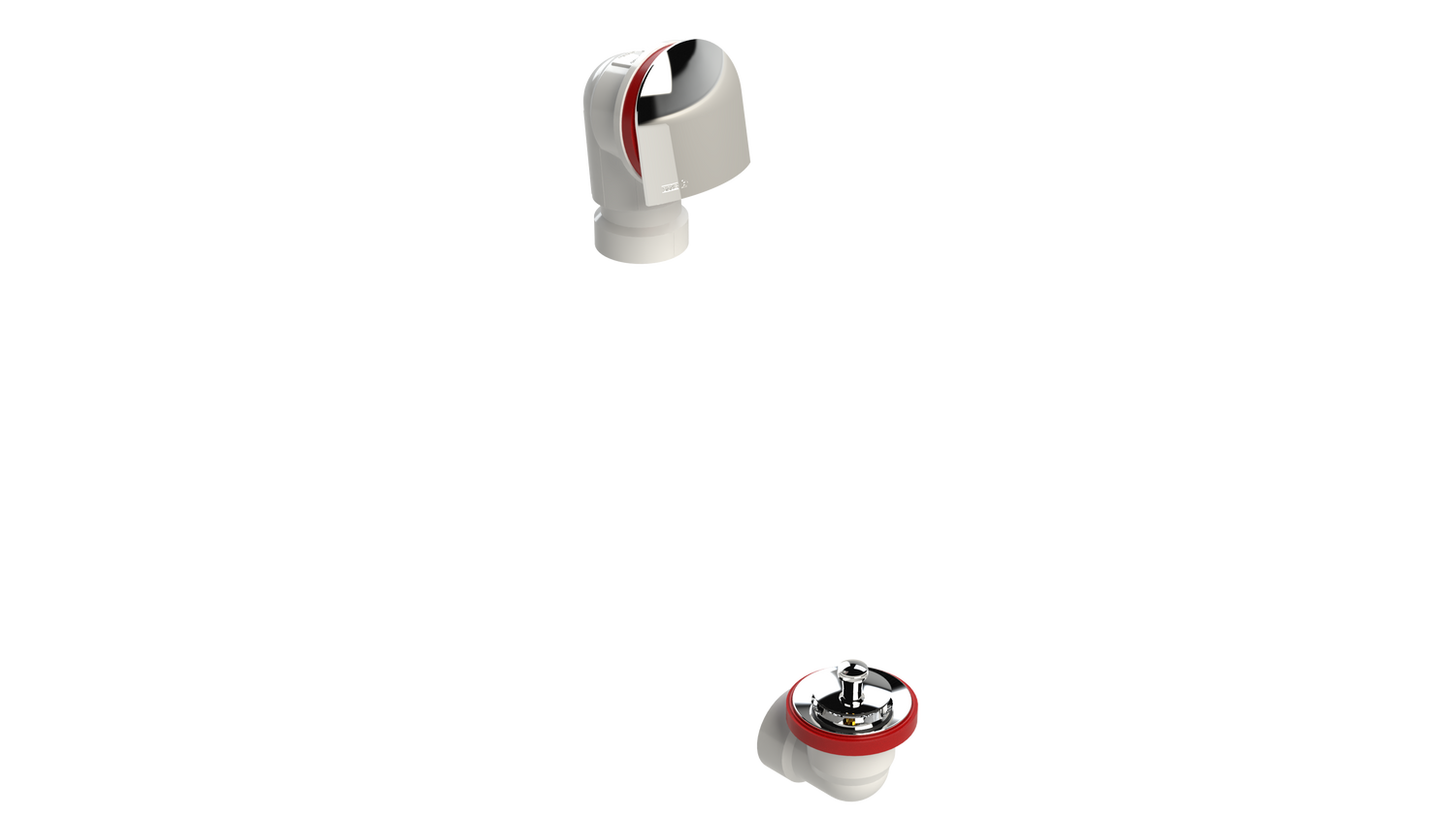

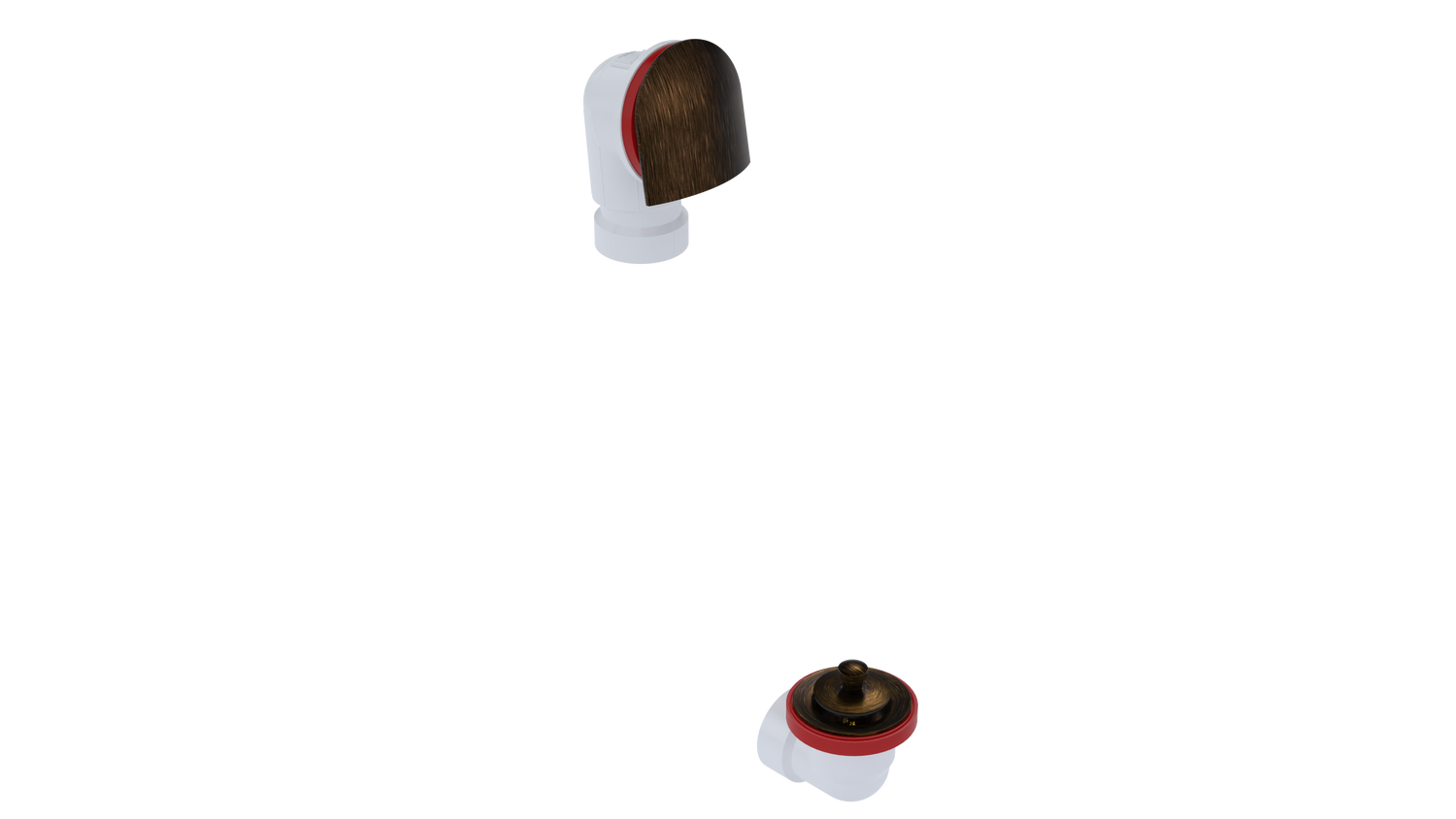

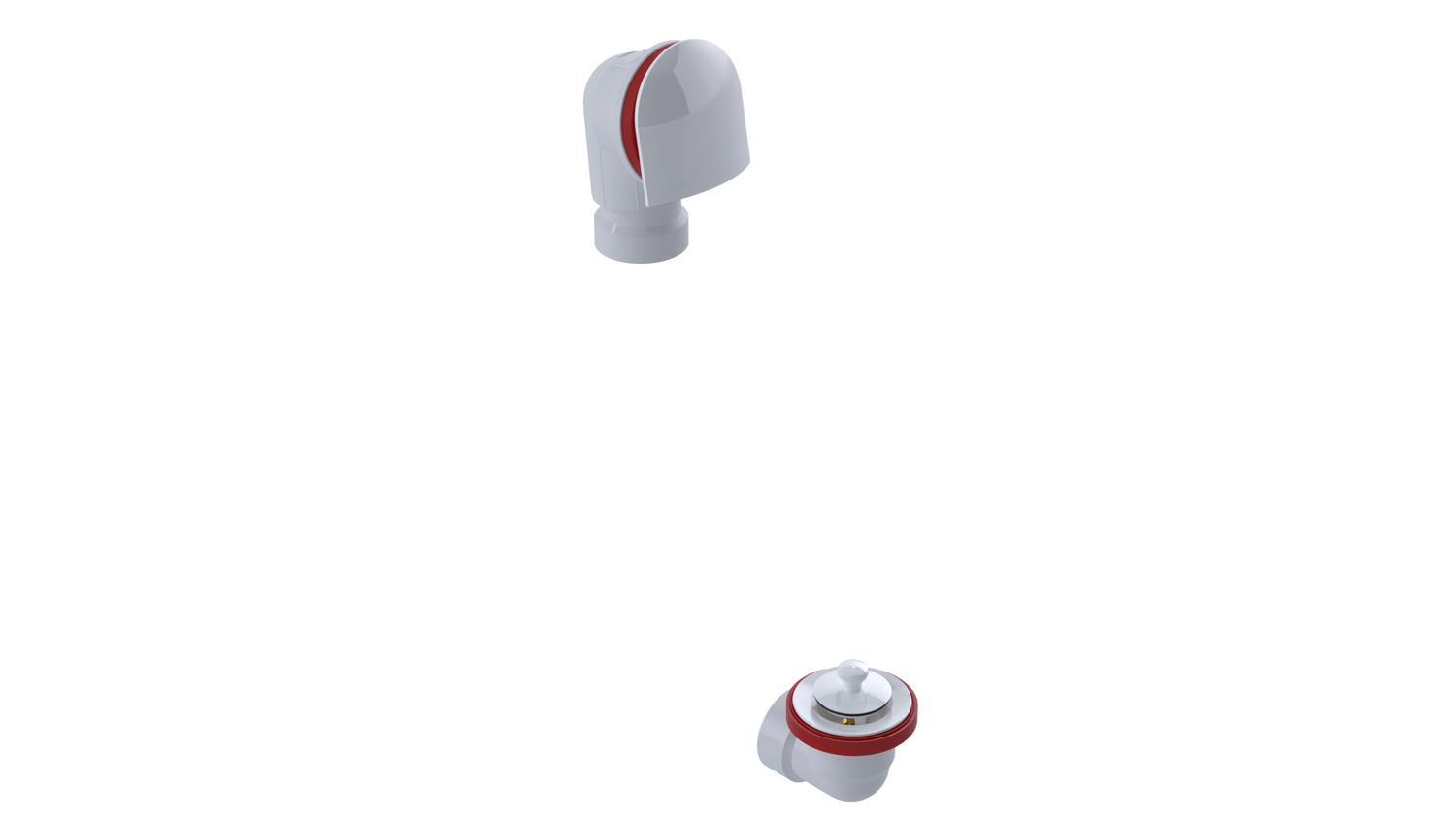

• Available finishes: Brushed Nickel, Chrome Plated, Venetian Bronze, White
• Certification: CCSA US UPC Certification
