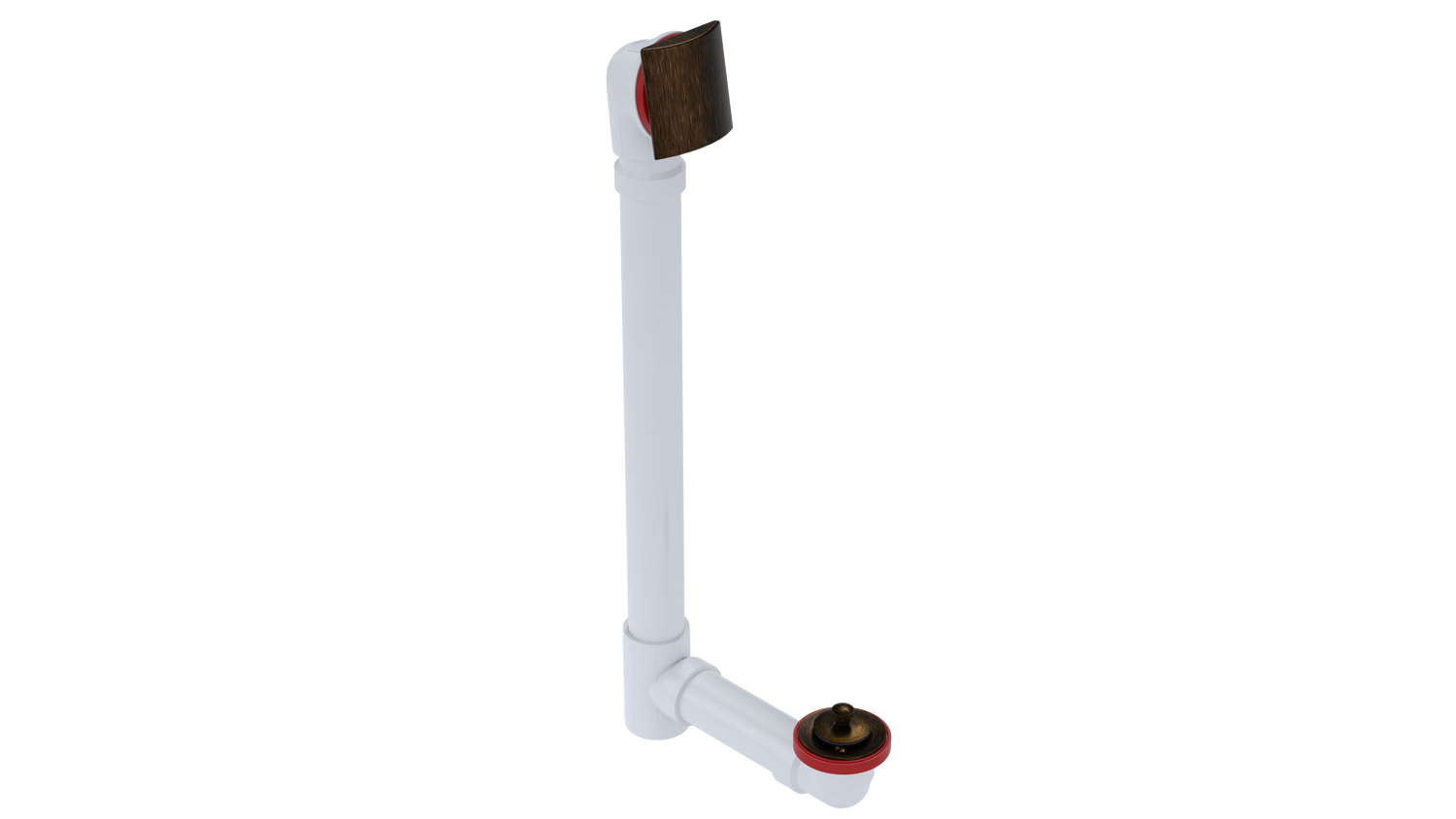

PVC OFFSET WASTE & OVERFLOW LIFT & TURN EXTENDED (5151L-20VB)

The OS&B 5151L-20VB is a 1-1/2" PVC offset lift & turn bath waste and overflow in the extended length, with a square SlideOn™ faceplate and a Venetian Bronze finish. It is a 1-1/2” Schedule 40 PVC solvent weld design with a spin-on tie plate, an angle adapter (use optional) and a large strainer with a lift & turn stopper. Its cCSAus Meets UPC mark means the product conforms to the requirements of the NPC, UPC, IPC and IRC.

Features

• Square SlideOn™ faceplate
• Thick foam overflow gasket with adhesive back
• Spin-on tie plate for a tool-less installation
• Overflow head with an integrated 6 degree angle
• Overflow head with aggressive threads for a quicker and easier installation
• Angle adapter included; its use is optional
• Self-clinging rubber waste gasket
• Coarse thread strainer with lift & turn stopper

Specifications

• Size: 1-1/2"
• Material: Schedule 40 PVC
• Style: Offset
• Closure: Lift & Turn
• Faceplate: Square SlideOn™
• Length: Extended
• Finish: Venetian Bronze
• Certification: CCSA US UPC
