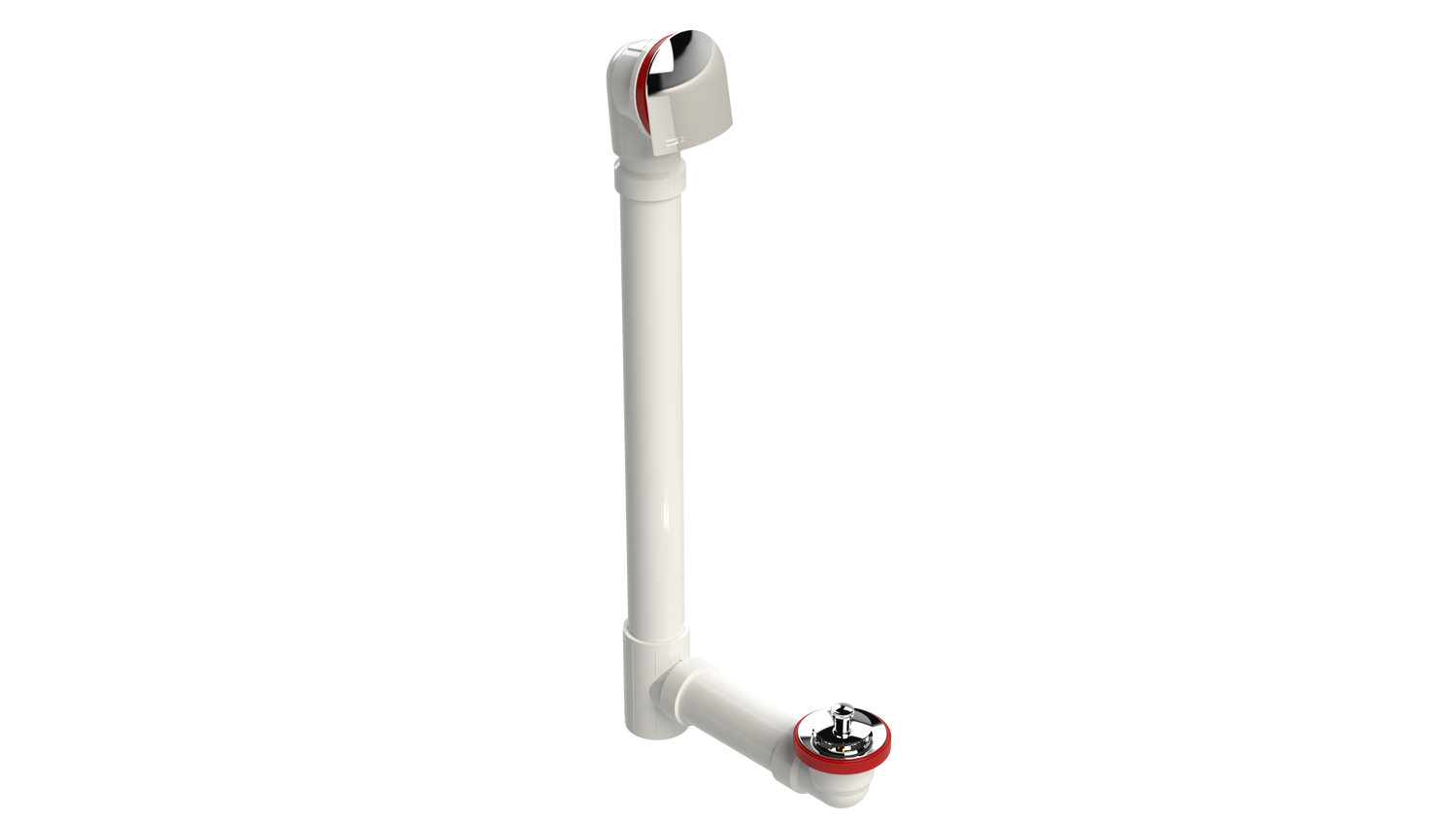

PVC OFFSET WASTE & OVERFLOW LIFT & TURN EXTENDED (5150L-20CP)

The OS&B 5150L-20CP is an offset-style 1-1/2” Schedule 40 PVC bath waste and overflow in an extended length, fitted with a Bell faceplate and a Lift & Turn stopper. It is a solvent weld assembly that features a Spin-on Tie Plate and an Angle Adapter, the use of which is optional. The trim is Chrome Plated, and the product carries the cCSAus Meets UPC mark, meaning it conforms to the requirements of the NPC, UPC, IPC and IRC.

Features

• Bell SlideOn™ Faceplate
• Large strainer with Lift & Turn stopper
• Spin-on Tie Plate
• Angle Adapter (use optional)
• Offset style bath waste/overflow in an extended configuration
• 1-1/2” Schedule 40 PVC with solvent weld connections
• cCSAus Meets UPC certified; conforms to the requirements of the NPC, UPC, IPC and IRC

Specifications

• Brand: OS&B
• Model: 5150L-20CP
• Type: Offset style bath waste/overflow, extended
• Material / pipe size: 1-1/2” Schedule 40 PVC
• Connection: Solvent weld
• Faceplate: Bell SlideOn™ Faceplate
• Closure: Lift & Turn stopper
• Finish: Chrome Plated
• Certification: cCSAus Meets UPC (conforms to the NPC, UPC, IPC and IRC)
