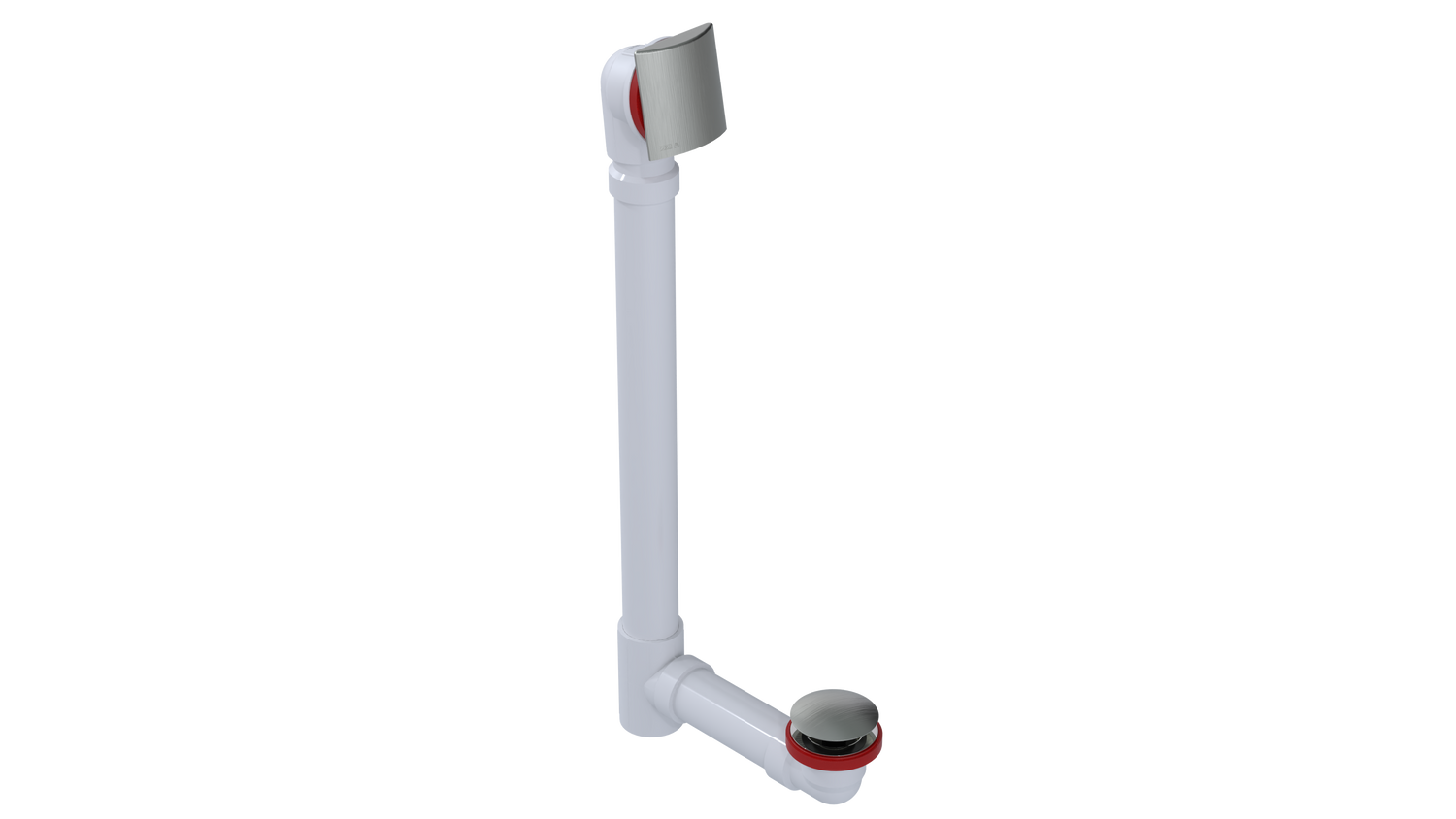

PVC OFFSET WASTE & OVERFLOW CLICKER® EXTENDED (5151Q-20BN)

The OS&B 1-1/2" PVC Offset Clicker® Waste & Overflow is an extended PVC bath waste and overflow with a Square SlideOn™ faceplate and a Clicker® closure. It features a spin-on tie plate and angle adapter, with a large strainer and Brass Top EUROCLICKER® stopper. This Schedule 40 PVC offset waste and overflow is for 20" bathtubs and uses 1-1/2" PVC pipe.

Features

• Thick foam overflow gasket with adhesive back
• Spin-on tie plate for a tool less installation
• Overflow head featuring an integrated 6 degree angle
• Overflow head featuring aggressive threads for a quicker and easier installation
• Angle adapter included; its use is optional
• Self clinging rubber waste gasket
• Coarse thread strainer
• Carries the cCSAus Meets UPC & IPC Code mark, which means the product conforms to the requirements of the NPC, UPC, IPC, and IRC

Specifications

• Construction: Schedule 40 PVC offset
• Bathtub: For 20" bathtubs
• Pipe: 1-1/2" PVC pipe
• Material: PVC
• Faceplate: Square SlideOn™
• Closure: Brass Top EUROCLICKER® stopper
• Length: Extended
• Finish: Brushed Nickel
• Certification: ASME A112.18.2/CSA-B125.2
