PVC OFFSET WASTE & OVERFLOW CLICKER® (5151Q)

The OS&B PVC Offset Waste & Overflow (5151Q) is a Schedule 40 PVC offset standard waste and overflow for 16" bathtubs. It features a square SlideOn™ faceplate, a spin-on tie plate and an angle adapter, with a large strainer and stopper. The assembly uses 1-1/2" PVC pipe and carries ASME A112.18.2/CSA-B125.2 certification.

Features

• Square SlideOn™ faceplate
• Spin-on tie plate and angle adapter
• Large strainer with stopper
• Schedule 40 PVC offset standard waste and overflow
• For 16" bathtubs; uses 1-1/2" PVC pipe
• The "cCSAus Meets UPC & IPC Code" mark means the product conforms to the requirements of the NPC, UPC, IPC and IRC

Specifications

• Model: 5151Q
• Type: Offset waste & overflow
• Material: Schedule 40 PVC
• Faceplate: Square SlideOn™
• Pipe size: 1-1/2" PVC pipe
• Bathtub: For 16" bathtubs
• Certification: ASME A112.18.2/CSA-B125.2

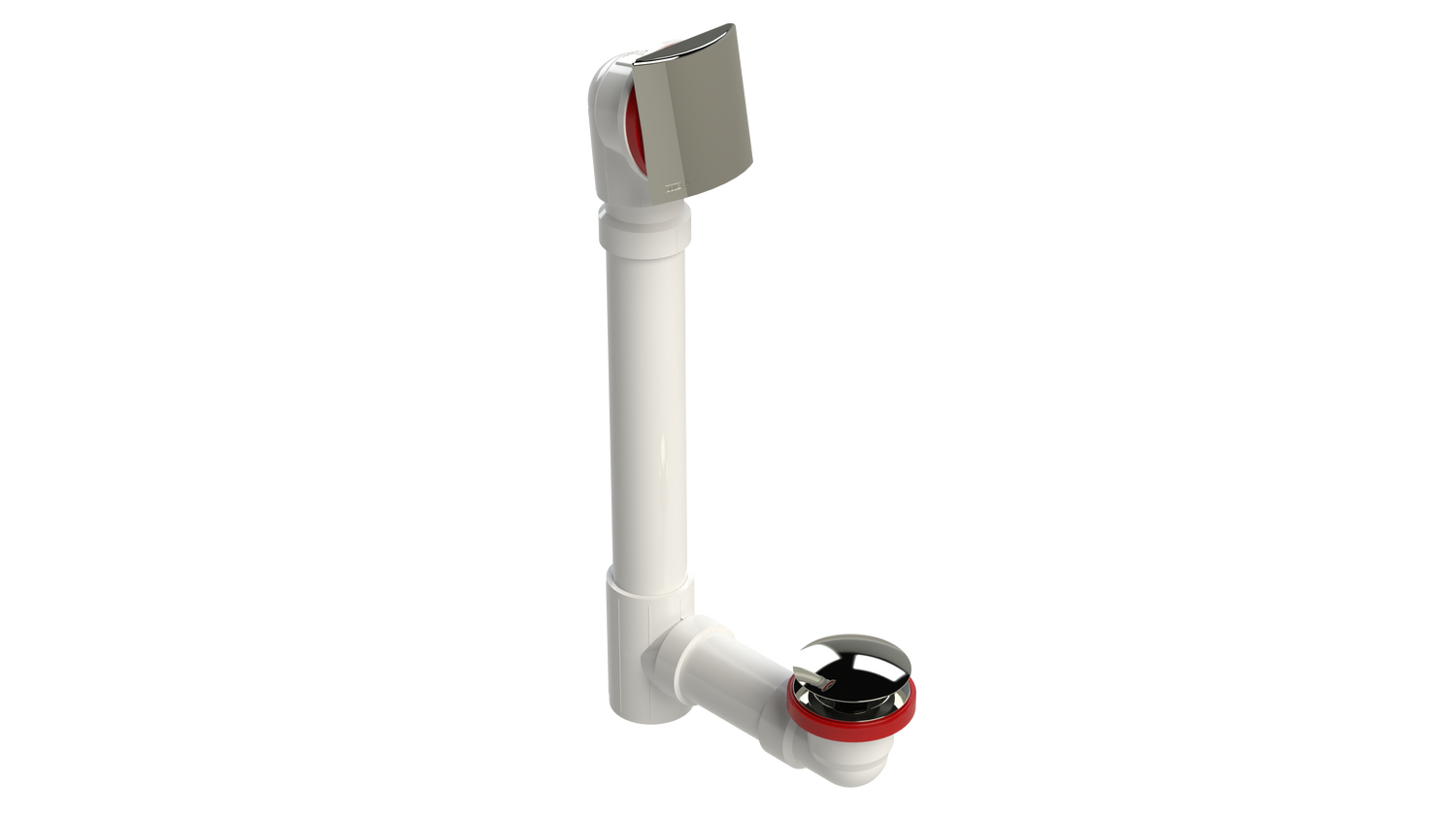

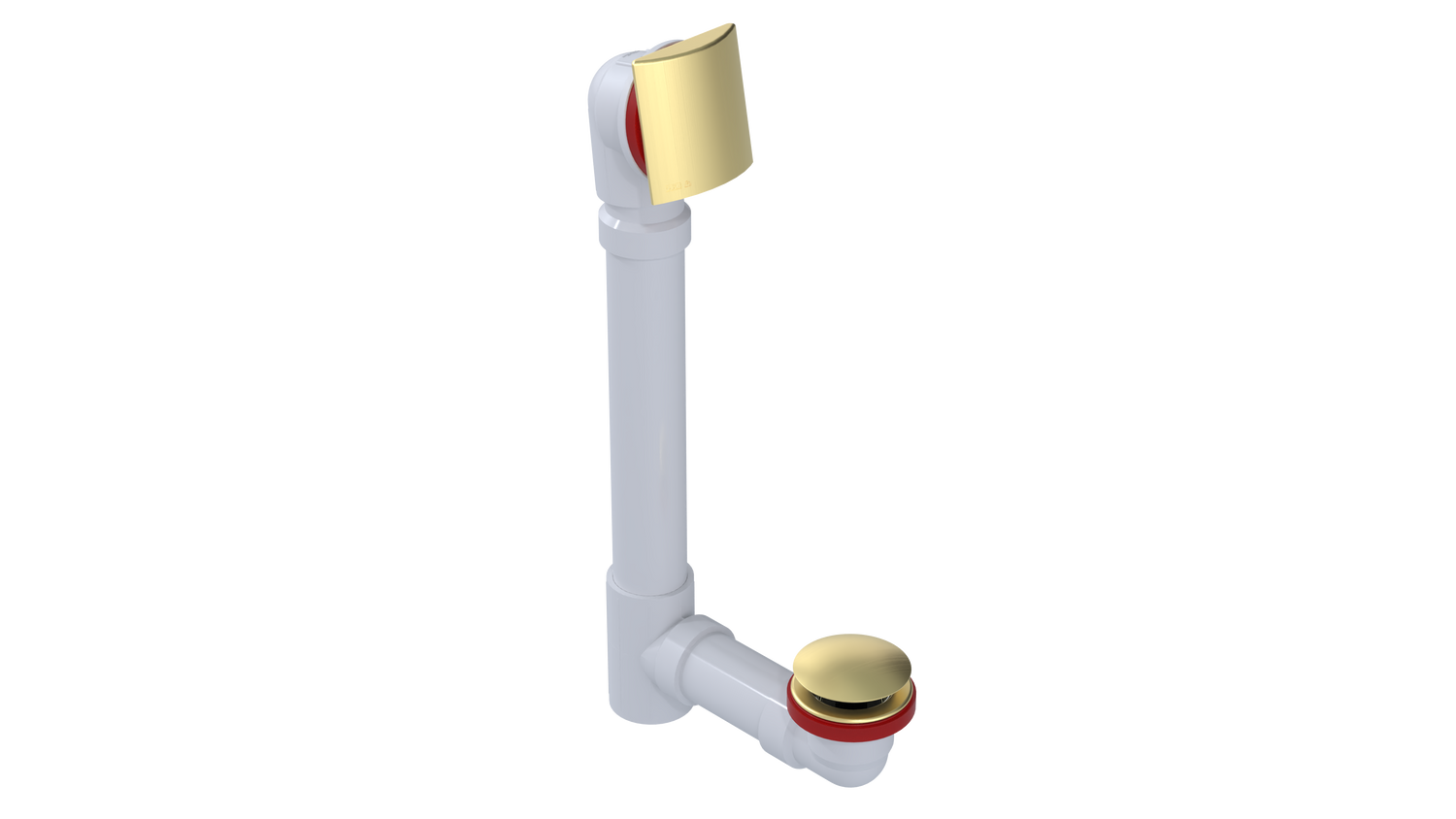

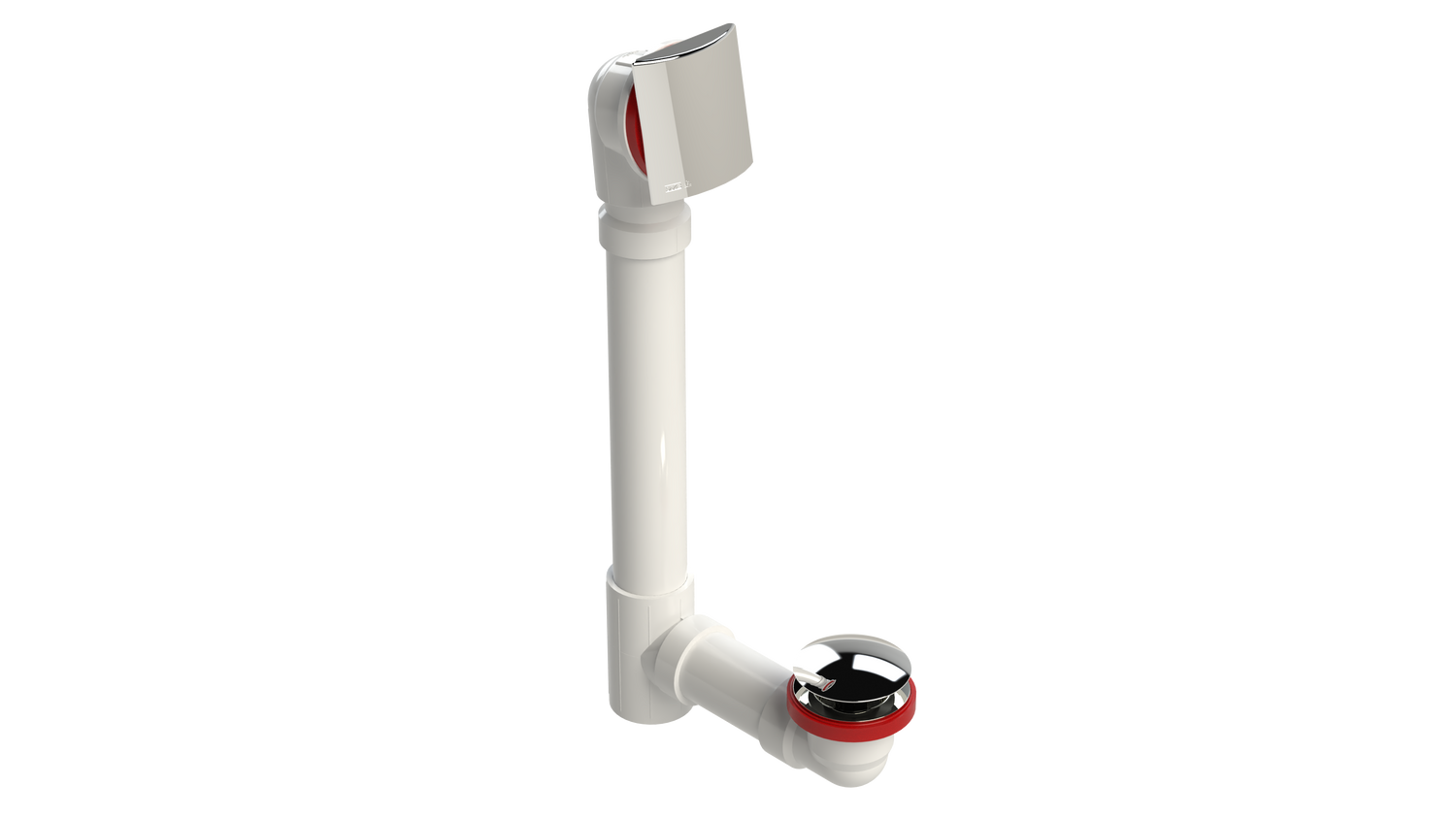

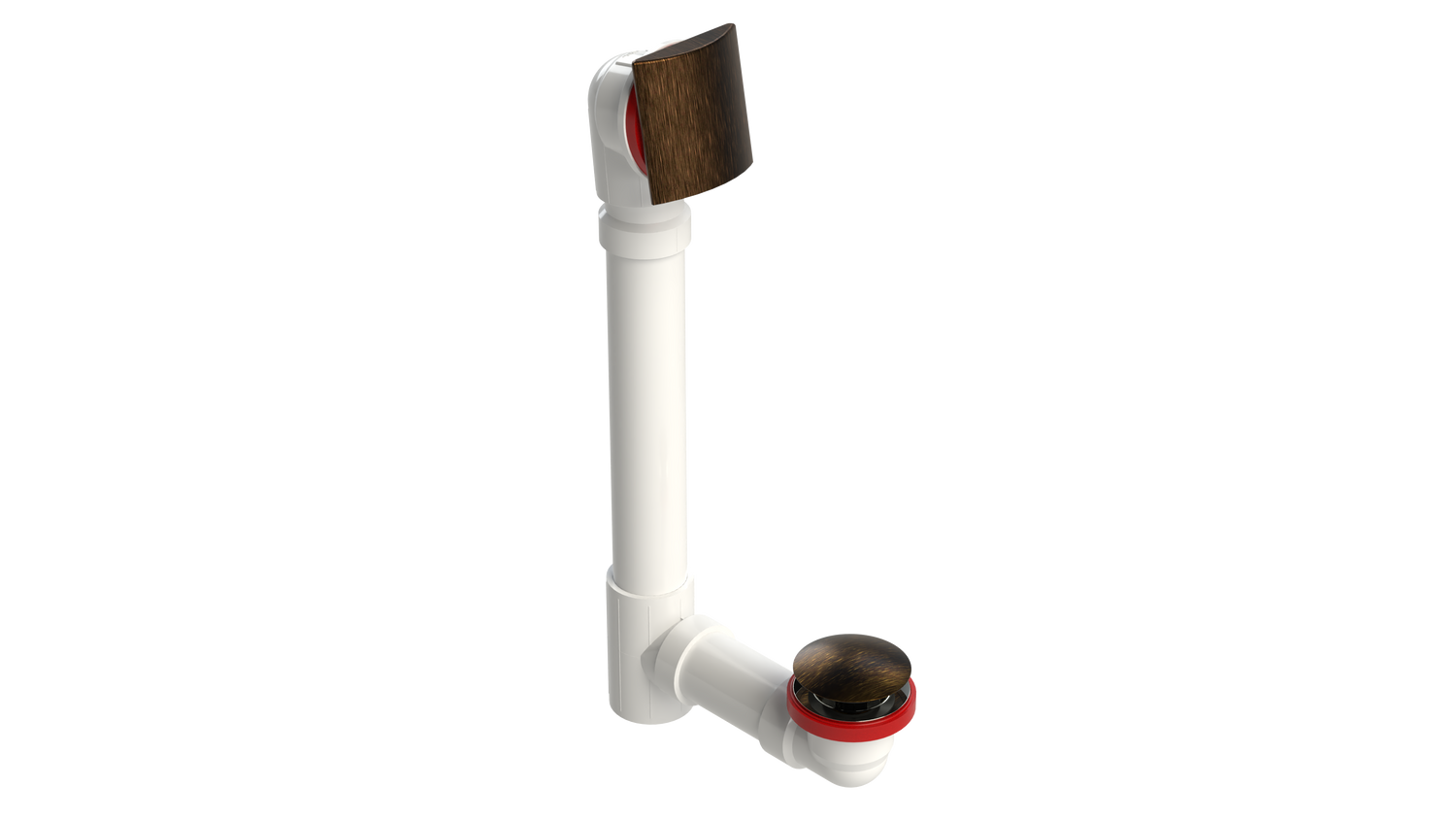

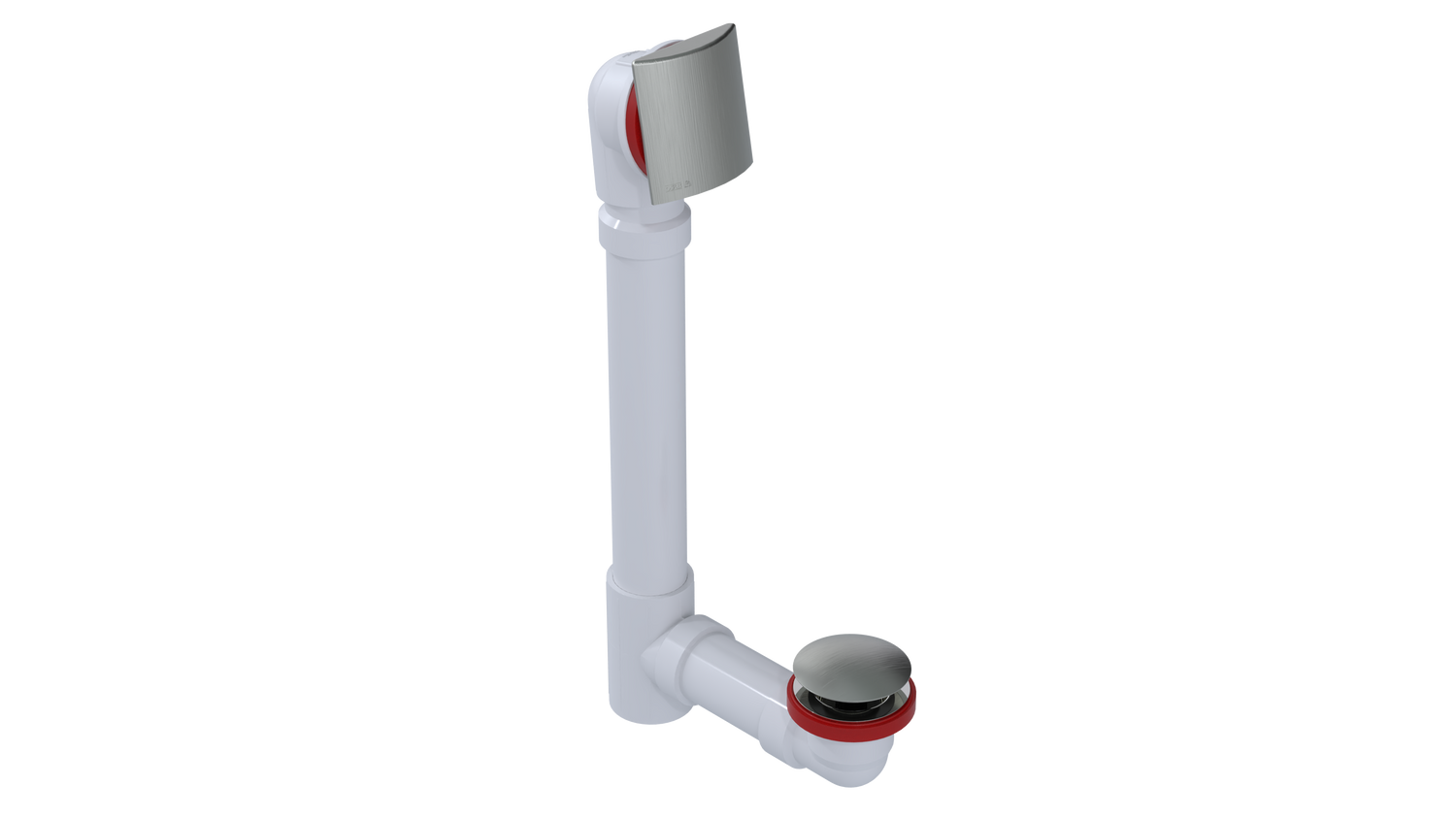

• Available finishes: Brass Chrome Plated, Brushed Gold, Brushed Nickel, Chrome Plated, Matte Black, Polished Nickel, Venetian Bronze, White
