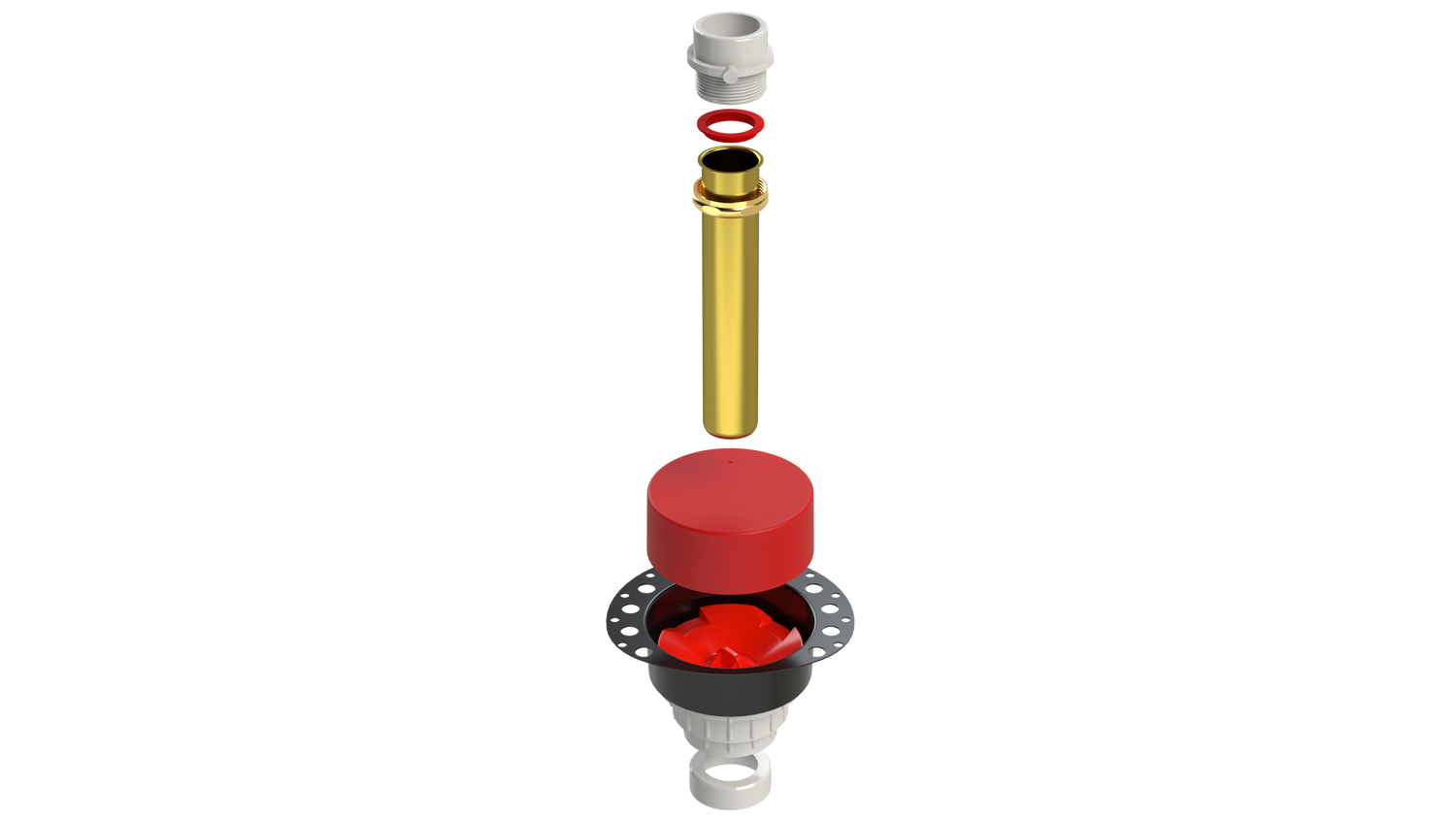

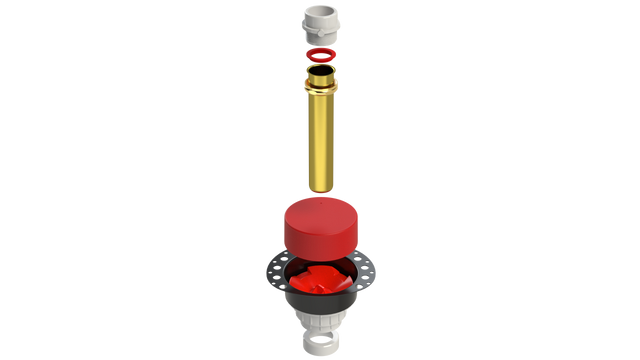

PVC Island Tub Drain® Testable Rough-in for Freestanding Tubs (ITD5135)

The OS&B ITD5135 is a two-piece PVC testable rough-in Island Tub Drain® for freestanding tubs. It is a freestanding tub rough-in installed before tile installation, and it allows the tub location to be defined at rough-in. It is designed to be installed in an 8" (1-1/2" outlet) or 10" (2" outlet recommended) joist space.

Features

• 18 gauge epoxy coated metal deck plate with holes to lock in thinset
• Snap-off test plug allows for water/air/smoke testing (rated to 30psi)
• Asymmetrical deck flange makes installation in tight spaces easier
• Allows the freestanding tub to be installed over finished floor
• PVC adapter kit attaches the ITD5135™ to PVC bath waste
• Components: flanged brass tailpiece, island drain assembly, mortar/tile guard and cutting template
• Island Tub Drain® is patented (Canadian Patent 2,813,010 & US Patent 9,551,138)
• Installation notes: not for use with liquid applied or sheet membranes, and must be installed in a dry area with no potential of water contact

Specifications

• Material: PVC
• Test plug rating: 30psi
• Deck plate: 18 gauge epoxy coated metal
• Joist space: 8" / 10" with 1-1/2" / 2" P-trap
• Certifications: CCSA US UPC Certification
