PVC Integral Waste & Overflow Clicker® Kit - Without Overflow (510Q)

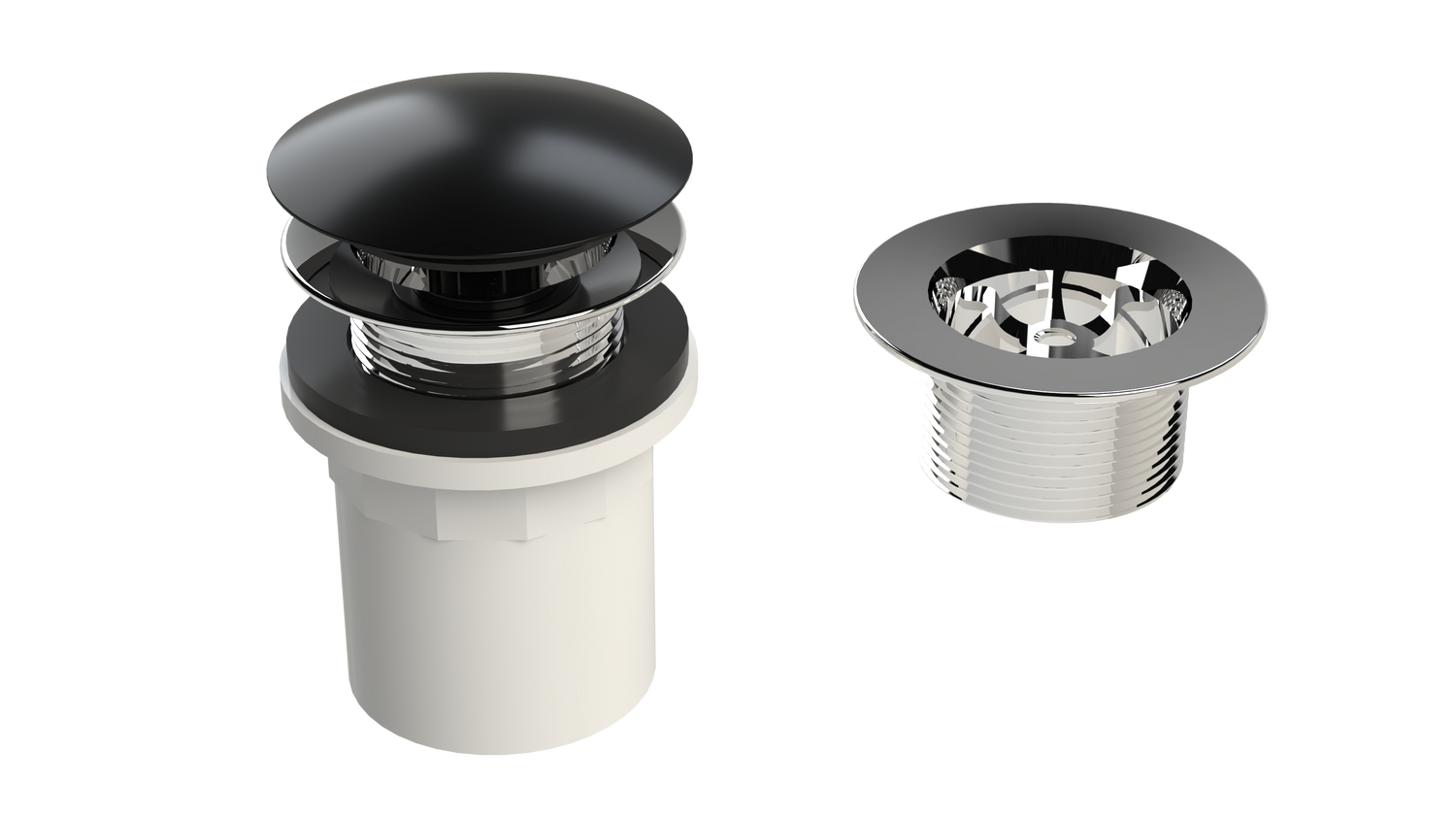

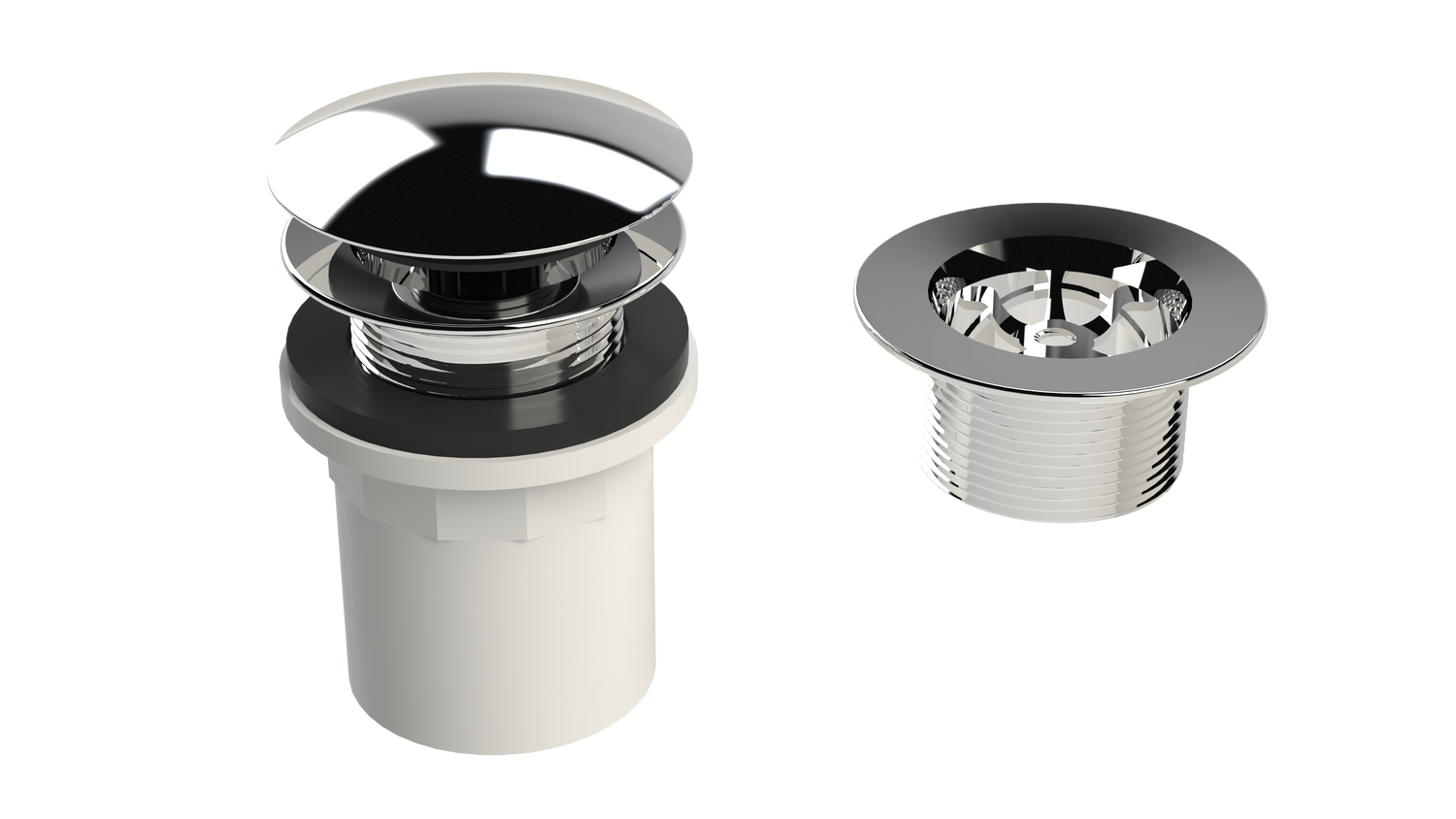

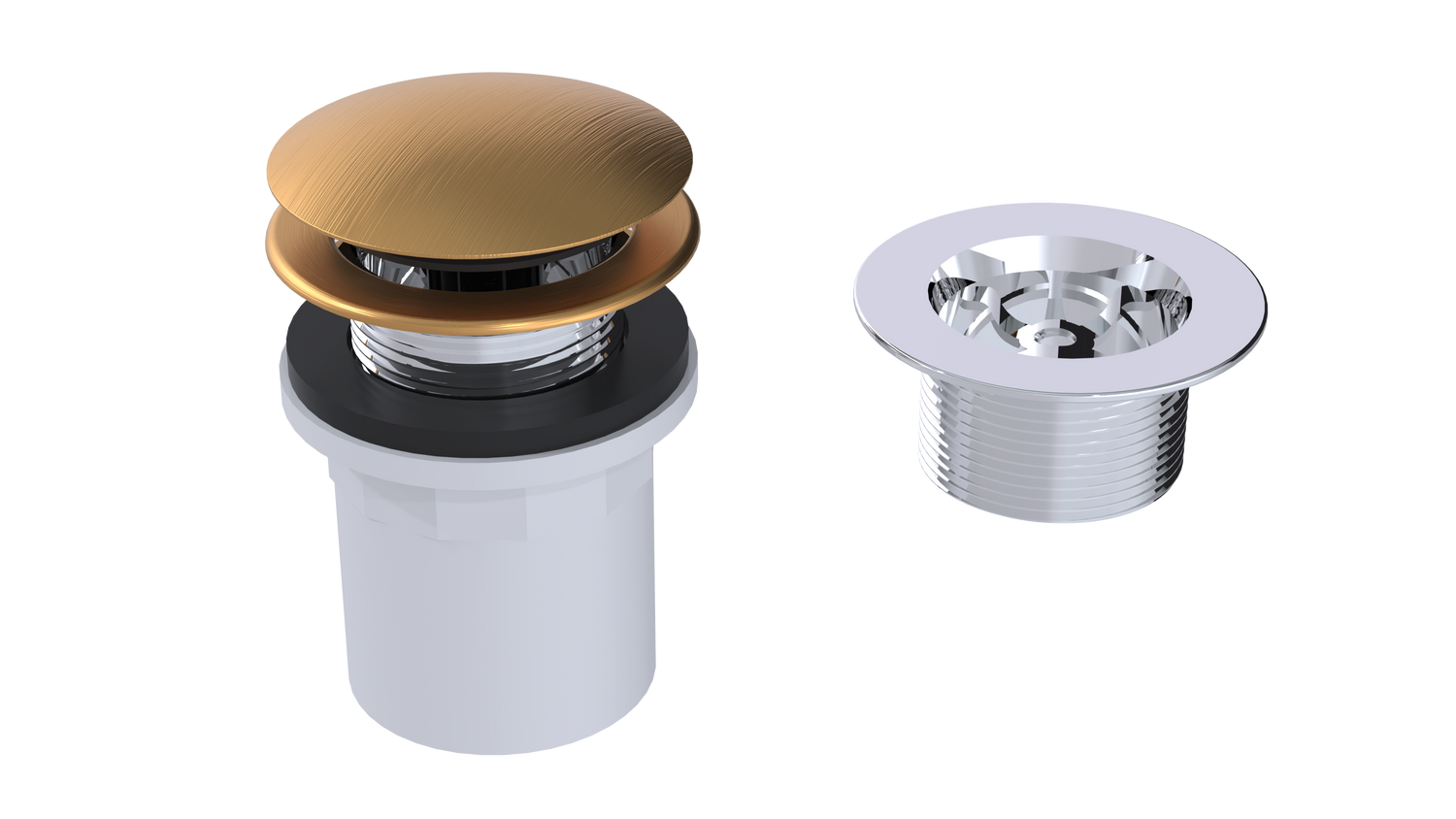

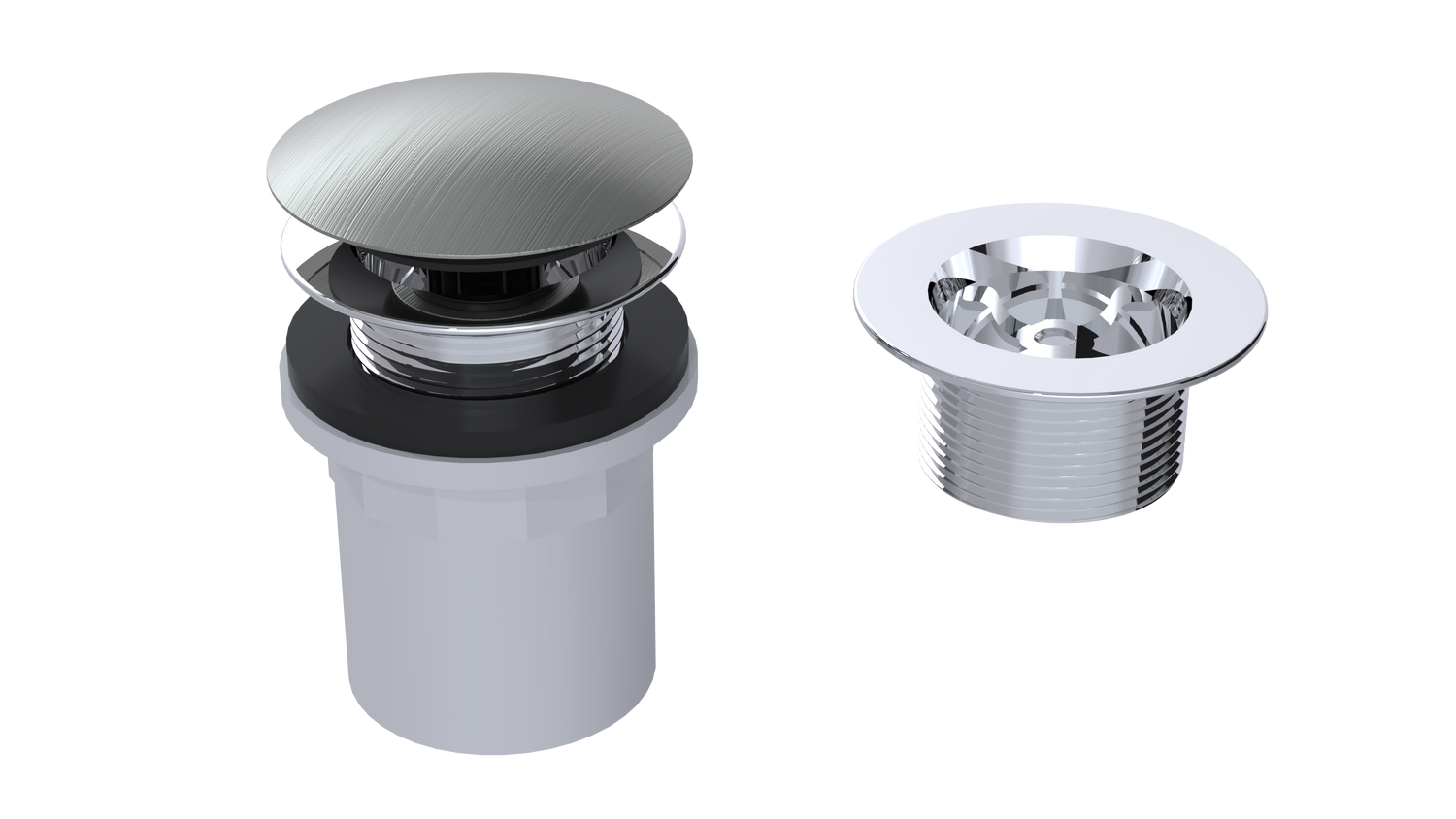

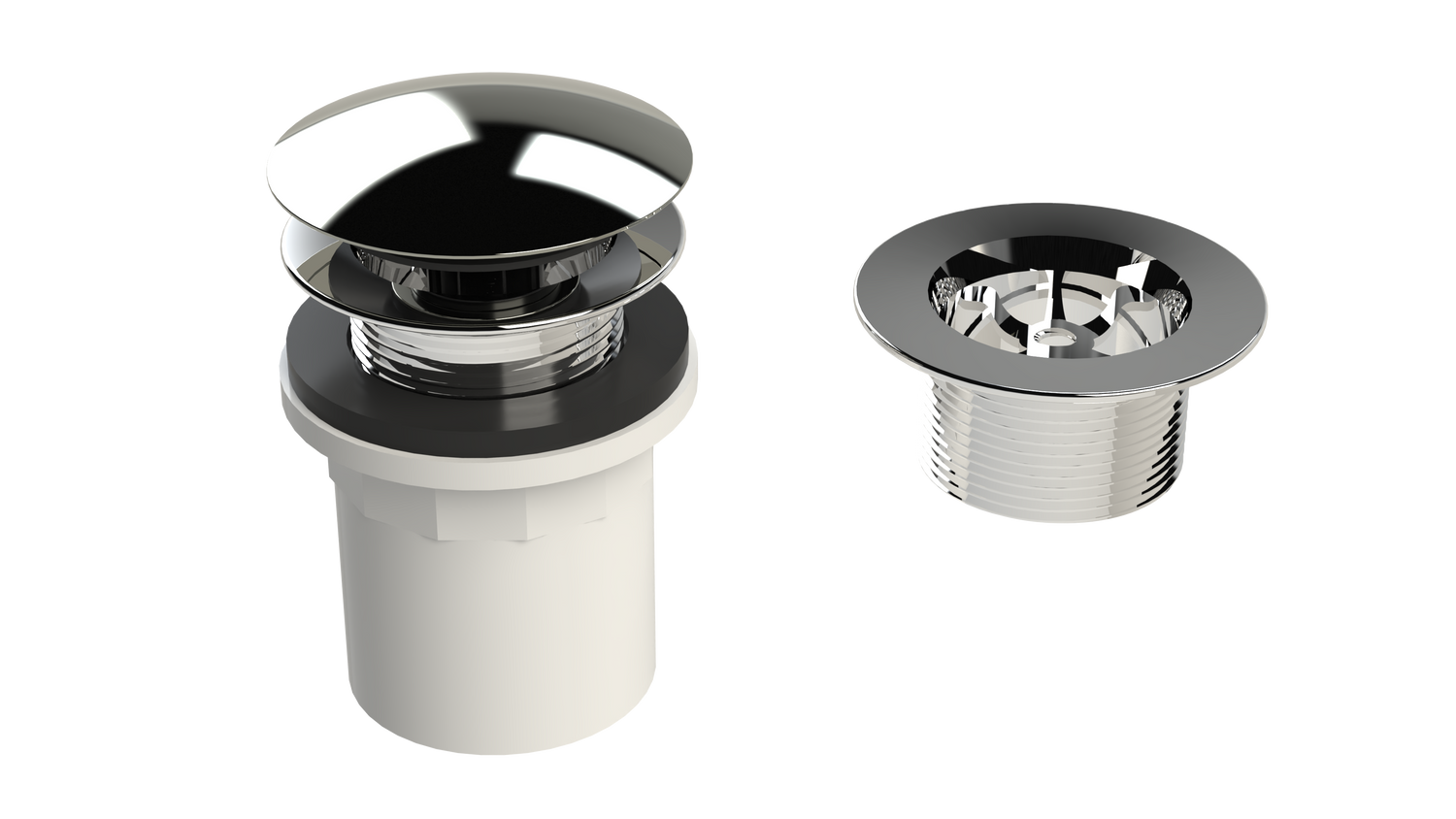

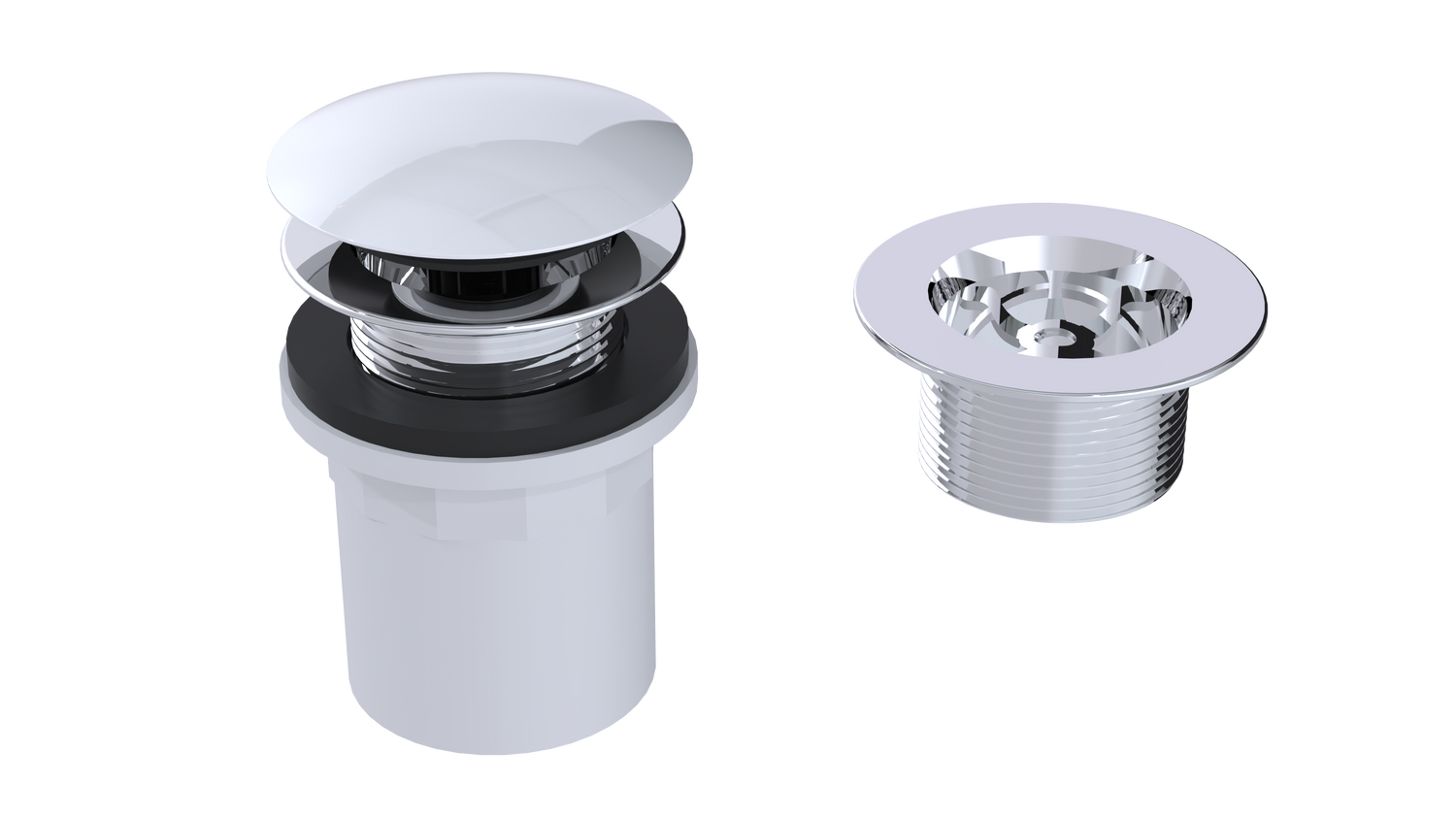

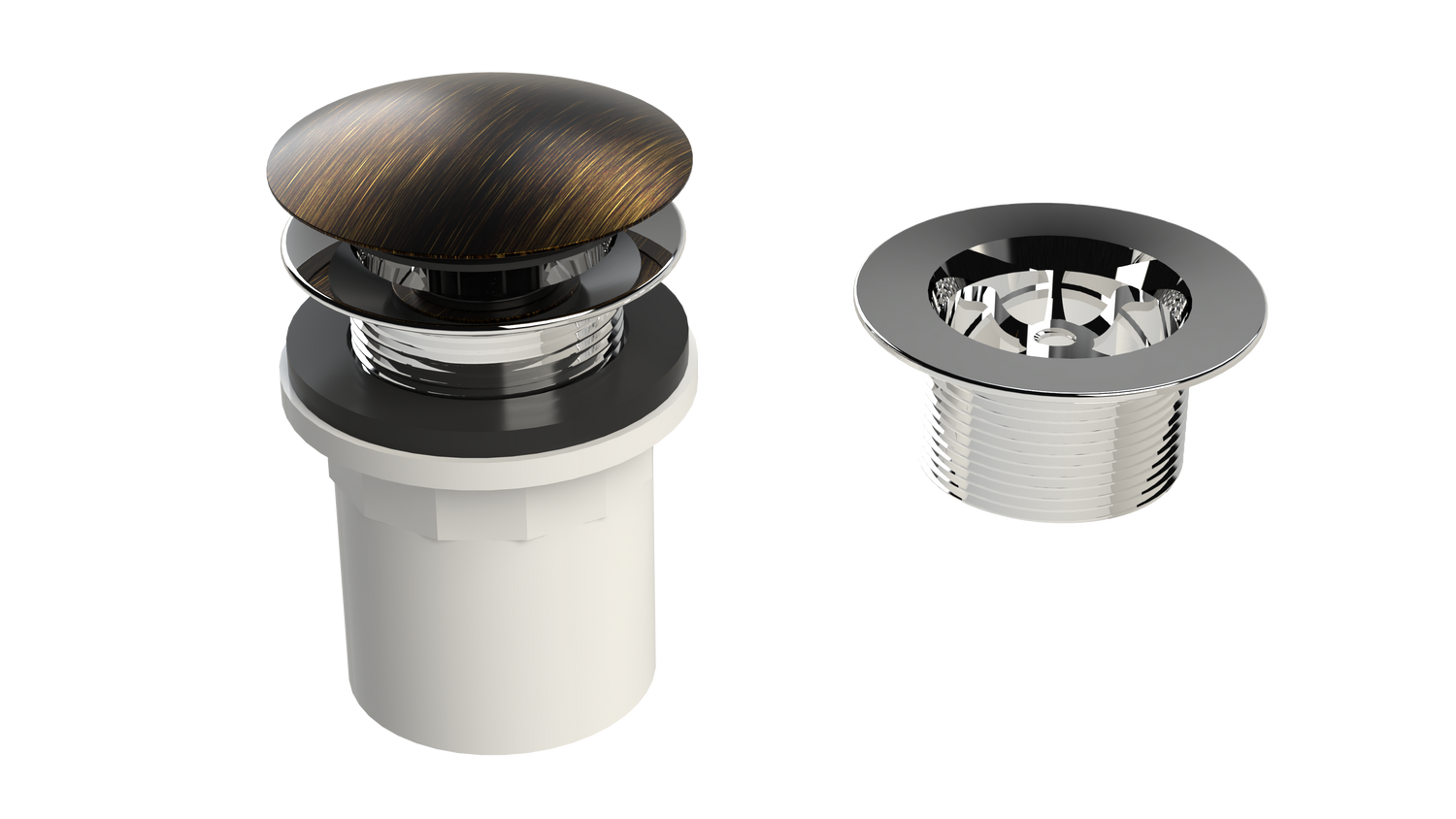

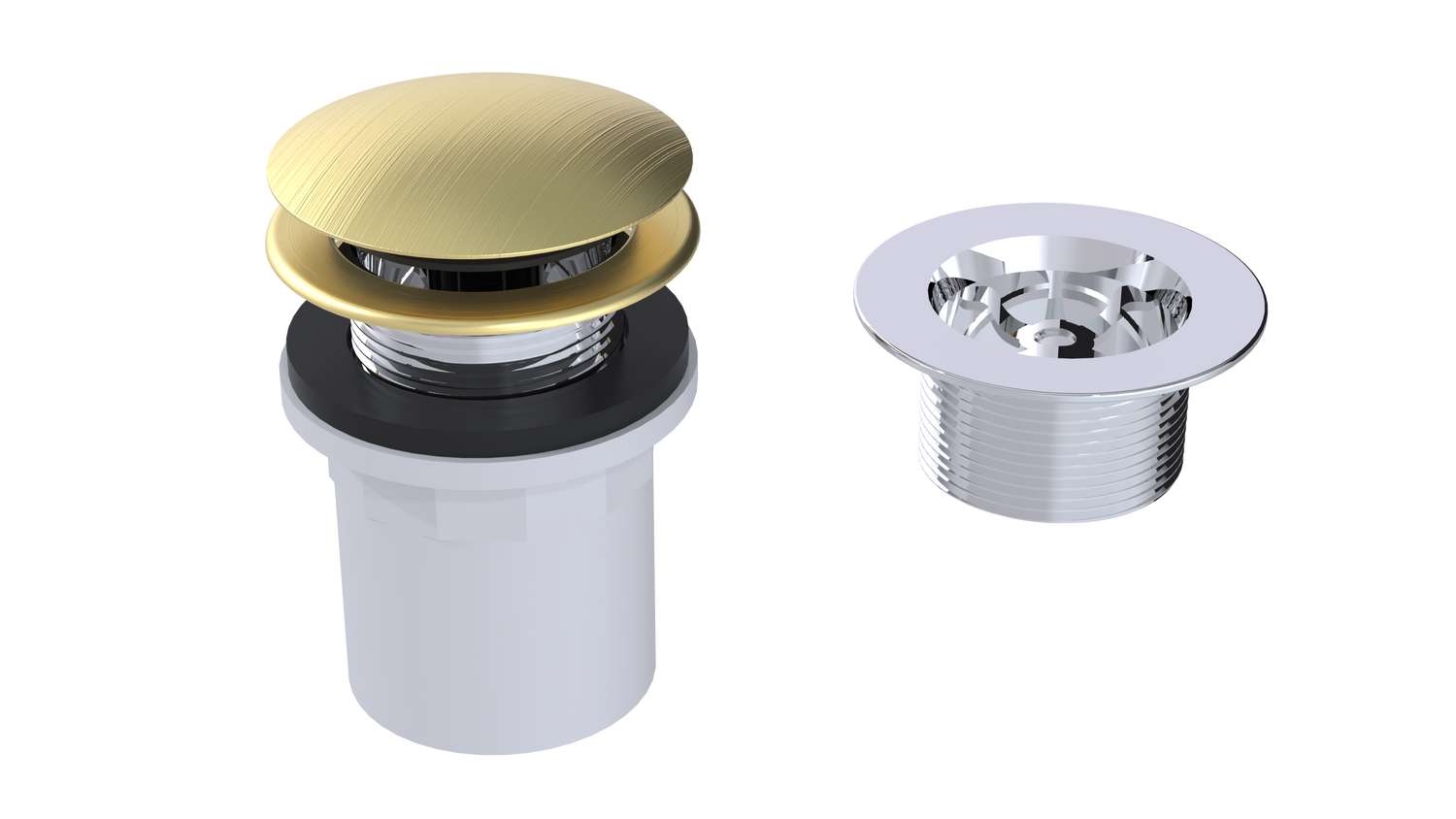

The OS&B 510Q is a 1-1/2" PVC Clicker® integral waste & overflow kit for bathtubs without overflow. The package contains two strainers (short and tall) to accommodate most bathtub thicknesses, and the PVC fitting accepts a 1-1/2 DWV pipe (not included). It is offered in a choice of finishes such as Brass Chrome Plated, Matte Black and White.

Features

• Two strainers (short and tall) to accommodate most bathtub thicknesses
• Brass coarse thread strainer with 5/16-18 UNC thread-in crossbar (accepts most drain mechanisms)
• Clicker® stopper with 5/16-18 thread mechanism
• PVC fitting accepts a 1-1/2 DWV pipe; pipe not included
• Integral waste & overflow design for bathtubs without overflow
• 510Q-BCP: CCSA US UPC Certification

Specifications

• Material: PVC
• Strainer height: 2-1/8"
• Waste fitting height: 2-9/16"
• Crossbar thread: 5/16-18 UNC
• Pipe: 1-1/2 DWV (not included)
• Available finishes: Brass Chrome Plated, Brushed Gold, Brushed Nickel, Luxe Bronze, Matte Black, Polished Nickel, Venetian Bronze, White
