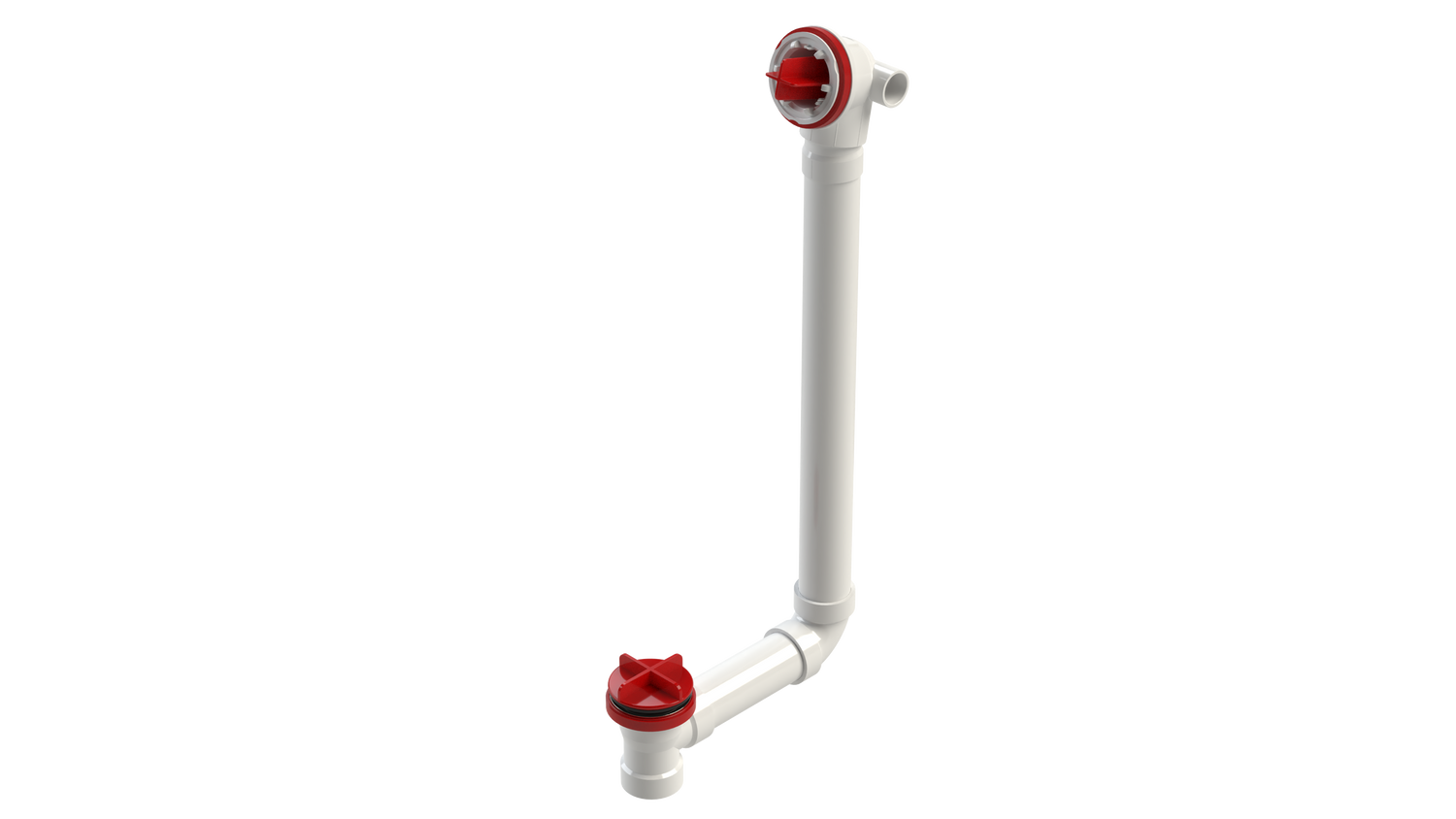

The OS&B 55DTDRI-20 is a 1-1/2" PVC direct waste and overflow in a testable rough-in version, extended with a condensate hub. It features a spin-on tie plate, angle adapter, large strainer and thread-in test plugs. The overflow head has an integrated 6 degree angle and aggressive threads for a quicker and easier installation.
Features
- Thick foam overflow gasket with adhesive back
- Spin-on tie plate for a tool-less installation
- Angle adapter included; its use is optional
- Self-clinging rubber waste gasket
- Coarse thread strainer
- Thread-in waste test plug with stainless steel post
Specifications
- Size: 1-1/2"
- Material: PVC
- Drain type: Direct
- Version: Testable rough-in with condensate hub
- Length: Extended
