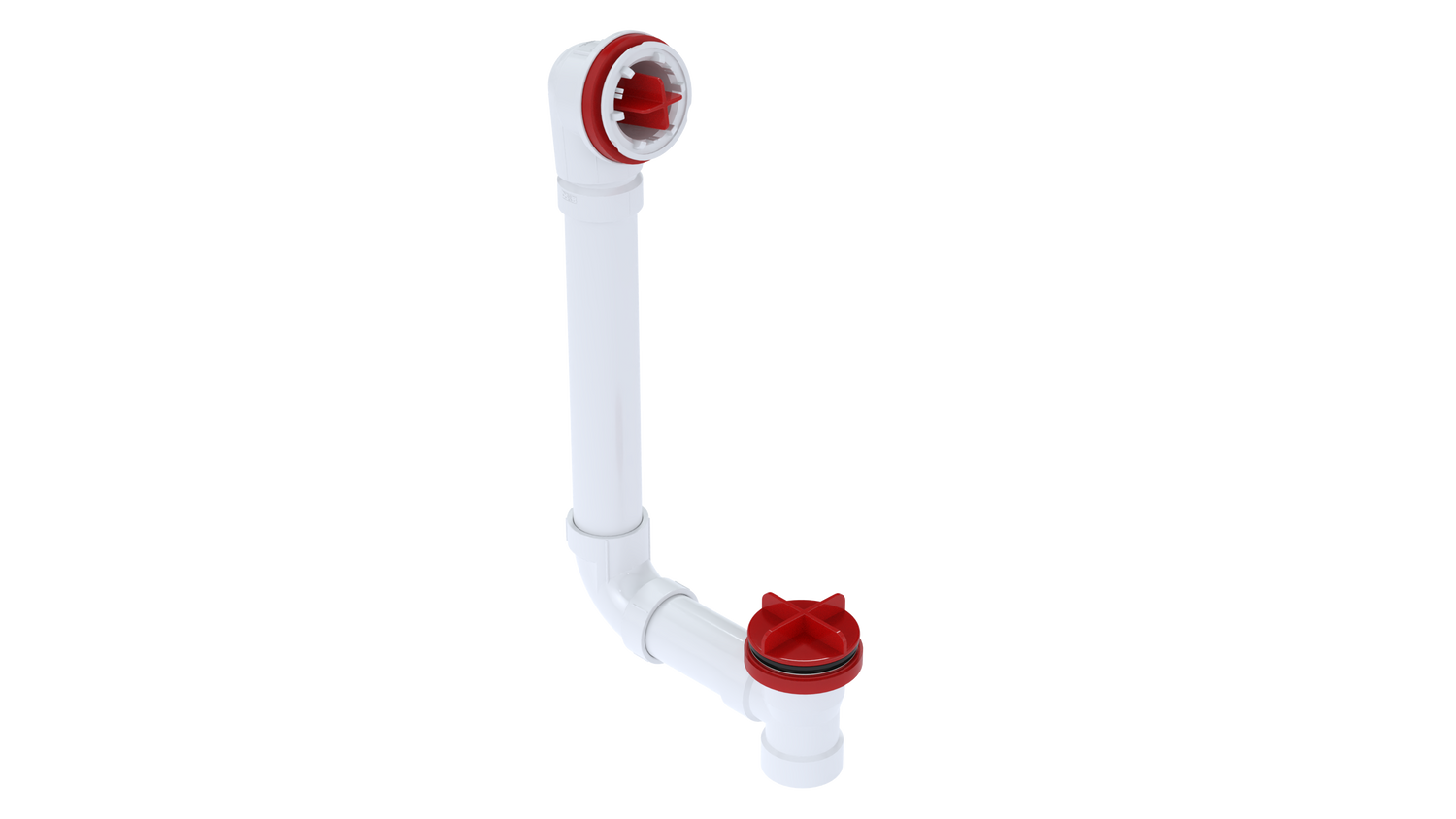

PVC Direct Waste & Overflow Testable Rough-In (52DTDRI-16)

The OS&B 52DTDRI-16 is a 1-1/2" PVC direct waste and overflow testable rough-in, standard length. It is a Schedule 40 PVC direct testable rough-in that features a spin-on tie plate, angle adapter, large strainer and thread-in test plugs. It is made for 1-1/2" PVC pipe.

Features

• Thick foam overflow gasket with adhesive back
• Spin-on tie plate for a toolless installation
• Overflow head with an integrated 6 degree angle
• Overflow head with aggressive threads for a quicker and easier installation
• Angle adapter included; its use is optional
• Self-clinging rubber waste gasket
• Coarse thread strainer
• Thread-in waste test plug with stainless steel post

Specifications

• Size: 1-1/2"
• Material: Schedule 40 PVC
• Length: Standard length
• Dimension A (configuration table): 15 3/16" [386mm]
• Dimension B (configuration table): 7 1/2" [190mm]
• Certification: ASME A112.18.2/CSA-B125.2; CCSA US UPC Certification
