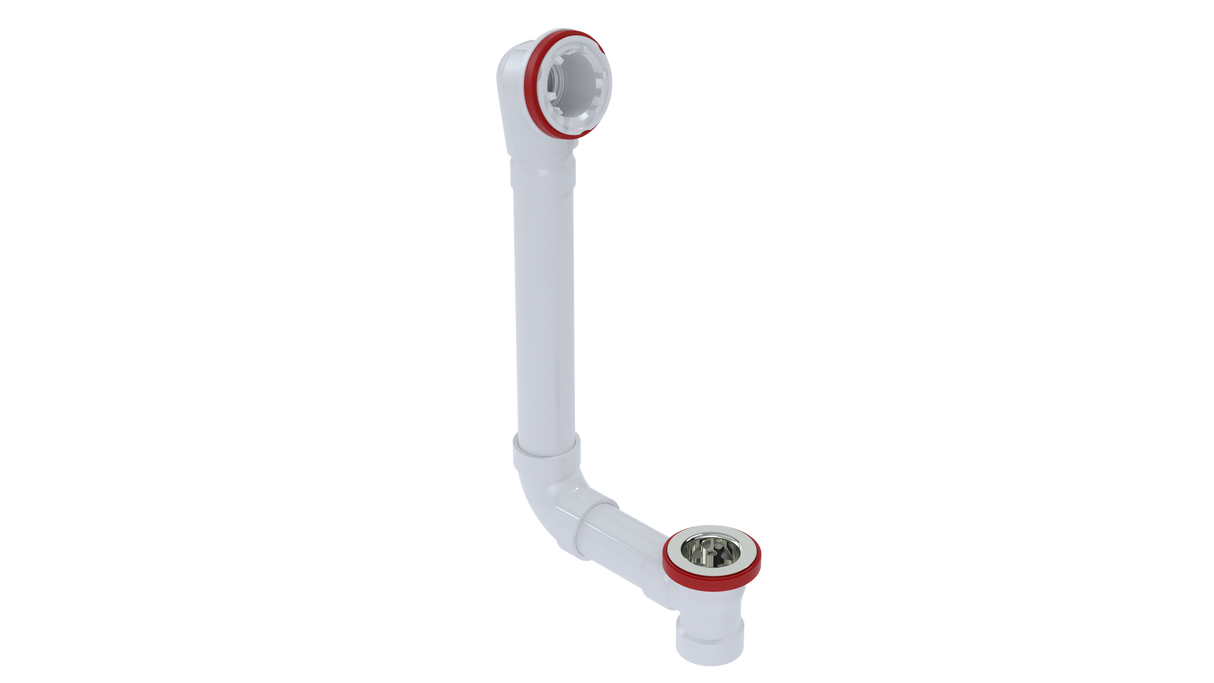

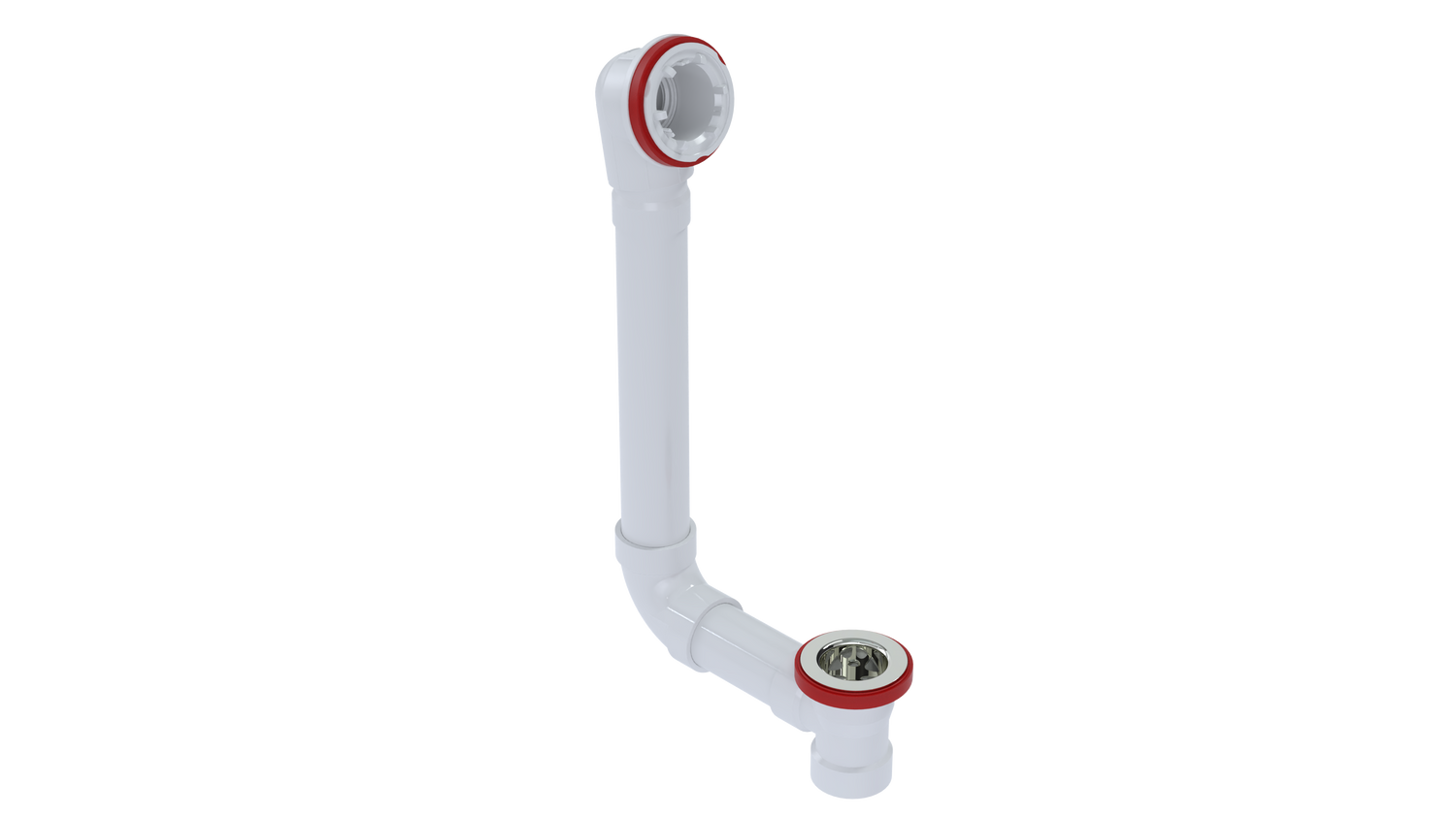

PVC Direct Waste & Overflow Rough-in (52DRI-16)

The OS&B 52DRI-16 is a 1-1/2" PVC direct waste and overflow rough-in, standard length. It is a Schedule 40 PVC direct rough-in with a spin-on tie plate, angle adapter and large strainer, for 1-1/2" PVC pipe. The trim kit is sold separately.

Features

• Spin-on tie plate for a toolless installation
• Thick foam overflow gasket with adhesive back
• Overflow head with aggressive threads for a quicker and easier installation
• Self-clinging rubber waste gasket
• Polished stainless steel coarse thread strainer
• Angle adapter

Specifications

• Size: 1-1/2"
• Material: Schedule 40 PVC
• Length: Standard length
• Dimension A (configuration table): 14 3/4" [375mm]
• Dimension B (configuration table): 7" [178mm]
• Certification: ASME A112.18.2/CSA-B125.2; cCSAus Meets UPC & IPC Code mark (conforms to the requirements of the NPC, UPC, IPC and IRC)
• Trim kit: Sold separately
