PVC DIRECT DRAIN WASTE & OVERFLOW LIFT & TURN HALF KIT (541DLHK)

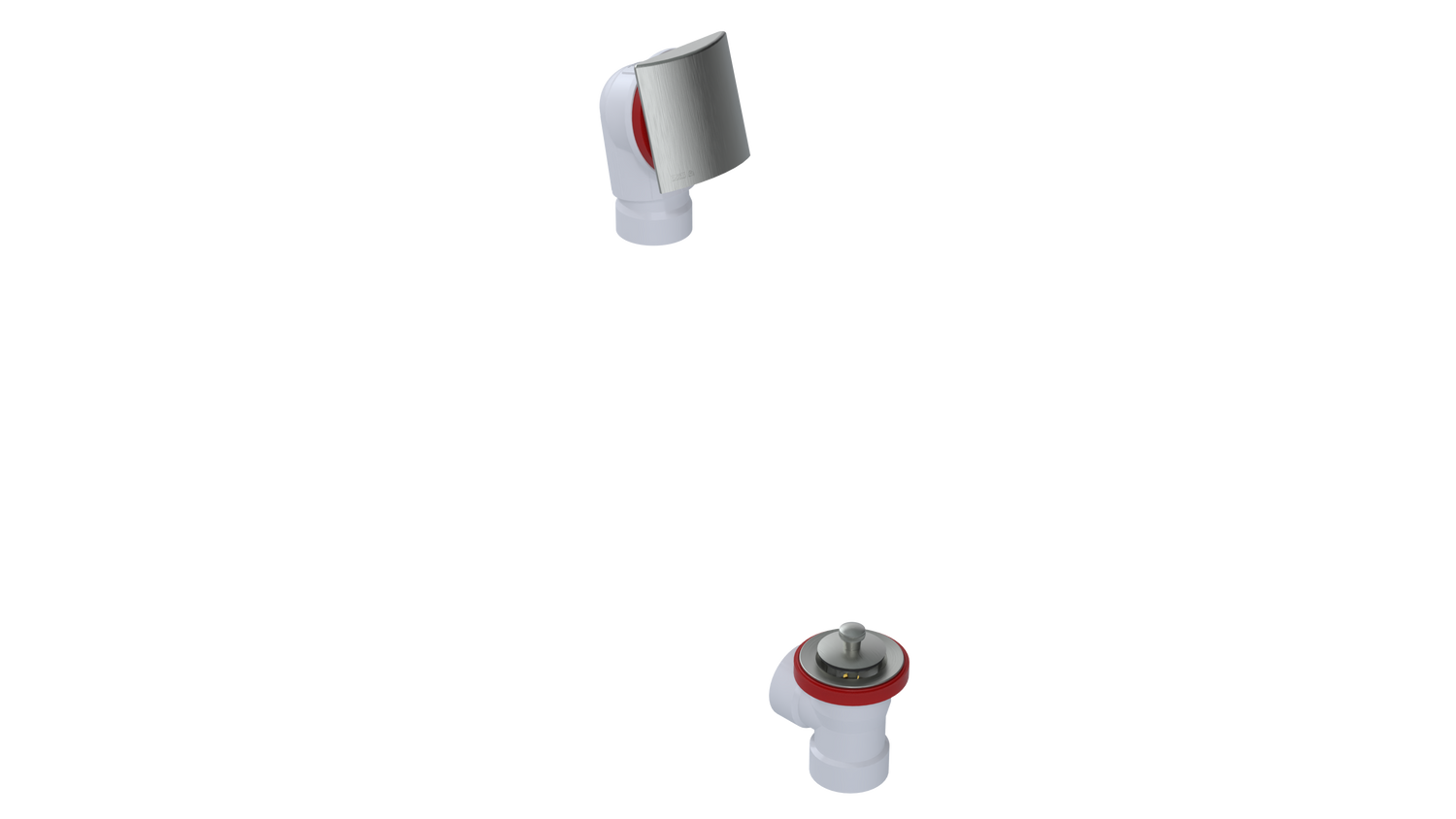

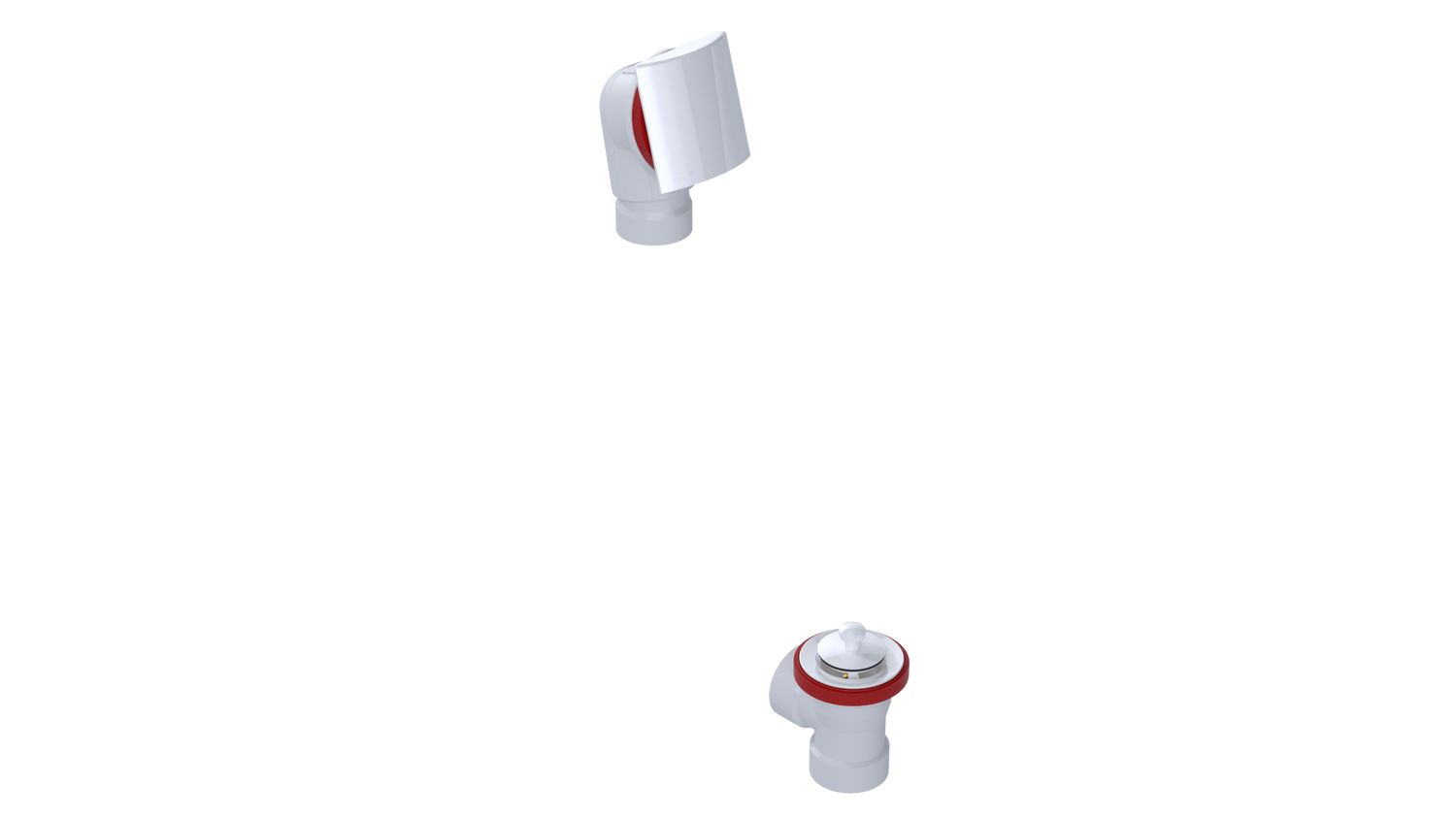

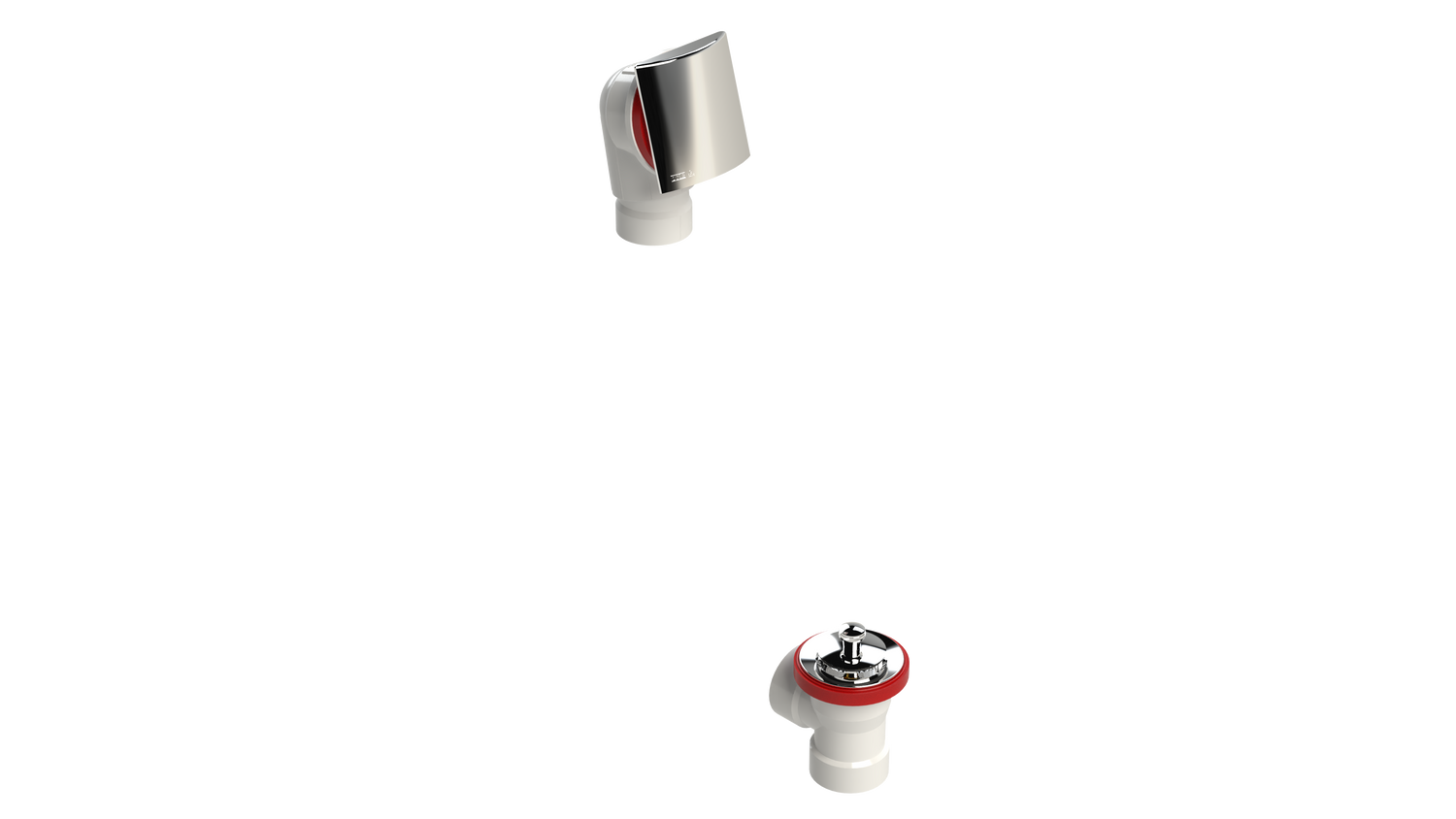

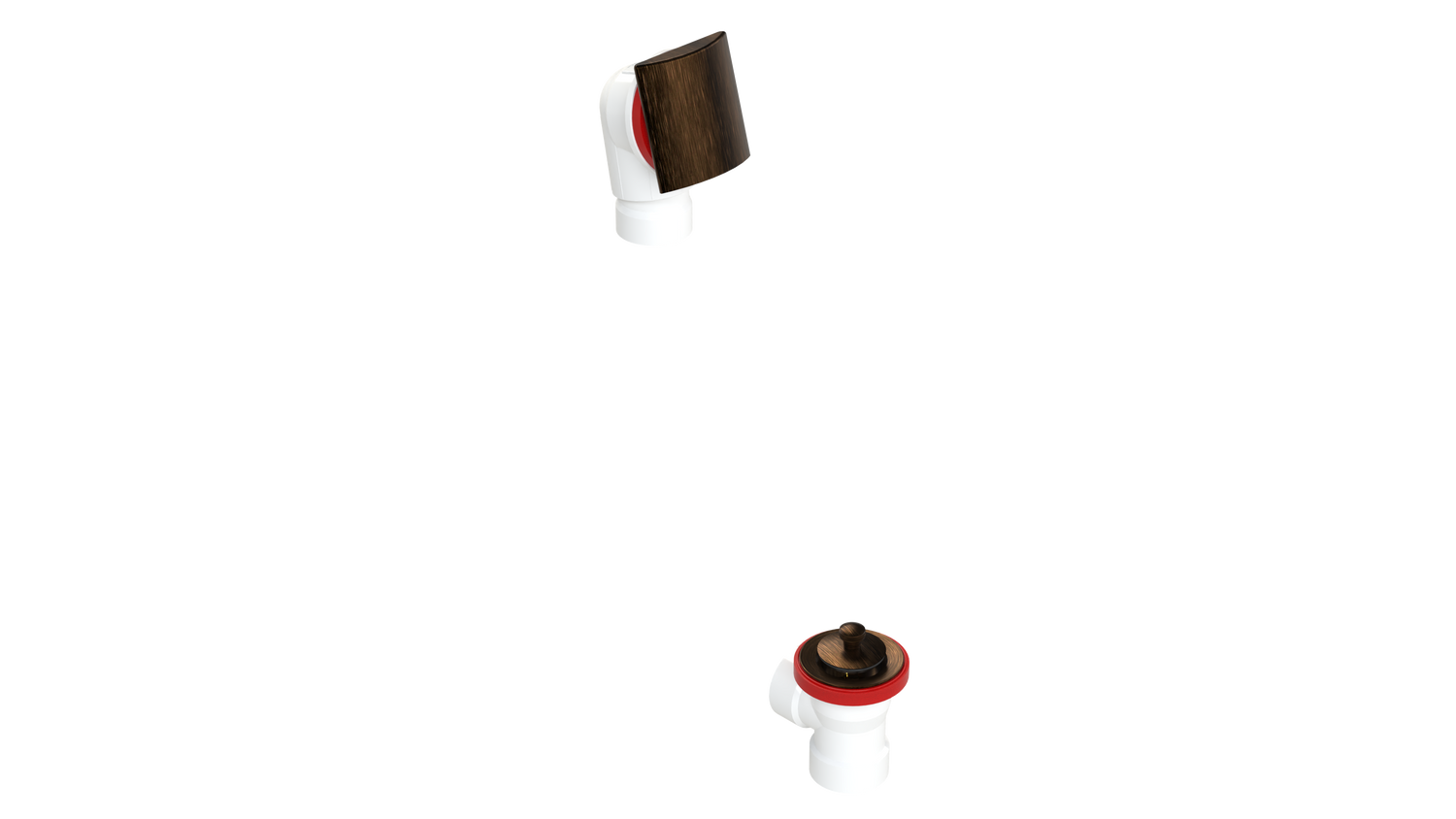

The OS&B 541DLHK is a 1-1/2" PVC direct lift & turn waste and overflow with a square faceplate, half kit (less tee). It is a direct style Schedule 40 PVC solvent weld bath waste/overflow with a square SlideOn™ faceplate, spin-on tie plate, angle adapter and a large strainer with lift & turn stopper. Choose from Brushed Nickel, Chrome Plated, Venetian Bronze or White.

Features

• Square SlideOn faceplate
• Large strainer with lift & turn stopper
• Thick foam overflow gasket with adhesive back
• Spin-on tie plate for a tool-less installation
• Overflow head with an integrated 6 degree angle
• Overflow head with aggressive threads for a quicker and easier installation
• Angle adapter included; its use is optional
• Self-clinging rubber waste gasket
• Coarse thread strainer

Specifications

• Size: 1-1/2"
• Material: Schedule 40 PVC
• Style: Direct, solvent weld
• Faceplate: Square SlideOn™
• Closure: lift & turn
• Available finishes: Brushed Nickel, Chrome Plated, Venetian Bronze, White
• Certification: cCSAus Meets UPC mark (conforms to the requirements of the NPC, UPC, IPC and IRC)
