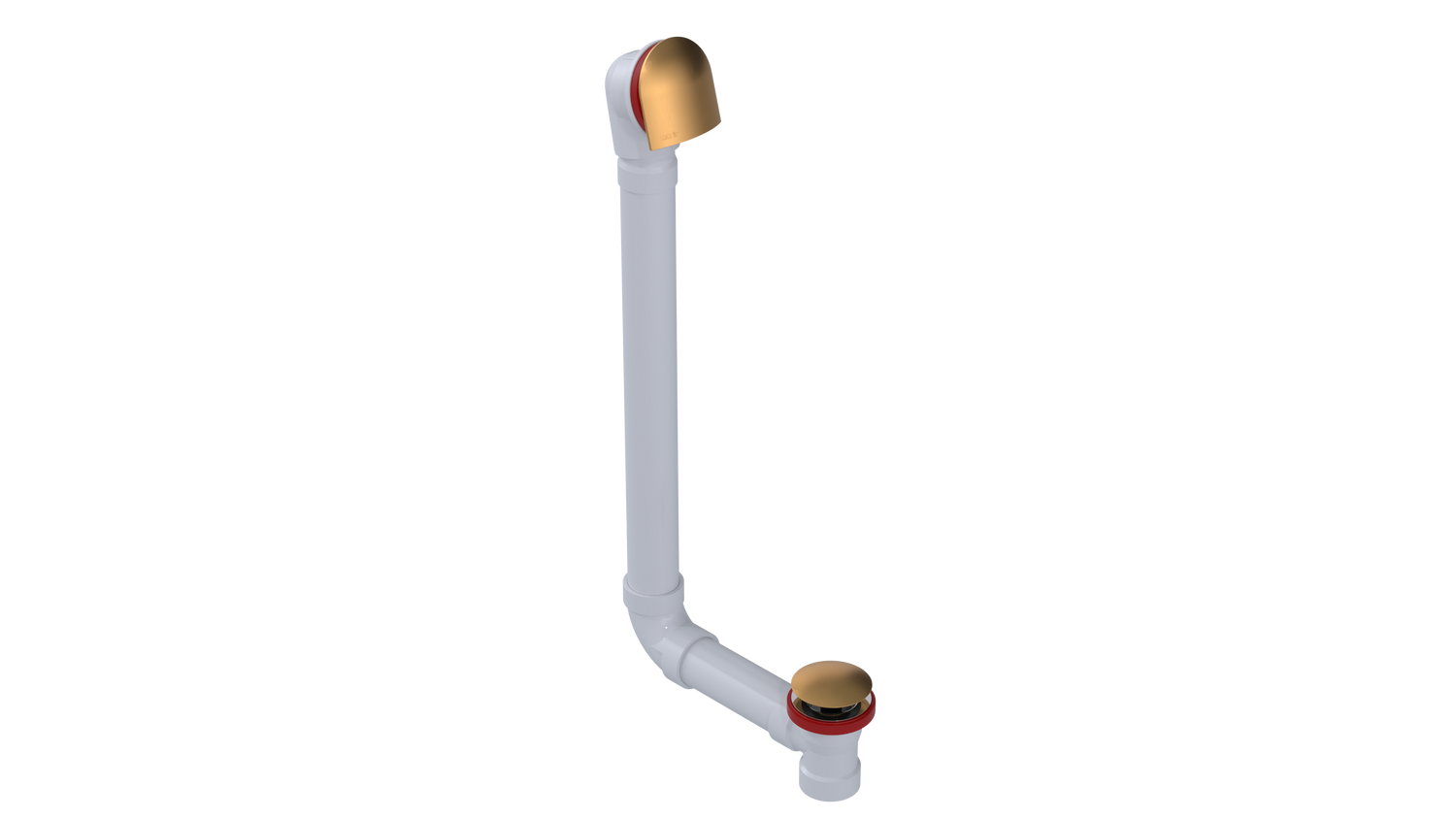

PVC DIRECT DRAIN WASTE & OVERFLOW CLICKER® EXTENDED (54DQ-20LB)

The OS&B 54DQ-20LB is a Schedule 40 PVC direct waste & overflow with a Clicker® stopper in an extended length, for 20" bathtubs. It uses 1-1/2" PVC pipe and features a Bell SlideOn™ faceplate, spin-on tie plate and angle adapter. The large strainer has a Brass Top EUROCLICKER® stopper, and this listing is the Luxe Bronze finish.

Features

• Bell SlideOn™ faceplate
• Thick foam overflow gasket with an adhesive back
• Spin-on tie plate for a tool-less installation
• Overflow head with an integrated 6 degree angle
• Overflow head with aggressive threads for a quicker and easier installation
• Angle adapter included; its use is optional
• Self-clinging rubber waste gasket
• Coarse thread strainer
• Large strainer with a Brass Top EUROCLICKER® stopper

Specifications

• Style: Direct
• Length: Extended
• Bathtub: For 20" bathtubs
• Pipe: 1-1/2" PVC
• Material: PVC
• Faceplate: Bell SlideOn™
• Stopper: Brass Top EUROCLICKER®
• Finish: Luxe Bronze
• Certification: ASME A112.18.2/CSA-B125.2; CCSA US UPC Certification
• Code conformance: The cCSAus Meets UPC & IPC Code mark means the product conforms to the requirements of the NPC, UPC, IPC, and IRC
