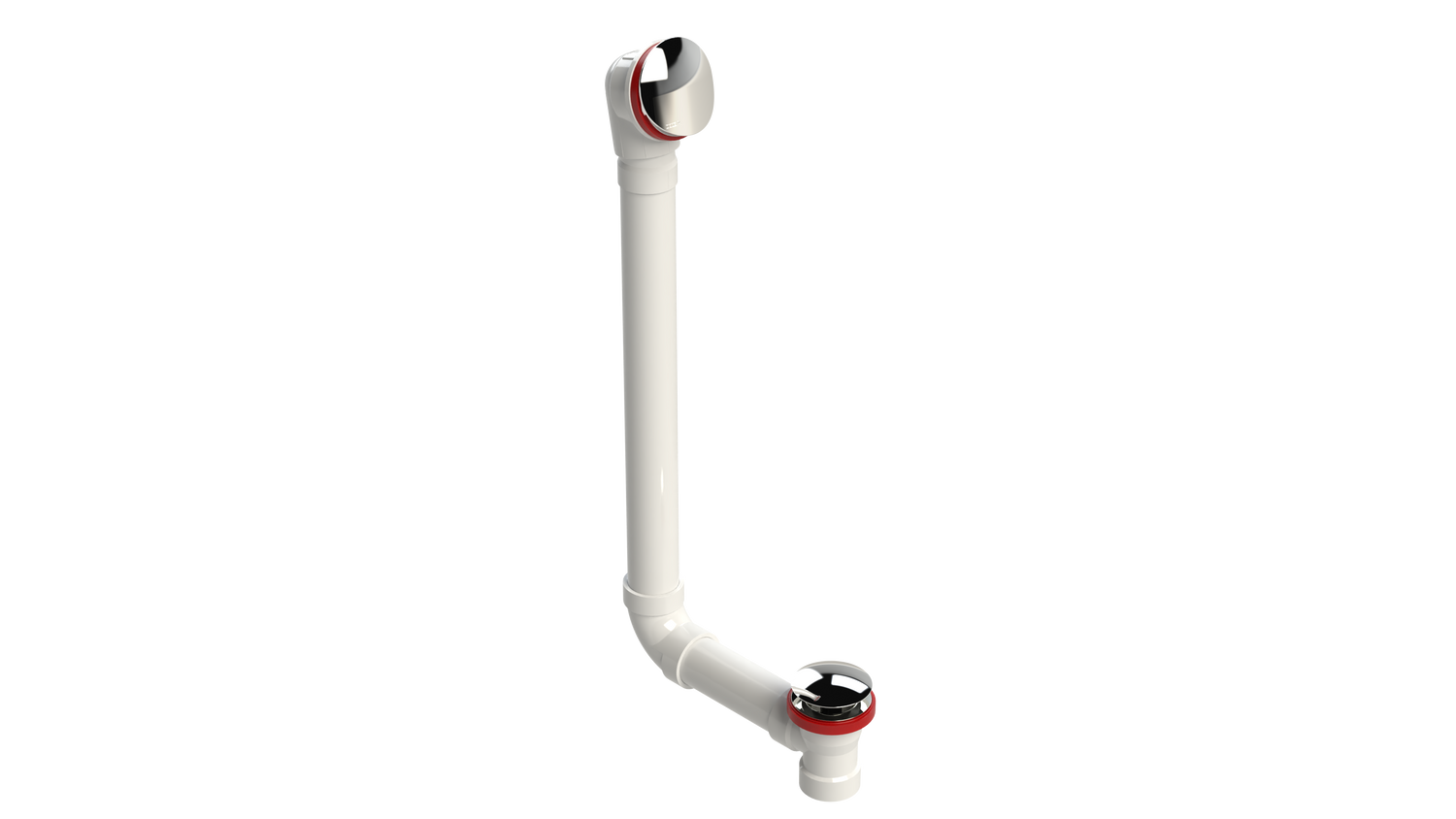

PVC DIRECT DRAIN WASTE & OVERFLOW CLICKER® EXTENDED (542DQ-20CP)

The OS&B 542DQ-20CP is a 1-1/2" PVC direct Clicker® bath waste and overflow in the extended length. It features a Round SlideOn™ faceplate, spin-on tie plate and angle adapter, plus a large strainer with a Brass Top EUROCLICKER® stopper. Construction is Schedule 40 PVC. It is for 20" bathtubs and uses 1-1/2" PVC pipe.

Features

• Thick foam overflow gasket with adhesive back
• Spin-on tie plate for a tool-less installation
• Overflow head with an integrated 6 degree angle
• Overflow head with aggressive threads for a quicker and easier installation
• Angle adapter included; its use is optional
• Self-clinging rubber waste gasket
• Coarse thread strainer

Specifications

• Style: Direct
• Construction: Schedule 40 PVC
• Material: PVC
• Length: Extended
• Bathtub: For 20" bathtubs
• Pipe: Uses 1-1/2" PVC pipe
• Faceplate: Round SlideOn™
• Stopper: Brass Top EUROCLICKER®
• Finish: Chrome Plated
• Certification: ASME A112.18.2/CSA-B125.2; "cCSAus" Meets UPC & IPC Code mark (conforms to the requirements of the NPC, UPC, IPC, and IRC)
