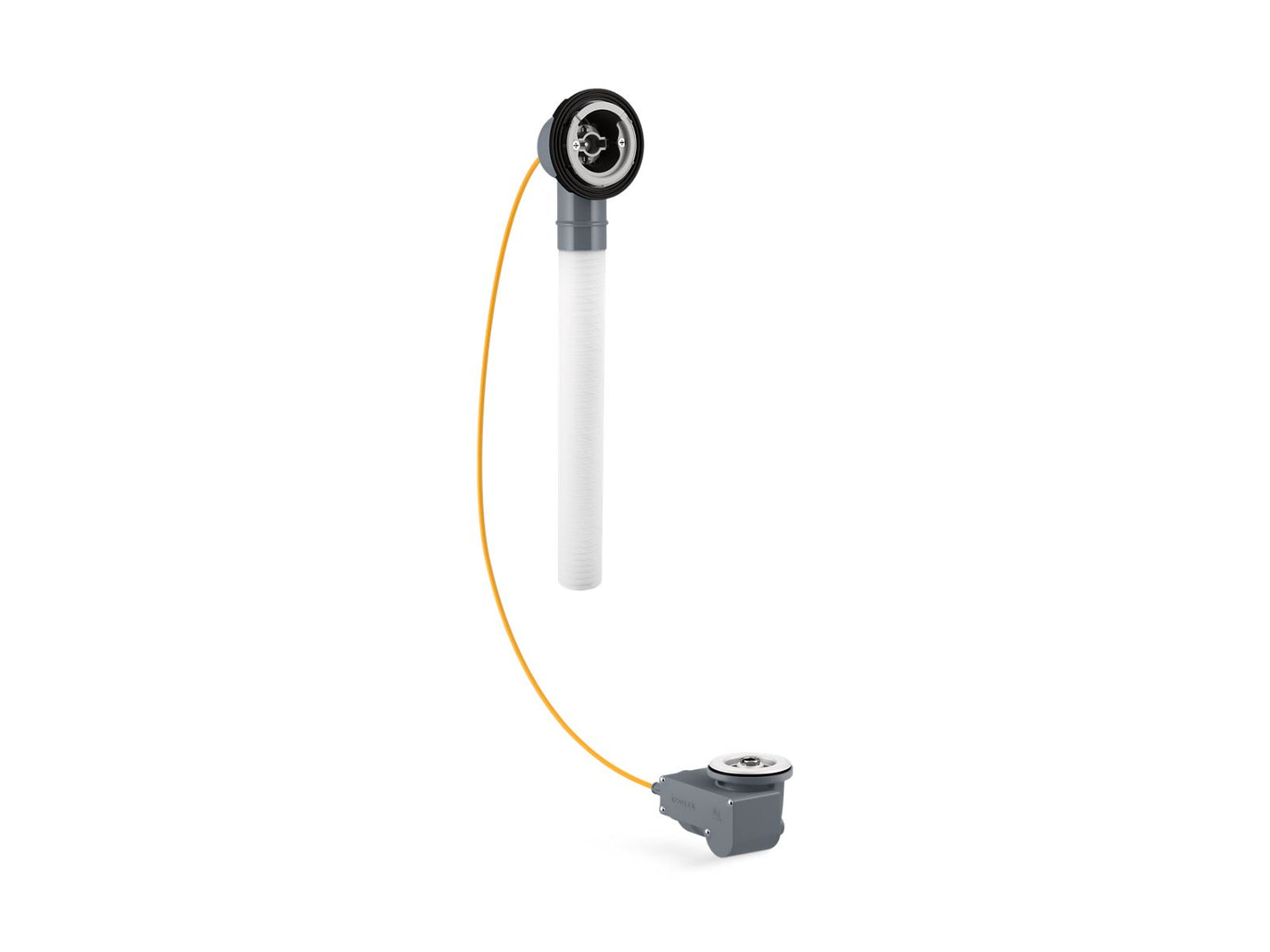

PureFlo™ Rough-in cable drain, PVC, 45" cable, less horizontal tube

Designed for use with KOHLER® PureFlo trims, this PureFlo cable bath drain features easy installation and a design that minimizes clogging through the overflow. PureFlo's modular design means you can use this PureFlo rough drain with any PureFlo handle trim kit. And the trim can be changed without behind-the-bath access, making it an easy, convenient choice for remodels or refreshing. Trim options include basic, contemporary, traditional, and Victorian designs in rotary turn or push-button styles to complement any bath decor, and are sold separately.

Features

• For baths 21" – 26" (533 – 660 mm) deep from center of bath overflow outlet to center of bath drain outlet
• 45" (1143 mm) length external cable
• Includes drain ell, overflow ell and overflow tube
• Flexible overflow joint conforms to various bath angles
• No internal linkages, reducing the potential for clogging
• Less horizontal PVC tube and tee
• For use with any PureFlo rotary or push hand controls and pop-up drain stopper kit (sold separately)

Specifications

• Dimensions: 26.378 x 8.661 x 3.543 in
• Weight: 2.378 lb
• UPC: 885612069498

Installation

• Can be installed and tested without required trim kit
• Above- or through-the-floor
• Flexible overflow joint conforms to various bath angles for easy installation
