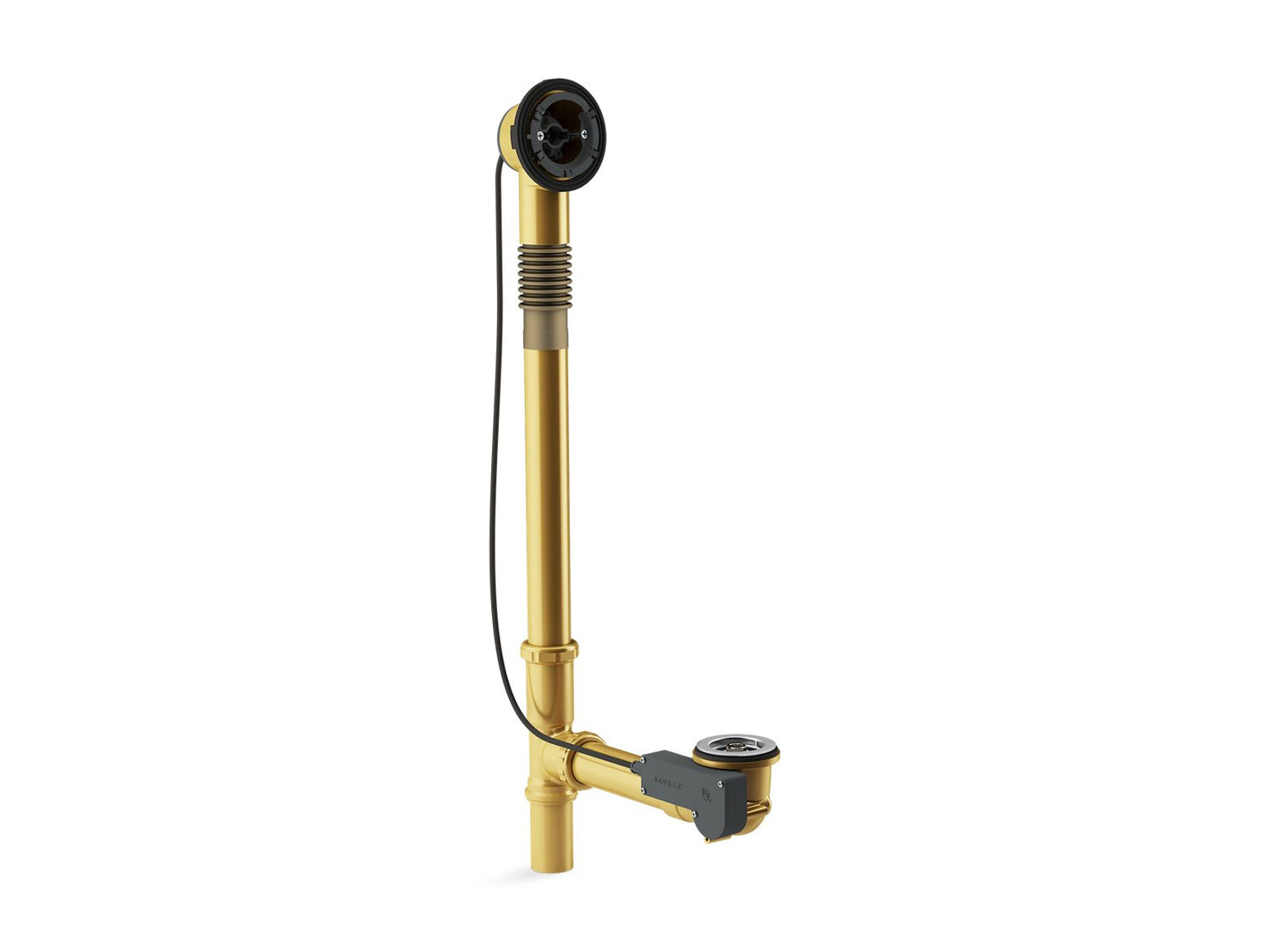

PureFlo™ 30" cable bath drain

Designed for use with KOHLER® PureFlo trim, this solid-brass PureFlo cable bath drain features easy installation and a design that minimizes clogging through the overflow. The modular design means you can use this PureFlo rough-in drain with any PureFlo trim kit. And the trim can be changed without behind-the-bath access, making it an easy, convenient choice for remodels or refreshing. Trim options include basic, contemporary, traditional, and Victorian designs in rotary turn or push-button styles to complement any bath decor. Trim sold separately.

Features

• For baths 15" – 21" (381 – 533 mm) deep from center of bath overflow outlet to center of bath drain outlet
• 30" (762 mm) length external cable
• Flexible overflow joint conforms to various bath angles
• Rotary or push handle controls and pop-up drain stopper (sold separately)
• No internal linkages, reducing the potential for clogging
• Includes tee, drain ell, and overflow ell with attached 1-1/2" OD pipe
• Flexible overflow neck fits various bath angles for easy installation

Specifications

• Dimensions: 26.75 x 9 x 3.75 in
• Weight: 5.476 lb
• UPC: 885612976222

Installation

• Above- or through-the-floor
• Can be installed and tested without required trim kit
