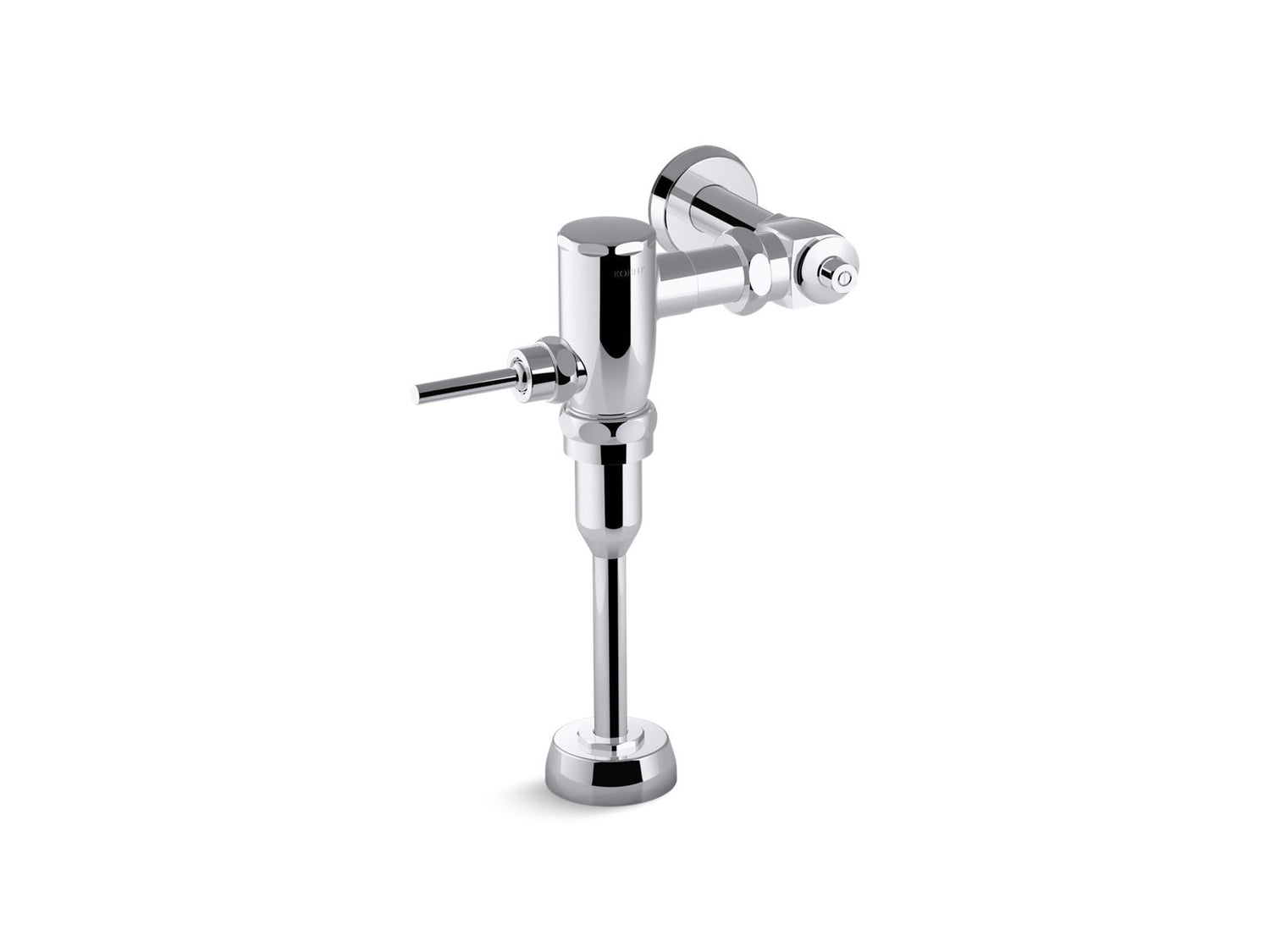

Primme® Manual Urinal flushometer, 0.5 gpf

The Kohler Primme® Manual K-76318 urinal flushometer, 0.5 gpf, features a simple, brass-body design and reliable piston technology to meet the demands of high-use installations. Easy to install and suitable for retrofit, this water-saving manual flush valve is compatible with KOHLER tailpiece and stop valves. It includes a vacuum breaker and control stop and is intended for urinal installations with a 3/4" (19 mm) top spud coupling connection.

Features

• Fixture-mount design
• Chloramine resistance on all rubber components exposed to waterway
• Includes vacuum breaker and control stop
• Nonhold open piston technology for accurate activation
• Lever handle
• Durable brass construction
• ADA, OBC, CSA B651 compliant when installed to the specific requirements of these regulations
• Should be used with a WaterSense labeled counterpart with the same rated flush volume to ensure the complete system meets the specification for water efficiency and performance

Specifications

• Flush volume: 0.5 gpf
• Minimum flowing pressure: 25 psi (172.4 kPa)
• Minimum flow rate: 9 gpm (34.1 l/min)
• Supply: 3/4"-14 NPT
• Codes/Standards: ASSE 1037/ASME A112.1037/CSA B125.37; EPA WaterSense®; ADA; ICC/ANSI A117.1; CSA B651; OBC
• Warranty: KOHLER® One-Year Limited Warranty
• Finish: Polished Chrome
• Note: All product dimensions are nominal
